◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51488 - UCR/UCS(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#129590) — 31 parça

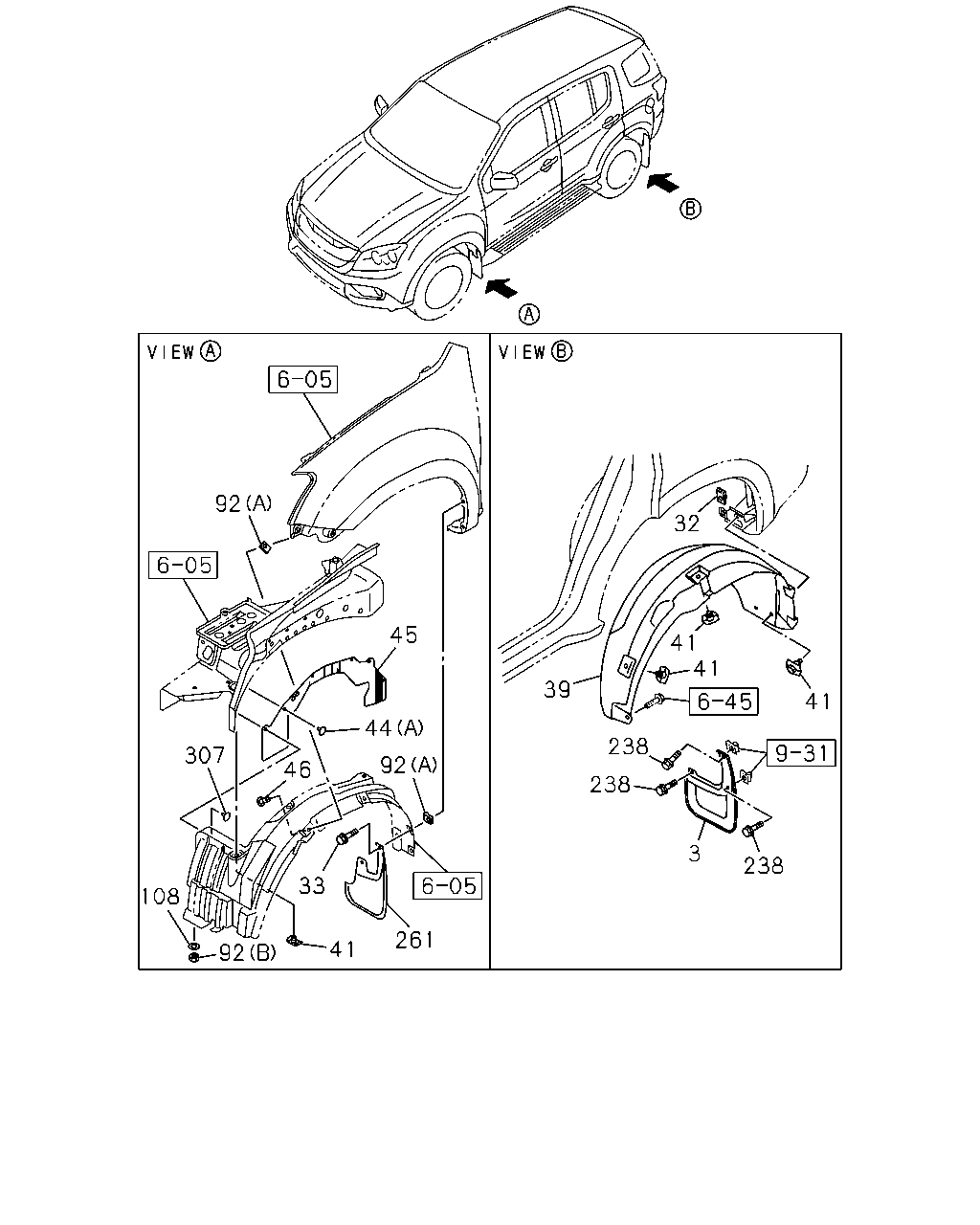

çizim 379666
238 3 238 39 238 41 41 41 32 261 41 33 92 92 44 45 46 307 108 92
BalonParca AdiParca NoAdetTipApplied Date A B
3 GUARD; MUD,RR
THA 		8-98189-866-1 01 1 1310- ● ●
3 GUARD; MUD,RR
THA 		8-98189-867-1 01 1 1310- ● ●
32 NUT; MUD GUARD
THA 		8-97125-519-0 02 1 1310- ● ●
33 BOLT; MUD COVER
M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 06 1 1310- ● ●
39 LINER; FENDER
THA 		8-98190-330-1 01 1 1310- ● ●
39 LINER; FENDER
THA 		8-98190-331-1 01 1 1310- ● ●
41 RIVET; INNER LINER
THA 		8-94221-150-0 02 1 1310- ● ●
41 RIVET; INNER LINER
THA 		8-94221-150-0 24 1 1310- ● ●
44 CLIP; ANCHOR
A/T 5 SPEED-AISIN<MA1>,M/T MUA 5 SPEED 5H<MWQ> (A) OD=22 L=10.7 THA 		8-94215-211-0 10 1 1310- ●
44 CLIP; ANCHOR
A/T 5 SPEED-AISIN<MA1>,M/T MUX 5 SPEED 5S<MZJ> (A) OD=22 L=10.7 THA 		8-94215-211-0 10 1 1310- ●
44 CLIP; ANCHOR
(B) OD=12 L=14.8 THA 		8-94279-921-0 01 1 1310- ● ●
45 COVER; MUD,FENDER SKIRT
A/T 5 SPEED-AISIN<MA1>,M/T MUA 5 SPEED 5H<MWQ> THA 		8-98077-268-1 01 1 1310- ●
45 COVER; MUD,FENDER SKIRT
A/T 5 SPEED-AISIN<MA1>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-98077-268-1 01 1 1310- ●
45 COVER; MUD,FENDER SKIRT
A/T 5 SPEED-AISIN<MA1>,M/T MUA 5 SPEED 5H<MWQ> THA 		8-98077-270-0 01 1 1310- ●
45 COVER; MUD,FENDER SKIRT
A/T 5 SPEED-AISIN<MA1>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-98077-270-0 01 1 1310- ●
46 SCREW; INNER LINER
M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 04 1 1310- ● ●
92 NUT; MUD COVER
(A) THA 		8-97125-519-0 10 1 1310- ● ●
92 NUT; MUD COVER
(B) M6 CAP NUT THA 		8-98049-850-0 02 1 1310- ● ●
108 WASHER; PL,PANEL TO FRAME
ID=6.5 OD=18 T=1.6 THA 		8-98049-851-0 02 1 1310- ● ●
238 SCREW; MUD GUARD
M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 06 1 1310- ● ●
261 RUBBER; FRT,MUD GUARD
THA 		8-98077-272-0 01 1 1310- ● ●
261 RUBBER; FRT,MUD GUARD
THA 		8-98077-274-0 01 1 1310- ● ●
307 RETAINER
THA 		8-98050-462-0 02 1 1310- ● ●

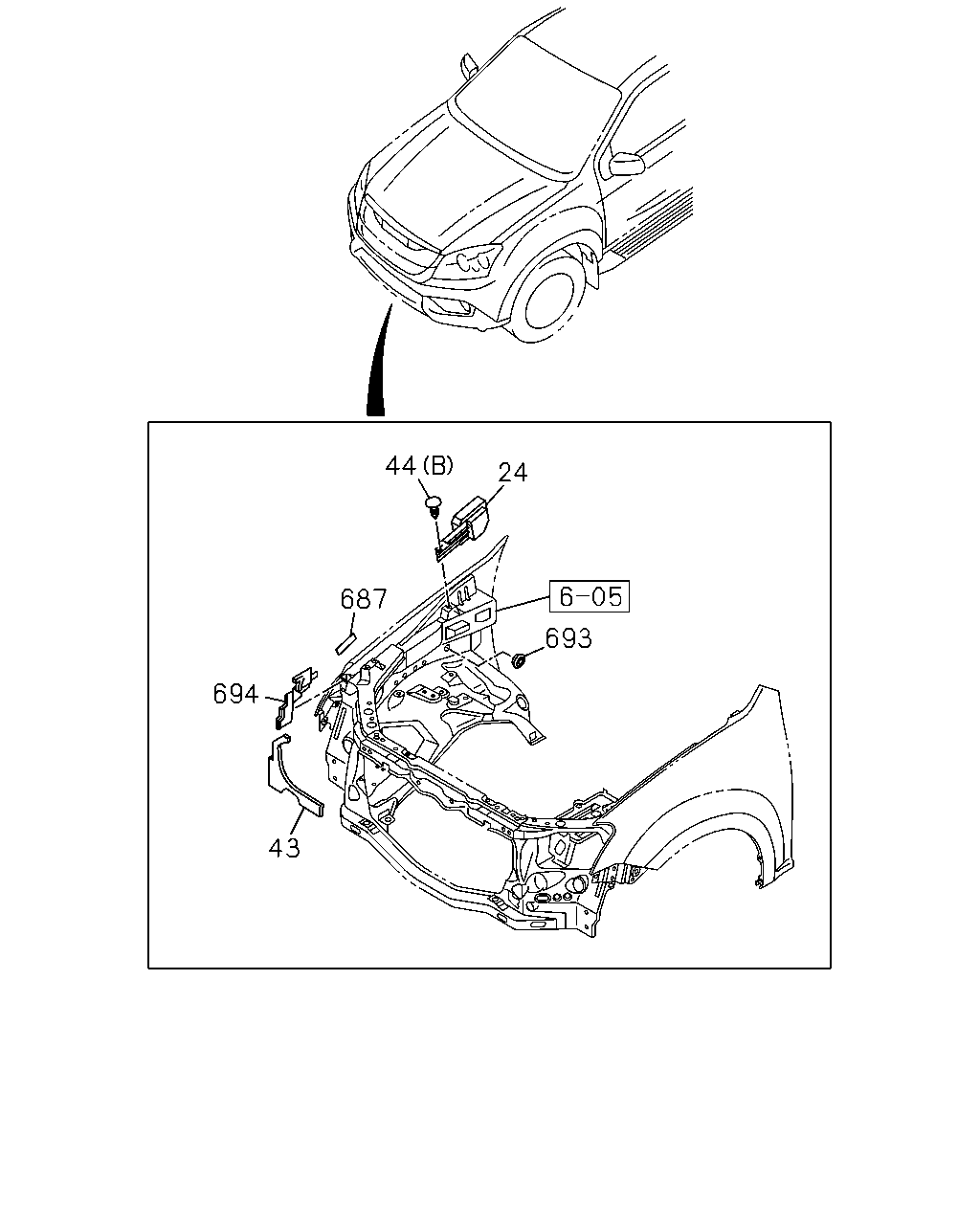

çizim 381672
693 24 44 687 694 43
BalonParca AdiParca NoAdetTipApplied Date A B
24 PLATE; MUD COVER
THA 		8-98187-805-0 01 1 1310- ● ●
43 INSULATION; FENDER SIDE
THA 		8-98189-338-2 01 1 1310- ● ●
44 CLIP; ANCHOR
A/T 5 SPEED-AISIN<MA1>,M/T MUA 5 SPEED 5H<MWQ> (A) OD=22 L=10.7 THA 		8-94215-211-0 10 1 1310- ●
44 CLIP; ANCHOR
A/T 5 SPEED-AISIN<MA1>,M/T MUX 5 SPEED 5S<MZJ> (A) OD=22 L=10.7 THA 		8-94215-211-0 10 1 1310- ●
44 CLIP; ANCHOR
(B) OD=12 L=14.8 THA 		8-94279-921-0 01 1 1310- ● ●
687 TAPE; PROTECT
THA 		8-98191-602-1 02 1 1310- ● ●
693 GROMMET; ACCESSORY HOLE
THA 		8-98191-606-0 01 1 1310- ● ●
694 PROTECTOR; WHEEL HOUSE
THA 		8-98187-814-0 01 1 1310- ● ●
