Isuzu WW
▶
SUV
▶
UCR
▶
51488 - UCR/UCS(THAILAND)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-45 - MOLDING AND STRIPE
▶

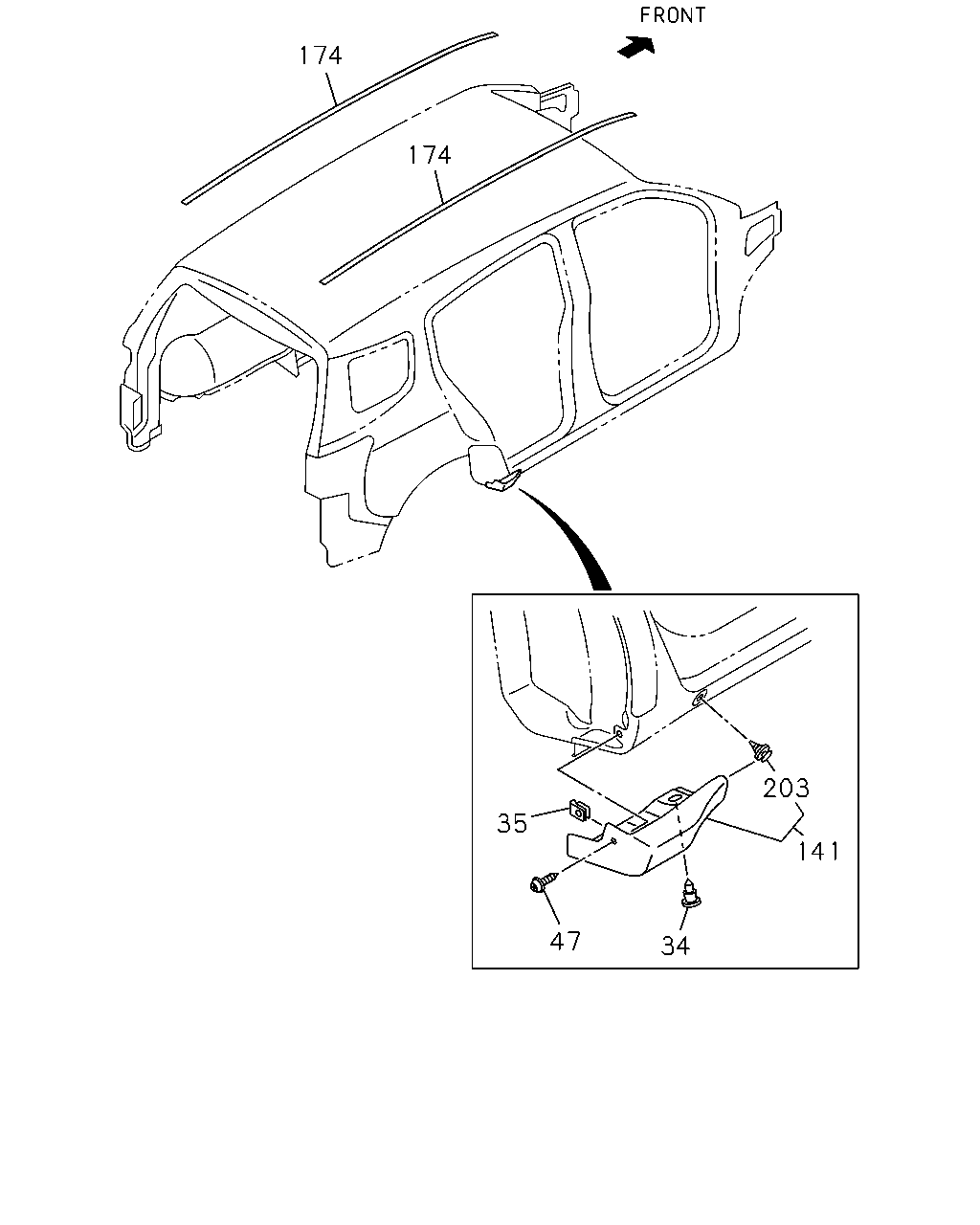

6-45 — MOLDING AND STRIPE
(#129589) — 12 parça
Tümü
A - UCB5VC
B - UCS5VC
141
34
203
35
47
174
174
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
34
CLIP; ROCKER MOLDING
THA
8-97301-188-0
02
1
1310-
●
●
35
NUT; EXPANSION,ROCKER MOLDING
THA
8-97125-519-0
02
1
1310-
●
●
47
SCREW; ROCKER MOLDING
M6X20 TAPPING W/PL WASHER THA
8-98167-444-0
02
1
1310-
●
●
141
COVER; ROCKER,RR
EXC. SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> THA
8-98208-180-0
01
1
1310-
●
●
141
COVER; ROCKER,RR
EXC. SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> THA
8-98208-181-0
01
1
1310-
●
●
141
COVER; ROCKER,RR
SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> THA
8-98260-806-0
01
1
1310-
●
●
141
COVER; ROCKER,RR
SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> THA
8-98260-807-0
01
1
1310-
●
●
174
MOLDING; ROOF
EXC. ROOF RAIL<7LC> THA
8-98189-366-0
01
1
1310-
●
174
MOLDING; ROOF
EXC. ROOF RAIL<7LC> THA
8-98189-367-0
01
1
1310-
●
203
FASTENER; COVER
SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> THA
8-97359-942-0
02
1
1312-
●
●
203
FASTENER; COVER
SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> THA
8-97359-942-0
02
1
1312-
●
●
203
FASTENER; COVER
EXC. SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> THA
8-97359-942-0
04
1
1312-
●
●
