6-43 — SIDE TRIM (#129588) — 78 parça

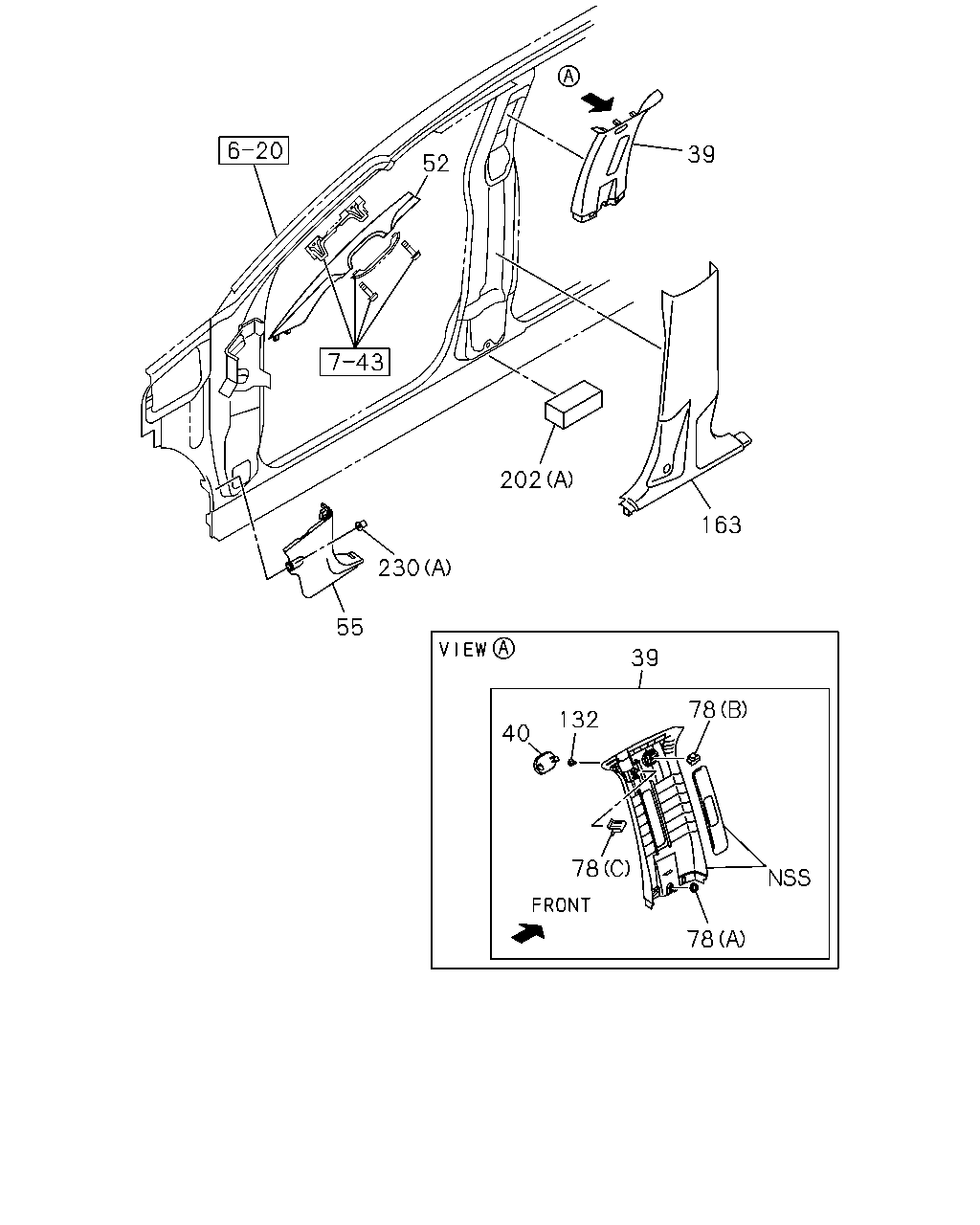

78 78 132 39 78 40 55 202 163 39 52 230

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	COVER; TRIM,CENTER PILLAR AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> GRAY THA	8-97424-382-1	01	1	1310-	●
39	COVER; TRIM,CENTER PILLAR AIR BAG DRIVER & PASSENGER<AK5> GRAY THA	8-97424-382-1	01	1	1310-		●
39	COVER; TRIM,CENTER PILLAR AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> GRAY THA	8-97424-383-1	01	1	1310-	●
39	COVER; TRIM,CENTER PILLAR AIR BAG DRIVER & PASSENGER<AK5> GRAY THA	8-97424-383-1	01	1	1310-		●
39	COVER; TRIM,CENTER PILLAR AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> GRAY THA	8-97424-932-1	01	1	1310-	●	●
39	COVER; TRIM,CENTER PILLAR AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> GRAY THA	8-97424-933-1	01	1	1310-	●	●
40	COVER; TRIM,CENTER PILLAR,CTR AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> W/O MARK GRAY THA	8-97427-705-0	02	1	1310-	●
40	COVER; TRIM,CENTER PILLAR,CTR AIR BAG DRIVER & PASSENGER<AK5> W/O MARK GRAY THA	8-97427-705-0	02	1	1310-		●
40	COVER; TRIM,CENTER PILLAR,CTR AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> W/MARK GRAY THA	8-97427-707-0	02	1	1310-	●	●
52	COVER; TRIM,FRT PILLAR GRAY THA	8-97424-370-1	01	1	1310-	●	●
52	COVER; TRIM,FRT PILLAR GRAY THA	8-97424-371-1	01	1	1310-	●	●
55	PAD; TRIM,DASH SIDE BLACK THA	8-97416-673-3	01	1	1310-	●	●
55	PAD; TRIM,DASH SIDE BLACK THA	8-97424-004-0	01	1	1310-	●	●
78	CLIP; TRIM PAD,SIDE PANEL (A) THA	8-97351-983-0	02	1	1310-	●	●
78	CLIP; TRIM PAD,SIDE PANEL (B) THA	8-98215-475-0	02	1	1310-	●	●
78	CLIP; TRIM PAD,SIDE PANEL (C) THA	8-98215-476-0	02	1	1310-	●	●
132	SCREW; COVER THA	8-98216-145-0	02	1	1310-	●	●
163	COVER; TRIM,CENTER PILLAR,LWR BLACK THA	8-97416-961-4	01	1	1310-	●	●
163	COVER; TRIM,CENTER PILLAR,LWR BLACK THA	8-97416-963-4	01	1	1310-	●	●
202	SEAL; CENTER PILLAR (A) THA	8-97350-306-0	02	1	1310-	●	●
202	SEAL; CENTER PILLAR (B) THA	8-97362-563-0	02	1	1310-1401	●	●
202	SEAL; CENTER PILLAR (B) THA	8-98269-733-0	02	1	1402-	●	●
202	SEAL; CENTER PILLAR (C) THA	8-98179-381-3	02	1	1310-	●	●
230	RETAINER; TRIM AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> (B) GRAY THA	8-97416-696-0	04	1	1310-	●
230	RETAINER; TRIM AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (B) GRAY THA	8-97416-696-0	04	1	1310-		●
230	RETAINER; TRIM (A) BLACK THA	8-97416-808-0	02	1	1310-	●	●

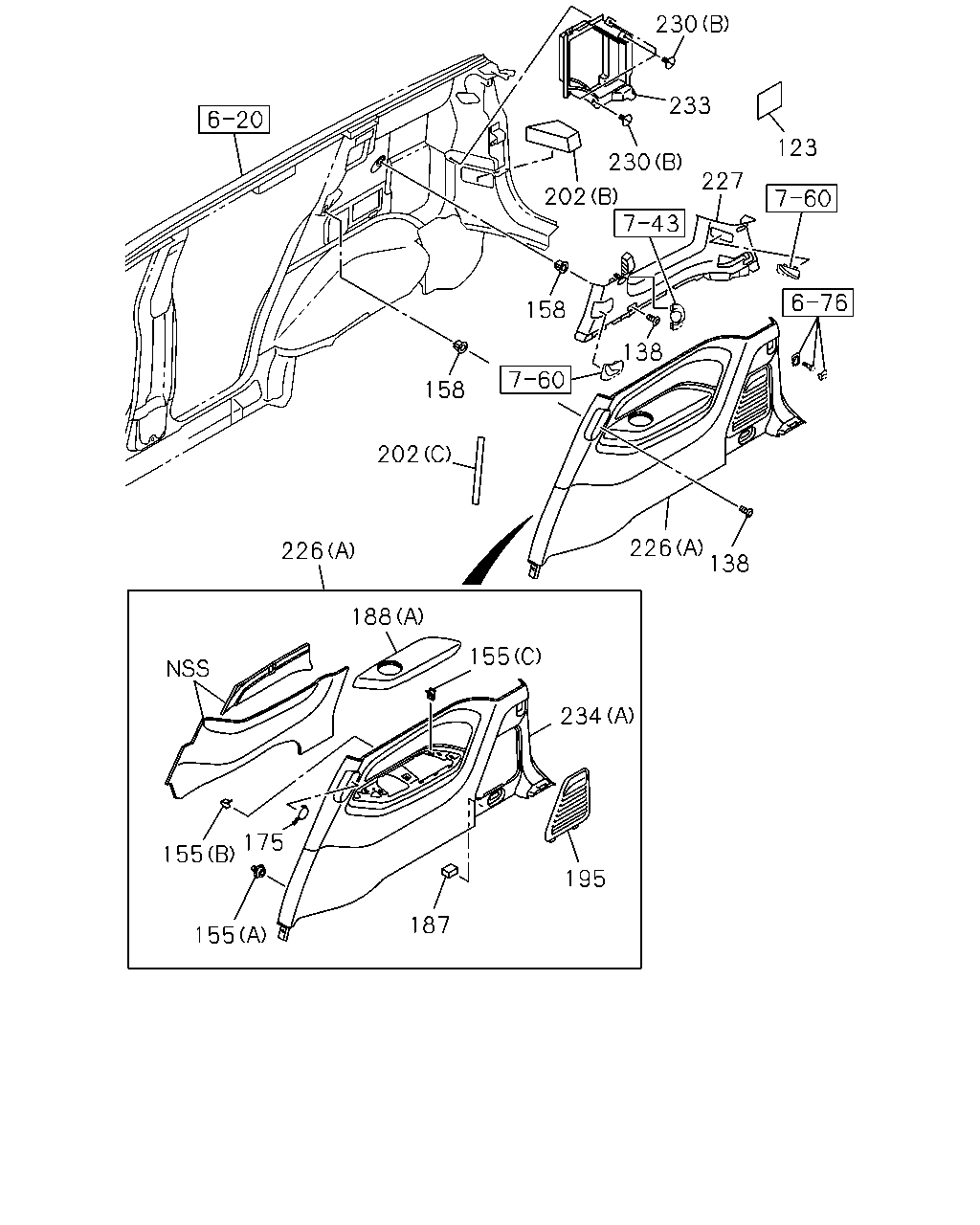

230 233 123 230 202 227 138 158 158 202 155 234 138 226 226 188 155 195 175 187 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
123	SEAL; RR QUARTER THA	8-98317-384-0	01	1	1506-	●	●
138	SCREW; TRIM COVER M5X14 TAPPING THA	8-98184-363-0	04	1	1310-	●	●
155	CLIP; TRIM,QUARTER (A) THA	8-97351-983-0	11	1	1310-	●	●
155	CLIP; TRIM,QUARTER (B) THA	8-98164-677-0	10	1	1310-	●	●
155	CLIP; TRIM,QUARTER (C) THA	8-98217-477-0	09	1	1310-	●	●
158	GROMMET; SCREW,TRIM THA	8-94152-494-0	04	1	1310-	●	●
175	COVER; TRIM,SIDE BLACK THA	8-97416-610-0	02	1	1310-	●	●
187	SPACER THA	8-98249-760-0	01	1	1310-	●	●
188	BAR; GUARD (B) BLACK THA	8-97427-709-0	01	1	1310-	●	●
188	BAR; GUARD (A) BLACK THA	8-97427-711-0	01	1	1310-	●	●
195	LID; JACK & TOOL BLACK THA	8-97427-712-0	01	1	1310-	●	●
202	SEAL; CENTER PILLAR (A) THA	8-97350-306-0	02	1	1310-	●	●
202	SEAL; CENTER PILLAR (B) THA	8-97362-563-0	02	1	1310-1401	●	●
202	SEAL; CENTER PILLAR (B) THA	8-98269-733-0	02	1	1402-	●	●
202	SEAL; CENTER PILLAR (C) THA	8-98179-381-3	02	1	1310-	●	●
226	TRIM ASM; QTR LWR (B) BLACK THA	8-97424-386-2	01	1	1310-	●	●
226	TRIM ASM; QTR LWR (A) BLACK THA	8-97424-387-2	01	1	1310-	●	●
227	TRIM ASM; QTR UPR AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> GRAY THA	8-97424-389-2	01	1	1310-	●
227	TRIM ASM; QTR UPR AIR BAG DRIVER & PASSENGER<AK5> GRAY THA	8-97424-389-2	01	1	1310-		●
227	TRIM ASM; QTR UPR AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> GRAY THA	8-97424-390-2	01	1	1310-	●
227	TRIM ASM; QTR UPR AIR BAG DRIVER & PASSENGER<AK5> GRAY THA	8-97424-390-2	01	1	1310-		●
227	TRIM ASM; QTR UPR AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> GRAY THA	8-97424-391-2	01	1	1310-	●	●
227	TRIM ASM; QTR UPR AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> GRAY THA	8-97424-392-2	01	1	1310-	●	●
230	RETAINER; TRIM AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> (B) GRAY THA	8-97416-696-0	04	1	1310-	●
230	RETAINER; TRIM AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (B) GRAY THA	8-97416-696-0	04	1	1310-		●
230	RETAINER; TRIM (A) BLACK THA	8-97416-808-0	02	1	1310-	●	●
233	COVER; COOLER AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> THA	8-98231-991-2	01	1	1310-	●
233	COVER; COOLER AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA	8-98231-991-2	01	1	1310-		●
234	TRIM; QTR (B) BLACK THA	8-97427-708-0	01	1	1310-	●	●
234	TRIM; QTR (A) BLACK THA	8-97427-710-0	01	1	1310-	●	●

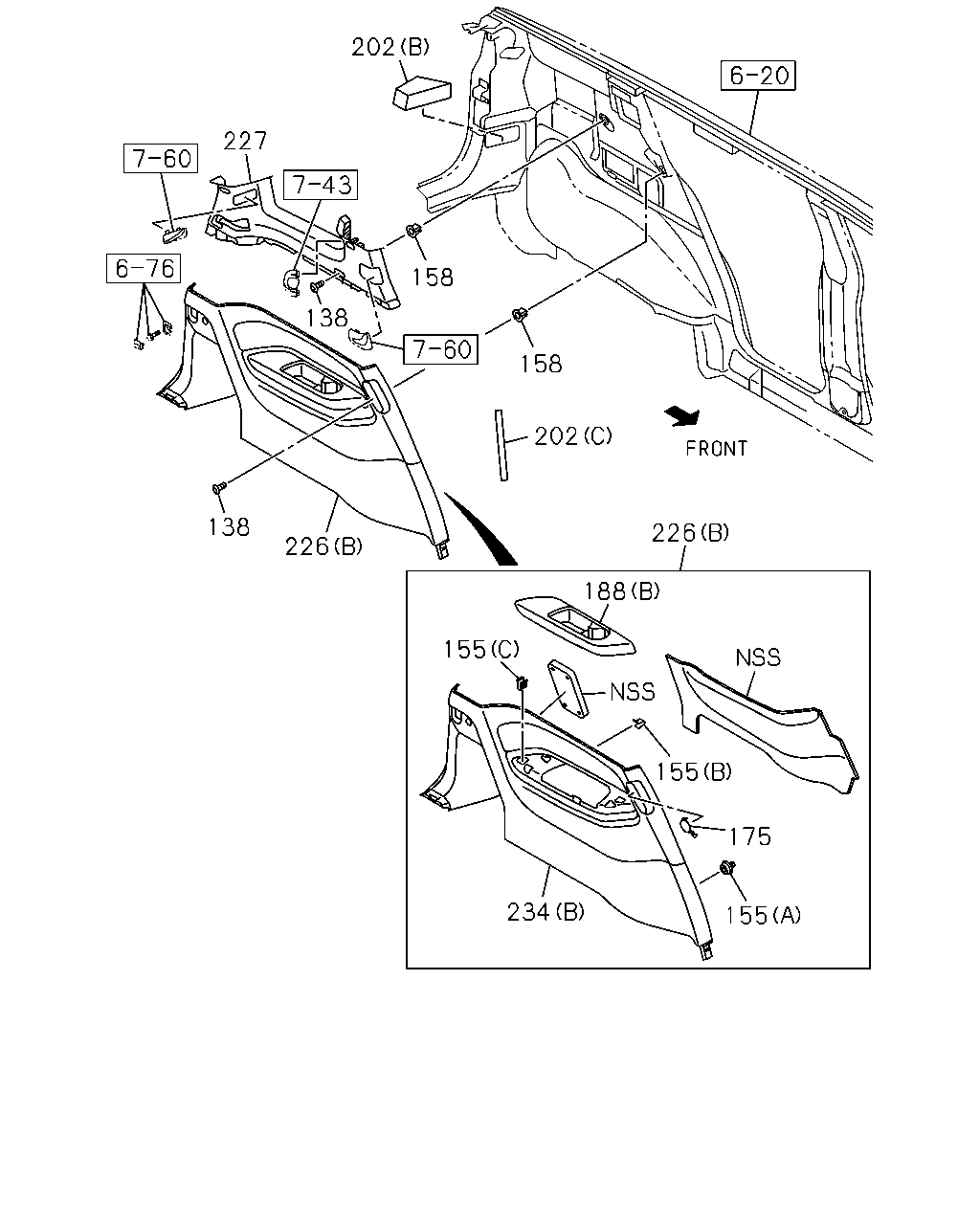

155 155 175 234 155 188 226 202 226 138 138 158 158 202 227

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
138	SCREW; TRIM COVER M5X14 TAPPING THA	8-98184-363-0	04	1	1310-	●	●
155	CLIP; TRIM,QUARTER (A) THA	8-97351-983-0	11	1	1310-	●	●
155	CLIP; TRIM,QUARTER (B) THA	8-98164-677-0	10	1	1310-	●	●
155	CLIP; TRIM,QUARTER (C) THA	8-98217-477-0	09	1	1310-	●	●
158	GROMMET; SCREW,TRIM THA	8-94152-494-0	04	1	1310-	●	●
175	COVER; TRIM,SIDE BLACK THA	8-97416-610-0	02	1	1310-	●	●
188	BAR; GUARD (B) BLACK THA	8-97427-709-0	01	1	1310-	●	●
188	BAR; GUARD (A) BLACK THA	8-97427-711-0	01	1	1310-	●	●
202	SEAL; CENTER PILLAR (A) THA	8-97350-306-0	02	1	1310-	●	●
202	SEAL; CENTER PILLAR (B) THA	8-97362-563-0	02	1	1310-1401	●	●
202	SEAL; CENTER PILLAR (B) THA	8-98269-733-0	02	1	1402-	●	●
202	SEAL; CENTER PILLAR (C) THA	8-98179-381-3	02	1	1310-	●	●
226	TRIM ASM; QTR LWR (B) BLACK THA	8-97424-386-2	01	1	1310-	●	●
226	TRIM ASM; QTR LWR (A) BLACK THA	8-97424-387-2	01	1	1310-	●	●
227	TRIM ASM; QTR UPR AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> GRAY THA	8-97424-389-2	01	1	1310-	●
227	TRIM ASM; QTR UPR AIR BAG DRIVER & PASSENGER<AK5> GRAY THA	8-97424-389-2	01	1	1310-		●
227	TRIM ASM; QTR UPR AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> GRAY THA	8-97424-390-2	01	1	1310-	●
227	TRIM ASM; QTR UPR AIR BAG DRIVER & PASSENGER<AK5> GRAY THA	8-97424-390-2	01	1	1310-		●
227	TRIM ASM; QTR UPR AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> GRAY THA	8-97424-391-2	01	1	1310-	●	●
227	TRIM ASM; QTR UPR AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> GRAY THA	8-97424-392-2	01	1	1310-	●	●
234	TRIM; QTR (B) BLACK THA	8-97427-708-0	01	1	1310-	●	●
234	TRIM; QTR (A) BLACK THA	8-97427-710-0	01	1	1310-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
