◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51488 - UCR/UCS(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#129586) — 56 parça

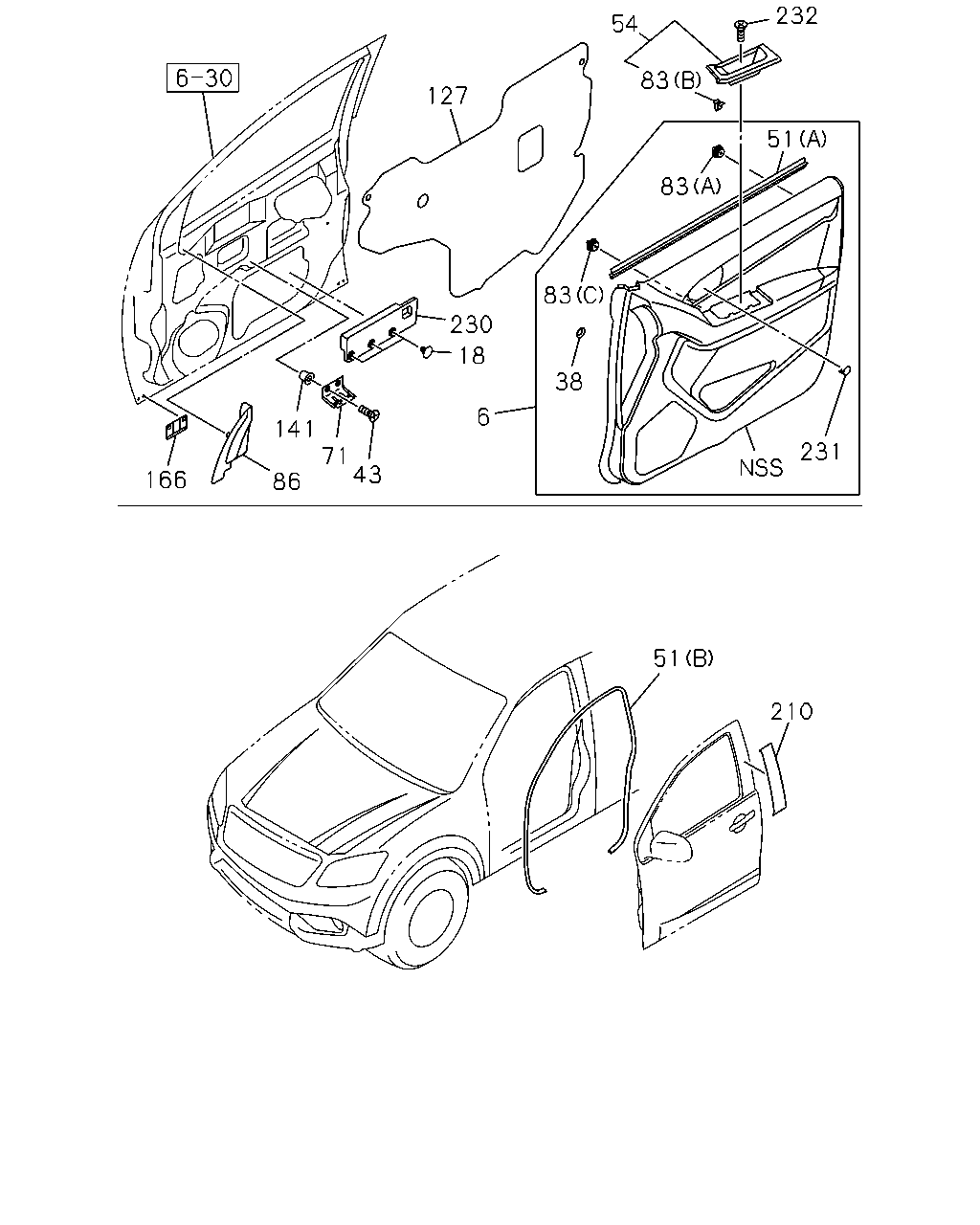

çizim 379546
166 86 141 43 71 6 18 230 38 83 127 83 83 54 232 51 231 210 51
BalonParca AdiParca NoAdetTipApplied Date A B
6 TRIM; DOOR,UPR
INTERIOR BASIC<RBA> SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> BLACK THA 		8-97425-710-1 01 1 1310- ●
6 TRIM; DOOR,UPR
INTERIOR BASIC<RBA> SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> BLACK THA 		8-97425-714-1 01 1 1310- ●
6 TRIM; DOOR,UPR
INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA 		8-97424-484-4 01 1 1310- ●
6 TRIM; DOOR,UPR
AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA 		8-97424-484-4 01 1 1310- ●
6 TRIM; DOOR,UPR
INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA 		8-97424-486-4 01 1 1310- ●
6 TRIM; DOOR,UPR
AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA 		8-97424-486-4 01 1 1310- ●
6 TRIM; DOOR,UPR
INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA 		8-97424-395-4 01 1 1310- ●
6 TRIM; DOOR,UPR
AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA 		8-97424-395-4 01 1 1310- ●
6 TRIM; DOOR,UPR
INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA 		8-97424-396-4 01 1 1310- ●
6 TRIM; DOOR,UPR
AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA 		8-97424-396-4 01 1 1310- ●
6 TRIM; DOOR,UPR
INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA 		8-97424-489-4 01 1 1310- ●
6 TRIM; DOOR,UPR
AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA 		8-97424-489-4 01 1 1310- ●
6 TRIM; DOOR,UPR
INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA 		8-97424-490-4 01 1 1310- ●
6 TRIM; DOOR,UPR
AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA 		8-97424-490-4 01 1 1310- ●
6 TRIM; DOOR,UPR
INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA 		8-97424-399-4 01 1 1310- ●
6 TRIM; DOOR,UPR
AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA 		8-97424-399-4 01 1 1310- ●
6 TRIM; DOOR,UPR
INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA 		8-97424-400-4 01 1 1310- ●
6 TRIM; DOOR,UPR
AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA 		8-97424-400-4 01 1 1310- ●
6 TRIM; DOOR,UPR
INTERIOR CUSTOM<RBD> SEAT TRIM HIGH GRADE CLOTH<8LM> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> LIGHT GRAY THA 		8-97424-397-4 01 1 1310- ●
6 TRIM; DOOR,UPR
SEAT TRIM HIGH GRADE CLOTH<8LM> AIR BAG DRIVER & PASSENGER<AK5> LIGHT GRAY THA 		8-97424-397-4 01 1 1310- ●
6 TRIM; DOOR,UPR
INTERIOR CUSTOM<RBD> SEAT TRIM HIGH GRADE CLOTH<8LM> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> LIGHT GRAY THA 		8-97424-398-4 01 1 1310- ●
6 TRIM; DOOR,UPR
SEAT TRIM HIGH GRADE CLOTH<8LM> AIR BAG DRIVER & PASSENGER<AK5> LIGHT GRAY THA 		8-97424-398-4 01 1 1310- ●
6 TRIM; DOOR,UPR
INTERIOR CUSTOM<RBD> SEAT TRIM HIGH GRADE CLOTH<8LM> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> LIGHT GRAY THA 		8-97424-401-4 01 1 1310- ●
6 TRIM; DOOR,UPR
SEAT TRIM HIGH GRADE CLOTH<8LM> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> LIGHT GRAY THA 		8-97424-401-4 01 1 1310- ●
6 TRIM; DOOR,UPR
INTERIOR CUSTOM<RBD> SEAT TRIM HIGH GRADE CLOTH<8LM> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> LIGHT GRAY THA 		8-97424-402-4 01 1 1310- ●
6 TRIM; DOOR,UPR
SEAT TRIM HIGH GRADE CLOTH<8LM> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> LIGHT GRAY THA 		8-97424-402-4 01 1 1310- ●
18 CLIP; DOOR PAD
AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> BLACK THA 		8-94204-281-0 06 1 1310- ● ●
38 STOPPER; DOOR SEAL,FRT
INTERIOR CUSTOM<RBD> SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> THA 		8-98211-687-0 02 1 1310- ●
38 STOPPER; DOOR SEAL,FRT
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> THA 		8-98211-687-0 02 1 1310- ●
43 SCREW; DOOR POCKET
M5X14 TAPPING THA 		8-98184-363-0 04 1 1310- ● ●
51 WEATHERSTRIP; FRONT DOOR
(A) THA 		8-98109-544-3 01 1 1310- ● ●
51 WEATHERSTRIP; FRONT DOOR
(A) THA 		8-98109-545-3 01 1 1310- ● ●
51 WEATHERSTRIP; FRONT DOOR
(B) THA 		8-98201-892-0 02 1 1310- ● ●
54 BOX; FRT DOOR
BLACK THA 		8-97416-750-1 01 1 1310- ● ●
54 BOX; FRT DOOR
BLACK THA 		8-97416-751-1 01 1 1310- ● ●
71 BRACKET; ARM REST
THA 		8-98102-215-2 02 1 1310- ● ●
83 CLIP; DOOR TRIM
(A) THA 		8-98160-729-0 16 1 1310- ● ●
83 CLIP; DOOR TRIM
(C) THA 		8-98166-326-0 02 1 1310- ● ●
83 CLIP; DOOR TRIM
(B) THA 		8-98164-677-0 02 1 1310- ● ●
86 COVER ASM; DOOR POCKET
BLACK THA 		8-97416-748-3 01 1 1310- ● ●
86 COVER ASM; DOOR POCKET
BLACK THA 		8-97416-749-3 01 1 1310- ● ●
127 SEAL; DOOR INNER
THA 		8-98192-454-1 01 1 1310- ● ●
127 SEAL; DOOR INNER
THA 		8-98192-455-1 01 1 1310- ● ●
141 GROMMET; SCREW,LWR COVER
THA 		8-94152-494-0 04 1 1310- ● ●
166 PLUG; HOLE
THA 		8-98197-448-0 04 1 1310- ● ●
210 DECAL; DOOR FRAME
INTERIOR CUSTOM<RBD> THA 		8-98190-437-2 01 1 1310- ●
210 DECAL; DOOR FRAME
THA 		8-98190-437-2 01 1 1310- ●
210 DECAL; DOOR FRAME
INTERIOR CUSTOM<RBD> THA 		8-98190-438-2 01 1 1310- ●
210 DECAL; DOOR FRAME
THA 		8-98190-438-2 01 1 1310- ●
230 PAD; FRT DOOR
AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> THA 		8-98156-031-3 01 1 1310- ● ●
230 PAD; FRT DOOR
AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> THA 		8-98156-032-3 01 1 1310- ● ●
231 COVER; HOLDER,BOLT
BLACK THA 		8-97416-610-0 02 1 1310- ● ●
231 COVER; HOLDER,BOLT
INTERIOR BASIC<RBA> SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> BLACK THA 		8-97416-610-0 02 1 1310- ●
231 COVER; HOLDER,BOLT
INTERIOR CUSTOM<RBD> SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK THA 		8-97416-610-0 02 1 1310- ●
231 COVER; HOLDER,BOLT
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> BLACK THA 		8-97416-610-0 02 1 1310- ●
232 BOLT; DOOR TRIM
M5X14 TAPPING THA 		8-98184-363-0 02 1 1310- ● ●
