6-32 — FRONT DOOR LOCK AND HANDLE (#129585) — 94 parça

8 12 79 51 36 11 12 175 176 175

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	LOCK; DOOR,FRT DOOR PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98231-769-1	01	1	1310-	●	●
8	LOCK; DOOR,FRT DOOR PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98231-794-1	01	1	1310-	●	●
8	LOCK; DOOR,FRT DOOR PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98231-761-1	01	1	1310-	●	●
8	LOCK; DOOR,FRT DOOR PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98231-763-1	01	1	1310-	●	●
8	LOCK; DOOR,FRT DOOR EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> THA	8-98231-764-1	01	1	1310-	●	●
8	LOCK; DOOR,FRT DOOR EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> THA	8-98231-765-1	01	1	1310-	●	●
11	ACTUATOR; DOOR LK,FRT PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-97349-994-0	01	1	1310-1502	●	●
11	ACTUATOR; DOOR LK,FRT PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98292-022-0	01	1	1503-	●	●
11	ACTUATOR; DOOR LK,FRT PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-97351-086-0	01	1	1310-1502	●	●
11	ACTUATOR; DOOR LK,FRT PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98292-021-0	01	1	1503-	●	●
11	ACTUATOR; DOOR LK,FRT PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-97349-993-0	01	1	1310-1502	●	●
11	ACTUATOR; DOOR LK,FRT EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> THA	8-97349-993-0	01	1	1310-1502	●	●
11	ACTUATOR; DOOR LK,FRT PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98292-012-0	01	1	1503-	●	●
11	ACTUATOR; DOOR LK,FRT EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> THA	8-98292-012-0	01	1	1503-	●	●
11	ACTUATOR; DOOR LK,FRT PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-97351-085-0	01	1	1310-1502	●	●
11	ACTUATOR; DOOR LK,FRT PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98292-011-0	01	1	1503-	●	●
11	ACTUATOR; DOOR LK,FRT EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> THA	8-97349-995-0	01	1	1310-1502	●	●
11	ACTUATOR; DOOR LK,FRT EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> THA	8-98292-013-0	01	1	1503-	●	●
12	SCREW; DOOR LK PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) THA	8-97349-997-0	04	1	1310-	●	●
12	SCREW; DOOR LK PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) THA	8-97349-997-0	02	1	1310-	●	●
12	SCREW; DOOR LK PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) THA	8-97349-997-0	02	1	1310-	●	●
12	SCREW; DOOR LK EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> (B) THA	8-97349-997-0	02	1	1310-	●	●
12	SCREW; DOOR LK EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> (B) THA	8-97349-997-0	02	1	1310-	●	●
12	SCREW; DOOR LK (A) M6X14.5 THA	8-98004-342-0	06	1	1310-	●	●
36	LINK; DOOR LOCK,OUTSIDE PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98193-693-0	01	1	1310-1502	●	●
36	LINK; DOOR LOCK,OUTSIDE EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> THA	8-98193-693-0	01	1	1310-1502	●	●
36	LINK; DOOR LOCK,OUTSIDE THA	8-98193-693-0	01	1	1503-	●	●
36	LINK; DOOR LOCK,OUTSIDE EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> THA	8-98193-692-0	01	1	1310-	●	●
51	SNAP; FRT DOOR LOCK CONT ROD THA	8-97349-986-0	01	1	1310-	●	●
51	SNAP; FRT DOOR LOCK CONT ROD EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> THA	8-97349-985-0	01	1	1310-	●	●
79	BOLT; DOOR LK ACTUATOR M6X8 FLANGE THA	8-98048-996-0	02	1	1310-	●	●
175	CABLE ASM; LOCK CONTROL PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) THA	8-98193-690-0	01	1	1310-1502	●	●
175	CABLE ASM; LOCK CONTROL EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> (A) THA	8-98193-690-0	01	1	1310-1502	●	●
175	CABLE ASM; LOCK CONTROL (A) THA	8-98193-690-0	01	1	1503-	●	●
175	CABLE ASM; LOCK CONTROL PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) THA	8-97349-988-0	01	1	1310-1502	●	●
175	CABLE ASM; LOCK CONTROL (A) THA	8-98193-688-0	01	1	1310-	●	●
175	CABLE ASM; LOCK CONTROL (B) THA	8-98193-689-0	01	1	1310-	●	●
175	CABLE ASM; LOCK CONTROL (B) THA	8-98193-691-0	01	1	1310-	●	●
176	COVER; DOOR LOCK THA	8-97349-991-0	01	1	1310-	●	●
176	COVER; DOOR LOCK THA	8-97349-992-0	01	1	1310-	●	●

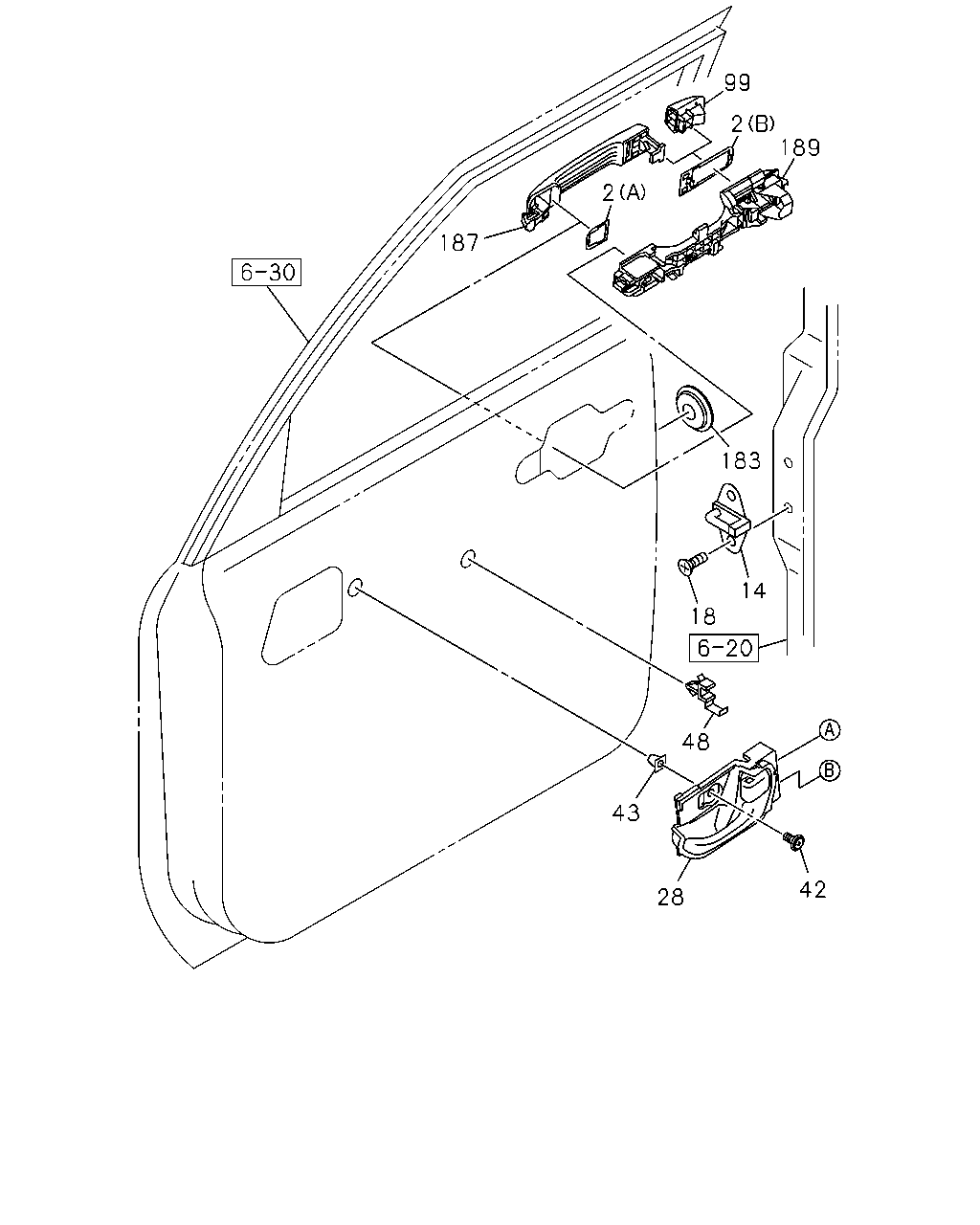

99 189 2 2 187 183 18 42 14 48 43 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	GASKET; OUTSIDE HANDLE,DOOR (A) THA	8-98176-466-0	01	1	1310-	●	●
2	GASKET; OUTSIDE HANDLE,DOOR (A) THA	8-98176-466-0	01	1	1310-	●	●
2	GASKET; OUTSIDE HANDLE,DOOR (B) THA	8-98176-467-2	01	1	1310-	●	●
2	GASKET; OUTSIDE HANDLE,DOOR (B) THA	8-98176-467-2	01	1	1310-	●	●
14	STRIKER; FRT DOOR THA	8-98012-203-0	02	1	1310-	●	●
18	SCREW; DOOR STRIKER M8X35 THA	8-98049-360-0	04	1	1310-	●	●
28	BEZEL; INSIDE LEVER,FRT DOOR INTERIOR BASIC<RBA> BLACK THA	8-97416-726-4	01	1	1310-	●
28	BEZEL; INSIDE LEVER,FRT DOOR INTERIOR BASIC<RBA> BLACK THA	8-97416-728-4	01	1	1310-	●
28	BEZEL; INSIDE LEVER,FRT DOOR INTERIOR CUSTOM<RBD> BLACK THA	8-97416-730-3	01	1	1310-	●
28	BEZEL; INSIDE LEVER,FRT DOOR BLACK THA	8-97416-730-3	01	1	1310-		●
28	BEZEL; INSIDE LEVER,FRT DOOR INTERIOR CUSTOM<RBD> BLACK THA	8-97416-732-3	01	1	1310-	●
28	BEZEL; INSIDE LEVER,FRT DOOR BLACK THA	8-97416-732-3	01	1	1310-		●
42	SCREW; TAPPING,INSIDE LEVER M5X14 TAPPING THA	8-98184-363-0	02	1	1310-	●	●
43	GROMMET; SCREW,INSIDE LEVER,DOOR THA	8-94152-494-0	02	1	1310-	●	●
48	ANTIRATTLER; DOOR LINK THA	8-97251-932-0	02	1	1310-	●	●
99	COVER; HOLE DOOR LOCK PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> EXC. HANDLE O/S DOOR BODY COLOR<D75>,HANDLE O/S DOOR CHROME<E20> BLACK THA	8-98176-463-1	01	1	1310-	●	●
99	COVER; HOLE DOOR LOCK PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> HANDLE O/S DOOR CHROME<E20> PLATED THA	8-98176-465-1	01	1	1310-	●	●
99	COVER; HOLE DOOR LOCK HANDLE O/S DOOR CHROME<E20> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> PLATED THA	8-98176-462-1	01	1	1310-	●	●
99	COVER; HOLE DOOR LOCK HANDLE O/S DOOR CHROME<E20> PLATED THA	8-98176-462-1	01	1	1310-	●	●
99	COVER; HOLE DOOR LOCK BODY COLOR COSMIC BLACK MICA<523> PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> HANDLE O/S DOOR BODY COLOR<D75> BLACK THA	8-97422-454-1	01	1	1310-	●	●
99	COVER; HOLE DOOR LOCK BODY COLOR COSMIC BLACK MICA<523> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> BLACK THA	8-97422-441-1	01	1	1310-	●	●
99	COVER; HOLE DOOR LOCK BODY COLOR COSMIC BLACK MICA<523> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> BLACK THA	8-97422-441-1	01	1	1310-	●	●
99	COVER; HOLE DOOR LOCK BODY COLOR TITANIUM SILVER MET<529> PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> HANDLE O/S DOOR BODY COLOR<D75> SILVER THA	8-97422-456-1	01	1	1310-	●	●
99	COVER; HOLE DOOR LOCK BODY COLOR TITANIUM SILVER MET<529> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> SILVER THA	8-97422-443-1	01	1	1310-	●	●
99	COVER; HOLE DOOR LOCK BODY COLOR TITANIUM SILVER MET<529> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> SILVER THA	8-97422-443-1	01	1	1310-	●	●
99	COVER; HOLE DOOR LOCK BODY COLOR SILKY WHITE PEARL<531> PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> HANDLE O/S DOOR BODY COLOR<D75> WHITE THA	8-97422-464-1	01	1	1310-	●	●
99	COVER; HOLE DOOR LOCK BODY COLOR SILKY WHITE PEARL<531> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> WHITE THA	8-97422-451-1	01	1	1310-	●	●
99	COVER; HOLE DOOR LOCK BODY COLOR SILKY WHITE PEARL<531> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> WHITE THA	8-97422-451-1	01	1	1310-	●	●
99	COVER; HOLE DOOR LOCK BODY COLOR ULURU BROWN MET<544> PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> HANDLE O/S DOOR BODY COLOR<D75> BROWN THA	8-97424-510-1	01	1	1310-	●	●
99	COVER; HOLE DOOR LOCK BODY COLOR ULURU BROWN MET<544> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> BROWN THA	8-97424-505-1	01	1	1310-	●	●
99	COVER; HOLE DOOR LOCK BODY COLOR ULURU BROWN MET<544> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> BROWN THA	8-97424-505-1	01	1	1310-	●	●
99	COVER; HOLE DOOR LOCK BODY COLOR FJORD BLUE MET<545> PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> HANDLE O/S DOOR BODY COLOR<D75> LIGHT BLUE THA	8-97424-512-1	01	1	1310-	●	●
99	COVER; HOLE DOOR LOCK BODY COLOR FJORD BLUE MET<545> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> LIGHT BLUE THA	8-97424-508-1	01	1	1310-	●	●
99	COVER; HOLE DOOR LOCK BODY COLOR FJORD BLUE MET<545> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> LIGHT BLUE THA	8-97424-508-1	01	1	1310-	●	●
99	COVER; HOLE DOOR LOCK EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,HANDLE O/S DOOR BODY COLOR<D75>,HANDLE O/S DOOR CHROME<E20> THA	8-98176-460-1	01	1	1310-	●	●
99	COVER; HOLE DOOR LOCK EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,HANDLE O/S DOOR BODY COLOR<D75>, HANDLE O/S DOOR CHROME<E20> THA	8-98176-460-1	01	1	1310-	●	●
183	GROMMET OD=26 THA	8-94141-484-0	02	1	1310-	●	●
187	GRIP; FRT DOOR PASSIVE ENTRY AND START SYSTEM<AP3> HANDLE O/S DOOR CHROME<E20> PLATED THA	8-98211-441-0	01	1	1310-	●	●
187	GRIP; FRT DOOR HANDLE O/S DOOR CHROME<E20> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> PLATED THA	8-98176-458-0	01	1	1310-	●	●
187	GRIP; FRT DOOR HANDLE O/S DOOR CHROME<E20> PLATED THA	8-98176-458-0	01	1	1310-	●	●
187	GRIP; FRT DOOR BODY COLOR COSMIC BLACK MICA<523> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> BLACK THA	8-97422-427-0	01	1	1310-	●	●
187	GRIP; FRT DOOR BODY COLOR COSMIC BLACK MICA<523> HANDLE O/S DOOR BODY COLOR<D75> BLACK THA	8-97422-427-0	01	1	1310-	●	●
187	GRIP; FRT DOOR BODY COLOR TITANIUM SILVER MET<529> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> SILVER THA	8-97422-429-0	01	1	1310-	●	●
187	GRIP; FRT DOOR BODY COLOR TITANIUM SILVER MET<529> HANDLE O/S DOOR BODY COLOR<D75> SILVER THA	8-97422-429-0	01	1	1310-	●	●
187	GRIP; FRT DOOR BODY COLOR SILKY WHITE PEARL<531> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> WHITE THA	8-97422-437-0	01	1	1310-	●	●
187	GRIP; FRT DOOR BODY COLOR SILKY WHITE PEARL<531> HANDLE O/S DOOR BODY COLOR<D75> WHITE THA	8-97422-437-0	01	1	1310-	●	●
187	GRIP; FRT DOOR BODY COLOR ULURU BROWN MET<544> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> BROWN THA	8-97424-504-0	01	1	1310-	●	●
187	GRIP; FRT DOOR BODY COLOR ULURU BROWN MET<544> HANDLE O/S DOOR BODY COLOR<D75> BROWN THA	8-97424-504-0	01	1	1310-	●	●
187	GRIP; FRT DOOR BODY COLOR FJORD BLUE MET<545> HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> LIGHT BLUE THA	8-97424-507-0	01	1	1310-	●	●
187	GRIP; FRT DOOR BODY COLOR FJORD BLUE MET<545> HANDLE O/S DOOR BODY COLOR<D75> LIGHT BLUE THA	8-97424-507-0	01	1	1310-	●	●
187	GRIP; FRT DOOR EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,HANDLE O/S DOOR BODY COLOR<D75>,HANDLE O/S DOOR CHROME<E20> THA	8-98176-456-0	01	1	1310-	●	●
187	GRIP; FRT DOOR EXC. HANDLE O/S DOOR BODY COLOR<D75>,HANDLE O/S DOOR CHROME<E20> THA	8-98176-456-0	01	1	1310-	●	●
189	BRACKET; GRIP,DOOR THA	8-98176-469-4	01	1	1310-	●	●
189	BRACKET; GRIP,DOOR THA	8-98176-471-4	01	1	1310-	●	●
