Isuzu WW
▶
SUV
▶
UCR
▶
51488 - UCR/UCS(THAILAND)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

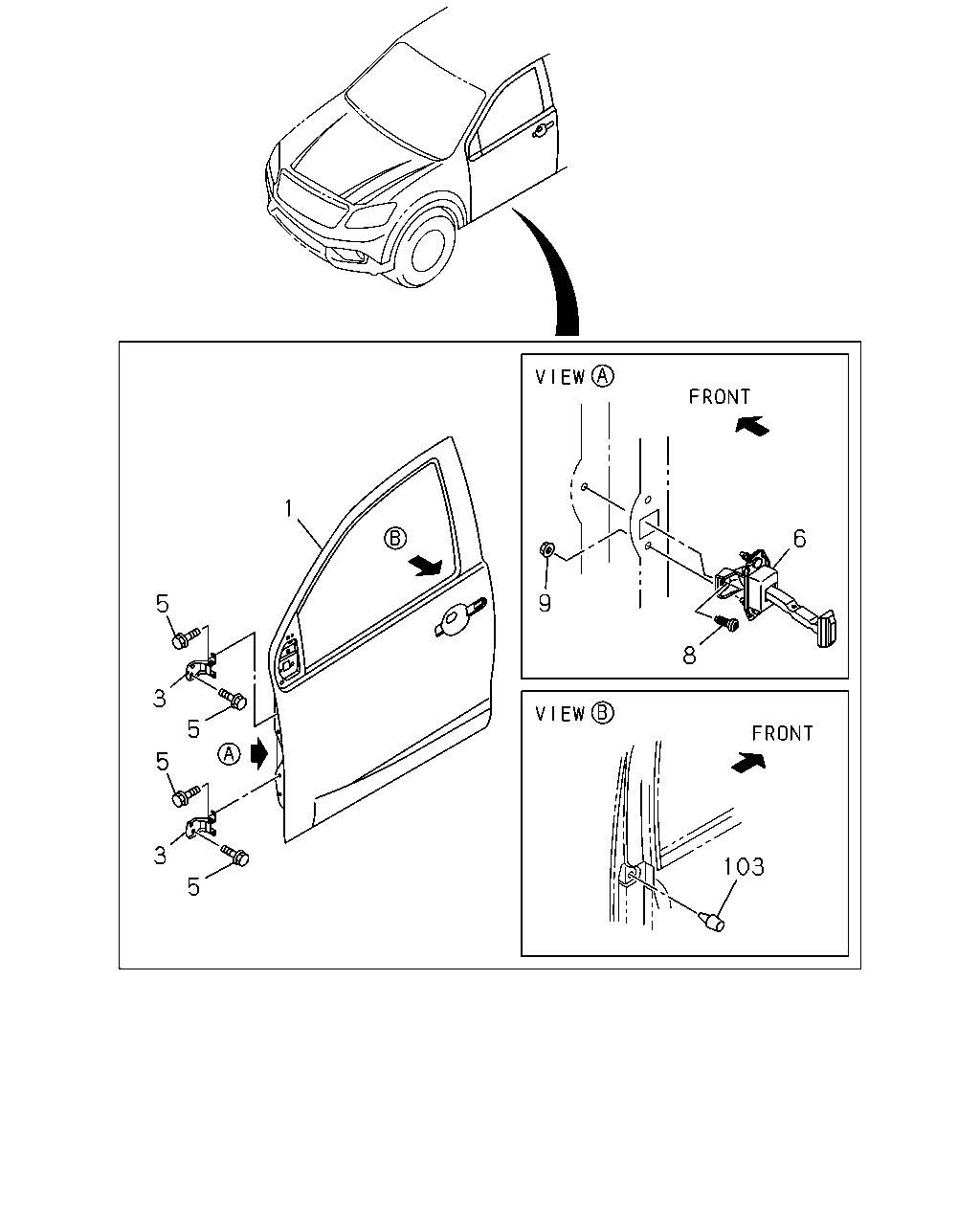

6-30 - FRONT DOOR AND HINGE
▶
6-30 — FRONT DOOR AND HINGE
(#129583) — 12 parça
Tümü
A - UCB5VC
B - UCS5VC
8
9
103
1
5
3
5
5
3
5
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
DOOR ASM; FRT,WO/TRIM
DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> THA
8-98108-131-4
01
1
1310-1503
●
●
1
DOOR ASM; FRT,WO/TRIM
DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> THA
8-98268-839-0
01
1
1504-
●
●
1
DOOR ASM; FRT,WO/TRIM
DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> THA
8-98108-132-4
01
1
1310-1503
●
●
1
DOOR ASM; FRT,WO/TRIM
DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> THA
8-98268-838-0
01
1
1504-
●
●
3
HINGE; DOOR FRT
DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> UPR RH & LWR LH THA
8-98105-296-0
02
1
1310-
●
●
3
HINGE; DOOR FRT
DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> LWR RH & UPR LH THA
8-98105-297-0
02
1
1310-
●
●
5
BOLT; HINGE
M8X23 FLANGE THA
8-98005-842-0
08
1
1310-
●
●
5
BOLT; HINGE
DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> M8X23 FLANGE THA
8-98005-842-0
08
1
1310-
●
●
6
ARM; CHECK,FRT DOOR
THA
8-98103-030-5
02
1
1310-
●
●
8
BOLT; CHECK ARM
M8X23 THA
8-98166-694-0
02
1
1310-
●
●
9
NUT; CHECK ARM
M6 FLANGE THA
8-98049-362-0
04
1
1310-
●
●
103
PROTECTOR; FRT DOOR
THA
8-98202-864-0
04
1
1310-
●
●
