6-20 — SIDE PANEL AND STEP (#129582) — 111 parça

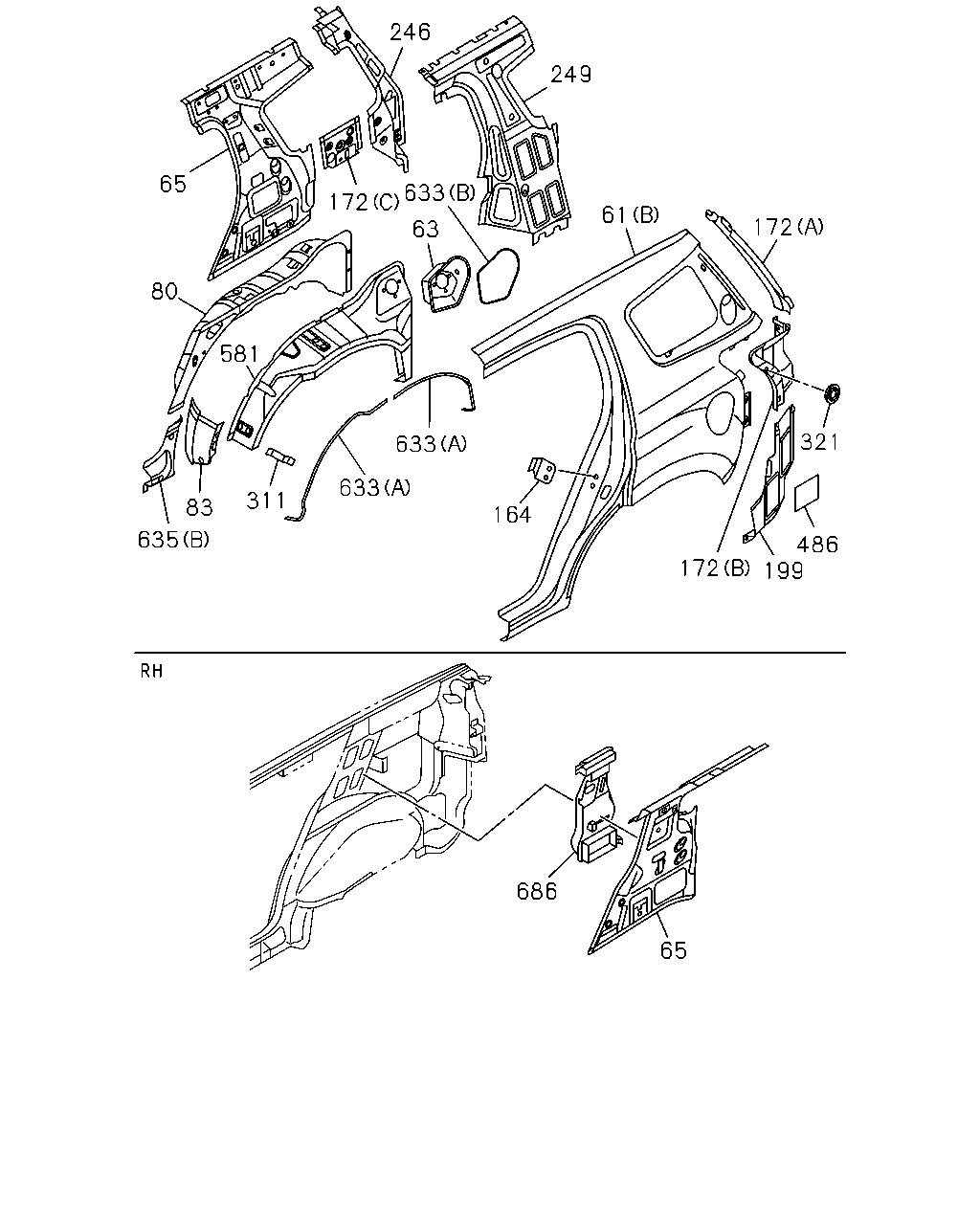

çizim 379862
172 633 246 249 61 172 321 172 199 164 633 633 311 83 635 581 80 65 63 486 686 65
BalonParca AdiParca NoAdetTipApplied Date A B
61 PANEL; SIDE OUTER
(A) THA 		8-98254-287-1 01 1 1310- ● ●
61 PANEL; SIDE OUTER
(B) THA 		8-98254-288-1 01 1 1310- ● ●
61 PANEL; SIDE OUTER
(A) THA 		8-98254-289-1 01 1 1310- ● ●
61 PANEL; SIDE OUTER
(B) THA 		8-98254-290-1 01 1 1310- ● ●
63 PANEL; FUEL FILLER RECESS
THA 		8-98200-487-0 01 1 1310- ● ●
65 PANEL; QUARTER,INNER
AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> THA 		8-98200-437-2 01 1 1310- ●
65 PANEL; QUARTER,INNER
AIR BAG DRIVER & PASSENGER<AK5> THA 		8-98200-437-2 01 1 1310- ●
65 PANEL; QUARTER,INNER
AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> THA 		8-98200-562-2 01 1 1310- ●
65 PANEL; QUARTER,INNER
AIR BAG DRIVER & PASSENGER<AK5> THA 		8-98200-562-2 01 1 1310- ●
65 PANEL; QUARTER,INNER
AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> THA 		8-98200-563-2 01 1 1310- ● ●
65 PANEL; QUARTER,INNER
AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> REAR COOLER WO/HEATER<C69> THA 		8-98200-564-2 01 1 1310- ●
65 PANEL; QUARTER,INNER
AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> THA 		8-98200-564-2 01 1 1310- ●
80 PANEL; WHEEL HOUSE,INNER
THA 		8-98200-578-2 01 1 1310- ● ●
80 PANEL; WHEEL HOUSE,INNER
THA 		8-98200-427-0 01 1 1310- ● ●
83 COVER; ROCKER RR
THA 		8-98200-528-0 01 1 1310- ● ●
83 COVER; ROCKER RR
THA 		8-98200-432-0 01 1 1310- ● ●
164 PLATE; SIDE PNL OUTER
THA 		8-98200-641-1 01 1 1310- ● ●
164 PLATE; SIDE PNL OUTER
THA 		8-98200-523-1 01 1 1310- ● ●
172 EXTENSION; QUARTER PANEL
(C) THA 		8-98200-436-0 01 1 1310- ● ●
172 EXTENSION; QUARTER PANEL
(C) THA 		8-98200-529-3 01 1 1310- ● ●
172 EXTENSION; QUARTER PANEL
(A) THA 		8-98200-530-1 01 1 1310- ● ●
172 EXTENSION; QUARTER PANEL
(B) THA 		8-98200-531-0 01 1 1310- ● ●
172 EXTENSION; QUARTER PANEL
(B) THA 		8-98200-485-0 01 1 1310- ● ●
172 EXTENSION; QUARTER PANEL
(A) THA 		8-98200-489-1 01 1 1310- ● ●
199 PANEL; RR SIDE
THA 		8-98200-536-0 01 1 1310- ● ●
199 PANEL; RR SIDE
THA 		8-98200-484-0 01 1 1310- ● ●
246 PANEL; RR PILLAR,INNER
AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> THA 		8-98200-445-5 01 1 1310- ●
246 PANEL; RR PILLAR,INNER
AIR BAG DRIVER & PASSENGER<AK5> THA 		8-98200-445-5 01 1 1310- ●
246 PANEL; RR PILLAR,INNER
AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> THA 		8-98200-567-6 01 1 1310- ●
246 PANEL; RR PILLAR,INNER
AIR BAG DRIVER & PASSENGER<AK5> THA 		8-98200-567-6 01 1 1310- ●
246 PANEL; RR PILLAR,INNER
AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> THA 		8-98200-568-5 01 1 1310- ● ●
246 PANEL; RR PILLAR,INNER
AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> REAR COOLER WO/HEATER<C69> THA 		8-98200-569-6 01 1 1310- ●
246 PANEL; RR PILLAR,INNER
AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> THA 		8-98200-569-6 01 1 1310- ●
249 REINFORCEMENT; RR PILLAR
THA 		8-98200-627-2 01 1 1310- ● ●
249 REINFORCEMENT; RR PILLAR
THA 		8-98200-425-2 01 1 1310- ● ●
311 SEAL; WHEEL HOUSE
THA 		8-98200-636-0 01 1 1310- ● ●
311 SEAL; WHEEL HOUSE
THA 		8-98200-636-0 01 1 1310- ● ●
321 PLUG; HOLE
OD=15.0 IMA 		8-94279-040-0 02 1 1310- ● ●
486 SEAL; BODY SIDE
THA 		8-98317-385-0 01 1 1506- ● ●
581 PANEL; WHEEL HOUSE,OUTER
THA 		8-98200-579-2 01 1 1310- ● ●
581 PANEL; WHEEL HOUSE,OUTER
THA 		8-98200-433-1 01 1 1310- ● ●
633 SEALER
(A) THA 		8-98200-638-2 02 1 1310- ● ●
633 SEALER
(A) THA 		8-98200-638-2 02 1 1310- ● ●
633 SEALER
(B) THA 		8-98200-488-1 01 1 1310- ● ●
635 REINFORCEMENT; ROCKER
(A) THA 		8-98104-794-4 01 1 1310- ● ●
635 REINFORCEMENT; ROCKER
(B) THA 		8-98200-632-0 01 1 1310- ● ●
635 REINFORCEMENT; ROCKER
(A) THA 		8-98104-793-4 01 1 1310- ● ●
635 REINFORCEMENT; ROCKER
(B) THA 		8-98200-431-0 01 1 1310- ● ●
686 DUCT; AIR OUTLET
REAR COOLER WO/HEATER<C69> THA 		8-98192-299-1 01 1 1310- ●
686 DUCT; AIR OUTLET
AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> THA 		8-98192-299-1 01 1 1310- ●

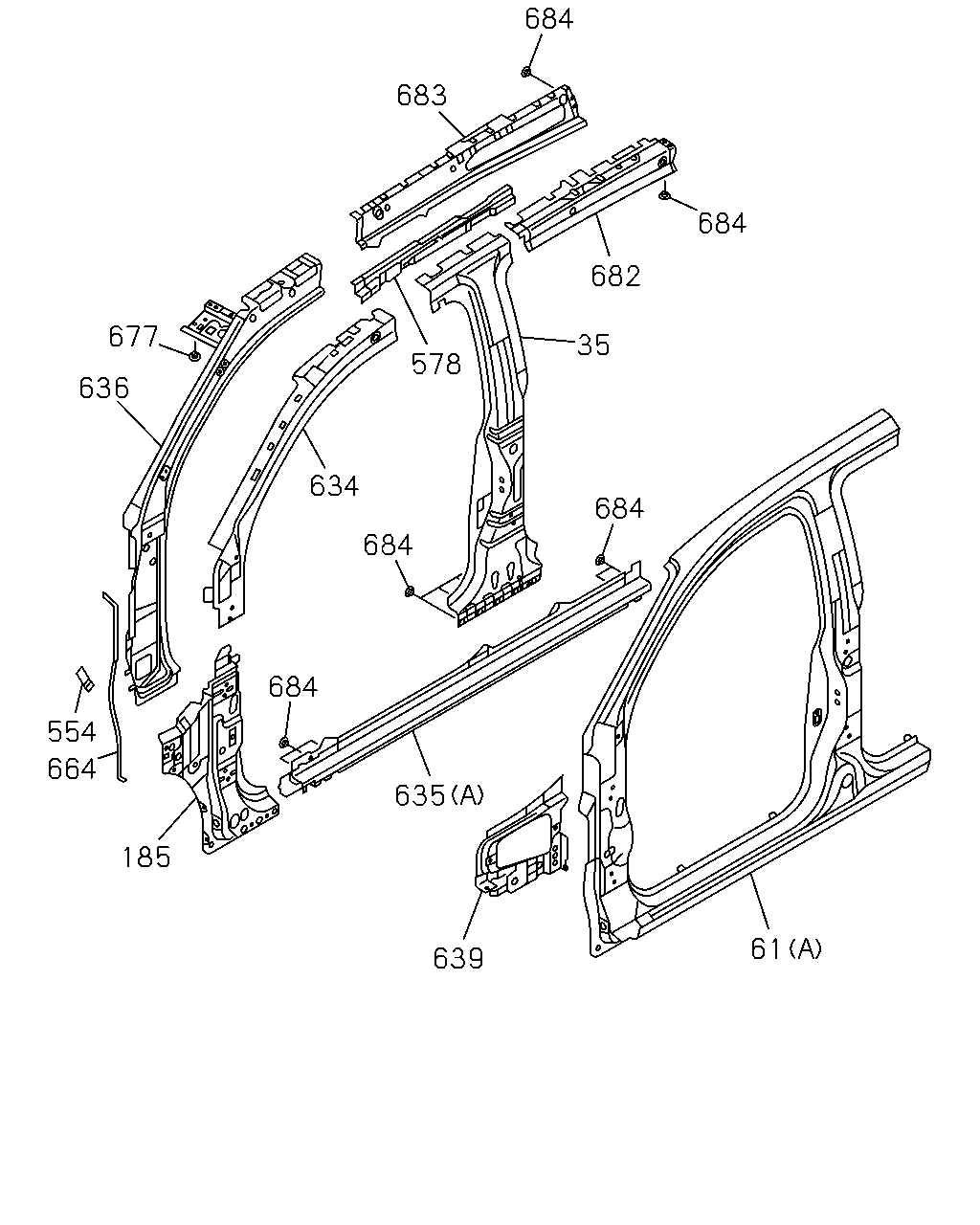

çizim 380130
684 683 684 682 35 684 684 634 684 677 636 554 664 185 635 639 61 578
BalonParca AdiParca NoAdetTipApplied Date A B
35 PANEL; CENTER PILLAR,INNER
THA 		8-98200-542-0 01 1 1310- ● ●
35 PANEL; CENTER PILLAR,INNER
THA 		8-98200-511-0 01 1 1310- ● ●
61 PANEL; SIDE OUTER
(A) THA 		8-98254-287-1 01 1 1310- ● ●
61 PANEL; SIDE OUTER
(B) THA 		8-98254-288-1 01 1 1310- ● ●
61 PANEL; SIDE OUTER
(A) THA 		8-98254-289-1 01 1 1310- ● ●
61 PANEL; SIDE OUTER
(B) THA 		8-98254-290-1 01 1 1310- ● ●
185 REINFORCEMENT; SIDE INNER LWR
THA 		8-98201-029-0 01 1 1310- ● ●
185 REINFORCEMENT; SIDE INNER LWR
THA 		8-98200-618-0 01 1 1310- ● ●
554 SEAL; INNER BODY
115X25 THA 		8-98178-886-0 02 1 1310- ● ●
578 PATCH; REINF,ROCKER OUTER
THA 		8-98206-331-0 01 1 1310- ● ●
578 PATCH; REINF,ROCKER OUTER
THA 		8-98206-330-0 01 1 1310- ● ●
634 REINFORCEMENT; BODY SIDE INNER
THA 		8-98206-297-2 01 1 1310- ● ●
634 REINFORCEMENT; BODY SIDE INNER
THA 		8-98206-296-2 01 1 1310- ● ●
635 REINFORCEMENT; ROCKER
(A) THA 		8-98104-794-4 01 1 1310- ● ●
635 REINFORCEMENT; ROCKER
(B) THA 		8-98200-632-0 01 1 1310- ● ●
635 REINFORCEMENT; ROCKER
(A) THA 		8-98104-793-4 01 1 1310- ● ●
635 REINFORCEMENT; ROCKER
(B) THA 		8-98200-431-0 01 1 1310- ● ●
636 PANEL; FRONT PILLAR INNER
AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> THA 		8-98200-420-3 01 1 1310- ●
636 PANEL; FRONT PILLAR INNER
AIR BAG DRIVER & PASSENGER<AK5> THA 		8-98200-420-3 01 1 1310- ●
636 PANEL; FRONT PILLAR INNER
AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> THA 		8-98200-546-3 01 1 1310- ●
636 PANEL; FRONT PILLAR INNER
AIR BAG DRIVER & PASSENGER<AK5> THA 		8-98200-546-3 01 1 1310- ●
636 PANEL; FRONT PILLAR INNER
AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> THA 		8-98200-549-3 01 1 1310- ● ●
636 PANEL; FRONT PILLAR INNER
AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> REAR COOLER WO/HEATER<C69> THA 		8-98200-550-3 01 1 1310- ●
636 PANEL; FRONT PILLAR INNER
AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> THA 		8-98200-550-3 01 1 1310- ●
639 REINFORCEMENT; COWL SIDE
THA 		8-98104-055-0 01 1 1310- ● ●
639 REINFORCEMENT; COWL SIDE
THA 		8-98185-421-0 01 1 1310- ● ●
664 SEAL; TAPE
THA 		8-98193-408-2 01 1 1310- ● ●
664 SEAL; TAPE
THA 		8-98193-408-2 01 1 1310- ● ●
677 RIVET; PANEL
THA 		8-98057-864-0 08 1 1310- ● ●
682 REINFORCEMENT; ROOF SIDE
THA 		8-98200-634-0 01 1 1310- ● ●
682 REINFORCEMENT; ROOF SIDE
THA 		8-98200-633-0 01 1 1310- ● ●
683 PANEL; HEADER
AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> THA 		8-98200-482-0 01 1 1310- ●
683 PANEL; HEADER
AIR BAG DRIVER & PASSENGER<AK5> THA 		8-98200-482-0 01 1 1310- ●
683 PANEL; HEADER
AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> THA 		8-98200-573-0 01 1 1310- ●
683 PANEL; HEADER
AIR BAG DRIVER & PASSENGER<AK5> THA 		8-98200-573-0 01 1 1310- ●
683 PANEL; HEADER
AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> THA 		8-98200-574-0 01 1 1310- ● ●
683 PANEL; HEADER
AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> REAR COOLER WO/HEATER<C69> THA 		8-98200-575-0 01 1 1310- ●
683 PANEL; HEADER
AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> THA 		8-98200-575-0 01 1 1310- ●
684 FASTENER
THA 		8-98057-864-0 14 1 1310- ● ●
684 FASTENER
THA 		8-98057-864-0 14 1 1310- ● ●

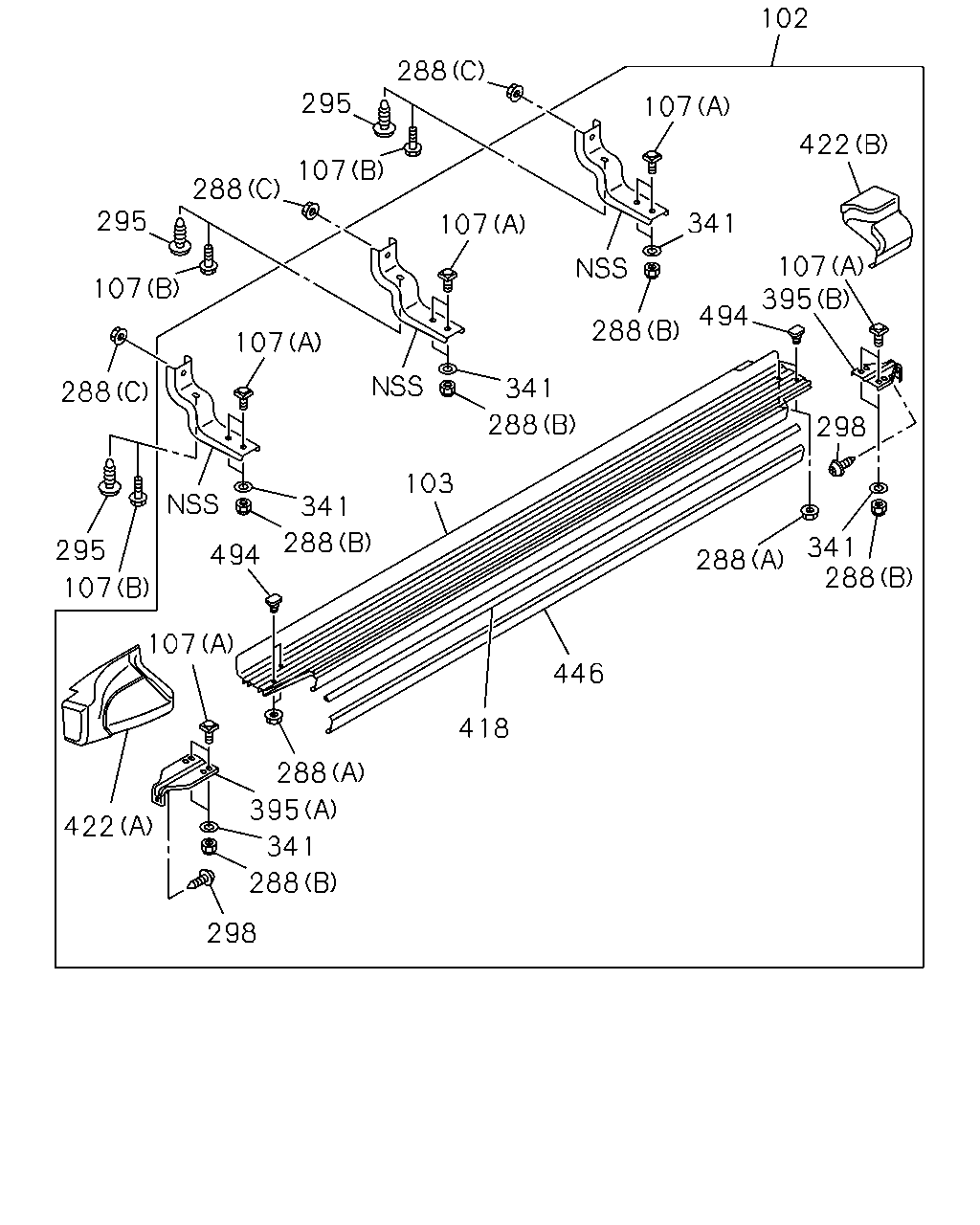

çizim 380844
422 107 102 395 298 341 288 288 494 341 107 288 288 341 107 288 295 107 107 288 295 107 288 295 107 107 422 288 395 341 288 298 418 446 103 341 494 288
BalonParca AdiParca NoAdetTipApplied Date A B
102 STEP; BODY SIDE
PRIMER THA 		8-98253-444-1 01 1 1310- ● ●
102 STEP; BODY SIDE
PRIMER THA 		8-98253-445-1 01 1 1310- ● ●
103 PLATE; STEP
SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> THA 		8-98251-434-0 01 1 1310- ● ●
103 PLATE; STEP
SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> THA 		8-98251-435-0 01 1 1310- ● ●
107 BOLT; SIDE STEP
SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> (A) THA 		8-98251-460-0 20 1 1310- ● ●
107 BOLT; SIDE STEP
SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> (B) M8X25 FLANGE THA 		8-98048-998-0 06 1 1310- ● ●
288 NUT; STEP
SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> (A) M6 FLANGE THA 		0-91180-106-0 08 1 1310- ● ●
288 NUT; STEP
SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> (B) M8 FLANGE THA 		0-91180-108-0 20 1 1310- ● ●
288 NUT; STEP
SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> (C) M8 FLANGE THA 		0-91180-208-0 06 1 1310- ● ●
295 CLIP; BODY SIDE STEP
EXC. SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> OD=18 THA 		8-94269-290-0 06 1 1310- ● ●
298 SCREW; SIDE STEP
SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> M5X16 IMA 		8-98073-081-0 04 1 1310- ● ●
341 WASHER; PL,STEP
SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> ID=8.4 OD=18 IMA 		0-91614-608-0 20 1 1310- ● ●
395 BRACKET; SIDE STEP
SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> (A) FRONT THA 		8-98251-452-0 02 1 1310- ● ●
395 BRACKET; SIDE STEP
SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> (B) REAR THA 		8-98251-453-0 02 1 1310- ● ●
418 RUBBER; STEP
SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> THA 		8-98251-462-1 02 1 1310- ● ●
422 COVER; SIDE STEP
(A) FRONT PRIMER THA 		8-98253-375-0 01 1 1310- ● ●
422 COVER; SIDE STEP
(B) REAR PRIMER THA 		8-98253-377-0 01 1 1310- ● ●
422 COVER; SIDE STEP
(A) FRONT PRIMER THA 		8-98253-376-0 01 1 1310- ● ●
422 COVER; SIDE STEP
(B) REAR PRIMER THA 		8-98253-378-0 01 1 1310- ● ●
446 FINISHER; STEP
PRIMER THA 		8-98253-379-0 02 1 1310- ● ●
494 STUD; BRKT
SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> THA 		8-98056-035-0 08 1 1310- ● ●
