6-05 — FRONT PANEL (#129578) — 34 parça

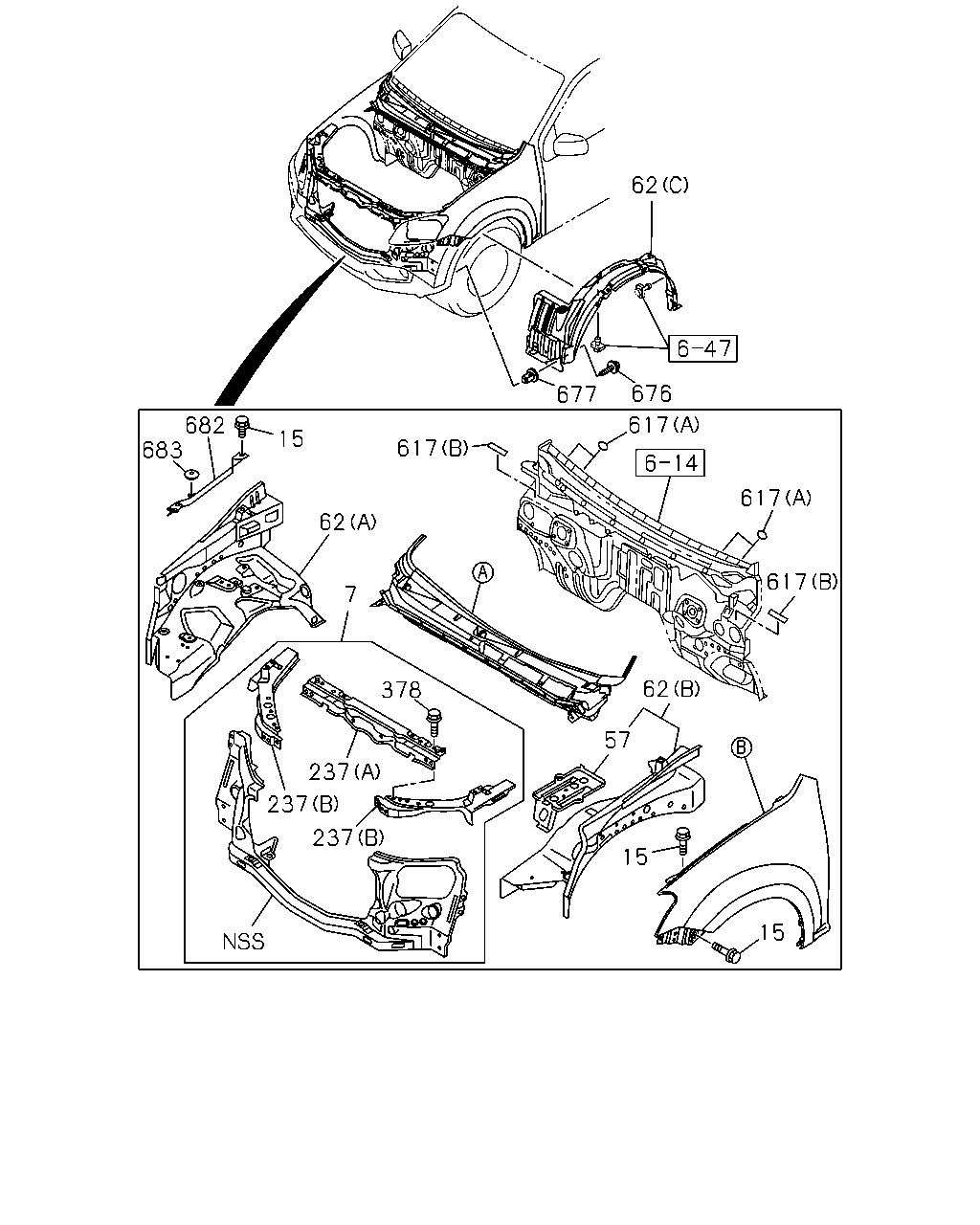

çizim 379945
62 677 676 617 617 62 57 378 62 617 15 682 683 237 23 237 15 15 617 7
BalonParca AdiParca NoAdetTipApplied Date A B
7 PANEL; DEFLECTOR
THA 		8-98103-202-0 01 1 1310- ● ●
15 BOLT; FENDER
M6X15 W/LK&PL WASHER THA 		8-98167-615-0 12 1 1310- ● ●
57 TRAY; BATTERY
THA 		8-98104-480-5 01 1 1310- ● ●
62 PANEL; WHEEL HOUSE
(C) THA 		8-98077-253-6 01 1 1310- ● ●
62 PANEL; WHEEL HOUSE
(C) THA 		8-98077-256-6 01 1 1310- ● ●
62 PANEL; WHEEL HOUSE
(A) THA 		8-98222-295-4 01 1 1310- ● ●
62 PANEL; WHEEL HOUSE
(B) THA 		8-98226-409-3 01 1 1310- ● ●
237 SUPPORT; DEFLECTOR
(A) THA 		8-98104-224-4 01 1 1310- ● ●
237 SUPPORT; DEFLECTOR
(B) THA 		8-98104-244-4 01 1 1310- ● ●
237 SUPPORT; DEFLECTOR
(B) THA 		8-98104-253-4 01 1 1310- ● ●
378 BOLT; SUPPORT
M6X12 FLANGE THA 		0-28060-612-0 08 1 1310- ● ●
617 SEAL; DASH
(A) OD=25 BLACK THA 		1-76798-019-0 04 1 1310- ● ●
617 SEAL; DASH
(C) T=5.0 THA 		8-98134-005-0 01 1 1310- ● ●
617 SEAL; DASH
(B) 110X10 THA 		8-98192-905-0 02 1 1310- ● ●
676 BOLT; WHEEL HOUSE
M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 02 1 1310- ● ●
677 NUT; WHEEL HOUSE
THA 		8-98189-379-0 02 1 1310- ● ●
682 PROTECTOR; HEAT,ENG
THA 		8-98139-849-3 01 1 1310- ● ●
683 RIVET; PROTECTOR,HEAT
THA 		8-98057-864-0 02 1 1310- ● ●

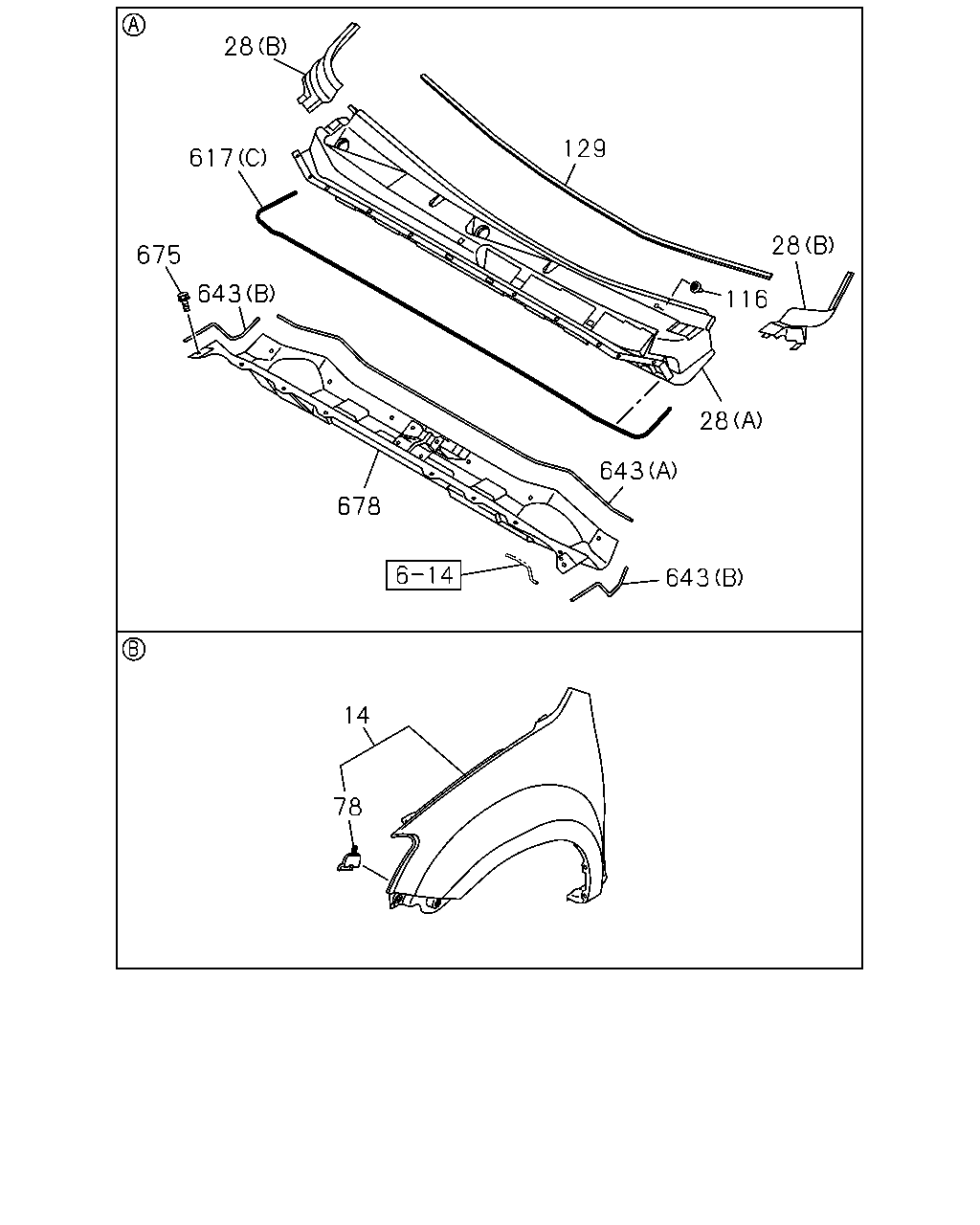

çizim 380098
14 78 643 678 643 28 116 28 129 28 617 675 643
BalonParca AdiParca NoAdetTipApplied Date A B
14 FENDER; FRT
THA 		8-98103-207-0 01 1 1310- ● ●
14 FENDER; FRT
THA 		8-98103-209-0 01 1 1310- ● ●
28 COVER; DASH COWL
(B) THA 		8-98133-981-6 01 1 1310- ● ●
28 COVER; DASH COWL
(B) THA 		8-98133-982-5 01 1 1310- ● ●
28 COVER; DASH COWL
(A) THA 		8-98133-983-0 01 1 1310- ● ●
78 BRACKET; FENDER
THA 		8-98104-033-1 01 1 1310- ● ●
78 BRACKET; FENDER
THA 		8-98104-034-1 01 1 1310- ● ●
116 CLIP; COWL COVER
THA 		8-98134-004-1 06 1 1310- ● ●
129 FINISHER; COWL COVER
THA 		8-98133-991-0 01 1 1310- ● ●
617 SEAL; DASH
(A) OD=25 BLACK THA 		1-76798-019-0 04 1 1310- ● ●
617 SEAL; DASH
(C) T=5.0 THA 		8-98134-005-0 01 1 1310- ● ●
617 SEAL; DASH
(B) 110X10 THA 		8-98192-905-0 02 1 1310- ● ●
643 SEAL; COWL
(A) THA 		8-98110-283-1 01 1 1310- ● ●
643 SEAL; COWL
(B) THA 		8-98110-284-1 02 1 1310- ● ●
675 BOLT; PANEL
M6X12 W/PL WASHER THA 		8-98180-459-2 08 1 1310- ● ●
678 PANEL; COWL
THA 		8-98065-803-3 01 1 1310- ● ●
