Isuzu WW
▶
SUV
▶
UCR
▶
51488 - UCR/UCS(THAILAND)
▶
5 - Frame, Cab Mounting
▶

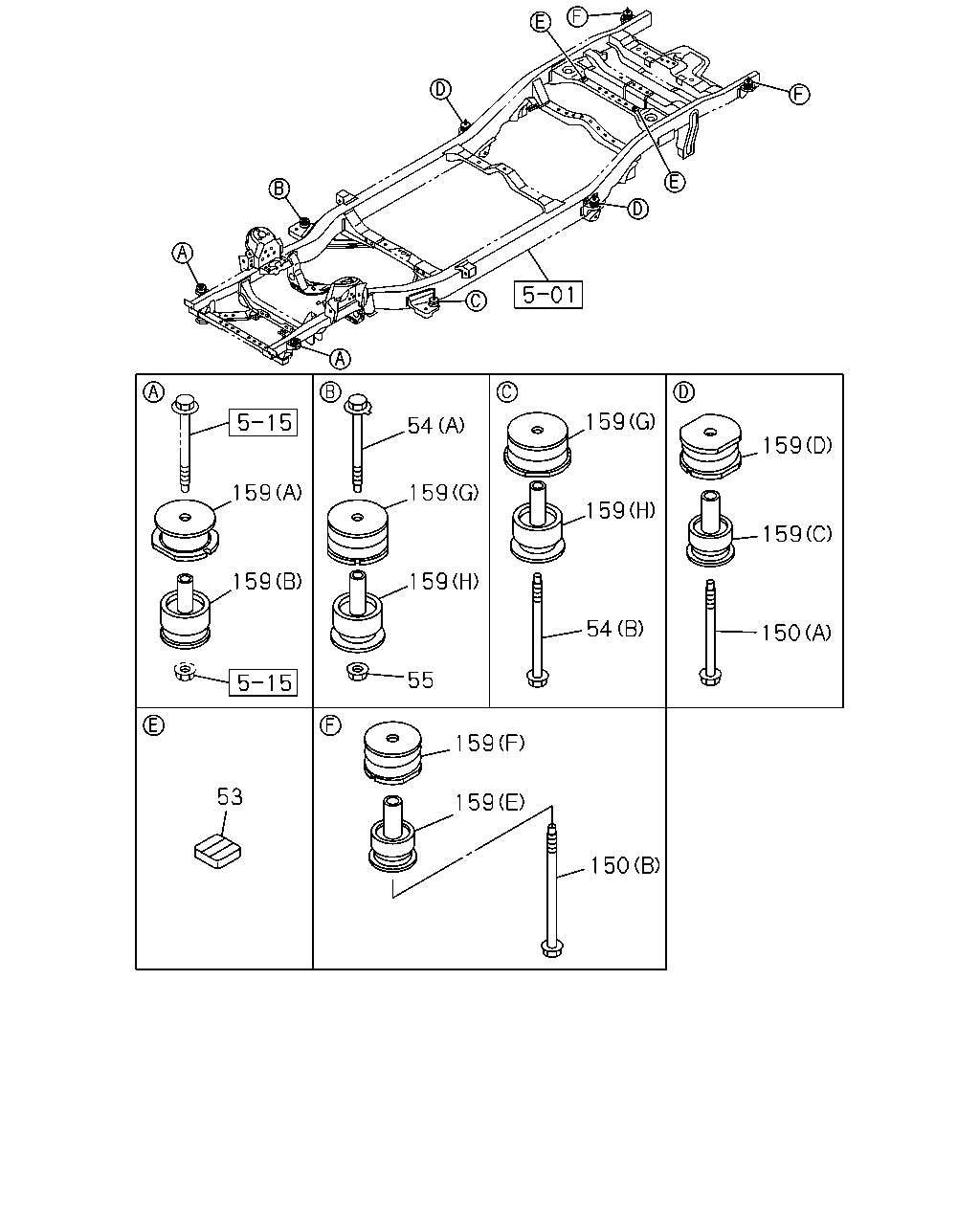

5-10 - CAB MOUNTING; FRAME SIDE
▶
5-10 — CAB MOUNTING; FRAME SIDE
(#129571) — 14 parça
Tümü
A - UCB5VC
B - UCS5VC
159
159
54
159
159
55
159
159
54
159
159
150
159
159
150
53
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
53
RUBBER; STOPPER
THA
8-98235-433-0
02
1
1310-
●
●
54
BOLT; RUBBER
(B) THA
8-98199-237-0
01
1
1310-
●
●
54
BOLT; RUBBER
(A) THA
8-98224-351-0
01
1
1310-
●
●
55
NUT; RUBBER
THA
8-98220-857-1
01
1
1310-
●
●
150
BOLT; CAB MTG RR
(A) THA
8-98199-237-0
02
1
1310-
●
●
150
BOLT; CAB MTG RR
(B) THA
8-98199-238-0
02
1
1310-
●
●
159
RUBBER; CUSHION,CAB MTG
(A) THA
8-97367-285-0
02
1
1310-
●
●
159
RUBBER; CUSHION,CAB MTG
(B) THA
8-98051-326-0
02
1
1310-
●
●
159
RUBBER; CUSHION,CAB MTG
(C) THA
8-98199-026-1
02
1
1310-
●
●
159
RUBBER; CUSHION,CAB MTG
(E) THA
8-98199-028-1
02
1
1310-
●
●
159
RUBBER; CUSHION,CAB MTG
(D) THA
8-98199-029-1
02
1
1310-
●
●
159
RUBBER; CUSHION,CAB MTG
(F) THA
8-98199-030-1
02
1
1310-
●
●
159
RUBBER; CUSHION,CAB MTG
(G) THA
8-98203-605-1
02
1
1310-
●
●
159
RUBBER; CUSHION,CAB MTG
(H) THA
8-98203-606-1
02
1
1310-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
