Isuzu WW
▶
TRUCKS
▶
FVM
▶
11129 - FVM(THAI)EURO3
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-66 - HEAD LINING AND TRIM
▶

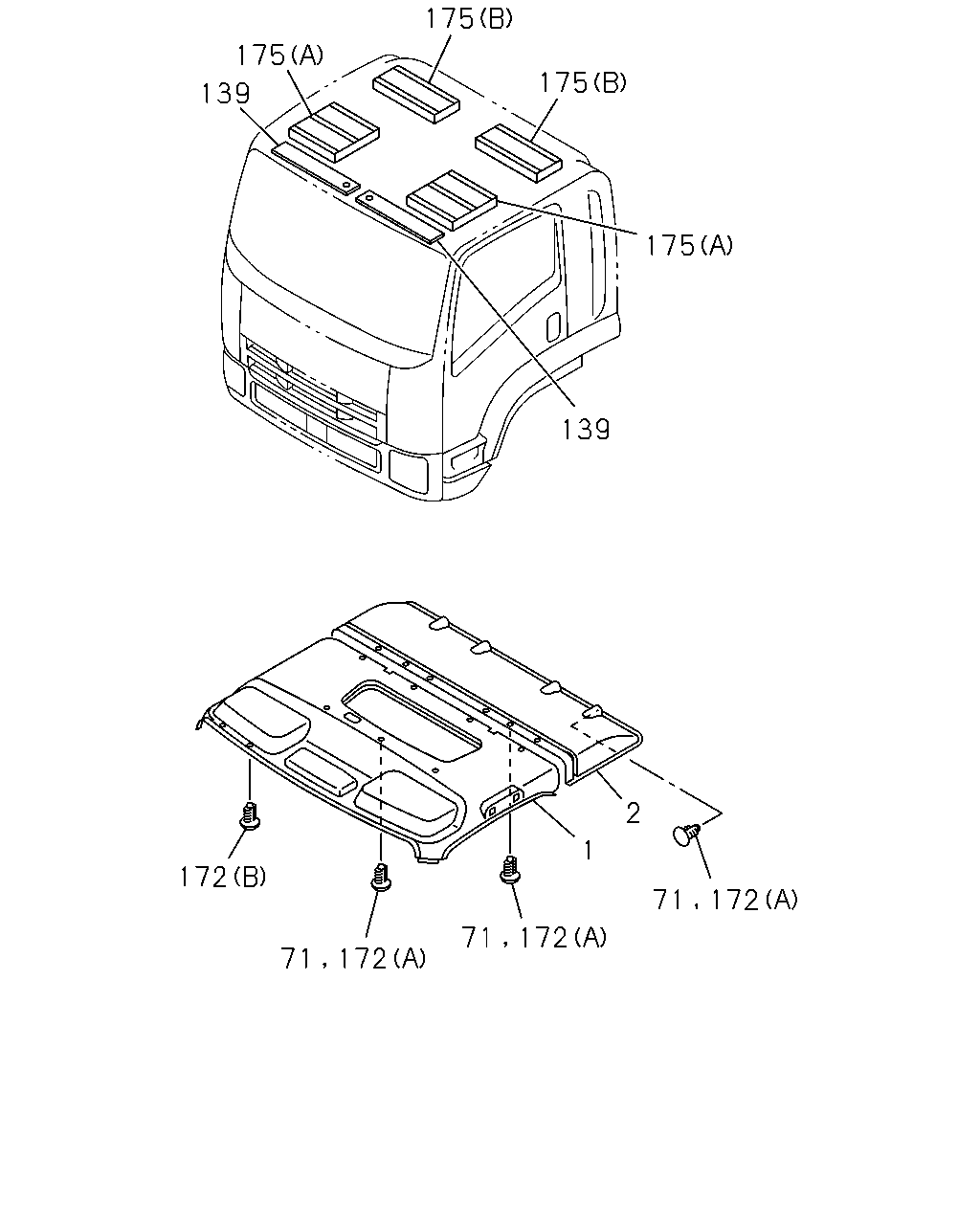

6-66 — HEAD LINING AND TRIM
(#12957) — 16 parça
175
175
175
139
175
139
2
1
172
71
172
71
172
71
172
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY
8-97409-899-3
01
1
0807-1102
1
LINING; HD
DARK GRAY
8-97409-899-3
01
1
1103-1306
1
LINING; HD
DARK GRAY
8-97426-728-0
01
1
1307-
1
LINING; HD
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY
8-97409-898-2
01
1
0807-1102
2
LINING; HD,ROOF RR
DARK GRAY
8-97415-674-0
01
1
0807-1306
2
LINING; HD,ROOF RR
DARK GRAY
8-97427-627-0
01
1
1307-
71
FASTENER; HD LINING
DARK GRAY
8-97405-282-0
07
1
1206-
139
SEAL; ROOF
8-98076-274-0
02
1
0807-1003
139
SEAL; ROOF
EXC. VIN MODEL YEAR 2010<VZA>
8-98076-274-0
02
1
1004-1012
139
SEAL; ROOF
EXC. VIN MODEL YEAR 2010<VZA>
8-98169-116-0
02
1
1101-1102
172
RETAINER; HEAD LINING
(A) DARK GRAY
8-97405-282-0
07
1
0807-1205
172
RETAINER; HEAD LINING
(B) DARK GRAY
8-97411-875-0
14
1
0807-
175
CUSHION; HEAD LINING
(A)
8-98030-965-2
02
1
0807-1003
175
CUSHION; HEAD LINING
EXC. VIN MODEL YEAR 2010<VZA> (A)
8-98030-965-2
02
1
1004-1102
175
CUSHION; HEAD LINING
(B)
8-98082-685-1
02
1
0807-1003
175
CUSHION; HEAD LINING
EXC. VIN MODEL YEAR 2010<VZA> (B)
8-98082-685-1
02
1
1004-1102
