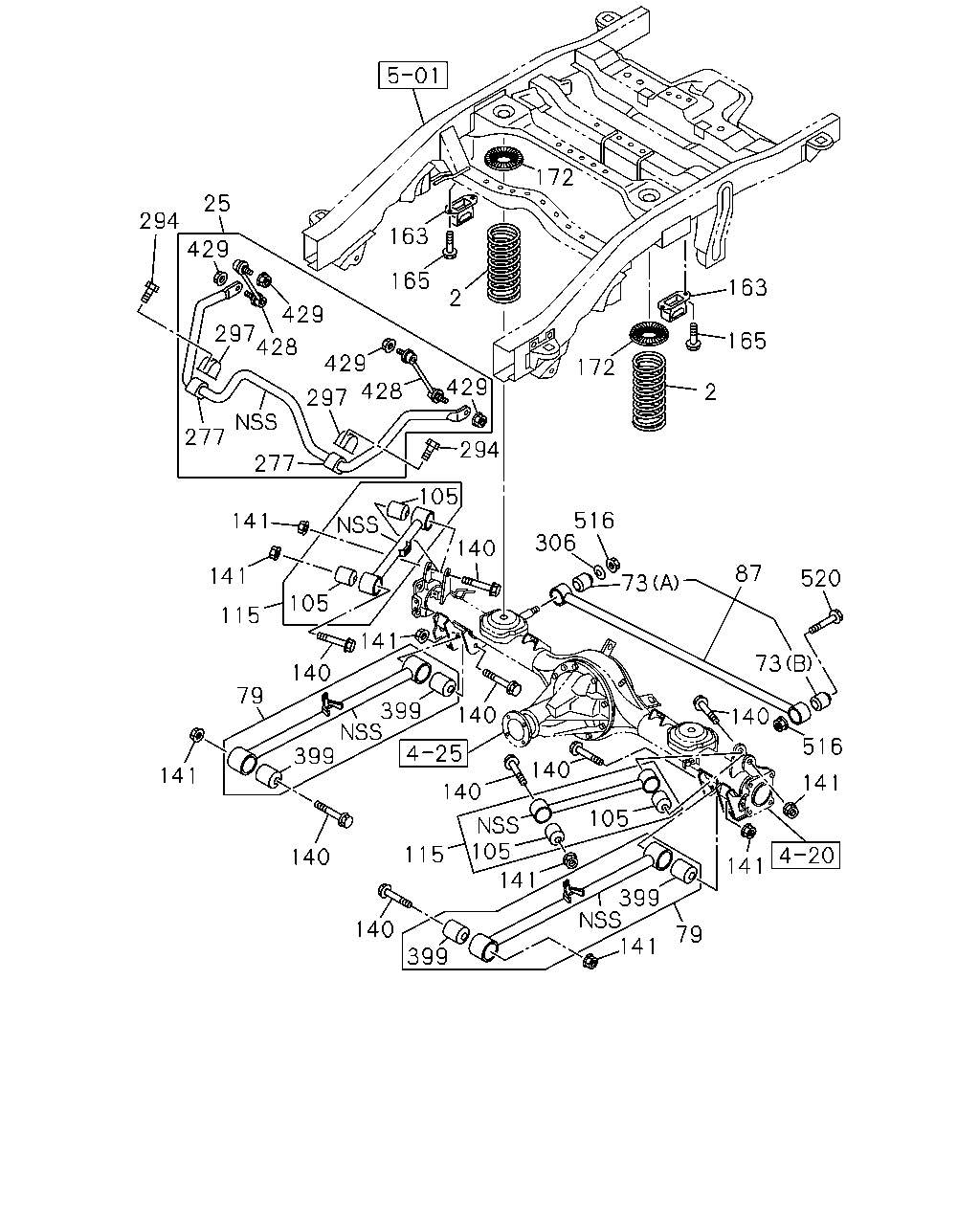

4-60 — REAR SUSPENSION (#129567) — 22 parça

141 79 399 140 140 115 141 105 105 140 140 399 79 141 115 141 141 105 105 140 399 140 399 141 141 140 516 73 87 520 73 516 306 140 172 2 165 163 2 165 163 172 25 294 297 429 429 297 428 277 277 294 428 429 141 429

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	SPRING; COIL,RR SUSP THA	8-97947-799-2	02	1	1310-	●	●
25	BAR ASM; STAB,RR SUSP THA	8-97947-792-0	01	1	1310-	●	●
73	BUSHING; LATERAL ROD,RR SUSP (A) THA	8-97947-785-1	01	1	1310-	●	●
73	BUSHING; LATERAL ROD,RR SUSP (B) THA	8-97947-786-0	01	1	1310-	●	●
79	LINK; TRAILING,RR SUSP THA	8-97947-369-0	02	1	1310-	●	●
87	LINK; LATERAL,RR SUSP THA	8-97947-365-2	01	1	1310-	●	●
105	BUSHING; UPR LINK THA	8-97947-787-0	04	1	1310-	●	●
115	LINK; UPR,W/BUSHING THA	8-97947-367-1	02	1	1310-	●	●
140	BOLT; CONT ARM TO BODY THA	8-97947-834-0	08	1	1310-	●	●
141	NUT; CONT ARM TO BODY THA	8-98217-474-0	08	1	1310-	●	●
163	RUBBER; HELPER,RR SPR THA	8-97947-790-0	02	1	1310-	●	●
165	BOLT; HELPER RUBBER M10X25 FLANGE THA	0-28661-025-0	04	1	1310-	●	●
172	INSULATOR; RR SPR UPR THA	8-97947-789-0	02	1	1310-	●	●
277	BUSHING; STAB,RR UPR THA	8-97247-083-0	02	1	1310-	●	●
294	BOLT; STAB BAR TO RR AXLE M8X20 FLANGE THA	0-28650-820-0	04	1	1310-	●	●
297	CAP; STAB BAR THA	8-97947-948-0	02	1	1310-	●	●
306	WASHER; ROD THA	8-97947-826-0	01	1	1310-	●	●
399	BUSHING; TRAILING ROD THA	8-97947-788-0	04	1	1310-	●	●
428	LINK; RR STABILIZER THA	8-97947-794-0	02	1	1310-	●	●
429	NUT; LINK M12 LOCK NUT FLANGE THA	0-91380-012-0	04	1	1310-	●	●
516	NUT; ROD THA	8-98217-474-0	02	1	1310-	●	●
520	BOLT; ROD IMA	0-29261-490-0	01	1	1310-	●	●
