4-42 — POWER STEERING OIL PUMP (#129565) — 9 parça

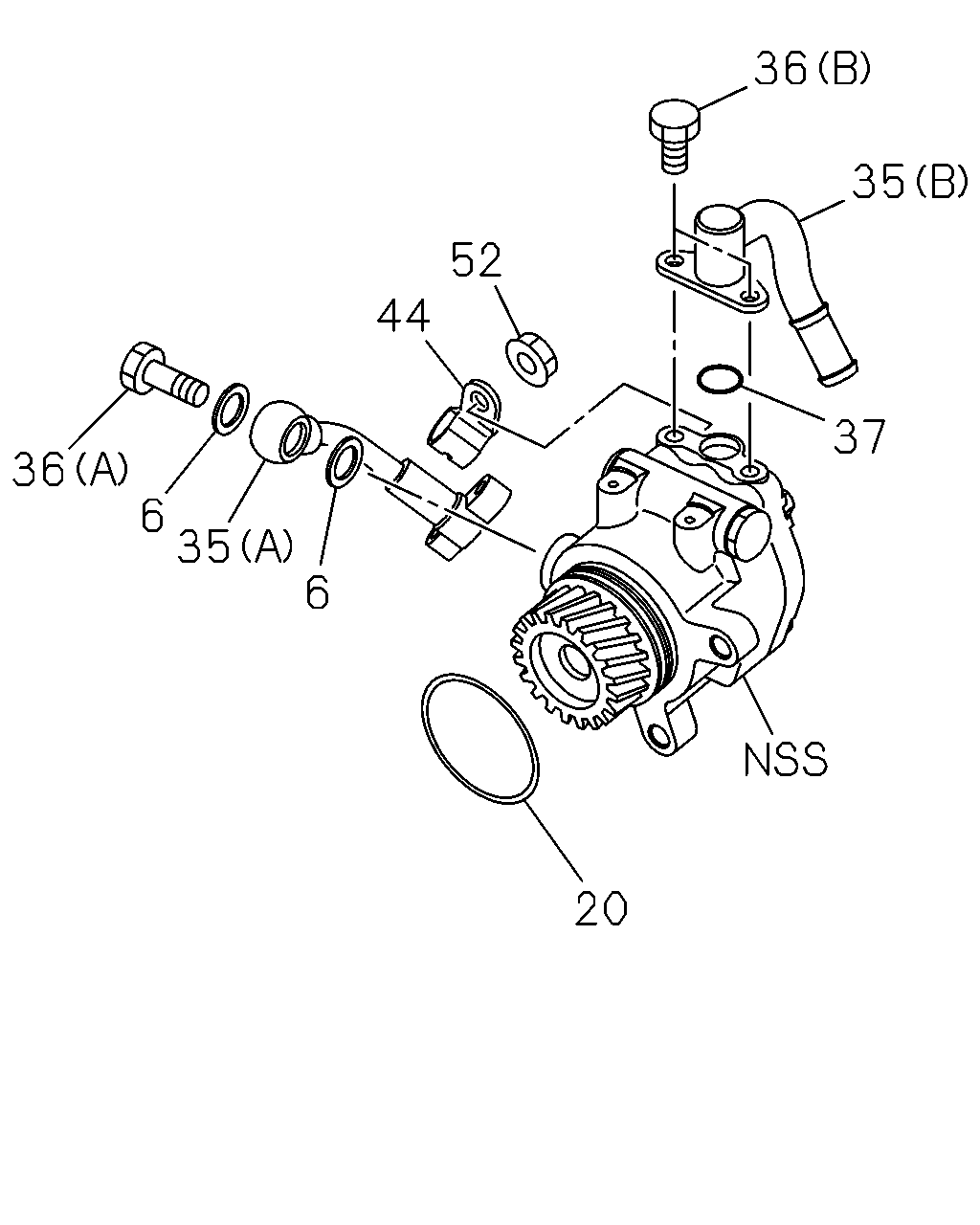

çizim 380114
20 6 6 36 35 44 52 36 35 37
BalonParca AdiParca NoAdetTipApplied Date
6 WASHER; PL,OIL PUMP
THA ASM PART: A = 8-97946-164-0 		8-98165-870-0 02 1 -
20 GASKET; FRT,OIL PUMP
THA ASM PART: A = 8-97946-164-0 		8-98165-868-0 01 1 -
35 PIPE; HOSE CONN,OIL PUMP
(A), THA ASM PART: A = 8-97946-164-0 		8-98165-869-0 01 1 -
35 PIPE; HOSE CONN,OIL PUMP
(B), THA ASM PART: A = 8-97946-164-0 		8-98166-383-0 01 1 -
36 BOLT; CONN,PIPE
(A), THA ASM PART: A = 8-97946-164-0 		8-98165-884-0 01 1 -
36 BOLT; CONN,PIPE
(B), THA ASM PART: A = 8-97946-164-0 		8-98166-386-0 02 1 -
37 GASKET; PIPE CONN,OIL PUMP
THA ASM PART: A = 8-97946-164-0 		8-98166-384-0 01 1 -
44 BRACKET; OIL PUMP,P/S & EDS
THA ASM PART: A = 8-97946-164-0 		8-98165-885-0 01 1 -
52 NUT; OIL PUMP
THA ASM PART: A = 8-97946-164-0 		8-98165-887-0 01 1 -
