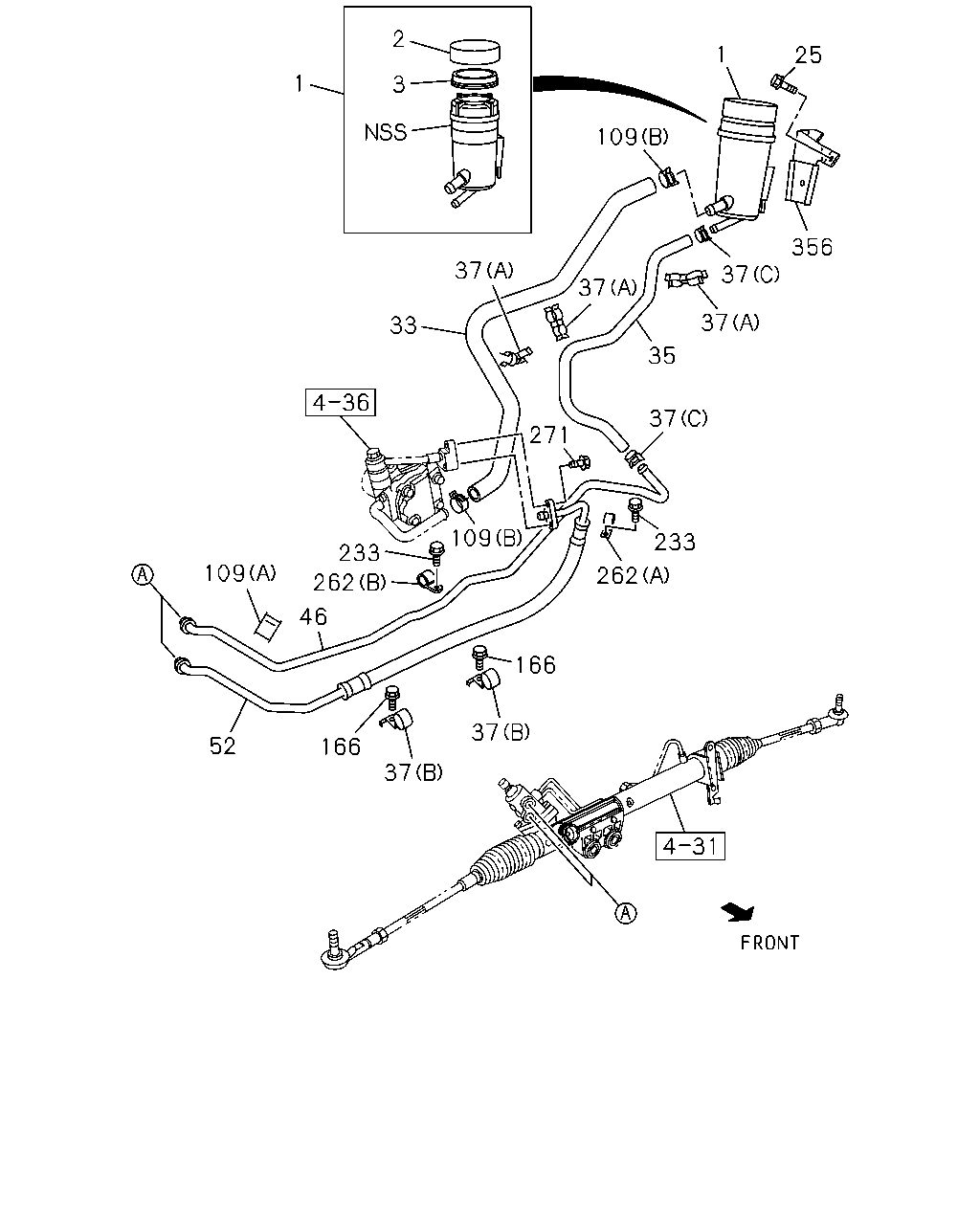

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#129562) — 19 parça

1 2 3 1 25 356 37 37 35 37 109 37 271 37 33 233 262 109 52 46 166 37 166 37 262 233 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S THA	8-97234-350-0	01	1	1310-	●	●
2	CAP; OIL TANK,P/S THA	8-97349-476-0	01	1	1310-	●	●
3	GASKET; OIL TANK,P/S THA	8-97349-477-0	01	1	1310-	●	●
25	BOLT; OIL TANK BRKT M6X16 FLANGE THA	0-28650-616-0	02	1	1310-	●	●
33	HOSE; RUBBER,POWER STRG THA	8-97946-138-2	01	1	1310-	●	●
35	HOSE; RETURN,P/S TANK THA	8-97946-140-1	01	1	1310-	●	●
37	CLIP; HOSE,P/S (B) ID=21.5 THA	8-98242-629-0	01	1	1310-	●	●
37	CLIP; HOSE,P/S (A) ID=17.5 & 21 THA	8-97177-580-0	03	1	1310-	●	●
37	CLIP; HOSE,P/S (C) ID=16 THA	8-98030-682-0	02	1	1310-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK THA	8-98228-468-1	01	1	1310-	●	●
52	HOSE; FLEX,P/S CONT VLV THA	8-98231-296-1	01	1	1310-	●	●
109	CLIP; RUBBER HOSE (A) ID=10X2 H=22 THA	8-94252-455-2	01	1	1310-	●	●
109	CLIP; RUBBER HOSE (B) ID=20.8 THA	8-97944-127-0	02	1	1310-	●	●
166	BOLT; CLIP M6X16 FLANGE THA	0-28650-616-0	01	1	1310-	●	●
233	BOLT; PIPE CLIP,P/S M6X16 FLANGE THA	0-28650-616-0	02	1	1310-	●	●
262	CLIP; P/S PIPE (A) ID=11 H=20 L=20 IMA	0-95207-310-0	01	1	1310-	●	●
262	CLIP; P/S PIPE (B) ID=11 L=20 IMA	0-95235-032-0	01	1	1310-	●	●
271	BOLT; P/S OIL PIPE FIX M6X16 FLANGE THA	0-28650-616-0	02	1	1310-	●	●
356	BRACKET; P/S,RESERVOIR THA	8-97946-163-0	01	1	1310-	●	●
