◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51488 - UCR/UCS(THAILAND) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-31 - STEERING COLUMN AND SHAFT ▶
4-31 — STEERING COLUMN AND SHAFT (#129560) — 30 parça

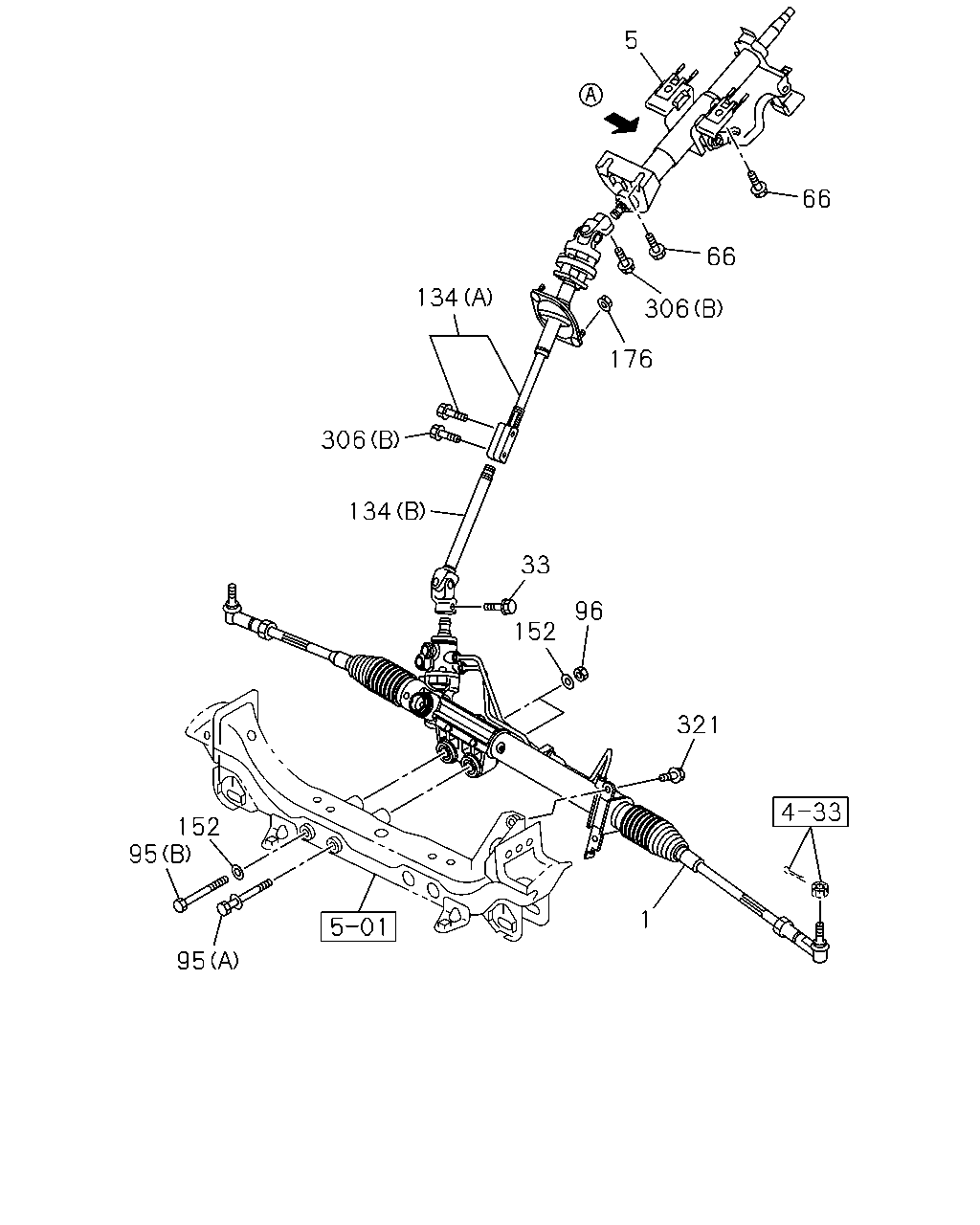

çizim 380282
66 66 306 176 5 134 306 134 152 95 95 1 321 96 152 33
BalonParca AdiParca NoAdetTipApplied Date A B
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. THA 		8-98231-299-0 01 1 1310- ● ●
5 COLUMN; STRG
THA 		8-98273-325-0 01 1 1310- ● ●
33 BOLT; STRG SHAFT TO UNIT
M8X35 FLANGE THA 		8-97249-320-0 01 1 1310- ● ●
66 BOLT; STRG COLUMN
M8X25 FLANGE THA 		0-28650-825-0 04 1 1310- ● ●
95 BOLT; STRG UNIT
(B) M16X186.5 THA 		8-97947-503-0 01 1 1310- ● ●
95 BOLT; STRG UNIT
(A) M16X186.5 W/PL WASHER THA 		8-98162-884-1 01 1 1310- ● ●
96 NUT; STRG UNIT
M16 THA 		0-91110-516-0 02 1 1310- ● ●
134 SHAFT; STRG,2ND
(B) THA 		8-98184-288-0 01 1 1310- ● ●
134 SHAFT; STRG,2ND
(A) THA 		8-98184-291-0 01 1 1310- ● ●
152 WASHER; LK,STRG UNIT
ID=17 THA 		8-97947-501-0 03 1 1310-1504 ● ●
152 WASHER; LK,STRG UNIT
ID=17 THA 		8-98296-670-0 03 1 1505- ● ●
176 NUT; STRG
M6 FLANGE THA 		0-91180-106-0 02 1 1310- ● ●
306 BOLT; STRG SHAFT
(A) M8X18.5 TWISTED OFF THA 		8-97945-749-0 02 1 1310- ● ●
306 BOLT; STRG SHAFT
(B) M8X35 FLANGE THA 		8-97249-320-0 02 1 1310- ● ●
321 BOLT; BRKT,STRG
M12X30 FLANGE THA 		0-28661-230-0 02 1 1310- ● ●

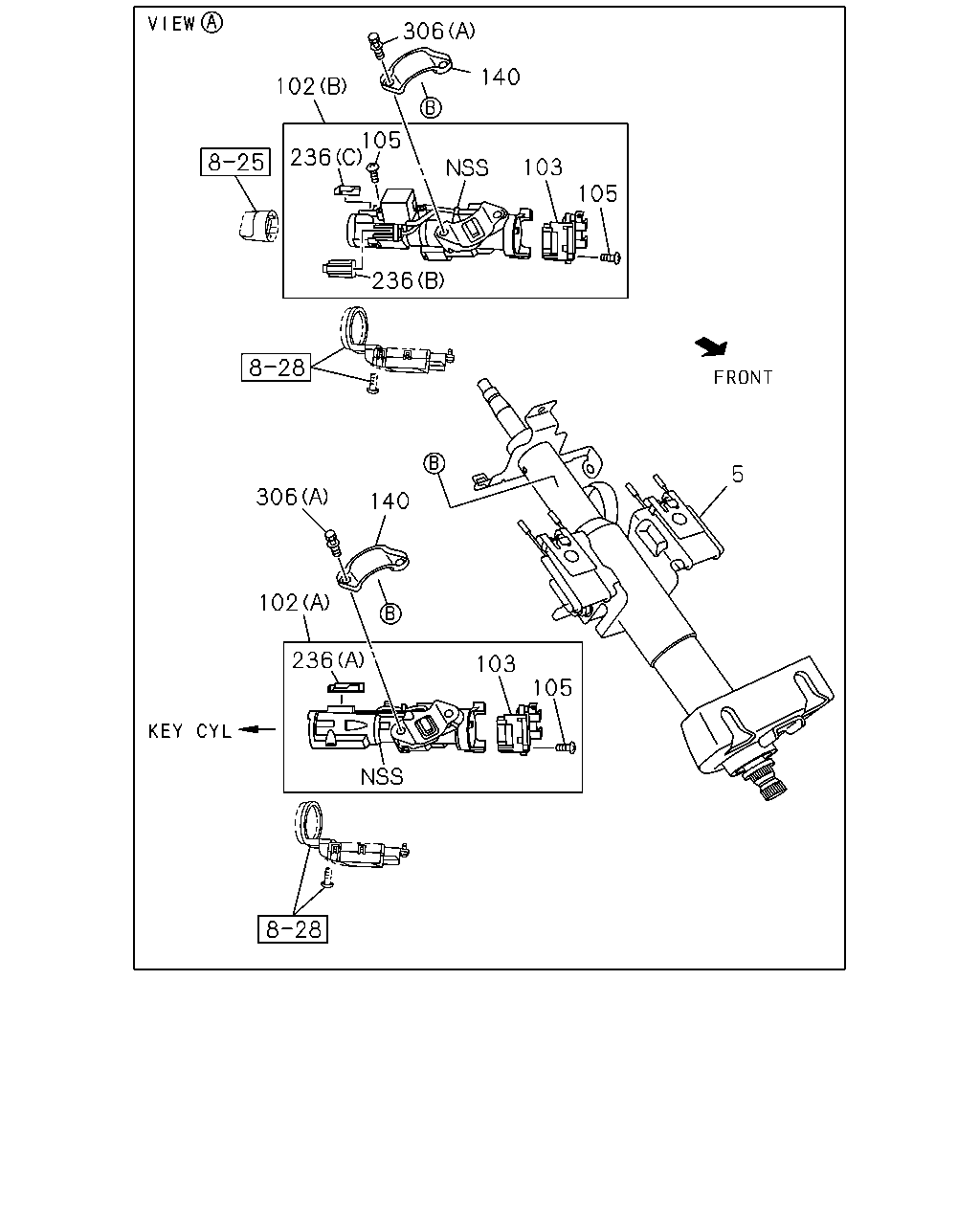

çizim 380294
306 140 102 105 236 103 105 236 5 306 140 102 236 103 105
BalonParca AdiParca NoAdetTipApplied Date A B
5 COLUMN; STRG
THA 		8-98273-325-0 01 1 1310- ● ●
102 LOCK ASM; STRG
A/T 5 SPEED-AISIN<MA1> PASSIVE ENTRY AND START SYSTEM<AP3> (B) THA 		8-98076-121-2 01 1 1310- ● ●
102 LOCK ASM; STRG
A/T 5 SPEED-AISIN<MA1> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (A) THA 		8-98076-120-0 01 1 1310- ● ●
102 LOCK ASM; STRG
M/T MUA 5 SPEED 5H<MWQ> PASSIVE ENTRY AND START SYSTEM<AP3> (B) THA 		8-98076-118-2 01 1 1310- ●
102 LOCK ASM; STRG
M/T MUX 5 SPEED 5S<MZJ> PASSIVE ENTRY AND START SYSTEM<AP3> (B) THA 		8-98076-118-2 01 1 1310- ●
102 LOCK ASM; STRG
M/T MUA 5 SPEED 5H<MWQ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (A) THA 		8-98076-117-0 01 1 1310- ●
102 LOCK ASM; STRG
M/T MUX 5 SPEED 5S<MZJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (A) THA 		8-98076-117-0 01 1 1310- ●
103 SWITCH; IGNITION
THA 		8-98132-719-0 01 1 1310- ● ●
105 SCREW; IGN SW
THA 		8-98192-449-0 02 1 1310- ● ●
140 BRACKET; STRG COWL
THA 		8-98134-652-0 01 1 1310- ● ●
236 SWITCH; DOOR WARNING,STRG LOCK
PASSIVE ENTRY AND START SYSTEM<AP3> (C) THA 		8-98225-461-0 01 1 1310- ● ●
236 SWITCH; DOOR WARNING,STRG LOCK
PASSIVE ENTRY AND START SYSTEM<AP3> (B) THA 		8-98225-462-0 01 1 1310- ● ●
236 SWITCH; DOOR WARNING,STRG LOCK
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (A) THA 		8-98132-720-0 01 1 1310- ● ●
306 BOLT; STRG SHAFT
(A) M8X18.5 TWISTED OFF THA 		8-97945-749-0 02 1 1310- ● ●
306 BOLT; STRG SHAFT
(B) M8X35 FLANGE THA 		8-97249-320-0 02 1 1310- ● ●
