◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51488 - UCR/UCS(THAILAND) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-20 - REAR AXLE CASE AND SHAFT ▶
4-20 — REAR AXLE CASE AND SHAFT (#129557) — 32 parça

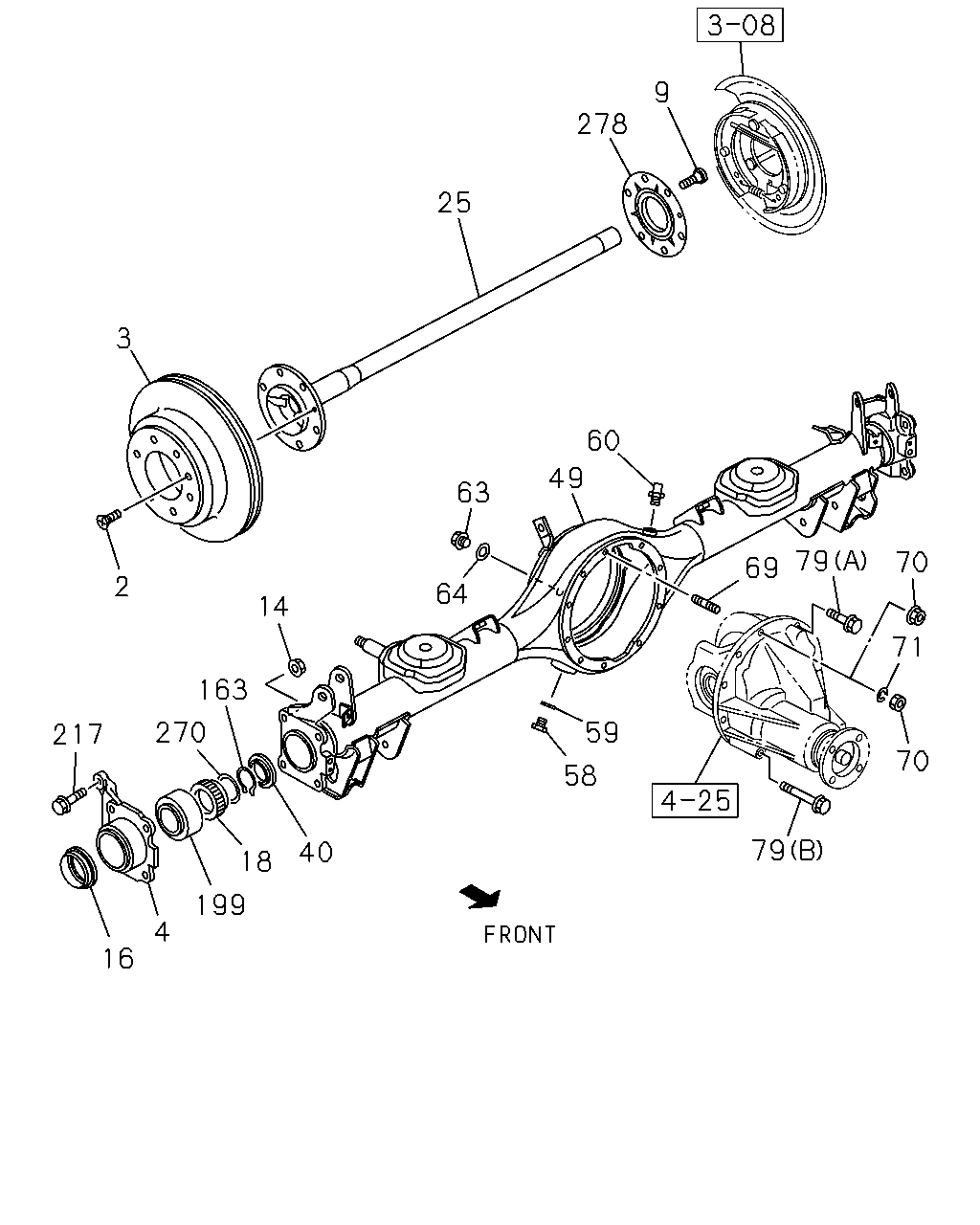

çizim 380318
9 278 25 3 2 14 163 270 217 18 199 4 16 40 64 63 49 60 59 58 69 79 70 70 79 71
BalonParca AdiParca NoAdetTipApplied Date A B
2 BOLT; BRK DRUM
M6X16 CK-HEAD THA 		0-36410-616-0 02 1 1310- ● ●
3 ROTOR; DISC BRK,RR
THA 		8-98115-794-1 02 1 1310- ● ●
4 HOLDER; BRG,AXLE SHAFT
THA 		8-98191-376-0 02 1 1310- ● ●
9 PIN; WHEEL,RR AXLE
M12X42.5 RH THREAD THA 		8-97944-831-1 12 1 1310- ● ●
14 NUT; BRG HOLDER TO CASE
M12 FLANGE THA 		0-91180-212-0 08 1 1310- ● ●
16 SEAL; OIL,RR HUB,OUTER
THA 		8-98134-394-0 02 1 1310- ● ●
18 RETAINER; RR AXLE
THA 		8-98009-341-0 02 1 1310- ● ●
25 SHAFT; AXLE,RR
THA 		8-98080-678-2 02 1 1310- ● ●
40 SEAL; OIL,REAR AXLE
THA 		8-97323-297-0 02 1 1310- ● ●
49 CASE; RR AXLE
ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98191-432-4 01 1 1310- ●
49 CASE; RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98191-432-4 01 1 1310- ●
49 CASE; RR AXLE
ABS W/EBD BRAKE ASSIST<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98191-431-4 01 1 1310- ●
49 CASE; RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98191-431-4 01 1 1310- ●
58 PLUG; DRAIN,AXLE CASE
M16X12.5 IMA 		8-97307-060-0 01 1 1310- ● ●
59 GASKET; DRAIN PLUG
ID=16.2 OD=24 THA 		9-09571-416-0 01 1 1310- ● ●
60 BREATHER; RR AXLE CASE
L=29 IMA 		8-98006-960-0 01 1 1310- ● ●
63 PLUG; OIL FILLER,AXLE CASE
THA 		8-97307-059-1 01 1 1310- ● ●
64 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30 THA 		8-94462-734-0 01 1 1310- ● ●
69 STUD; AXLE CASE
M10X31 L=43 THA 		8-98022-413-0 02 1 1310- ● ●
70 NUT; CARRIER
M10 THA 		0-91110-510-0 02 1 1310-1509 ● ●
70 NUT; CARRIER
M10 FLANGE THA 		0-91180-210-0 02 1 1510- ● ●
71 WASHER; LK,FINAL DRIVE SETTING
ID=10.2 IMA 		0-91510-810-0 02 1 1310-1509 ● ●
79 BOLT; COVER TO CASE
(A) M10X30 W/LK WASHER THA 		0-50561-030-0 07 1 1310-1509 ● ●
79 BOLT; COVER TO CASE
(A) M10X30 FLANGE THA 		0-28061-030-0 07 1 1510- ● ●
79 BOLT; COVER TO CASE
(B) M10X90 W/LK WASHER THA 		0-50561-090-0 01 1 1310-1509 ● ●
79 BOLT; COVER TO CASE
(B) M10X90 THA 		0-28061-090-0 01 1 1510- ● ●
163 RING; SNAP,AXLE SHAFT
ID=38.5 T=1.75 IMA 		9-09180-042-0 AR 1 1310- ● ●
163 RING; SNAP,AXLE SHAFT
ID=38.5 T=2.00 IMA 		9-09952-253-0 AR 1 1310- ● ●
199 BEARING; RR AXLE
THA 		8-97216-797-2 02 1 1310- ● ●
217 BOLT; RR BRK
M12X25 FLANGE THA 		8-98033-645-0 04 1 1310- ● ●
270 SHIM; RETAINER
T=0.24 IMA 		9-41519-109-0 AR 1 1310- ● ●
278 CATCHER; OIL
THA 		8-98103-447-2 02 1 1310- ● ●
