Isuzu WW
▶
SUV
▶
UCR
▶
51488 - UCR/UCS(THAILAND)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-11 - FRONT HUB AND DRUM OR ROTOR
▶

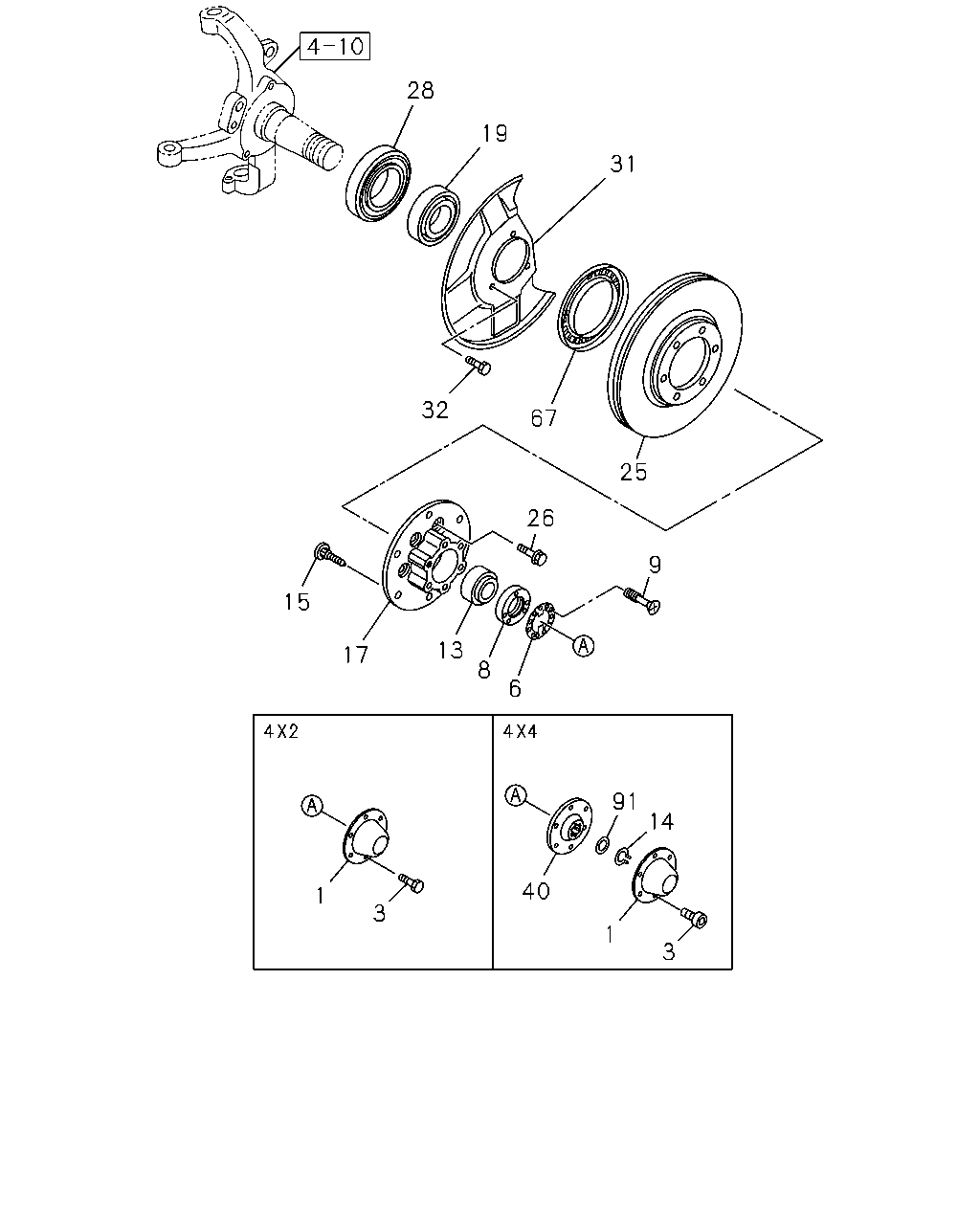

4-11 — FRONT HUB AND DRUM OR ROTOR
(#129554) — 28 parça
Tümü
A - UCB5VC
B - UCS5VC
9
25
67
26
32
19
31
28
15
17
13
8
6
14
91
1
3
40
3
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CAP; HUB,FRT AXLE
THA
8-97944-565-0
02
1
1310-
●
●
3
BOLT; HUB CAP,FRT WHEEL
M10X20 THA
0-20951-020-0
12
1
1310-
●
3
BOLT; HUB CAP,FRT WHEEL
M10X33 THA
8-98117-920-0
12
1
1310-
●
6
WASHER; LK,FRT HUB
T=1.8 OD=65 IMA
8-94442-398-0
02
1
1310-
●
●
8
NUT; ADJ,FRT HUB
ID=40 OD=65 T=8 IMA
8-94442-399-1
02
1
1310-
●
●
9
SCREW; ADJ,NUT
M4X8 CK-HEAD THA
8-98008-301-0
06
1
1310-
●
●
13
BEARING; HUB OUTER,FRT AXLE
NSK THA
8-94227-041-0
02
1
1310-
●
●
14
RING; SPR,FRT WHEEL
ID=25.9 IMA
9-09180-028-0
02
1
1310-
●
15
PIN; WHEEL,FRT AXLE
M12X37.5 THA
8-97944-564-1
12
1
1310-
●
●
17
HUB; FRT AXLE
THA
8-98054-665-0
02
1
1310-
●
●
19
BEARING; HUB INNER,FRT AXLE
NSK THA
8-94258-819-0
02
1
1310-
●
●
25
ROTOR; DISC BRK,FRT
THA
8-98124-663-4
02
1
1310-
●
●
26
BOLT; BRK,DISC TO HUB
M12X31.5 FLANGE THA
8-98006-065-0
12
1
1310-
●
●
28
SEAL; OIL,FRT HUB
THA
8-98036-594-0
02
1
1310-
●
●
31
COVER; DUST,FRT BRAKE
ABS W/EBD BRAKE ASSIST<JE5> THA
8-98062-190-0
01
1
1310-
●
31
COVER; DUST,FRT BRAKE
THA
8-98062-190-0
01
1
1310-
●
31
COVER; DUST,FRT BRAKE
ABS W/EBD BRAKE ASSIST<JE5> THA
8-98062-191-0
01
1
1310-
●
31
COVER; DUST,FRT BRAKE
THA
8-98062-191-0
01
1
1310-
●
31
COVER; DUST,FRT BRAKE
EXC. ABS W/EBD BRAKE ASSIST<JE5> THA
8-98062-188-0
01
1
1310-
●
31
COVER; DUST,FRT BRAKE
EXC. ABS W/EBD BRAKE ASSIST<JE5> THA
8-98062-189-0
01
1
1310-
●
32
BOLT; DUST COVER TO KNUCKLE
M8X10 W/LK WASHER THA
8-98006-352-0
06
1
1310-
●
●
40
FLANGE; FRT WHEEL HUB
THA
8-98197-869-0
02
1
1310-
●
67
ROTOR; SENSOR
ABS W/EBD BRAKE ASSIST<JE5> THA
8-97238-280-0
02
1
1310-
●
67
ROTOR; SENSOR
THA
8-97238-280-0
02
1
1310-
●
91
SPACER; HUB BRG
T=0.20 IMA
8-94178-929-0
AR
1
1310-
●
91
SPACER; HUB BRG
T=0.30 IMA
8-94178-930-0
AR
1
1310-
●
91
SPACER; HUB BRG
T=0.50 IMA
8-94178-931-0
AR
1
1310-
●
91
SPACER; HUB BRG
T=1.00 IMA
8-94178-932-0
AR
1
1310-
●
