3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#129547) — 110 parça

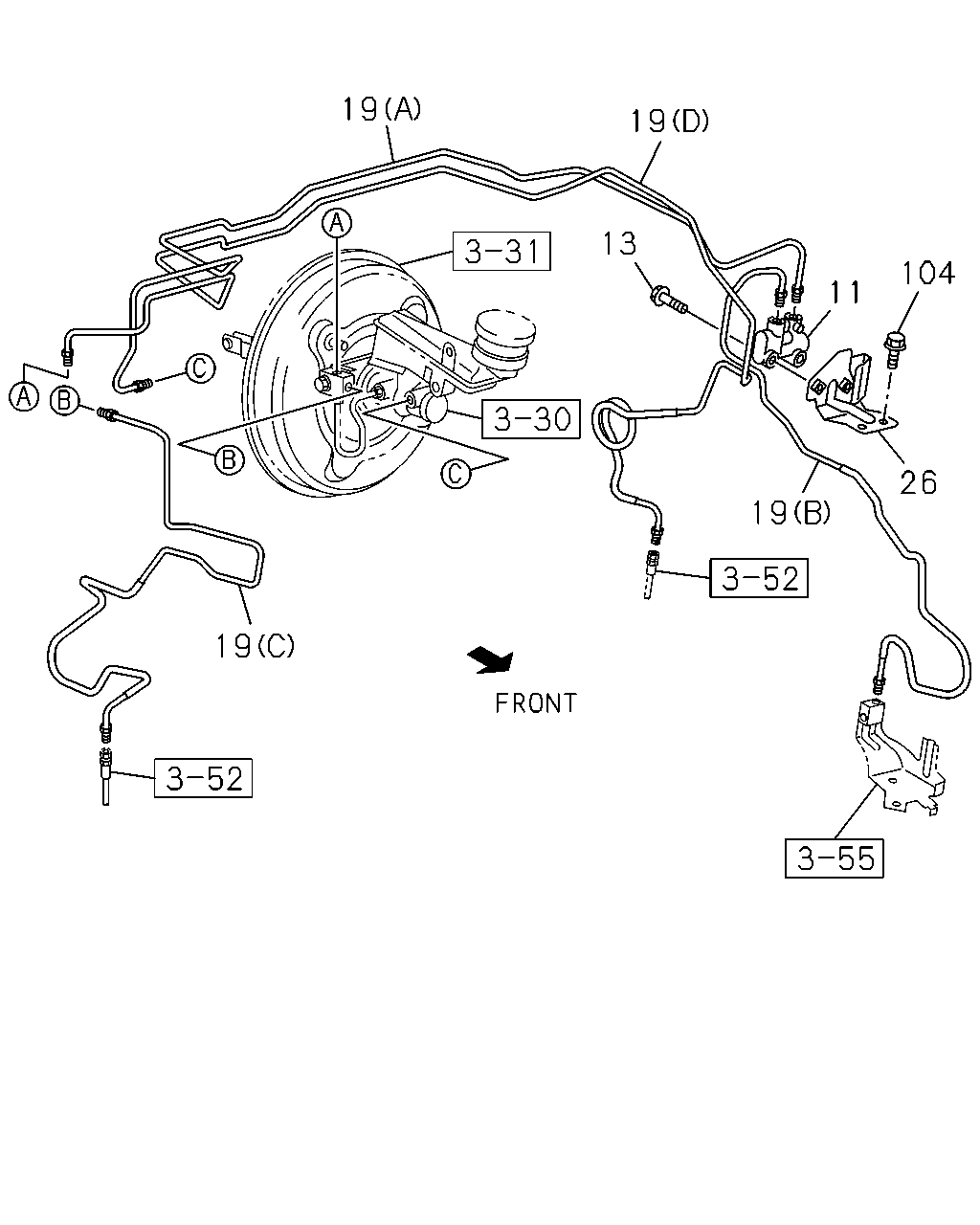

19 19 13 11 104 19 26 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	VALVE; BRK CONT EXC. ABS W/EBD BRAKE ASSIST<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA	8-97235-339-2	01	1	1310-	●
13	BOLT; VLV TO BRKT EXC. ABS W/EBD BRAKE ASSIST<JE5>,ELECTRONIC TRACTION CONTROL<NW9> M8X45 FLANGE THA	0-29260-845-0	02	1	1310-	●
19	PIPE; BRK,M/CYL TO UNION ABS W/EBD BRAKE ASSIST<JE5> (E) THA	8-98099-730-0	01	1	1310-	●
19	PIPE; BRK,M/CYL TO UNION (E) THA	8-98099-730-0	01	1	1310-		●
19	PIPE; BRK,M/CYL TO UNION ABS W/EBD BRAKE ASSIST<JE5> (H) THA	8-98099-744-2	01	1	1310-	●
19	PIPE; BRK,M/CYL TO UNION (H) THA	8-98099-744-2	01	1	1310-		●
19	PIPE; BRK,M/CYL TO UNION ABS W/EBD BRAKE ASSIST<JE5> (I) THA	8-98159-938-1	01	1	1310-	●
19	PIPE; BRK,M/CYL TO UNION (I) THA	8-98159-938-1	01	1	1310-		●
19	PIPE; BRK,M/CYL TO UNION ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9> (J) THA	8-98099-736-2	01	1	1310-	●
19	PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (J) THA	8-98099-736-2	01	1	1310-		●
19	PIPE; BRK,M/CYL TO UNION EXC. ABS W/EBD BRAKE ASSIST<JE5> (A) THA	8-98099-718-4	01	1	1310-	●
19	PIPE; BRK,M/CYL TO UNION EXC. ABS W/EBD BRAKE ASSIST<JE5> (B) THA	8-98099-721-0	01	1	1310-	●
19	PIPE; BRK,M/CYL TO UNION EXC. ABS W/EBD BRAKE ASSIST<JE5> (C) THA	8-98099-727-1	01	1	1310-	●
19	PIPE; BRK,M/CYL TO UNION EXC. ABS W/EBD BRAKE ASSIST<JE5> (D) THA	8-98221-721-0	01	1	1310-	●
19	PIPE; BRK,M/CYL TO UNION ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9> (K) THA	8-98099-738-0	01	1	1310-	●
19	PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (K) THA	8-98099-738-0	01	1	1310-		●
19	PIPE; BRK,M/CYL TO UNION ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9> (L) THA	8-98099-739-0	01	1	1310-	●
19	PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (L) THA	8-98099-739-0	01	1	1310-		●
19	PIPE; BRK,M/CYL TO UNION ABS W/EBD BRAKE ASSIST<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (F) THA	8-98099-731-0	01	1	1310-	●
19	PIPE; BRK,M/CYL TO UNION EXC. ELECTRONIC TRACTION CONTROL<NW9> (F) THA	8-98099-731-0	01	1	1310-		●
19	PIPE; BRK,M/CYL TO UNION ABS W/EBD BRAKE ASSIST<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (G) THA	8-98099-732-0	01	1	1310-	●
19	PIPE; BRK,M/CYL TO UNION EXC. ELECTRONIC TRACTION CONTROL<NW9> (G) THA	8-98099-732-0	01	1	1310-		●
26	BRACKET; PROPORTIONING VLV EXC. ABS W/EBD BRAKE ASSIST<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA	8-98101-970-1	01	1	1310-	●
104	BOLT; BRKT TO BODY EXC. ABS W/EBD BRAKE ASSIST<JE5>,ELECTRONIC TRACTION CONTROL<NW9> M6X16 FLANGE THA	0-28650-616-0	02	1	1310-	●

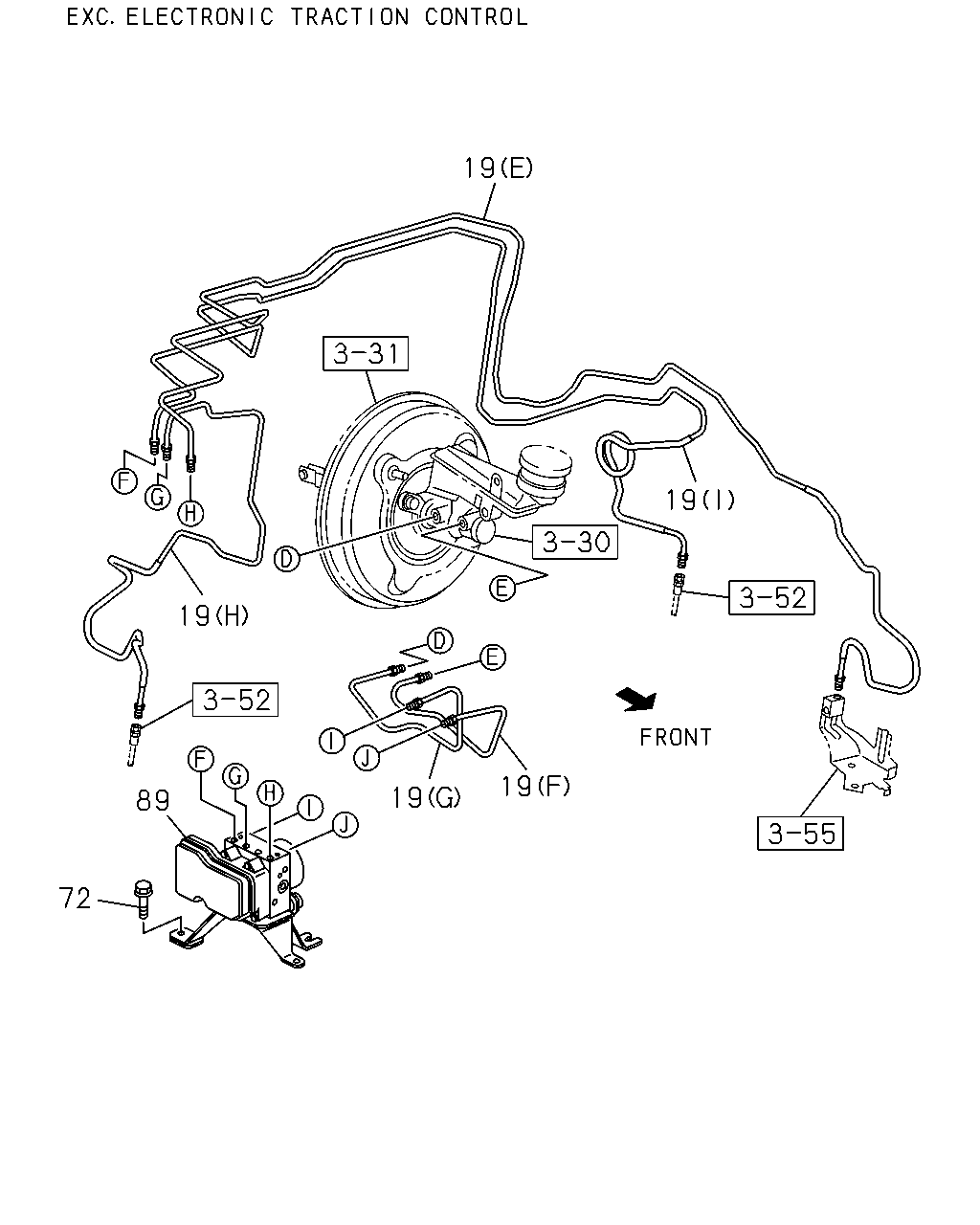

19 89 72 19 19 19 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	PIPE; BRK,M/CYL TO UNION ABS W/EBD BRAKE ASSIST<JE5> (E) THA	8-98099-730-0	01	1	1310-	●
19	PIPE; BRK,M/CYL TO UNION (E) THA	8-98099-730-0	01	1	1310-		●
19	PIPE; BRK,M/CYL TO UNION ABS W/EBD BRAKE ASSIST<JE5> (H) THA	8-98099-744-2	01	1	1310-	●
19	PIPE; BRK,M/CYL TO UNION (H) THA	8-98099-744-2	01	1	1310-		●
19	PIPE; BRK,M/CYL TO UNION ABS W/EBD BRAKE ASSIST<JE5> (I) THA	8-98159-938-1	01	1	1310-	●
19	PIPE; BRK,M/CYL TO UNION (I) THA	8-98159-938-1	01	1	1310-		●
19	PIPE; BRK,M/CYL TO UNION ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9> (J) THA	8-98099-736-2	01	1	1310-	●
19	PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (J) THA	8-98099-736-2	01	1	1310-		●
19	PIPE; BRK,M/CYL TO UNION EXC. ABS W/EBD BRAKE ASSIST<JE5> (A) THA	8-98099-718-4	01	1	1310-	●
19	PIPE; BRK,M/CYL TO UNION EXC. ABS W/EBD BRAKE ASSIST<JE5> (B) THA	8-98099-721-0	01	1	1310-	●
19	PIPE; BRK,M/CYL TO UNION EXC. ABS W/EBD BRAKE ASSIST<JE5> (C) THA	8-98099-727-1	01	1	1310-	●
19	PIPE; BRK,M/CYL TO UNION EXC. ABS W/EBD BRAKE ASSIST<JE5> (D) THA	8-98221-721-0	01	1	1310-	●
19	PIPE; BRK,M/CYL TO UNION ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9> (K) THA	8-98099-738-0	01	1	1310-	●
19	PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (K) THA	8-98099-738-0	01	1	1310-		●
19	PIPE; BRK,M/CYL TO UNION ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9> (L) THA	8-98099-739-0	01	1	1310-	●
19	PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (L) THA	8-98099-739-0	01	1	1310-		●
19	PIPE; BRK,M/CYL TO UNION ABS W/EBD BRAKE ASSIST<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (F) THA	8-98099-731-0	01	1	1310-	●
19	PIPE; BRK,M/CYL TO UNION EXC. ELECTRONIC TRACTION CONTROL<NW9> (F) THA	8-98099-731-0	01	1	1310-		●
19	PIPE; BRK,M/CYL TO UNION ABS W/EBD BRAKE ASSIST<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (G) THA	8-98099-732-0	01	1	1310-	●
19	PIPE; BRK,M/CYL TO UNION EXC. ELECTRONIC TRACTION CONTROL<NW9> (G) THA	8-98099-732-0	01	1	1310-		●
72	BOLT; BRKT TO BODY ABS W/EBD BRAKE ASSIST<JE5> M6X16 FLANGE THA	0-28650-616-0	03	1	1310-	●
72	BOLT; BRKT TO BODY M6X16 FLANGE THA	0-28650-616-0	03	1	1310-		●
89	HYDRAULIC UNIT; ANTI LOCK BRK ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9> THA	8-98197-805-1	01	1	1310-	●
89	HYDRAULIC UNIT; ANTI LOCK BRK ELECTRONIC TRACTION CONTROL<NW9> THA	8-98197-806-1	01	1	1310-		●
89	HYDRAULIC UNIT; ANTI LOCK BRK ABS W/EBD BRAKE ASSIST<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98197-801-0	01	1	1310-1508	●
89	HYDRAULIC UNIT; ANTI LOCK BRK ABS W/EBD BRAKE ASSIST<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98285-186-0	01	1	1509-	●
89	HYDRAULIC UNIT; ANTI LOCK BRK EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98197-802-0	01	1	1310-1508		●
89	HYDRAULIC UNIT; ANTI LOCK BRK EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98285-187-0	01	1	1509-		●

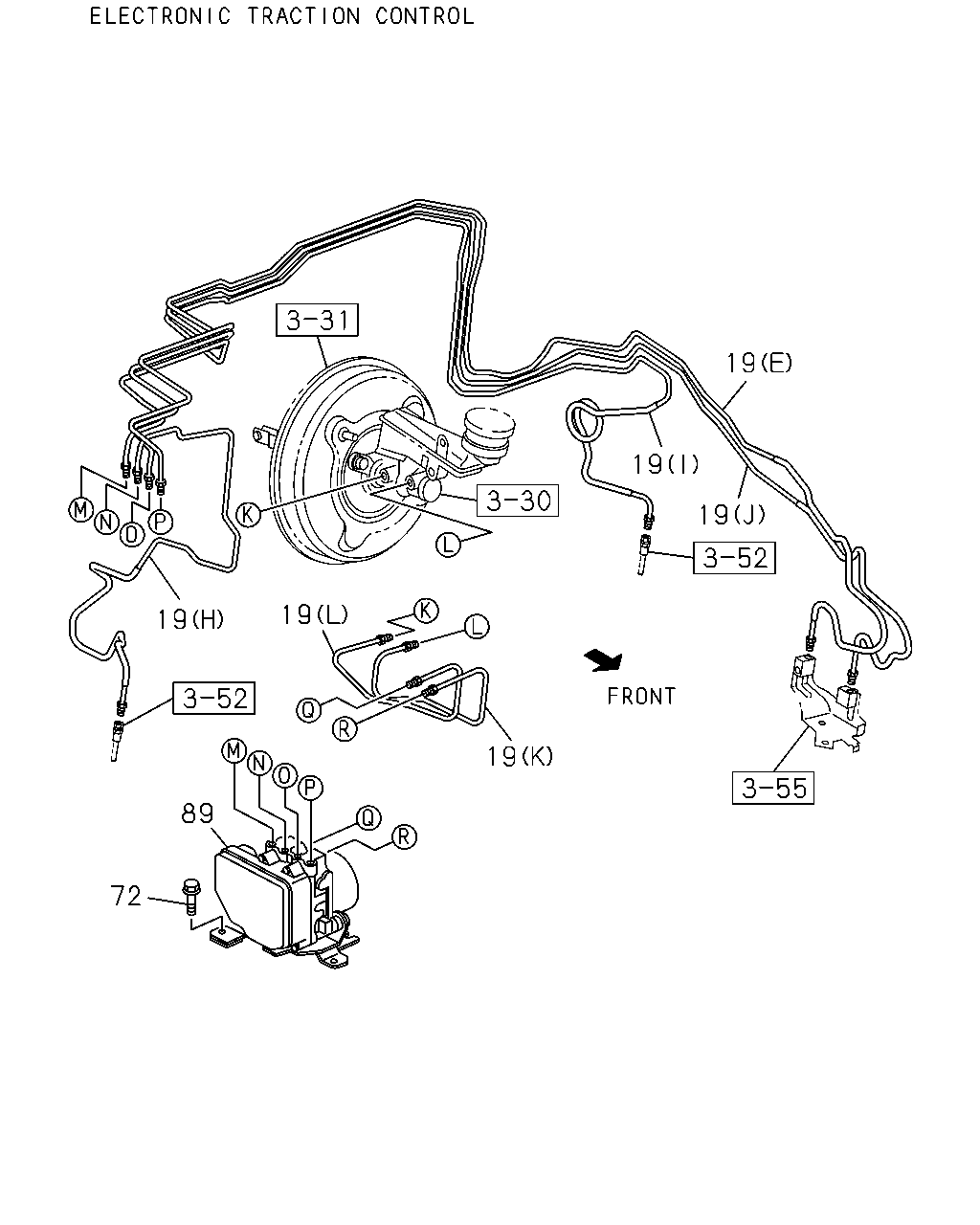

19 89 72 19 19 19 19 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	PIPE; BRK,M/CYL TO UNION ABS W/EBD BRAKE ASSIST<JE5> (E) THA	8-98099-730-0	01	1	1310-	●
19	PIPE; BRK,M/CYL TO UNION (E) THA	8-98099-730-0	01	1	1310-		●
19	PIPE; BRK,M/CYL TO UNION ABS W/EBD BRAKE ASSIST<JE5> (H) THA	8-98099-744-2	01	1	1310-	●
19	PIPE; BRK,M/CYL TO UNION (H) THA	8-98099-744-2	01	1	1310-		●
19	PIPE; BRK,M/CYL TO UNION ABS W/EBD BRAKE ASSIST<JE5> (I) THA	8-98159-938-1	01	1	1310-	●
19	PIPE; BRK,M/CYL TO UNION (I) THA	8-98159-938-1	01	1	1310-		●
19	PIPE; BRK,M/CYL TO UNION ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9> (J) THA	8-98099-736-2	01	1	1310-	●
19	PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (J) THA	8-98099-736-2	01	1	1310-		●
19	PIPE; BRK,M/CYL TO UNION EXC. ABS W/EBD BRAKE ASSIST<JE5> (A) THA	8-98099-718-4	01	1	1310-	●
19	PIPE; BRK,M/CYL TO UNION EXC. ABS W/EBD BRAKE ASSIST<JE5> (B) THA	8-98099-721-0	01	1	1310-	●
19	PIPE; BRK,M/CYL TO UNION EXC. ABS W/EBD BRAKE ASSIST<JE5> (C) THA	8-98099-727-1	01	1	1310-	●
19	PIPE; BRK,M/CYL TO UNION EXC. ABS W/EBD BRAKE ASSIST<JE5> (D) THA	8-98221-721-0	01	1	1310-	●
19	PIPE; BRK,M/CYL TO UNION ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9> (K) THA	8-98099-738-0	01	1	1310-	●
19	PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (K) THA	8-98099-738-0	01	1	1310-		●
19	PIPE; BRK,M/CYL TO UNION ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9> (L) THA	8-98099-739-0	01	1	1310-	●
19	PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (L) THA	8-98099-739-0	01	1	1310-		●
19	PIPE; BRK,M/CYL TO UNION ABS W/EBD BRAKE ASSIST<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (F) THA	8-98099-731-0	01	1	1310-	●
19	PIPE; BRK,M/CYL TO UNION EXC. ELECTRONIC TRACTION CONTROL<NW9> (F) THA	8-98099-731-0	01	1	1310-		●
19	PIPE; BRK,M/CYL TO UNION ABS W/EBD BRAKE ASSIST<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (G) THA	8-98099-732-0	01	1	1310-	●
19	PIPE; BRK,M/CYL TO UNION EXC. ELECTRONIC TRACTION CONTROL<NW9> (G) THA	8-98099-732-0	01	1	1310-		●
72	BOLT; BRKT TO BODY ABS W/EBD BRAKE ASSIST<JE5> M6X16 FLANGE THA	0-28650-616-0	03	1	1310-	●
72	BOLT; BRKT TO BODY M6X16 FLANGE THA	0-28650-616-0	03	1	1310-		●
89	HYDRAULIC UNIT; ANTI LOCK BRK ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9> THA	8-98197-805-1	01	1	1310-	●
89	HYDRAULIC UNIT; ANTI LOCK BRK ELECTRONIC TRACTION CONTROL<NW9> THA	8-98197-806-1	01	1	1310-		●
89	HYDRAULIC UNIT; ANTI LOCK BRK ABS W/EBD BRAKE ASSIST<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98197-801-0	01	1	1310-1508	●
89	HYDRAULIC UNIT; ANTI LOCK BRK ABS W/EBD BRAKE ASSIST<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98285-186-0	01	1	1509-	●
89	HYDRAULIC UNIT; ANTI LOCK BRK EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98197-802-0	01	1	1310-1508		●
89	HYDRAULIC UNIT; ANTI LOCK BRK EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98285-187-0	01	1	1509-		●

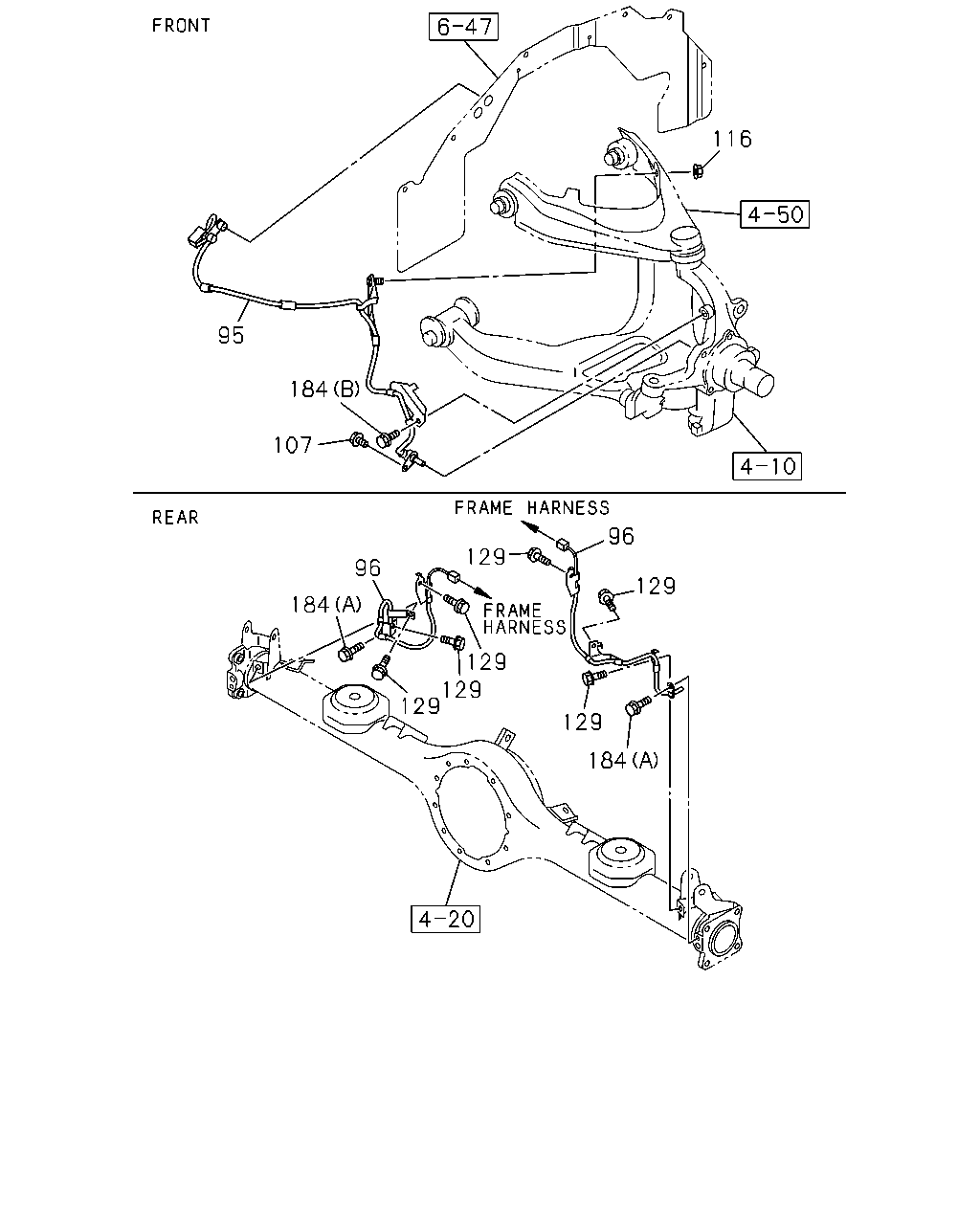

95 184 107 116 96 184 129 129 129 129 96 129 129 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
95	SENSOR; SPD,FRT WHEEL ABS W/EBD BRAKE ASSIST<JE5> THA	8-98052-119-1	01	1	1310-1509	●
95	SENSOR; SPD,FRT WHEEL THA	8-98052-119-1	01	1	1310-1509		●
95	SENSOR; SPD,FRT WHEEL ABS W/EBD BRAKE ASSIST<JE5> THA	8-98292-432-0	01	1	1510-	●
95	SENSOR; SPD,FRT WHEEL THA	8-98292-432-0	01	1	1510-		●
95	SENSOR; SPD,FRT WHEEL ABS W/EBD BRAKE ASSIST<JE5> THA	8-98052-120-1	01	1	1310-1509	●
95	SENSOR; SPD,FRT WHEEL THA	8-98052-120-1	01	1	1310-1509		●
95	SENSOR; SPD,FRT WHEEL ABS W/EBD BRAKE ASSIST<JE5> THA	8-98292-433-0	01	1	1510-	●
95	SENSOR; SPD,FRT WHEEL THA	8-98292-433-0	01	1	1510-		●
96	SENSOR; SPD,RR WHEEL ABS W/EBD BRAKE ASSIST<JE5> THA	8-98196-302-0	01	1	1310-	●
96	SENSOR; SPD,RR WHEEL THA	8-98196-302-0	01	1	1310-		●
96	SENSOR; SPD,RR WHEEL ABS W/EBD BRAKE ASSIST<JE5> THA	8-98196-303-0	01	1	1310-	●
96	SENSOR; SPD,RR WHEEL THA	8-98196-303-0	01	1	1310-		●
107	BOLT; WHEEL SPD SENSOR ABS W/EBD BRAKE ASSIST<JE5> M6X10 FLANGE THA	0-28050-610-0	02	1	1310-1509	●
107	BOLT; WHEEL SPD SENSOR M6X10 FLANGE THA	0-28050-610-0	02	1	1310-1509		●
107	BOLT; WHEEL SPD SENSOR ABS W/EBD BRAKE ASSIST<JE5> M6X12 FLANGE THA	0-28050-612-0	02	1	1510-	●
107	BOLT; WHEEL SPD SENSOR M6X12 FLANGE THA	0-28050-612-0	02	1	1510-		●
116	NUT ABS W/EBD BRAKE ASSIST<JE5> M8 FLANGE THA	0-91180-108-0	02	1	1310-	●
116	NUT M8 FLANGE THA	0-91180-108-0	02	1	1310-		●
129	BOLT; BRKT ABS W/EBD BRAKE ASSIST<JE5> M6X16 FLANGE THA	0-28650-616-0	06	1	1310-	●
129	BOLT; BRKT M6X16 FLANGE THA	0-28650-616-0	06	1	1310-		●
184	BOLT; CLIP ABS W/EBD BRAKE ASSIST<JE5> (B) M6X10 FLANGE THA	0-28050-610-0	02	1	1310-1509	●
184	BOLT; CLIP (B) M6X10 FLANGE THA	0-28050-610-0	02	1	1310-1509		●
184	BOLT; CLIP ABS W/EBD BRAKE ASSIST<JE5> (B) M6X12 FLANGE THA	0-28050-612-0	02	1	1510-	●
184	BOLT; CLIP (B) M6X12 FLANGE THA	0-28050-612-0	02	1	1510-		●
184	BOLT; CLIP ABS W/EBD BRAKE ASSIST<JE5> (A) M6X16 FLANGE THA	0-28650-616-0	02	1	1310-	●
184	BOLT; CLIP (A) M6X16 FLANGE THA	0-28650-616-0	02	1	1310-		●

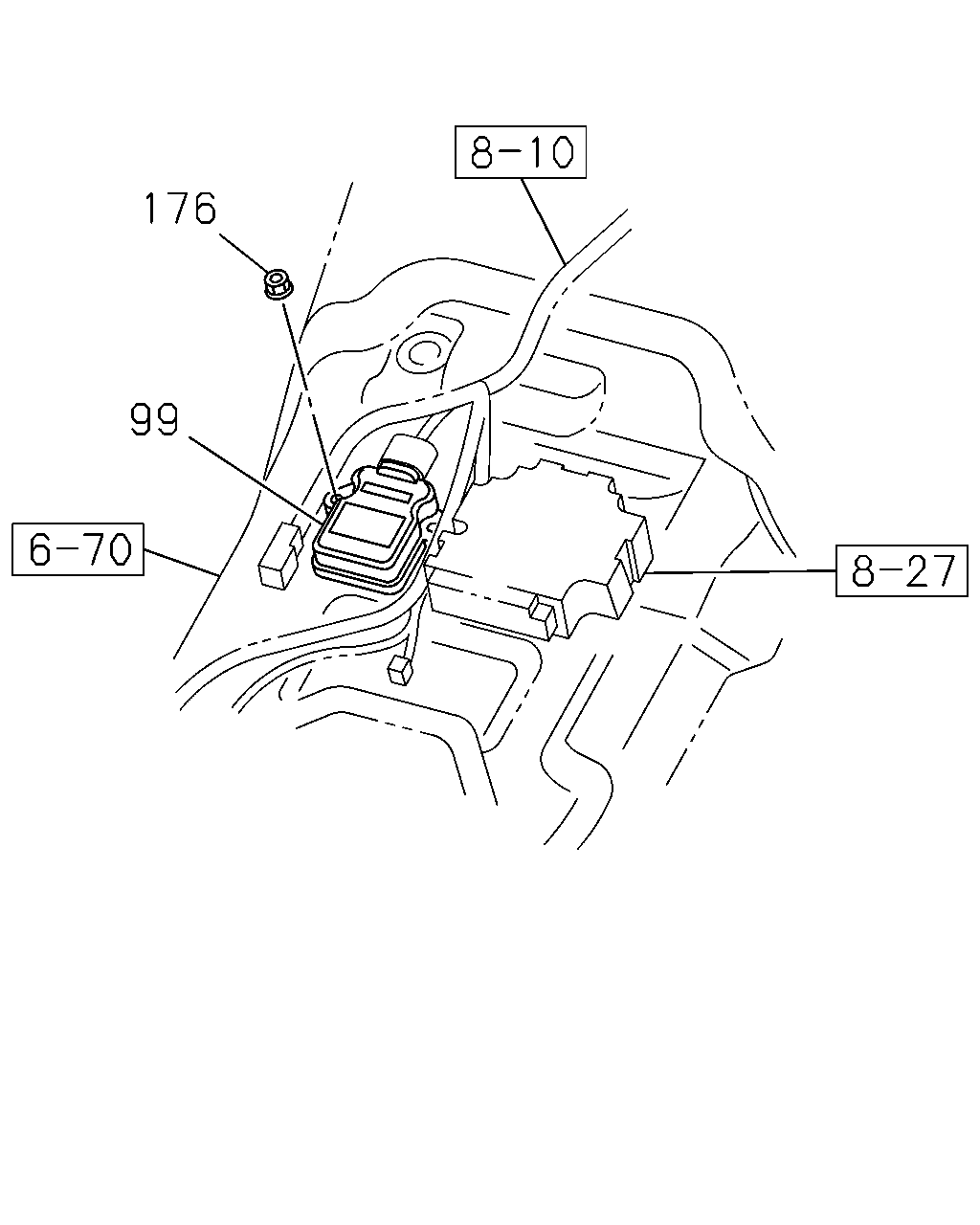

99 176

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
99	SENSOR; DECELERATION ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9> THA	8-98052-116-1	01	1	1310-	●
99	SENSOR; DECELERATION ELECTRONIC TRACTION CONTROL<NW9> THA	8-98052-116-1	01	1	1310-		●
176	NUT; SENSOR ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9> M6 FLANGE THA	0-91180-106-0	02	1	1310-	●
176	NUT; SENSOR ELECTRONIC TRACTION CONTROL<NW9> M6 FLANGE THA	0-91180-106-0	02	1	1310-		●
