◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51488 - UCR/UCS(THAILAND) ▶ 3 - Brakes, Brake System ▶ 3-31 - BRAKE MASTER VAC AND BRAKE BOOSTER ▶
3-31 — BRAKE MASTER VAC AND BRAKE BOOSTER (#129546) — 8 parça

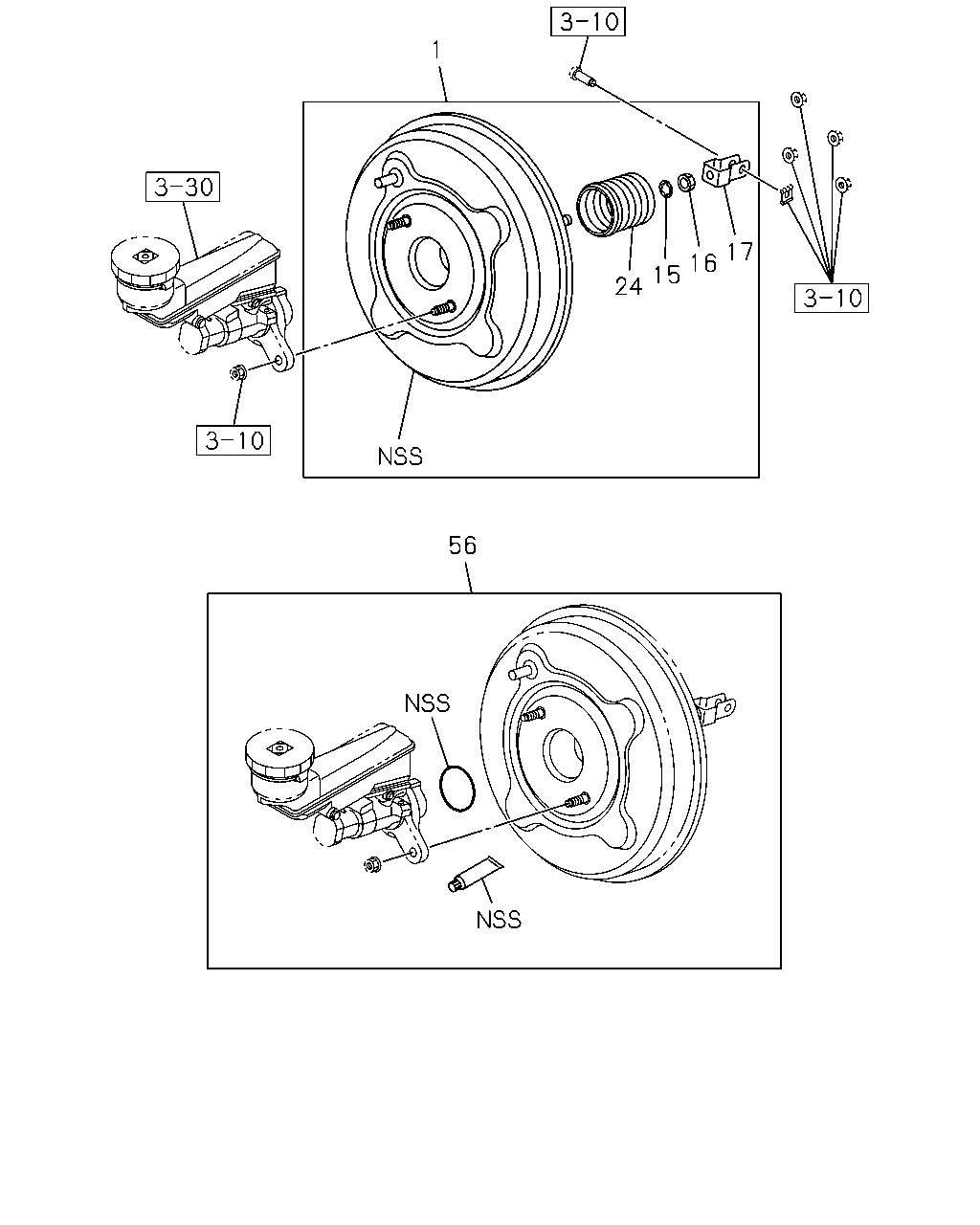

çizim 379837
1 24 15 16 17 56
BalonParca AdiParca NoAdetTipApplied Date A B
1 MASTER VAC ASM; BRK
ABS W/EBD BRAKE ASSIST<JE5> THA 		8-98163-232-1 01 1 1310- ●
1 MASTER VAC ASM; BRK
THA 		8-98163-232-1 01 1 1310- ●
1 MASTER VAC ASM; BRK
EXC. ABS W/EBD BRAKE ASSIST<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98163-231-1 01 1 1310- ●
15 RETAINER; GUARD,M/VAC
THA 		8-98048-040-0 01 1 1310- ● ●
16 NUT; VLV ROD,M/VAC
THA 		8-98048-038-0 01 1 1310- ● ●
17 CLEVIS; YOKE,M/VAC
THA 		8-98048-039-0 01 1 1310- ● ●
24 GUARD; VLV BODY,M/VAC
THA 		8-98185-212-0 01 1 1310- ● ●
56 GASKET KIT; M/CYL TO SERVO UNIT
THA 		8-98185-211-0 01 1 1310- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
