◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51488 - UCR/UCS(THAILAND) ▶ 3 - Brakes, Brake System ▶ 3-30 - BRAKE MASTER CYLINDER ▶
3-30 — BRAKE MASTER CYLINDER (#129545) — 10 parça

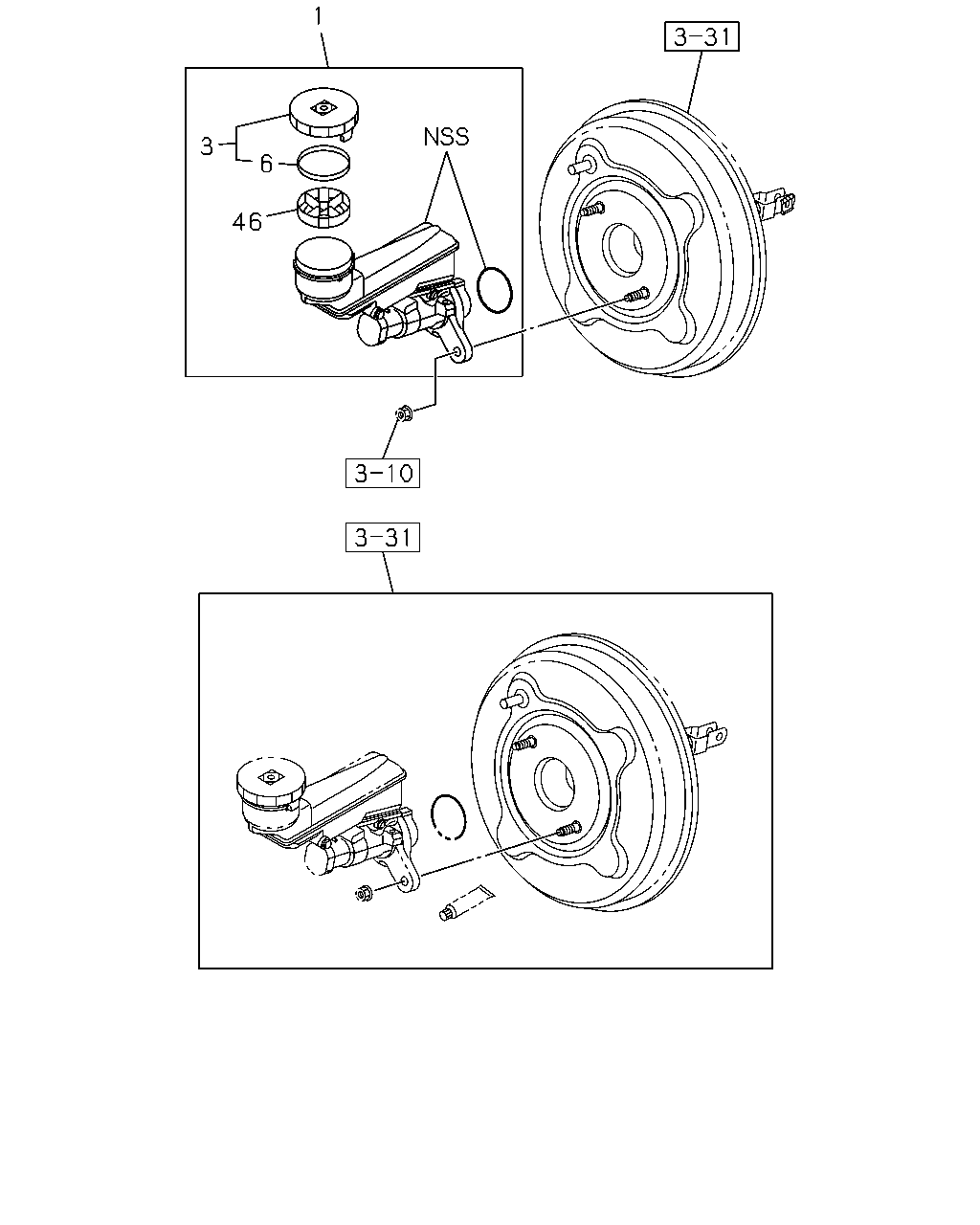

çizim 379805
1 3 6 46
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER ASM; BRK MASTER
A/T 5 SPEED-AISIN<MA1> ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98163-230-0 01 1 1310- ●
1 CYLINDER ASM; BRK MASTER
A/T 5 SPEED-AISIN<MA1> ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98163-230-0 01 1 1310- ●
1 CYLINDER ASM; BRK MASTER
A/T 5 SPEED-AISIN<MA1> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98163-228-0 01 1 1310- ● ●
1 CYLINDER ASM; BRK MASTER
M/T MUA 5 SPEED 5H<MWQ> ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98163-229-0 01 1 1310- ●
1 CYLINDER ASM; BRK MASTER
M/T MUX 5 SPEED 5S<MZJ> ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98163-229-0 01 1 1310- ●
1 CYLINDER ASM; BRK MASTER
M/T MUA 5 SPEED 5H<MWQ> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98163-227-0 01 1 1310- ●
1 CYLINDER ASM; BRK MASTER
M/T MUX 5 SPEED 5S<MZJ> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98163-227-0 01 1 1310- ●
3 CAP; OIL TANK
THA 		8-98047-704-0 01 1 1310- ● ●
6 DIAPHRAGM; BRK M/CYL
THA 		8-98047-706-0 01 1 1310- ● ●
46 FILTER; OIL TANK,M/CYL
THA 		8-98047-702-0 01 1 1310- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
