51488 - UCR/UCS(THAILAND)
▶
3 - Brakes, Brake System
▶
3-02 - FRONT DISC BRAKE CALIPER
▶

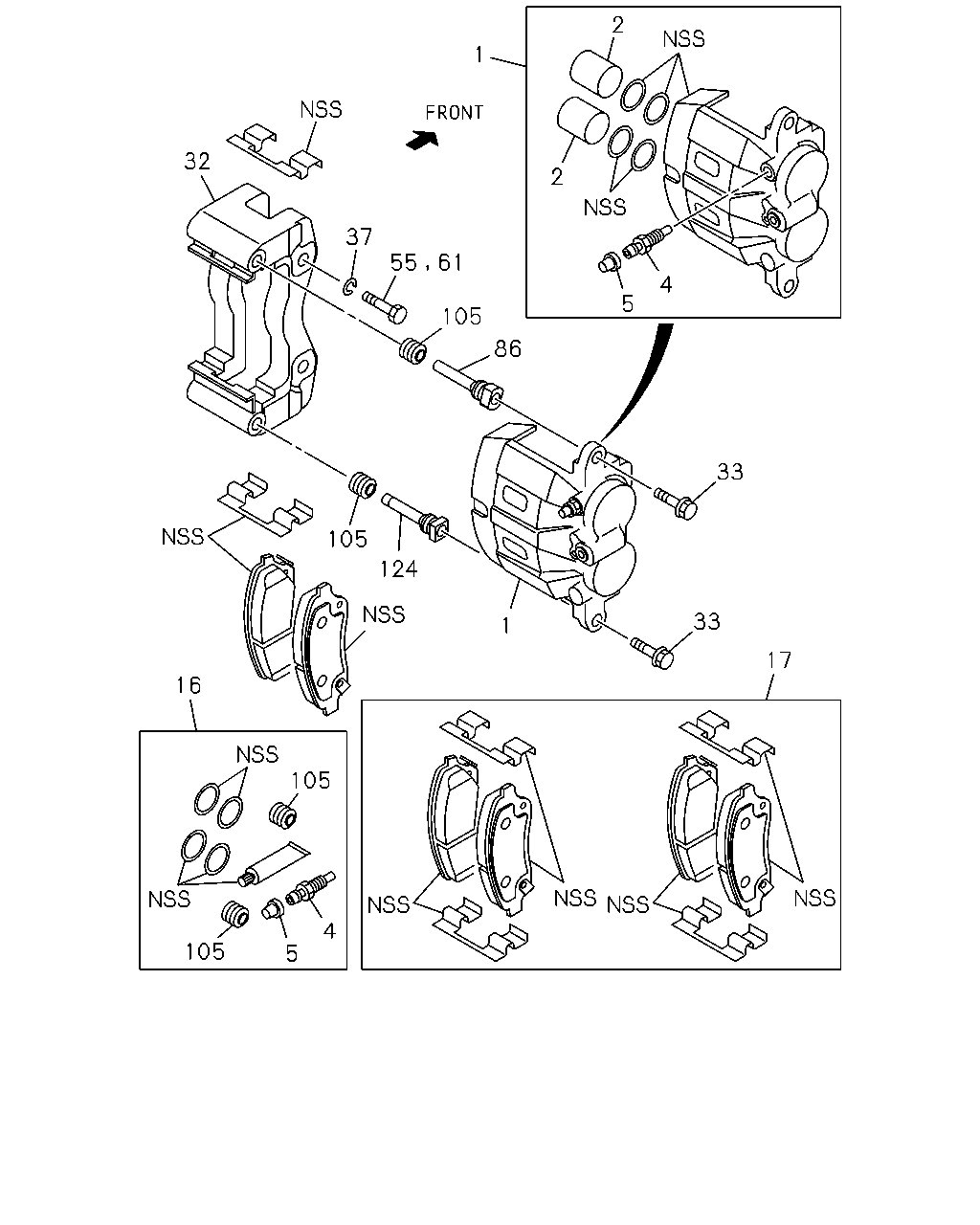

3-02 — FRONT DISC BRAKE CALIPER
(#129540) — 15 parça
Tümü
A - UCB5VC
B - UCS5VC
2
2
4
5
1
32
37
55
61
105
86
33
33
17
1
124
105
16
105
4
5
105
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CALIPER; FRT DISC BRK
THA
8-98077-996-0
01
1
1310-
●
●
1
CALIPER; FRT DISC BRK
THA
8-98077-997-0
01
1
1310-
●
●
2
PISTON; CALIPER,DISC BRK,FRT
THA
8-98078-000-0
04
1
1310-
●
●
4
SCREW; BLEEDER,DISC BRK,FRT
IMA
8-98050-476-0
02
1
1310-
●
●
5
CAP; BLEEDER,DISC BRK,FRT
IMA
8-98050-479-0
02
1
1310-
●
●
16
REPAIR KIT; CALIPER,DISC BRK,FRT
THA
8-98079-105-0
01
1
1310-
●
●
17
PAD KIT; CALIPER,DISC BRK,FRT
THA
8-97947-571-0
01
1
1310-
●
●
32
SUPPORT; FRT DISC BRK
THA
8-97947-221-0
02
1
1310-
●
●
33
BOLT; SUPPORT BRKT TO DISC BRK
THA
8-98078-192-0
04
1
1310-
●
●
37
WASHER; LK
ID=14.2 IMA
0-91510-814-0
04
1
1310-
●
●
55
BOLT; SUPPORT BRKT TO DISC BRK
THA
8-98037-731-0
02
1
1310-
●
●
61
BOLT; SUPPORT BRKT TO KNUCKLE
THA
8-98037-731-0
02
1
1310-
●
●
86
PIN; GUIDE
THA
8-98078-175-0
02
1
1310-
●
●
105
BOOT; CALIPER
THA
8-98078-193-0
04
1
1310-
●
●
124
PIN ASM; W/BUSH
THA
8-98078-176-0
02
1
1310-
●
●
