51488 - UCR/UCS(THAILAND)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-61 - TRANSFER CASE AND GEAR SHIFTER
▶

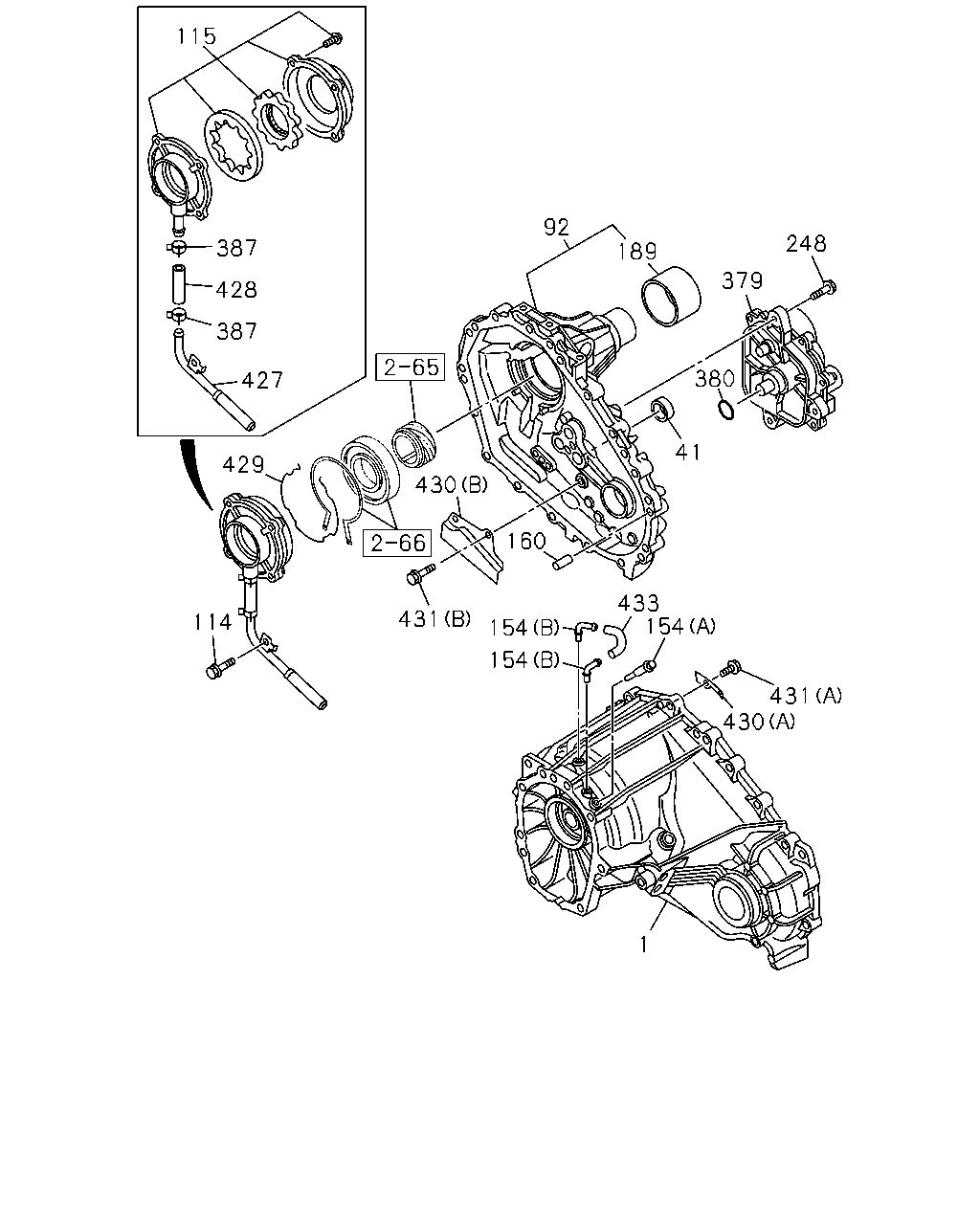

2-61 — TRANSFER CASE AND GEAR SHIFTER
(#129536) — 21 parça
115
387
428
387
427
429
114
431
154
154
433
154
430
431
160
430
92
189
379
248
380
41
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CASE; TRANSFER
IMA
8-98177-505-0
01
1
1310-
41
SEAL; OIL,SHIFT ROD
ALSO INCLUDED IN REPAIR KIT(T/F). IMA
8-97238-998-0
01
1
1310-
92
COVER; RR,TRANSFER
IMA
8-98118-921-0
01
1
1310-
114
BOLT; OIL PUMP,TRANSFER
M8X20 FLANGE THA
0-28650-820-0
01
1
1310-
115
PUMP ASM; OIL,TRANSFER
IMA
8-98029-157-0
01
1
1310-
154
PIPE; BREATHER
(B) IMA
8-97358-318-0
02
1
1310-
154
PIPE; BREATHER
(A) IMA
8-97358-319-0
01
1
1310-
160
PIN; KNOCK,SHIFT CASE
OD=10 L=20 IMA
8-97135-423-0
02
1
1310-
189
COVER; DUST,OIL SEAL
IMA
8-98173-748-0
01
1
1310-
248
BOLT
M8X30 FLANGE THA
0-28650-830-0
03
1
1310-
379
ACTUATOR; TRANSFER,2-4 SHIFT
IMA
8-98196-415-0
01
1
1310-
380
GASKET; ACTUATOR
ID=29.7 OD=36.7 IMA
8-97318-475-0
01
1
1310-
387
CLAMP; HOSE
ID=16 THA
8-97329-628-0
02
1
1310-
427
SCREEN; OIL PUMP
IMA
8-98063-358-0
01
1
1310-
428
HOSE; OIL PUMP
L=50 IMA
8-98064-220-0
01
1
1310-
429
RING; SNAP,OIL PUMP
IMA
8-97240-666-0
01
1
1310-
430
PLATE; BAFFLE
(A) IMA
8-97239-130-0
01
1
1310-
430
PLATE; BAFFLE
(B) IMA
8-98063-360-0
01
1
1310-
431
BOLT; BAFFLE PLATE
(A) M6X16 FLANGE THA
0-28650-616-0
01
1
1310-
431
BOLT; BAFFLE PLATE
(B) M8X20 FLANGE THA
0-28650-820-0
02
1
1310-
433
HOSE; AIR,TRANSFER
IMA
8-97236-080-0
01
1
1310-
