◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11129 - FVM(THAI)EURO3 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#12953) — 27 parça

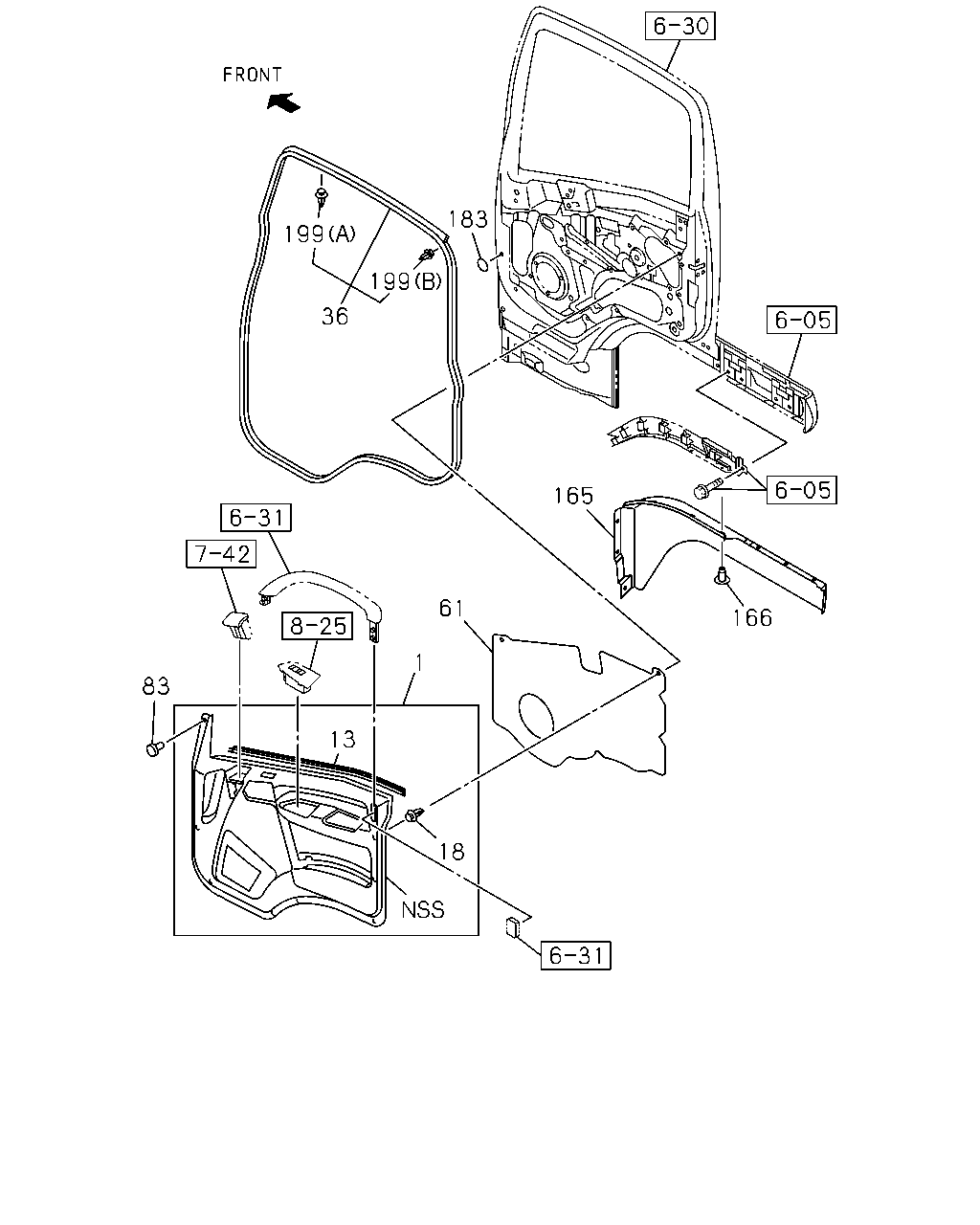

çizim 98395
183 199 199 36 165 61 1 83 13 18 166
BalonParca AdiParca NoAdetTipApplied Date
1 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> GRAY 		8-97405-304-6 01 1 0807-1003
1 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> GRAY 		8-97405-306-6 01 1 0807-1003
1 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> THA 		8-97923-889-1 01 1 0807-1003
1 PAD; TRIM,FRT DOOR
THA 		8-97923-889-1 01 1 1004-
1 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> THA 		8-97923-890-1 01 1 0807-1003
1 PAD; TRIM,FRT DOOR
THA 		8-97923-890-1 01 1 1004-
13 SEAL; DOOR TRIM
EXC. POWER WINDOW FRT DOOR<A32> THA 		8-97923-891-0 01 1 0807-1003
13 SEAL; DOOR TRIM
THA 		8-97923-891-0 01 1 1004-
13 SEAL; DOOR TRIM
EXC. POWER WINDOW FRT DOOR<A32> THA 		8-97923-892-0 01 1 0807-1003
13 SEAL; DOOR TRIM
THA 		8-97923-892-0 01 1 1004-
13 SEAL; DOOR TRIM
POWER WINDOW FRT DOOR<A32> 		8-98029-201-1 01 1 0807-1003
13 SEAL; DOOR TRIM
POWER WINDOW FRT DOOR<A32> 		8-98029-202-1 01 1 0807-1003
18 CLIP; DOOR PAD
THA 		8-98004-025-0 14 1 0807-
36 SEAL; DOOR,MAIN,CAB SIDE 8-98029-198-3 01 1 0807-1009
36 SEAL; DOOR,MAIN,CAB SIDE 8-98077-429-0 01 1 1010-
36 SEAL; DOOR,MAIN,CAB SIDE 8-98029-199-3 01 1 0807-
61 SEAL; WATER,DOOR PAD 8-98029-394-2 01 1 1301-
61 SEAL; WATER,DOOR PAD 8-98029-395-2 01 1 1301-
61 SEAL; WATER,DOOR PAD 8-98029-394-2 01 1 0807-
61 SEAL; WATER,DOOR PAD 8-98029-395-2 01 1 0807-
83 CLIP; DOOR TRIM
GRAY 		8-97405-308-0 02 1 0807-
165 LINER; DOOR LWR 8-98038-288-1 01 1 0807-
165 LINER; DOOR LWR 8-98038-289-1 01 1 0807-
166 PLUG; HOLE
D8X13.5 		1-09987-248-1 09 1 0807-
183 SEAL; LOCATION HOLE
OD=25 BLACK THA 		1-76798-019-0 02 1 0807-
199 CLIP; SEAL
(A) NATURAL THA 		8-98062-270-0 80 1 0807-
199 CLIP; SEAL
(B) RED THA 		8-98062-271-0 02 1 0807-
