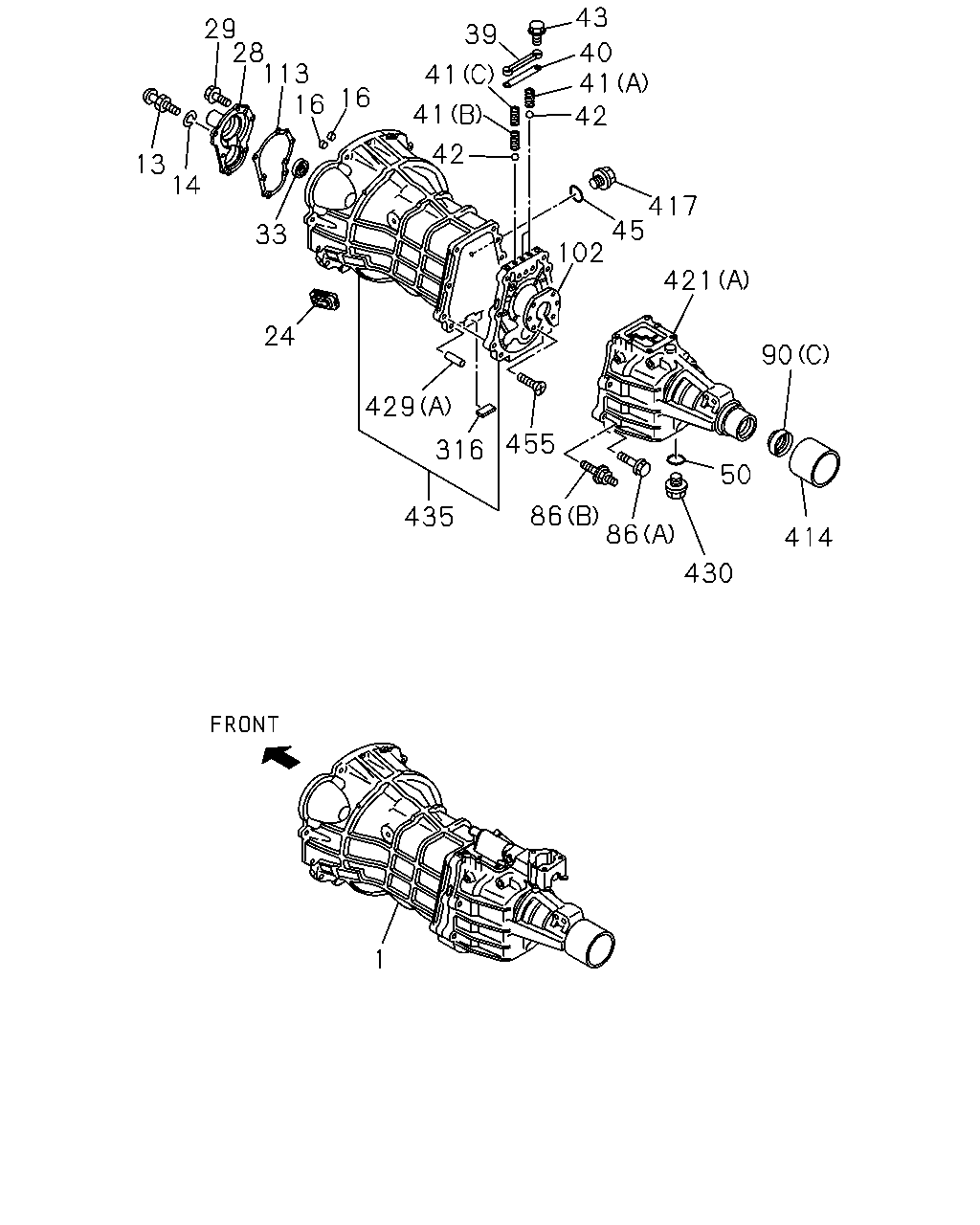

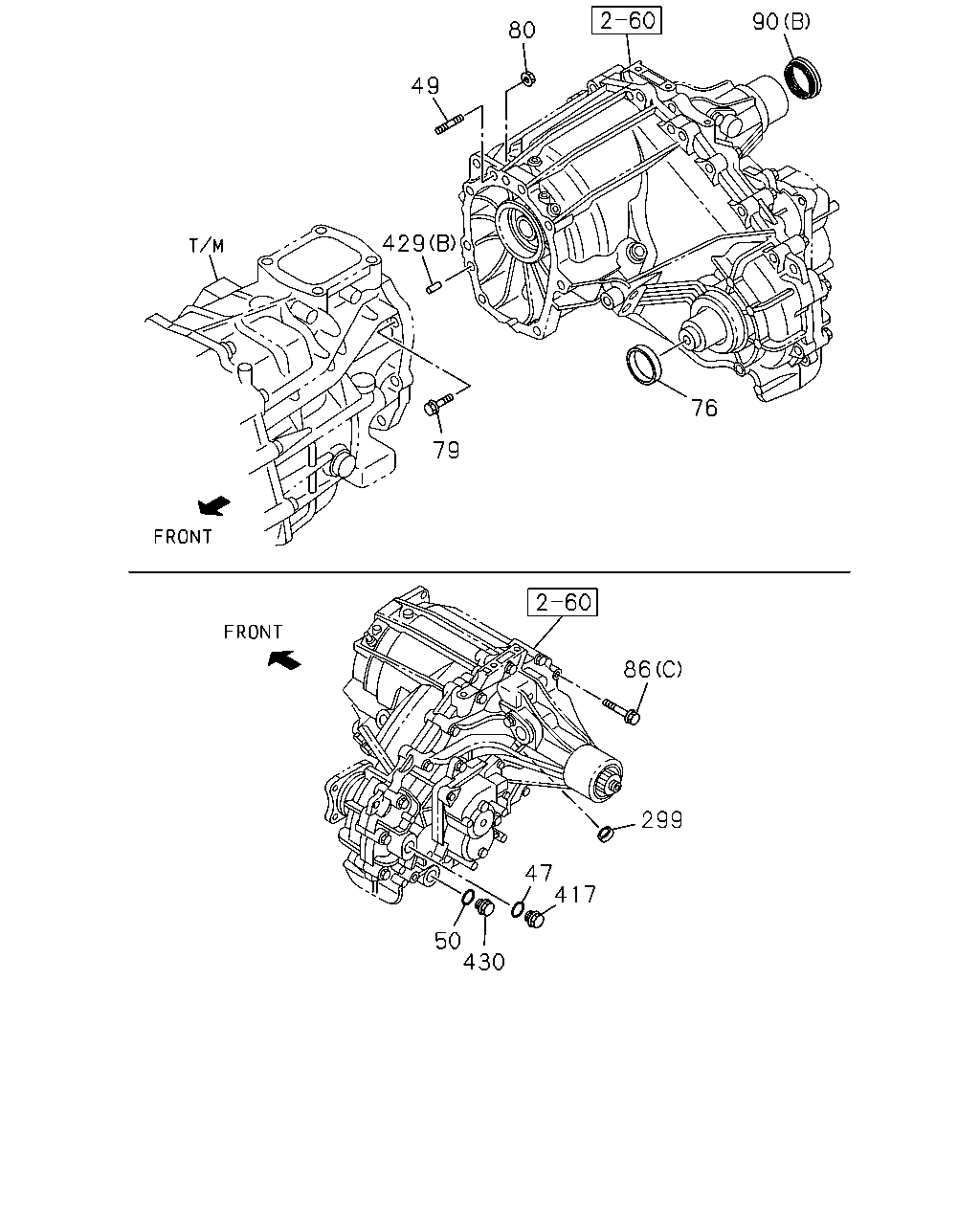

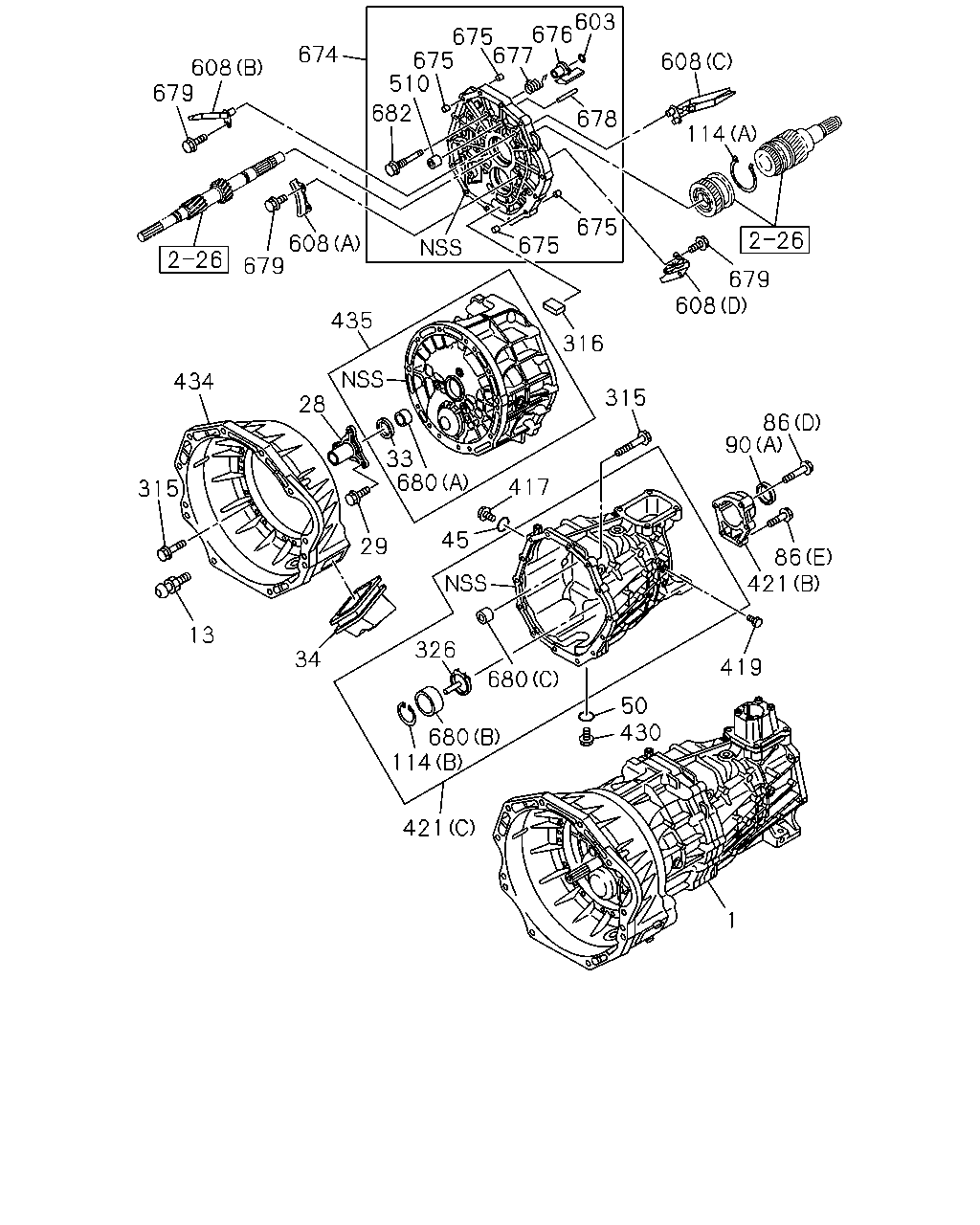

2-20 — MANUAL TRANSMISSION ASM AND CASE (#129519) — 164 parça

90 80 49 429 79 76 86 299 47 417 430 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
47	GASKET; FILLER PLUG,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1310-	●
47	GASKET; FILLER PLUG,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> ID=17 IMA	8-97115-712-0	01	1	1310-		●
49	STUD; TRANSFER CASE M10X30 L=45 IMA	8-98035-675-0	01	1	1310-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	1310-1408	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	02	1	1409-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1310-			●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> ID=17 IMA	8-97115-712-0	01	1	1310-		●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97238-999-0	01	1	1310-	●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> NOK IMA	8-97238-999-0	01	1	1310-		●
79	BOLT; TRANSFER CASE 4X4<UCS***> M10X45 FLANGE THA	0-28051-045-0	07	1	1310-		●
79	BOLT; TRANSFER CASE M10X35 FLANGE THA	0-28051-035-0	06	1	1310-	●
80	NUT; TRANSFER CASE M10 FLANGE THA	0-91180-110-0	01	1	1310-	●
86	BOLT; RR COVER (D) M8X50 FLANGE THA	0-28050-850-0	02	1	1310-	●
86	BOLT; RR COVER (E) M8X35 FLANGE THA	0-28650-835-0	03	1	1310-	●
86	BOLT; RR COVER (B) M10X18 M10X55 L=86.8 IMA	8-97305-468-0	01	1	1310-			●
86	BOLT; RR COVER (A) M10X55 FLANGE THA	8-98035-672-0	07	1	1310-			●
86	BOLT; RR COVER (C) M8X45 FLANGE THA	0-28050-845-0	16	1	1310-	●
86	BOLT; RR COVER 4X4<UCS***> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	1310-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (C) NOK THA	8-97947-840-0	01	1	1310-			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A) JTEKT IMA	8-98004-531-0	01	1	1310-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97046-705-3	01	1	1310-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> (B) NOK IMA	8-97046-705-3	01	1	1310-		●
299	PLUG; SHIFTER ROD OD=15.6 IMA	8-94173-641-0	02	1	1310-	●
299	PLUG; SHIFTER ROD 4X4<UCS***> OD=15.6 IMA	8-94173-641-0	02	1	1310-		●
417	PLUG; OIL FILLER,TRANS IMA	8-97365-373-0	02	1	1310-	●
417	PLUG; OIL FILLER,TRANS IMA	8-97365-373-0	01	1	1310-			●
417	PLUG; OIL FILLER,TRANS 4X4<UCS***> IMA	8-97365-373-0	01	1	1310-		●
429	PIN; STRAIGHT (A) OD=10 L=40 IMA	5-09740-018-1	02	1	1310-			●
429	PIN; STRAIGHT (B) OD=10 L=20 IMA	8-97135-423-0	02	1	1310-	●
429	PIN; STRAIGHT 4X4<UCS***> (B) OD=10 L=20 IMA	8-97135-423-0	02	1	1310-		●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	02	1	1310-	●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	01	1	1310-			●
430	PLUG; OIL DRAIN 4X4<UCS***> IMA	8-97365-374-0	01	1	1310-		●

43 40 41 42 417 421 90 414 50 86 430 86 455 102 45 39 41 41 42 429 316 435 24 33 16 16 113 28 29 13 14 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TRANSMISSION ASM; MANUAL THA	8-98172-462-0	01	1	1310-			●
1	TRANSMISSION ASM; MANUAL THA	8-97978-011-0	01	1	1310-	●
13	SUPPORT; SHIFT FORK L=47.5 IMA	8-97072-827-0	01	1	1310-1408	●
13	SUPPORT; SHIFT FORK L=47.5 IMA	8-97072-827-0	01	1	1310-1408			●
13	SUPPORT; SHIFT FORK L=47.5 IMA	8-97072-827-0	01	1	1409-	●		●
14	WASHER; LK,SUPPORT ID=12.2 IMA	0-91510-512-0	01	1	1310-			●
16	PLUG; SHIFT ROD OD=14 IMA	8-97358-601-0	02	1	1310-			●
24	COVER; CHECK HOLE,DUST IMA	8-94156-700-0	01	1	1310-			●
28	COVER; FRT,TRANS CASE THA	8-98094-800-0	01	1	1310-	●
28	COVER; FRT,TRANS CASE THA	8-97381-406-0	01	1	1310-			●
29	BOLT; FRT COVER M8X20 FLANGE THA	0-28650-820-0	03	1	1310-	●
29	BOLT; FRT COVER M8X22 FLANGE IMA	8-97365-376-0	06	1	1310-			●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK THA	8-97947-839-0	01	1	1310-1408	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK THA	8-97947-839-0	01	1	1310-1408			●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK THA	8-97947-839-0	01	1	1409-	●		●
39	PLATE; DETENT SPR IMA	8-98035-571-0	01	1	1310-			●
40	GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T). IMA	8-97083-600-1	01	1	1310-			●
41	SPRING; DETENT BALL (A) L=26.8 IMA	8-94320-193-0	02	1	1310-			●
41	SPRING; DETENT BALL (B) L=27.6 IMA	8-97214-402-0	01	1	1310-			●
41	SPRING; DETENT BALL (C) L=26.6 IMA	8-97214-403-0	01	1	1310-			●
42	BALL; DETENT,GEAR SHIFT IMA	8-94435-335-0	03	1	1310-			●
43	BOLT; PLATE TO PLATE M8X22 FLANGE IMA	8-97365-376-0	02	1	1310-			●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	1310-1408	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	1310-1408			●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	1409-	●		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	1310-1408	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	02	1	1409-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1310-			●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> ID=17 IMA	8-97115-712-0	01	1	1310-		●
86	BOLT; RR COVER (D) M8X50 FLANGE THA	0-28050-850-0	02	1	1310-	●
86	BOLT; RR COVER (E) M8X35 FLANGE THA	0-28650-835-0	03	1	1310-	●
86	BOLT; RR COVER (B) M10X18 M10X55 L=86.8 IMA	8-97305-468-0	01	1	1310-			●
86	BOLT; RR COVER (A) M10X55 FLANGE THA	8-98035-672-0	07	1	1310-			●
86	BOLT; RR COVER (C) M8X45 FLANGE THA	0-28050-845-0	16	1	1310-	●
86	BOLT; RR COVER 4X4<UCS***> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	1310-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (C) NOK THA	8-97947-840-0	01	1	1310-			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A) JTEKT IMA	8-98004-531-0	01	1	1310-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97046-705-3	01	1	1310-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> (B) NOK IMA	8-97046-705-3	01	1	1310-		●
102	RETAINER; BRG UPR,MAINSHAFT IMA	8-97138-673-0	01	1	1310-			●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). IMA	8-97083-589-0	01	1	1310-			●
316	MAGNET; TRANS CASE IMA	8-94249-524-2	01	1	1310-1408	●
316	MAGNET; TRANS CASE IMA	8-94249-524-2	01	1	1310-1408			●
316	MAGNET; TRANS CASE IMA	8-94249-524-2	01	1	1409-	●		●
414	COVER; DUST,RR COVER IMA	8-98027-802-0	01	1	1310-			●
417	PLUG; OIL FILLER,TRANS IMA	8-97365-373-0	02	1	1310-	●
417	PLUG; OIL FILLER,TRANS IMA	8-97365-373-0	01	1	1310-			●
417	PLUG; OIL FILLER,TRANS 4X4<UCS***> IMA	8-97365-373-0	01	1	1310-		●
421	COVER; RR,TRANS (B) THA	8-97362-423-1	01	1	1310-	●
421	COVER; RR,TRANS (C) THA	8-98108-319-0	01	1	1310-	●
421	COVER; RR,TRANS (A) THA	8-98191-921-0	01	1	1310-1405			●
421	COVER; RR,TRANS (A) THA	8-97978-059-0	01	1	1406-			●
429	PIN; STRAIGHT (A) OD=10 L=40 IMA	5-09740-018-1	02	1	1310-			●
429	PIN; STRAIGHT (B) OD=10 L=20 IMA	8-97135-423-0	02	1	1310-	●
429	PIN; STRAIGHT 4X4<UCS***> (B) OD=10 L=20 IMA	8-97135-423-0	02	1	1310-		●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	02	1	1310-	●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	01	1	1310-			●
430	PLUG; OIL DRAIN 4X4<UCS***> IMA	8-97365-374-0	01	1	1310-		●
435	CASE; TRANS THA	8-98108-317-1	01	1	1310-	●
435	CASE; TRANS IMA	8-98047-230-0	01	1	1310-			●
455	SCREW; BRG RET M8X22 IMA	8-98035-654-0	04	1	1310-			●

608 679 674 608 679 675 676 603 677 678 675 675 682 510 675 608 114 679 608 86 90 86 421 419 1 430 50 421 114 680 680 326 34 29 45 417 680 33 315 316 28 435 434 315 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TRANSMISSION ASM; MANUAL THA	8-98172-462-0	01	1	1310-			●
1	TRANSMISSION ASM; MANUAL THA	8-97978-011-0	01	1	1310-	●
13	SUPPORT; SHIFT FORK L=47.5 IMA	8-97072-827-0	01	1	1310-1408	●
13	SUPPORT; SHIFT FORK L=47.5 IMA	8-97072-827-0	01	1	1310-1408			●
13	SUPPORT; SHIFT FORK L=47.5 IMA	8-97072-827-0	01	1	1409-	●		●
28	COVER; FRT,TRANS CASE THA	8-98094-800-0	01	1	1310-	●
28	COVER; FRT,TRANS CASE THA	8-97381-406-0	01	1	1310-			●
29	BOLT; FRT COVER M8X20 FLANGE THA	0-28650-820-0	03	1	1310-	●
29	BOLT; FRT COVER M8X22 FLANGE IMA	8-97365-376-0	06	1	1310-			●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK THA	8-97947-839-0	01	1	1310-1408	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK THA	8-97947-839-0	01	1	1310-1408			●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK THA	8-97947-839-0	01	1	1409-	●		●
34	COVER; DUST,SHIFT FORK THA	8-98097-470-0	01	1	1310-	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	1310-1408	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	1310-1408			●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	1409-	●		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	1310-1408	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	02	1	1409-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1310-			●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> ID=17 IMA	8-97115-712-0	01	1	1310-		●
86	BOLT; RR COVER (D) M8X50 FLANGE THA	0-28050-850-0	02	1	1310-	●
86	BOLT; RR COVER (E) M8X35 FLANGE THA	0-28650-835-0	03	1	1310-	●
86	BOLT; RR COVER (B) M10X18 M10X55 L=86.8 IMA	8-97305-468-0	01	1	1310-			●
86	BOLT; RR COVER (A) M10X55 FLANGE THA	8-98035-672-0	07	1	1310-			●
86	BOLT; RR COVER (C) M8X45 FLANGE THA	0-28050-845-0	16	1	1310-	●
86	BOLT; RR COVER 4X4<UCS***> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	1310-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (C) NOK THA	8-97947-840-0	01	1	1310-			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A) JTEKT IMA	8-98004-531-0	01	1	1310-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97046-705-3	01	1	1310-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> (B) NOK IMA	8-97046-705-3	01	1	1310-		●
114	RING; SNAP,BALL BRG (A) OD=77 IMA	8-98024-221-0	01	1	1310-	●
114	RING; SNAP,BALL BRG (B) OD=60.2 IMA	9-09180-156-0	01	1	1310-	●
315	BOLT; CASE M8X60 FLANGE THA	0-28050-860-0	14	1	1310-	●
315	BOLT; CASE M8X35 FLANGE IMA	8-98046-876-0	11	1	1310-	●
316	MAGNET; TRANS CASE IMA	8-94249-524-2	01	1	1310-1408	●
316	MAGNET; TRANS CASE IMA	8-94249-524-2	01	1	1310-1408			●
316	MAGNET; TRANS CASE IMA	8-94249-524-2	01	1	1409-	●		●
326	NOZZLE; OIL,OUTLET IMA	8-98023-517-0	01	1	1310-	●
417	PLUG; OIL FILLER,TRANS IMA	8-97365-373-0	02	1	1310-	●
417	PLUG; OIL FILLER,TRANS IMA	8-97365-373-0	01	1	1310-			●
417	PLUG; OIL FILLER,TRANS 4X4<UCS***> IMA	8-97365-373-0	01	1	1310-		●
419	PLUG; RR COVER M12X9 IMA	8-98047-054-0	01	1	1310-	●
421	COVER; RR,TRANS (B) THA	8-97362-423-1	01	1	1310-	●
421	COVER; RR,TRANS (C) THA	8-98108-319-0	01	1	1310-	●
421	COVER; RR,TRANS (A) THA	8-98191-921-0	01	1	1310-1405			●
421	COVER; RR,TRANS (A) THA	8-97978-059-0	01	1	1406-			●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	02	1	1310-	●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	01	1	1310-			●
430	PLUG; OIL DRAIN 4X4<UCS***> IMA	8-97365-374-0	01	1	1310-		●
434	HOUSING; CLU THA	8-98108-316-0	01	1	1310-	●
435	CASE; TRANS THA	8-98108-317-1	01	1	1310-	●
435	CASE; TRANS IMA	8-98047-230-0	01	1	1310-			●
510	BEARING THA	8-97362-853-0	02	1	1310-1408	●
510	BEARING THA	8-97362-853-0	01	1	1409-	●
603	RING; SNAP IMA	8-98039-270-0	02	1	1310-1408	●
603	RING; SNAP IMA	8-98039-270-0	01	1	1409-	●
608	GUTTER; OIL (A) IMA	8-97362-391-0	01	1	1310-	●
608	GUTTER; OIL (B) IMA	8-97362-564-1	01	1	1310-	●
608	GUTTER; OIL (D) IMA	8-98004-505-0	01	1	1310-	●
608	GUTTER; OIL (C) IMA	8-98142-574-0	01	1	1310-	●
674	PLATE; INTERMEDIATE THA	8-98042-863-0	01	1	1310-	●
675	DOWEL OD=11 L=8 IMA	9-11229-058-1	04	1	1310-	●
676	INHIBITOR IMA	8-98037-604-1	01	1	1310-	●
677	SPRING; INHIBITOR IMA	8-97362-852-0	01	1	1310-	●
678	PIN IMA	9-08160-436-0	01	1	1310-	●
679	BOLT; GUTTER M6X12 FLANGE THA	0-28050-612-0	04	1	1310-	●
680	BEARING (A) IMA	8-97362-720-1	01	1	1310-	●
680	BEARING (C) THA	8-97362-853-0	01	1	1310-	●
680	BEARING (B) IMA	8-98024-431-0	01	1	1310-	●
682	BOLT; INHIBITOR M10X50 IMA	8-98042-618-0	01	1	1310-	●
