Isuzu WW
▶
SUV
▶
UCR
▶
51488 - UCR/UCS(THAILAND)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-06 - CLUTCH SLAVE CYLINDER
▶
2-06 — CLUTCH SLAVE CYLINDER
(#129516) — 16 parça
Tümü

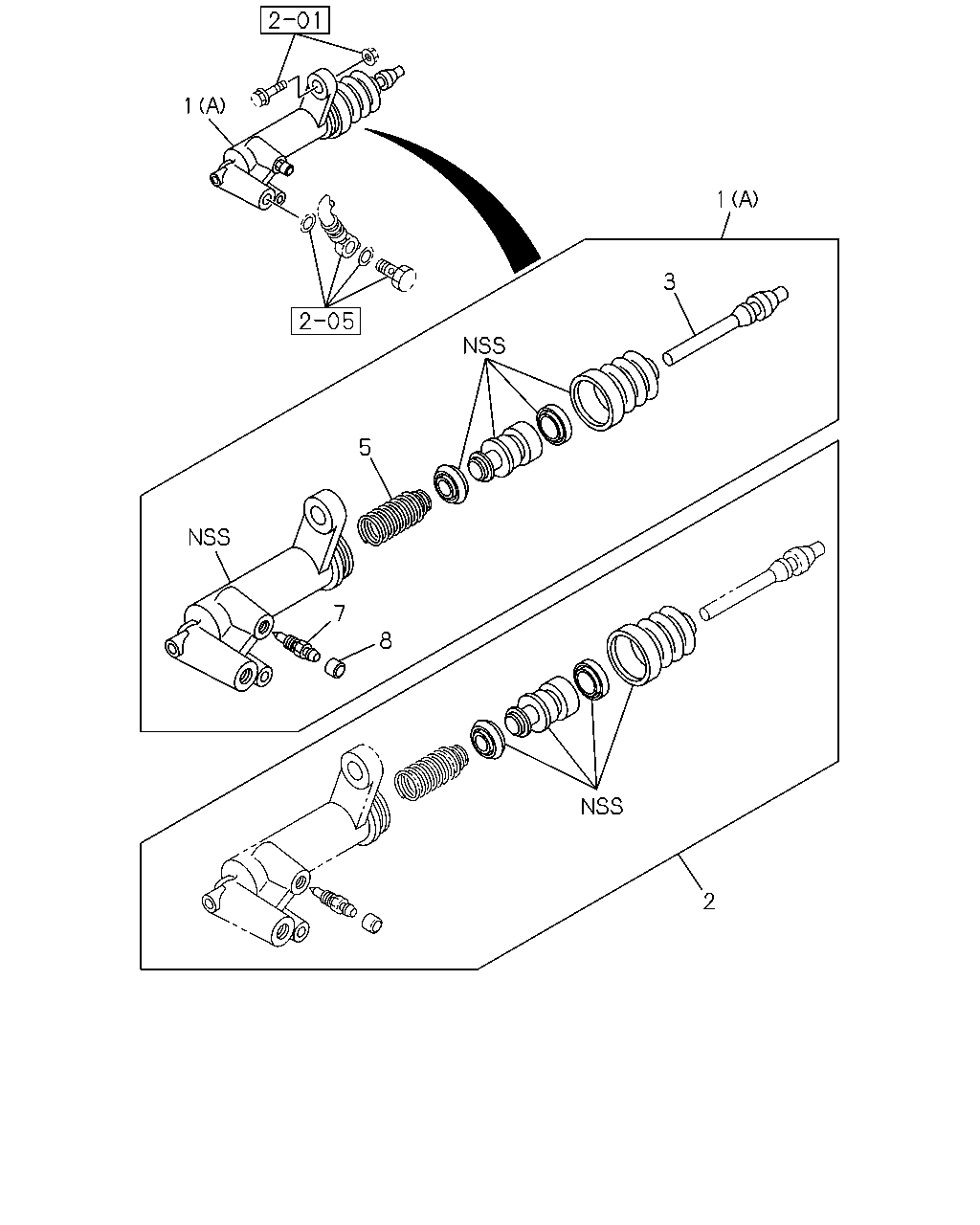

A - M/T MUA 5 SPEED 5H

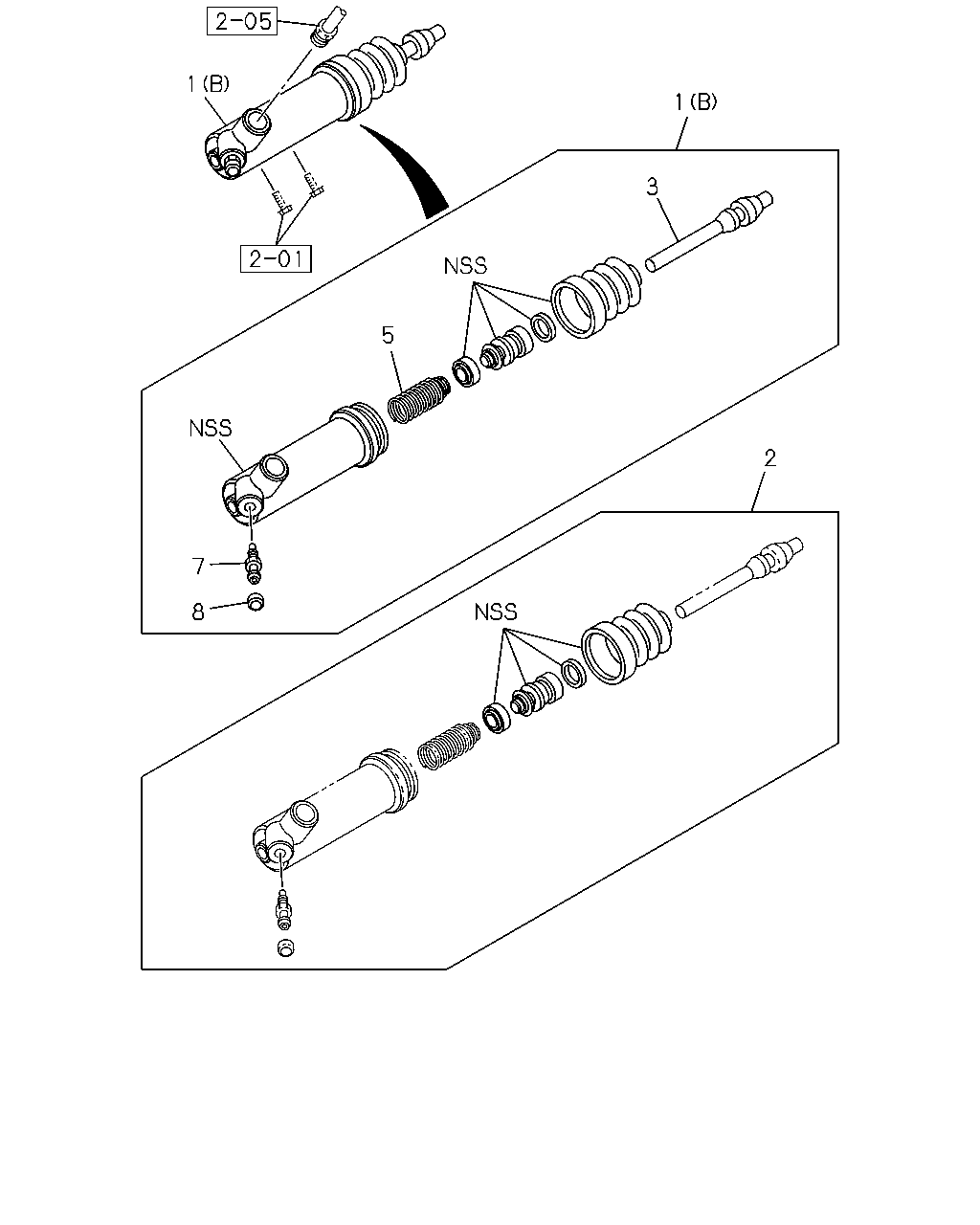

B - M/T MUX 5 SPEED 5S
◀
[206A] M/T MUX (8 parça)
[206A] M/T MUA (8 parça)
▶
5
3
1
2
7
8
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CYLINDER; SLAVE,CLU
(A) THA
8-97945-177-0
01
1
1310-
●
1
CYLINDER; SLAVE,CLU
(B) THA
8-97946-624-2
01
1
1310-
●
2
REPAIR KIT; CLU SLAVE CYL
THA
5-87832-048-0
01
1
1310-
●
●
3
ROD; PUSH,SLAVE CYL
THA
8-97945-722-0
01
1
1310-
●
3
ROD; PUSH,SLAVE CYL
THA
8-98187-063-0
01
1
1310-
●
5
SPRING ASM; PISTON,SLAVE CYL
THA
8-97942-801-0
01
1
1310-
●
●
7
SCREW; BLEEDER,SLAVE CYL
M8X10 IMA
8-98020-477-0
01
1
1310-
●
●
8
CAP; BLEEDER,SLAVE CYL
OD=10 IMA
8-97940-638-0
01
1
1310-
●
●
1
1
3
5
7
8
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CYLINDER; SLAVE,CLU
(A) THA
8-97945-177-0
01
1
1310-
●
1
CYLINDER; SLAVE,CLU
(B) THA
8-97946-624-2
01
1
1310-
●
2
REPAIR KIT; CLU SLAVE CYL
THA
5-87832-048-0
01
1
1310-
●
●
3
ROD; PUSH,SLAVE CYL
THA
8-97945-722-0
01
1
1310-
●
3
ROD; PUSH,SLAVE CYL
THA
8-98187-063-0
01
1
1310-
●
5
SPRING ASM; PISTON,SLAVE CYL
THA
8-97942-801-0
01
1
1310-
●
●
7
SCREW; BLEEDER,SLAVE CYL
M8X10 IMA
8-98020-477-0
01
1
1310-
●
●
8
CAP; BLEEDER,SLAVE CYL
OD=10 IMA
8-97940-638-0
01
1
1310-
●
●
