Sayfa 1-40 - Isuzu EPC

1-40 — FUEL TANK (#129510) — 46 parça

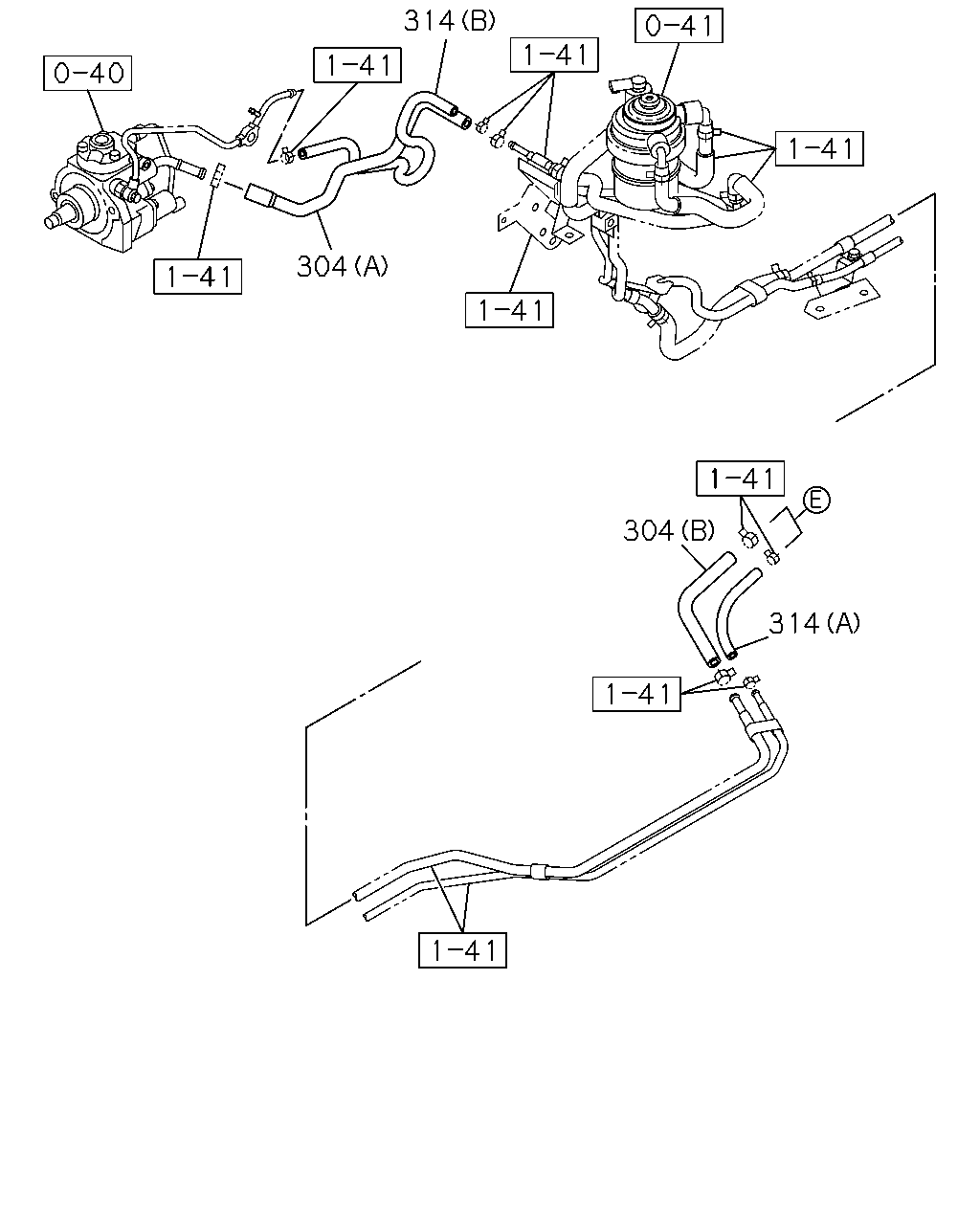

314 304 304 314

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP (B) THA	8-98164-019-0	01	1	1310-	●	●
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP (A) THA	8-98222-042-1	01	1	1310-	●	●
314	HOSE; RUBBER,FUEL RETURN (A) THA	8-98113-323-1	01	1	1310-1404	●	●
314	HOSE; RUBBER,FUEL RETURN (A) THA	8-98258-246-0	01	1	1405-	●	●
314	HOSE; RUBBER,FUEL RETURN (B) THA	8-98222-040-0	01	1	1310-	●	●

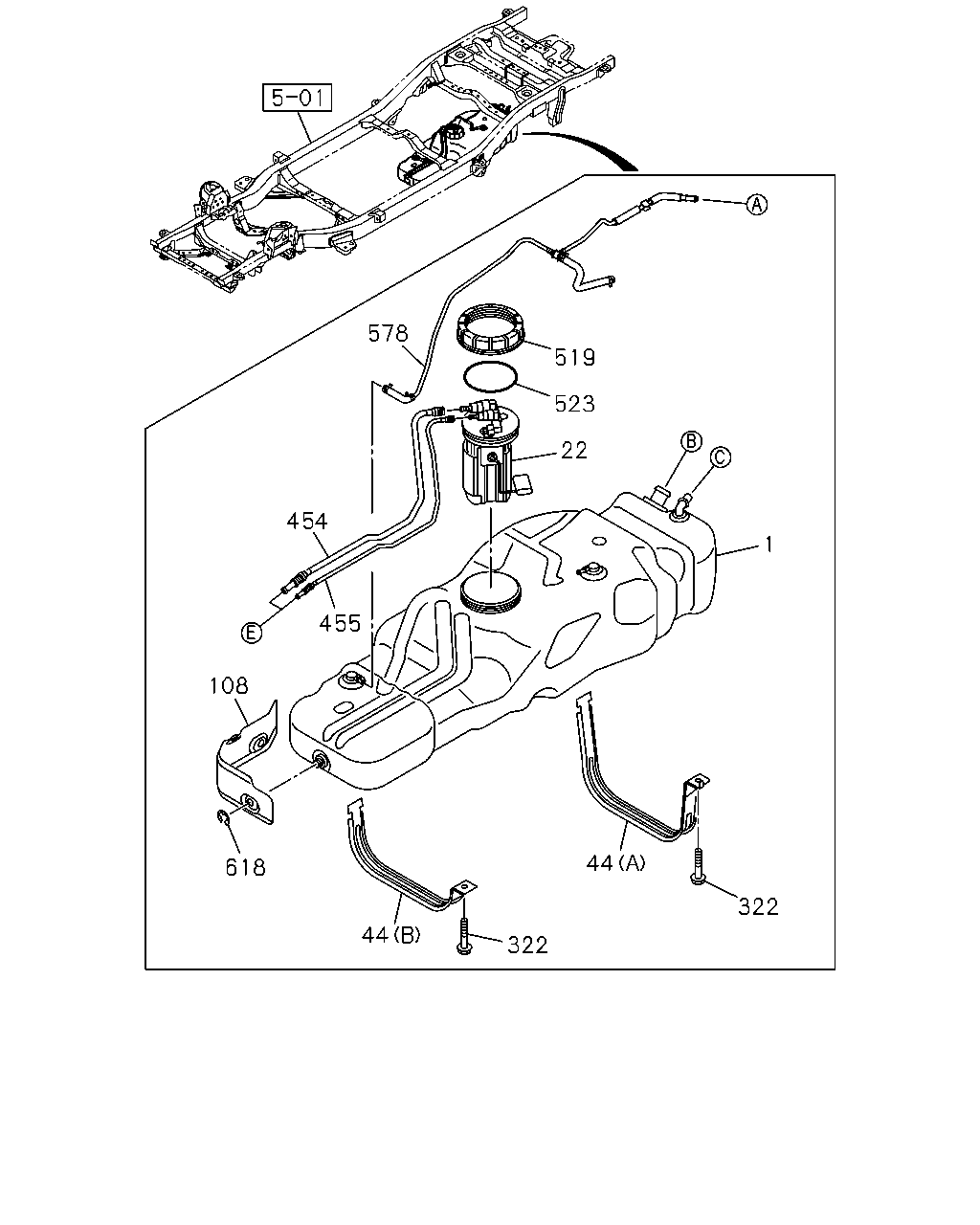

578 519 523 22 1 44 322 322 44 618 108 455 454

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL THA	8-98212-990-0	01	1	1310-1405	●	●
1	TANK; FUEL THA	8-98212-990-1	01	1	1406-	●	●
22	UNIT; FUEL TANK THA	8-98212-993-0	01	1	1310-1405	●	●
22	UNIT; FUEL TANK THA	8-98212-993-0	01	1	1406-	●	●
44	BAND; FUEL TANK (A) THA	8-98204-957-0	01	1	1310-	●	●
44	BAND; FUEL TANK (B) THA	8-98204-958-0	01	1	1310-	●	●
108	PROTECTOR; FUEL TANK THA	8-98212-997-0	01	1	1310-1405	●	●
108	PROTECTOR; FUEL TANK THA	8-98212-997-0	01	1	1406-	●	●
322	BOLT; BRKT FIX M10X50 FLANGE THA	8-97301-165-0	02	1	1310-	●	●
454	PIPE; FUEL,DELIVERY THA	8-98212-991-0	01	1	1310-1405	●	●
454	PIPE; FUEL,DELIVERY THA	8-98212-991-0	01	1	1406-	●	●
455	PIPE; FUEL,RETURN THA	8-98212-992-0	01	1	1310-1405	●	●
455	PIPE; FUEL,RETURN THA	8-98212-992-0	01	1	1406-	●	●
519	RETAINER; FUEL PUMP THA	8-98212-995-0	01	1	1310-1405	●	●
519	RETAINER; FUEL PUMP THA	8-98212-995-0	01	1	1406-	●	●
523	SEAL; FUEL SENSOR THA	8-98212-994-0	01	1	1310-1405	●	●
523	SEAL; FUEL SENSOR THA	8-98212-994-0	01	1	1406-	●	●
578	TUBE; FUEL,EVAPO THA	8-98228-330-0	01	1	1310-1405	●	●
578	TUBE; FUEL,EVAPO THA	8-98228-330-0	01	1	1406-	●	●
618	RETAINER; FUEL TANK THA	8-98212-998-0	03	1	1310-1405	●	●
618	RETAINER; FUEL TANK THA	8-98212-998-0	03	1	1406-	●	●

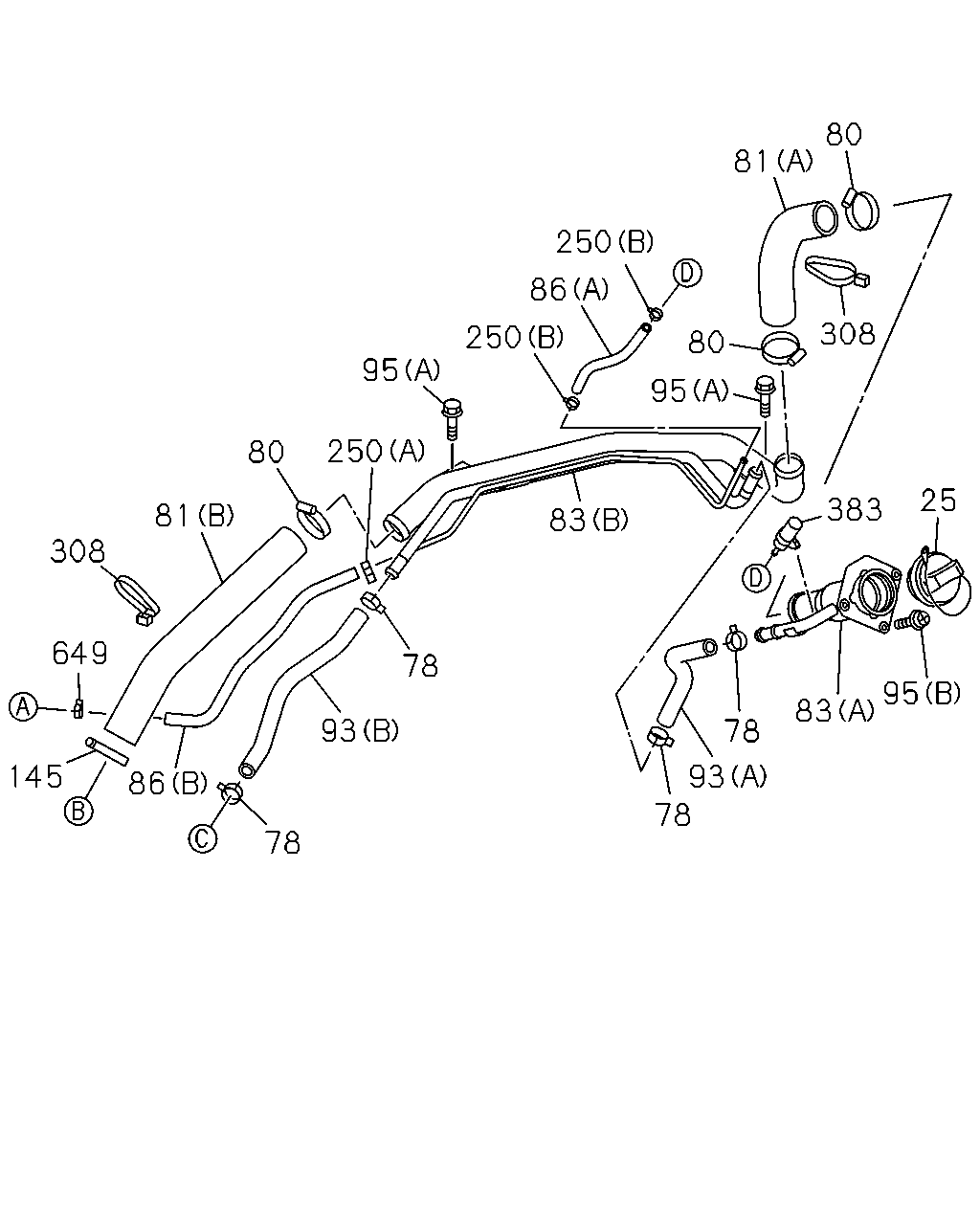

80 308 80 81 250 86 250 95 83 78 78 93 83 95 25 383 78 93 78 86 145 649 308 81 80 250 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	CAP; FILLER,FUEL TANK IMA	8-98088-024-0	01	1	1310-1510	●	●
25	CAP; FILLER,FUEL TANK IMA	8-98327-664-0	01	1	1511-	●	●
78	CLIP; BREATHER HOSE ID=20.8 THA	8-97944-127-0	04	1	1310-	●	●
80	CLIP; FILLER HOSE THA	8-98232-268-0	03	1	1310-	●	●
81	HOSE; FUEL FILLER (A) THA	8-98230-137-0	01	1	1310-	●	●
81	HOSE; FUEL FILLER (B) THA	8-98230-139-0	01	1	1310-	●	●
83	NECK; FUEL FILLER (A) THA	8-98230-128-0	01	1	1310-	●	●
83	NECK; FUEL FILLER (B) THA	8-98230-133-0	01	1	1310-	●	●
86	HOSE; EVAP (A) THA	8-98230-134-0	01	1	1310-	●	●
86	HOSE; EVAP (B) THA	8-98230-135-0	01	1	1310-	●	●
93	HOSE; BREATHER,FUEL TANK (A) THA	8-98230-136-0	01	1	1310-	●	●
93	HOSE; BREATHER,FUEL TANK (B) THA	8-98230-138-0	01	1	1310-	●	●
95	SCREW; FILLER NECK (A) BOLT M8X20 FLANGE IMA	0-28660-820-0	02	1	1310-	●	●
95	SCREW; FILLER NECK (B) IMA	8-98139-595-0	03	1	1310-	●	●
145	CLIP; HOSE,FILLER NECK ID=30-45 THA	8-97947-244-0	01	1	1310-	●	●
250	CLIP; BAND,EVAP HOSE (A) ID=11.5 THA	8-98051-892-0	01	1	1310-	●	●
250	CLIP; BAND,EVAP HOSE (B) THA	8-98232-266-0	02	1	1310-	●	●
308	CLIP; HOSE THA	8-98234-324-0	02	1	1310-	●	●
383	VALVE; 2 WAY THA	8-98230-130-0	01	1	1310-	●	●
649	CLAMP; FUEL PIPE ID=11.5 THA	8-98051-892-0	01	1	1310-	●	●
