51488 - UCR/UCS(THAILAND)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶

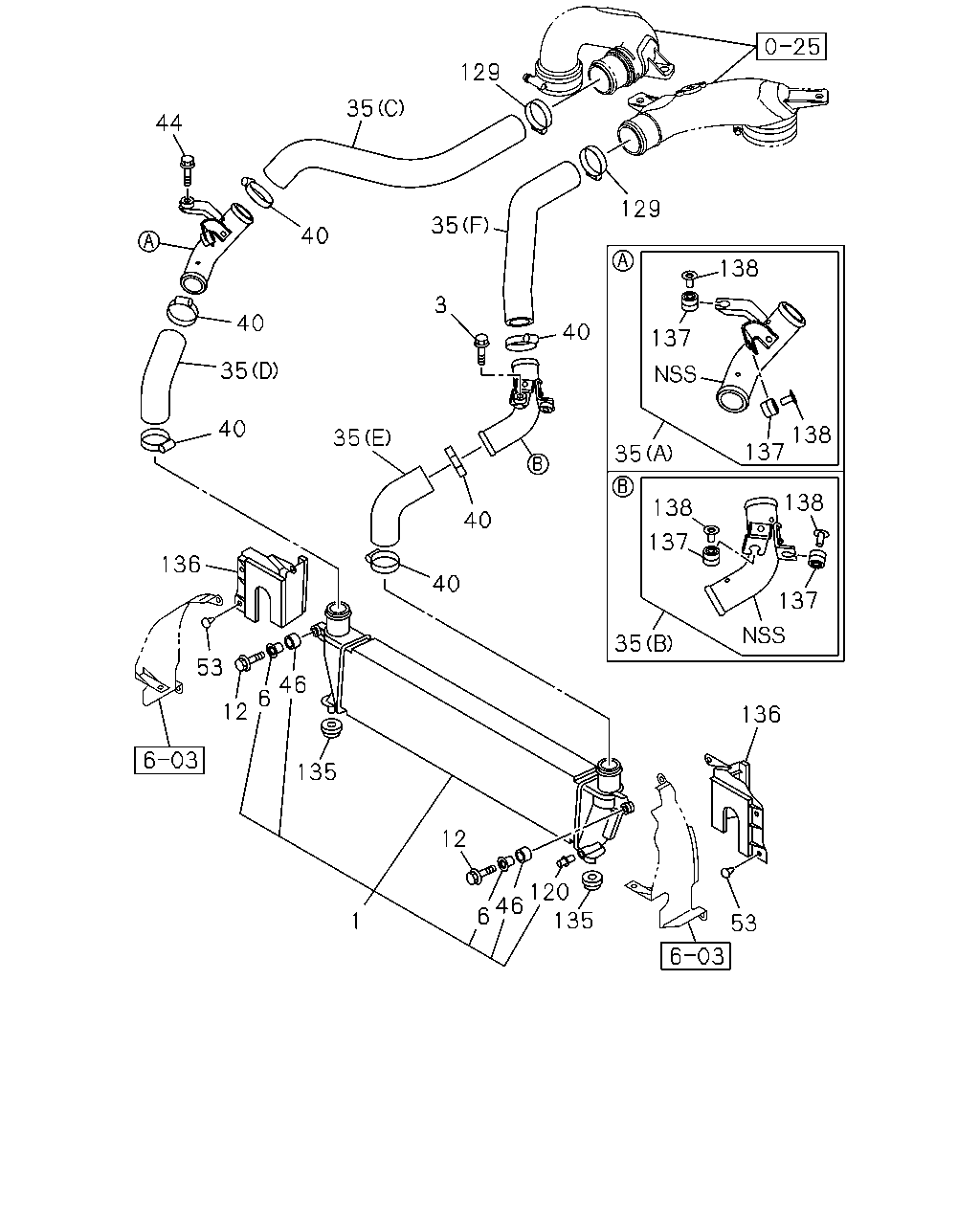

1-35 - CHARGE AIR COOLER
▶
1-35 — CHARGE AIR COOLER
(#129509) — 22 parça
Tümü
A - 4JK1-TCX ENG
B - 4JJ1-TCX ENG
1
6
46
120
135
53
136
12
135
46
6
12
53
136
40
35
137
138
138
137
35
137
138
137
138
40
35
3
40
129
129
35
35
40
44
40
35
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
COOLER; CHARGE AIR
THA
8-98093-027-4
01
1
1310-
●
1
COOLER; CHARGE AIR
THA
8-98090-627-4
01
1
1310-
●
3
BOLT; CHARGE AIR COOLER
M6X33 W/PL WASHER THA
8-98048-997-0
02
1
1310-
●
●
6
COLLAR; MTG,CHARGE AIR COOLER
THA
8-97942-932-0
02
1
1310-
●
●
12
BOLT; CHARGE AIR COOLER
M8X32.5 W/PL WASHER THA
8-98136-077-0
02
1
1310-
●
●
35
HOSE; CONNECTING
(A) THA
8-98065-553-1
01
1
1310-
●
●
35
HOSE; CONNECTING
(B) THA
8-98065-554-1
01
1
1310-
●
●
35
HOSE; CONNECTING
(C) THA
8-98065-695-2
01
1
1310-
●
●
35
HOSE; CONNECTING
(D) THA
8-98065-696-2
01
1
1310-
●
●
35
HOSE; CONNECTING
(E) THA
8-98065-697-2
01
1
1310-
●
●
35
HOSE; CONNECTING
(F) THA
8-98065-698-2
01
1
1310-
●
●
40
CLIP; RUBBER HOSE
ID=45-65 THA
8-98133-396-0
06
1
1310-
●
●
44
BOLT; PIPE
M6X33 W/PL WASHER THA
8-98048-997-0
02
1
1310-
●
●
46
RUBBER; MTG,CHARGE AIR COOLER
THA
8-97942-930-0
02
1
1310-
●
●
53
CLIP; AIR DUCT
OD=22 L=10.7 THA
8-94215-211-0
06
1
1310-
●
●
120
PIPE; WATER DRAIN
THA
8-98189-894-0
01
1
1310-
●
●
129
CLAMP; HOSE
ID=45-65 THA
8-98133-396-0
02
1
1310-
●
●
135
RUBBER; CUSHION
THA
8-97249-541-1
02
1
1310-
●
●
136
SEAL; CHARGE AIR COOLER
THA
8-98166-396-0
01
1
1310-
●
●
136
SEAL; CHARGE AIR COOLER
THA
8-98166-398-0
01
1
1310-
●
●
137
RUBBER; PIPE
THA
8-98137-144-0
04
1
1310-
●
●
138
COLLAR; RUBBER,PIPE
THA
8-98137-143-0
04
1
1310-
●
●
