◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51488 - UCR/UCS(THAILAND) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#129508) — 13 parça

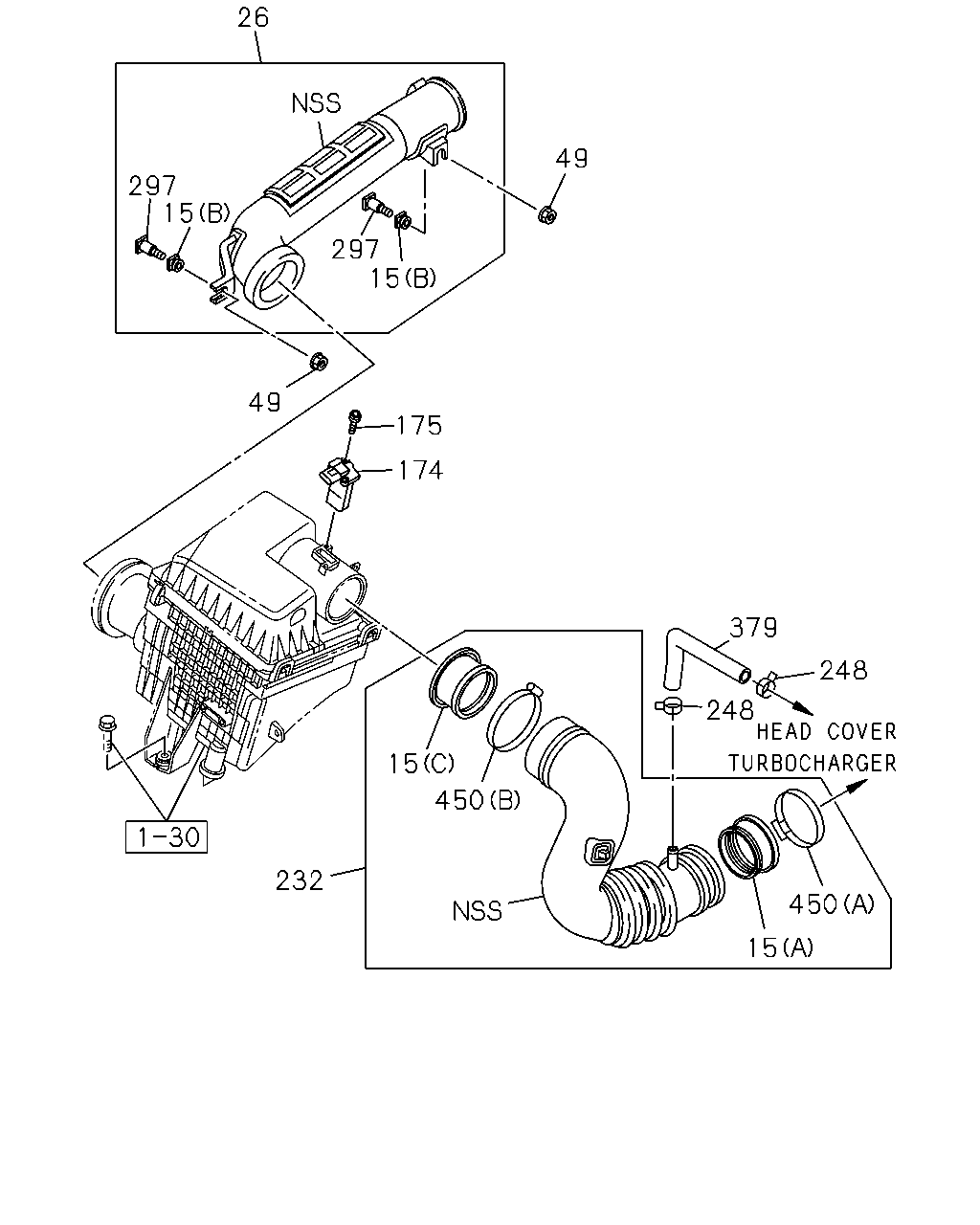

çizim 379476
174 175 49 15 297 15 297 26 49 15 450 248 379 248 15 450 232
BalonParca AdiParca NoAdetTipApplied Date A B
15 INSULATOR
(A) THA 		8-98137-140-0 01 1 1310- ● ●
15 INSULATOR
(B) THA 		8-98203-901-0 02 1 1310- ● ●
15 INSULATOR
(C) THA 		8-98214-036-0 01 1 1310- ● ●
26 DUCT; AIR INT
THA 		8-98104-472-1 01 1 1310- ● ●
49 NUT; AIR DUCT
M6 FLANGE THA 		0-91180-106-0 02 1 1310- ● ●
174 SENSOR; AIR FLOW CONT
IMA 		8-97601-967-0 01 1 1310- ● ●
175 BOLT; AIR FLOW CONT SENSOR
SCREW M4X10 W/LK&PL WASHER THA 		0-36230-410-0 02 1 1310- ● ●
232 HOSE; CONN
THA 		8-98212-086-0 01 1 1310- ● ●
248 CLIP; RUBBER HOSE
ID=20.4 IMA 		8-94121-113-0 02 1 1310- ● ●
297 BOLT; DUCT
THA 		8-98203-900-0 02 1 1310- ● ●
379 HOSE; RUBBER
THA 		8-98065-694-1 01 1 1310- ● ●
450 CLAMP; HOSE
(B) THA 		8-98136-623-0 01 1 1310- ● ●
450 CLAMP; HOSE
(A) THA 		8-98136-624-0 01 1 1310- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
