1-10 — RADIATOR (#129505) — 17 parça

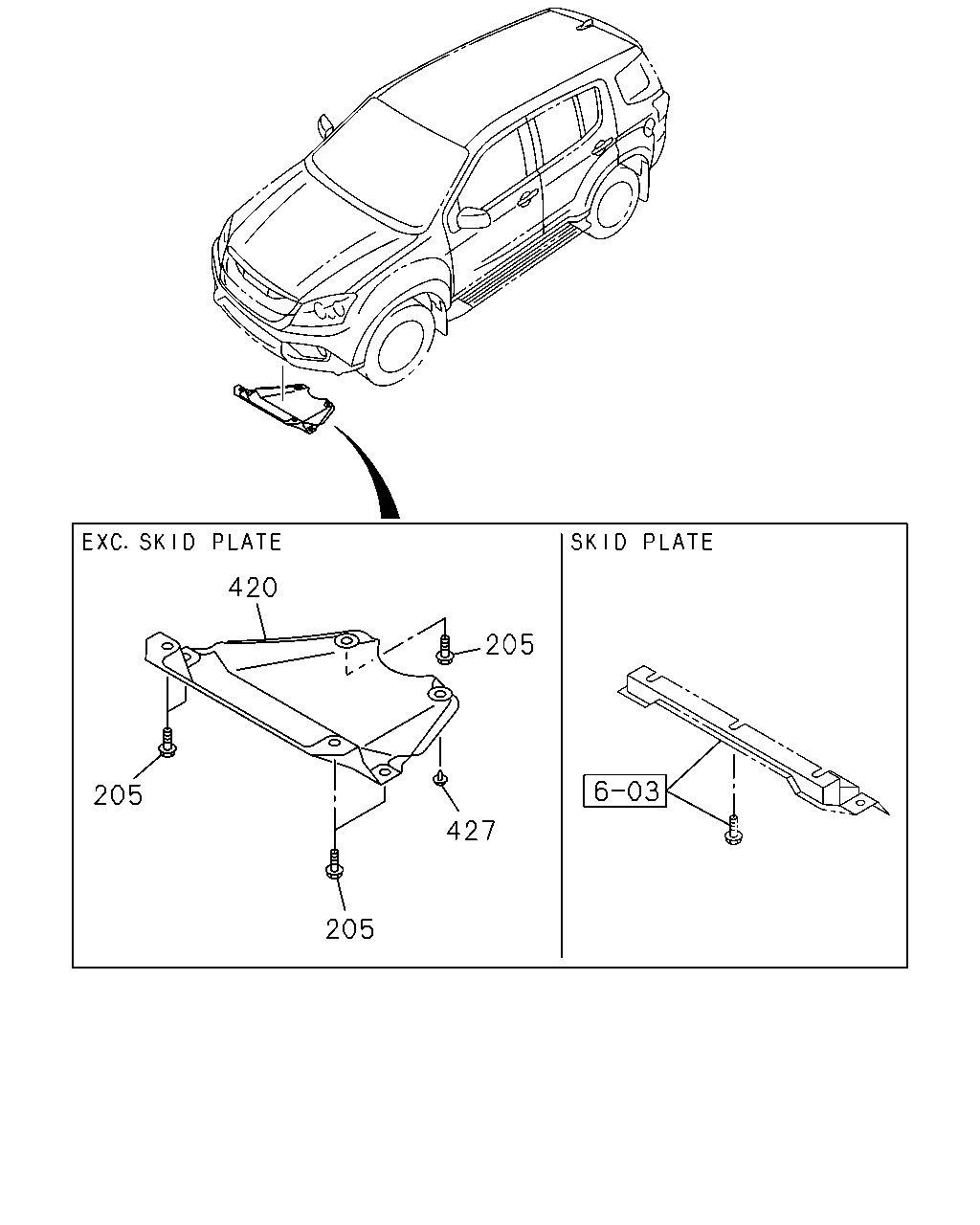

205 427 205 420 205

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
205	BOLT; AIR GUIDE 4X2<UCB***> EXC. SKID PLATE<7WE> M10X28 W/LK&PL WASHER THA	8-97945-706-0	05	1	1310-	●	●
420	GUIDE; AIR,RAD 4X2<UCB***> EXC. SKID PLATE<7WE> THA	8-98176-508-1	01	1	1310-	●	●
427	CLIP; FAN GUIDE 4X2<UCB***> EXC. SKID PLATE<7WE> THA	8-98178-267-0	01	1	1310-	●	●

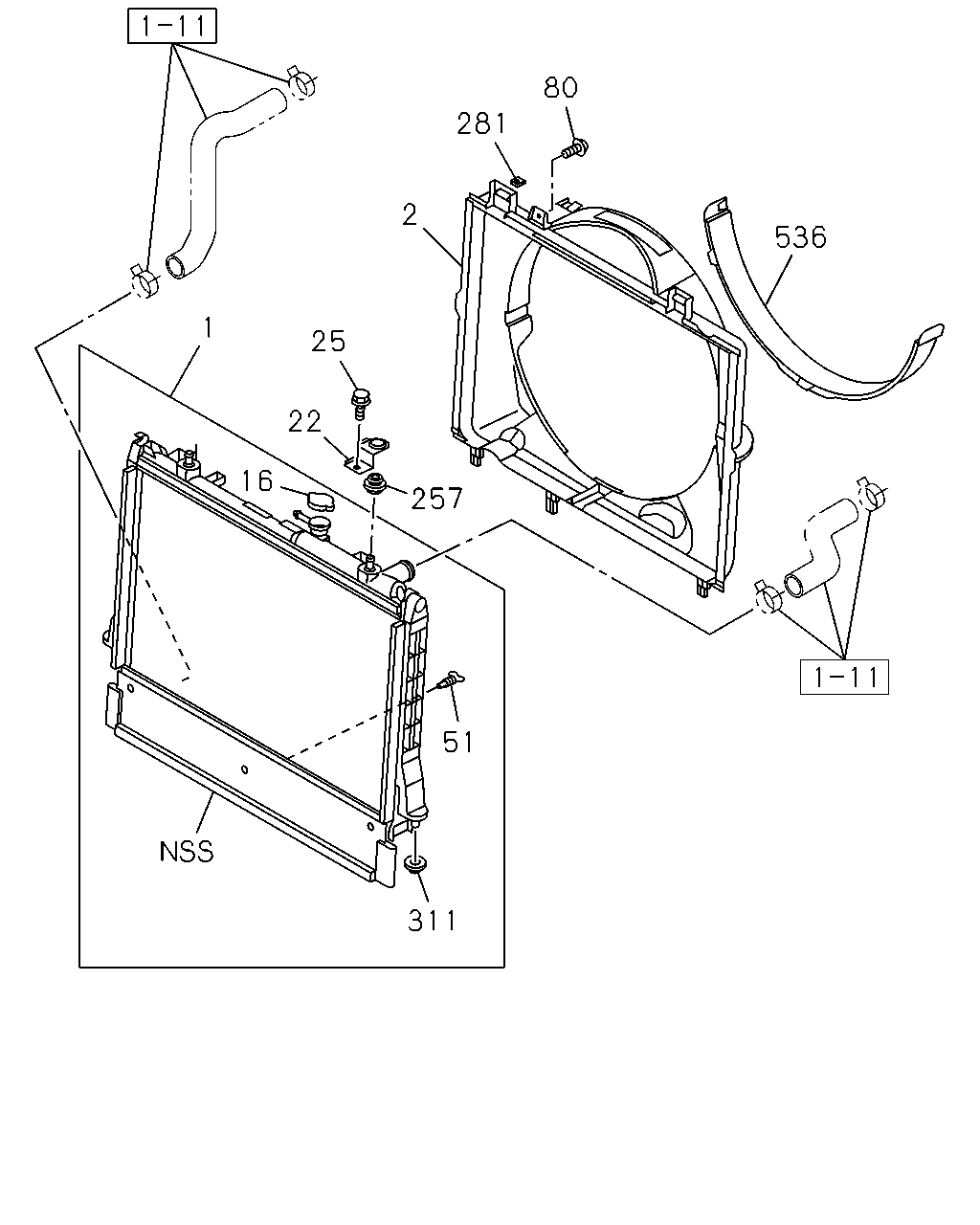

1 25 2 281 80 536 257 22 16 51 311

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	RADIATOR ASM A/T 5 SPEED-AISIN<MA1> THA	8-98249-991-1	01	1	1310-	●
1	RADIATOR ASM M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-98249-999-1	01	1	1310-	●
1	RADIATOR ASM A/T 5 SPEED-AISIN<MA1> THA	8-98249-989-1	01	1	1310-		●
1	RADIATOR ASM M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-98249-990-1	01	1	1310-		●
2	GUIDE; FAN THA	8-98250-005-0	01	1	1310-	●	●
16	CAP; RAD THA	8-97942-268-1	01	1	1310-	●	●
22	BRACKET; RAD MTG THA	8-98102-383-2	02	1	1310-	●	●
25	BOLT; BRKT M6X16 FLANGE THA	0-28650-616-0	02	1	1310-	●	●
51	PLUG; DRAIN W/GASKET THA	8-97171-437-0	01	1	1310-	●	●
80	BOLT; FAN GUIDE THA	8-98189-890-0	01	1	1310-	●	●
257	MOUNTING; RAD STAY THA	8-97249-541-1	02	1	1310-	●	●
281	NUT; FAN GUIDE THA	8-98189-891-0	02	1	1310-	●	●
311	RUBBER; MTG,RAD THA	8-97942-297-0	02	1	1310-	●	●
536	SHROUD; FAN THA	8-97372-866-1	01	1	1310-	●	●
