0-66 — GENERATOR (#129503) — 15 parça

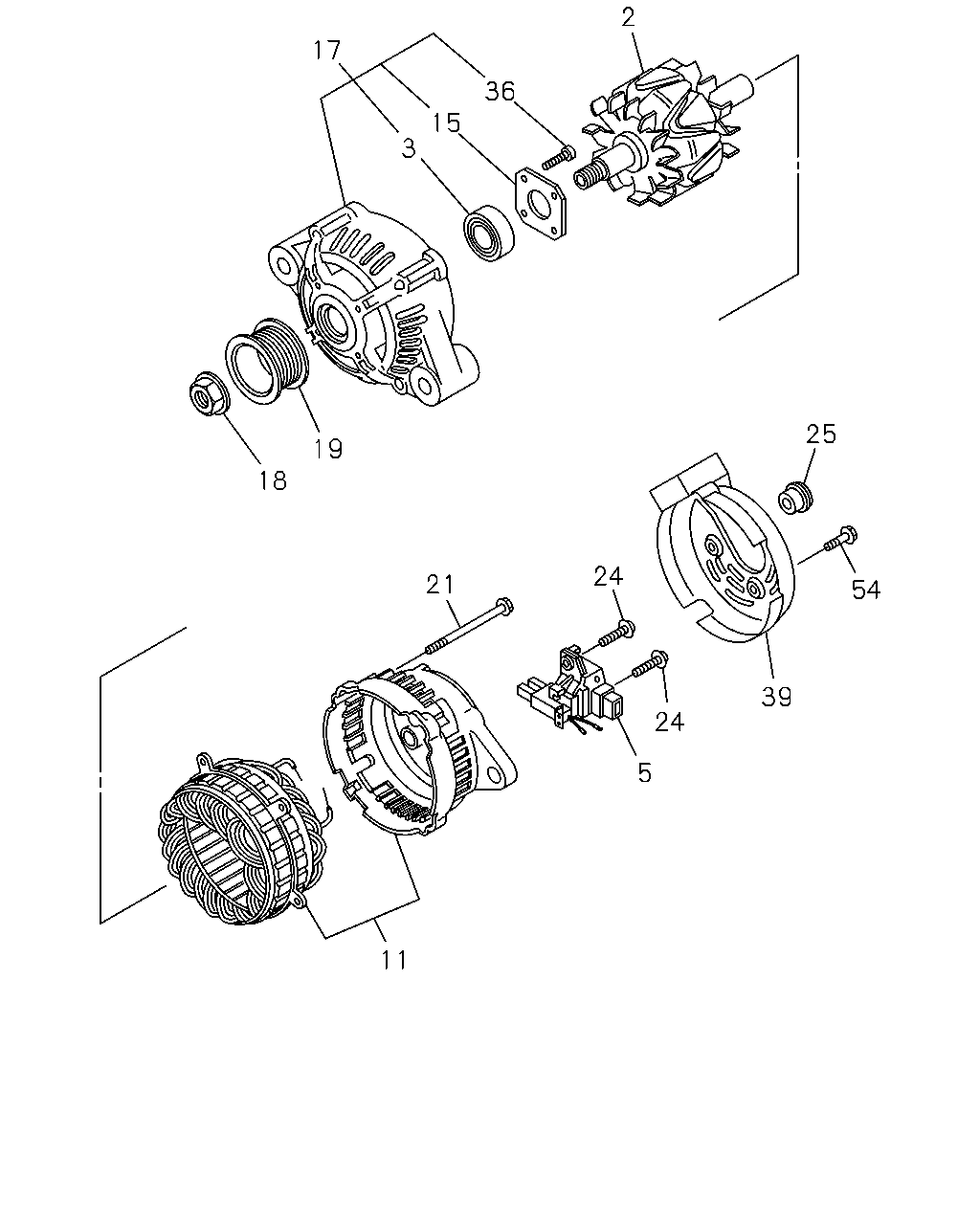

çizim 379364
39 24 5 11 21 24 25 54 36 15 3 17 2 19 18
BalonParca AdiParca NoAdetTipApplied Date
2 ROTOR; GEN
THA ASM PART: A = 8-98225-156-0, B = 8-98225-157-0 		8-98231-360-0 01 1 -
3 BEARING; ROTOR,GEN
THA ASM PART: A = 8-98225-156-0, B = 8-98225-157-0 		8-98231-355-0 01 1 -
5 HOLDER; BRUSH,GEN
THA ASM PART: A = 8-98225-156-0, B = 8-98225-157-0 		8-97378-926-0 01 1 -
11 COVER; RR,GEN
THA ASM PART: A = 8-98225-156-0 		8-98231-361-0 01 1 -
11 COVER; RR,GEN
THA ASM PART: B = 8-98225-157-0 		8-98231-362-0 01 1 -
15 RETAINER; ROTOR,GEN
IMA ASM PART: A = 8-98225-156-0, B = 8-98225-157-0 		8-94406-982-0 01 1 -
17 COVER ASM; FRT,GEN
THA ASM PART: A = 8-98225-156-0, B = 8-98225-157-0 		8-98231-353-0 01 1 -
18 NUT; PULLEY,GEN
IMA ASM PART: A = 8-98225-156-0, B = 8-98225-157-0 		8-94123-043-0 01 1 -
19 PULLEY; GEN
THA ASM PART: A = 8-98225-156-0, B = 8-98225-157-0 		8-98231-352-0 01 1 -
21 BOLT; THROUGH,GEN
THA ASM PART: A = 8-98225-156-0, B = 8-98225-157-0 		8-98231-358-0 04 1 -
24 SCREW; RECTIFIER,GEN
IMA ASM PART: A = 8-98225-156-0, B = 8-98225-157-0 		8-97032-313-0 03 1 -
25 BUSHING; INSULATION TERMINAL
THA ASM PART: A = 8-98225-156-0, B = 8-98225-157-0 		8-98231-365-0 01 1 -
36 SCREW; FRT COVER
IMA ASM PART: A = 8-98225-156-0, B = 8-98225-157-0 		8-97142-562-0 04 1 -
39 COVER; END,RR COVER,GEN
THA ASM PART: A = 8-98225-156-0, B = 8-98225-157-0 		8-98231-363-0 01 1 -
54 BOLT; RECTIFIER,GEN
THA ASM PART: A = 8-98225-156-0, B = 8-98225-157-0 		8-98231-359-0 03 1 -
