Isuzu WW
▶
SUV
▶
UCR
▶
51488 - UCR/UCS(THAILAND)
▶
0 - Engine, Emission, Engine Electrical
▶
0-61 - BATTERY AND ENGINE ELECTRICAL PARTS
▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS
(#129501) — 16 parça
Tümü
A - 4JK1-TCX ENG
B - 4JJ1-TCX ENG
◀

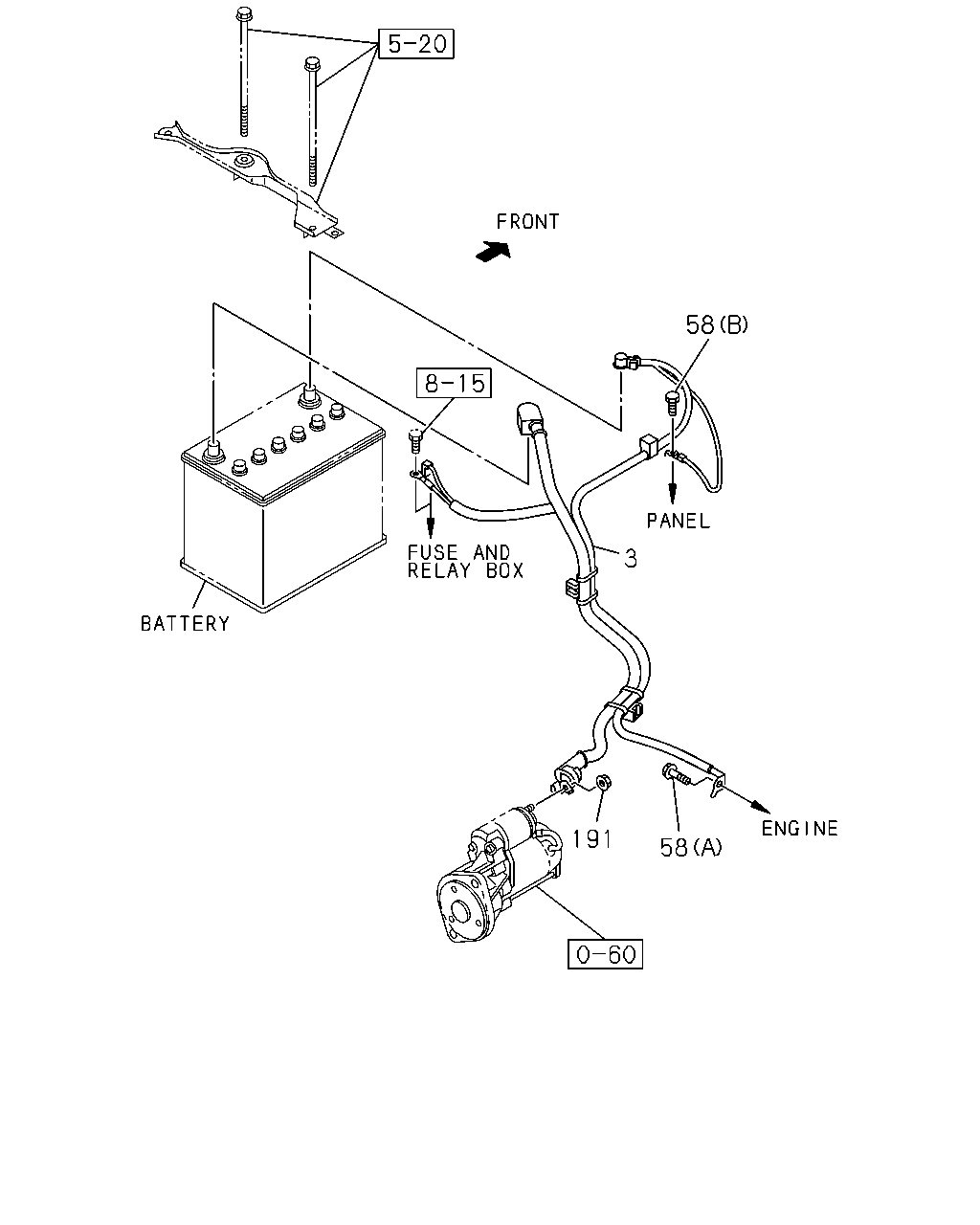

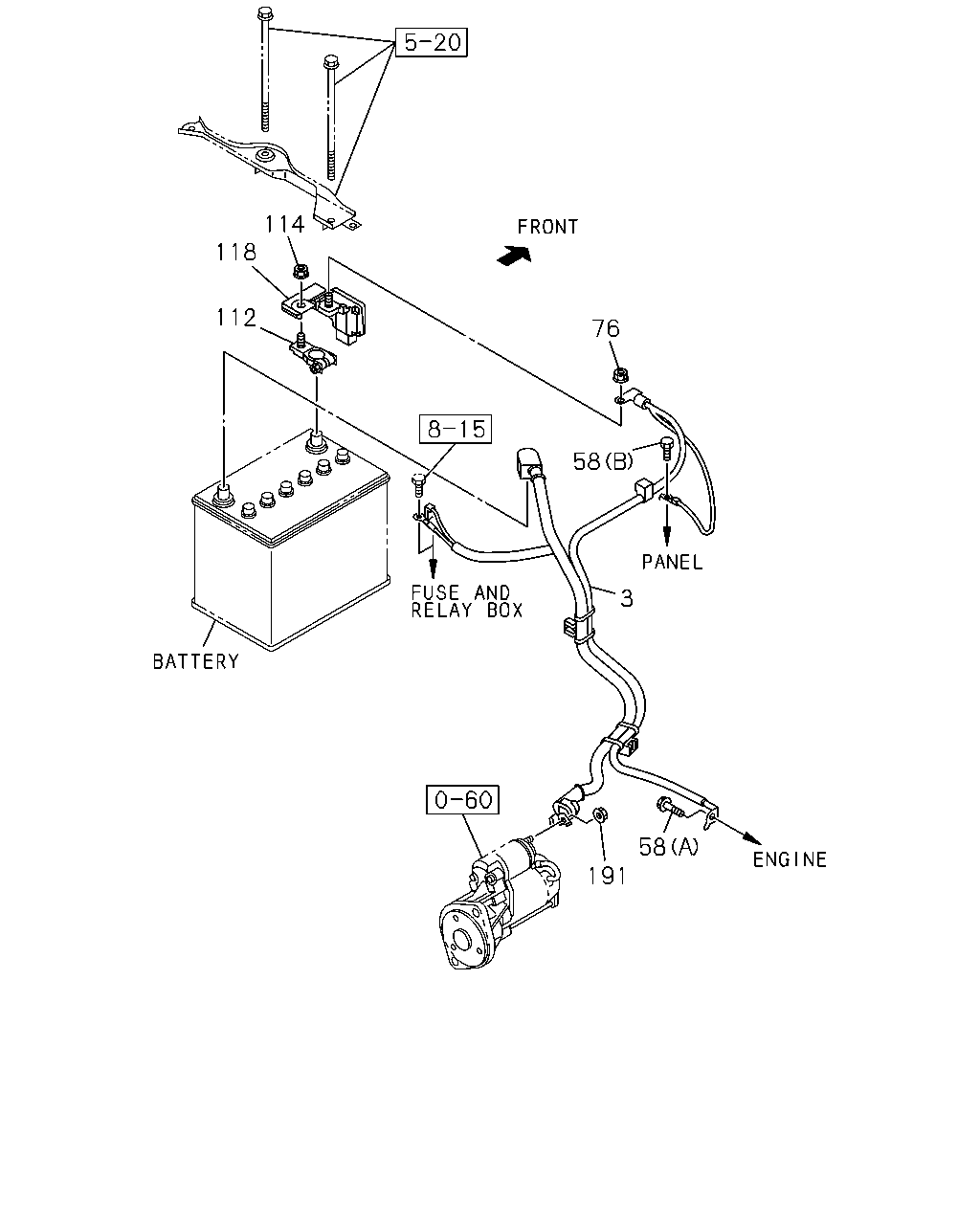

[061A] 4JJ1 (10 parça)
[061A] 4JK1 (6 parça)
▶
3
58
191
58
76
112
118
114
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
3
HARNESS; CABLE,BATTERY TO STARTER
THA
8-98238-380-2
01
1
1310-
●
3
HARNESS; CABLE,BATTERY TO STARTER
THA
8-98222-814-3
01
1
1310-
●
58
BOLT; CABLE,BATTERY
(B) M6X14 W/PL WASHER IMA
8-98164-836-0
01
1
1502-
●
●
58
BOLT; CABLE,BATTERY
(A) M10X20 FLANGE THA
0-28651-020-0
01
1
1310-
●
●
58
BOLT; CABLE,BATTERY
(B) M6X16 W/LK&PL WASHER IMA
8-97086-823-0
01
1
1310-1501
●
●
76
NUT; BATTERY CABLE
M8 FLANGE THA
0-91180-108-0
01
1
1310-
●
112
TERMINAL; BATTERY
<-> THA
8-98228-976-0
01
1
1310-
●
114
NUT; CABLE,BATTERY TERMINAL
M8 FLANGE THA
0-91180-108-0
01
1
1310-
●
118
SENSOR; BATTERY
THA
8-98228-977-0
01
1
1310-
●
191
NUT; STARTER
M8 FLANGE THA
0-91180-108-0
01
1
1310-
●
●
3
191
58
58
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
3
HARNESS; CABLE,BATTERY TO STARTER
THA
8-98238-380-2
01
1
1310-
●
3
HARNESS; CABLE,BATTERY TO STARTER
THA
8-98222-814-3
01
1
1310-
●
58
BOLT; CABLE,BATTERY
(B) M6X14 W/PL WASHER IMA
8-98164-836-0
01
1
1502-
●
●
58
BOLT; CABLE,BATTERY
(A) M10X20 FLANGE THA
0-28651-020-0
01
1
1310-
●
●
58
BOLT; CABLE,BATTERY
(B) M6X16 W/LK&PL WASHER IMA
8-97086-823-0
01
1
1310-1501
●
●
191
NUT; STARTER
M8 FLANGE THA
0-91180-108-0
01
1
1310-
●
●
