◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11129 - FVM(THAI)EURO3 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-30 - FRONT DOOR AND HINGE ▶
6-30 — FRONT DOOR AND HINGE (#12950) — 27 parça

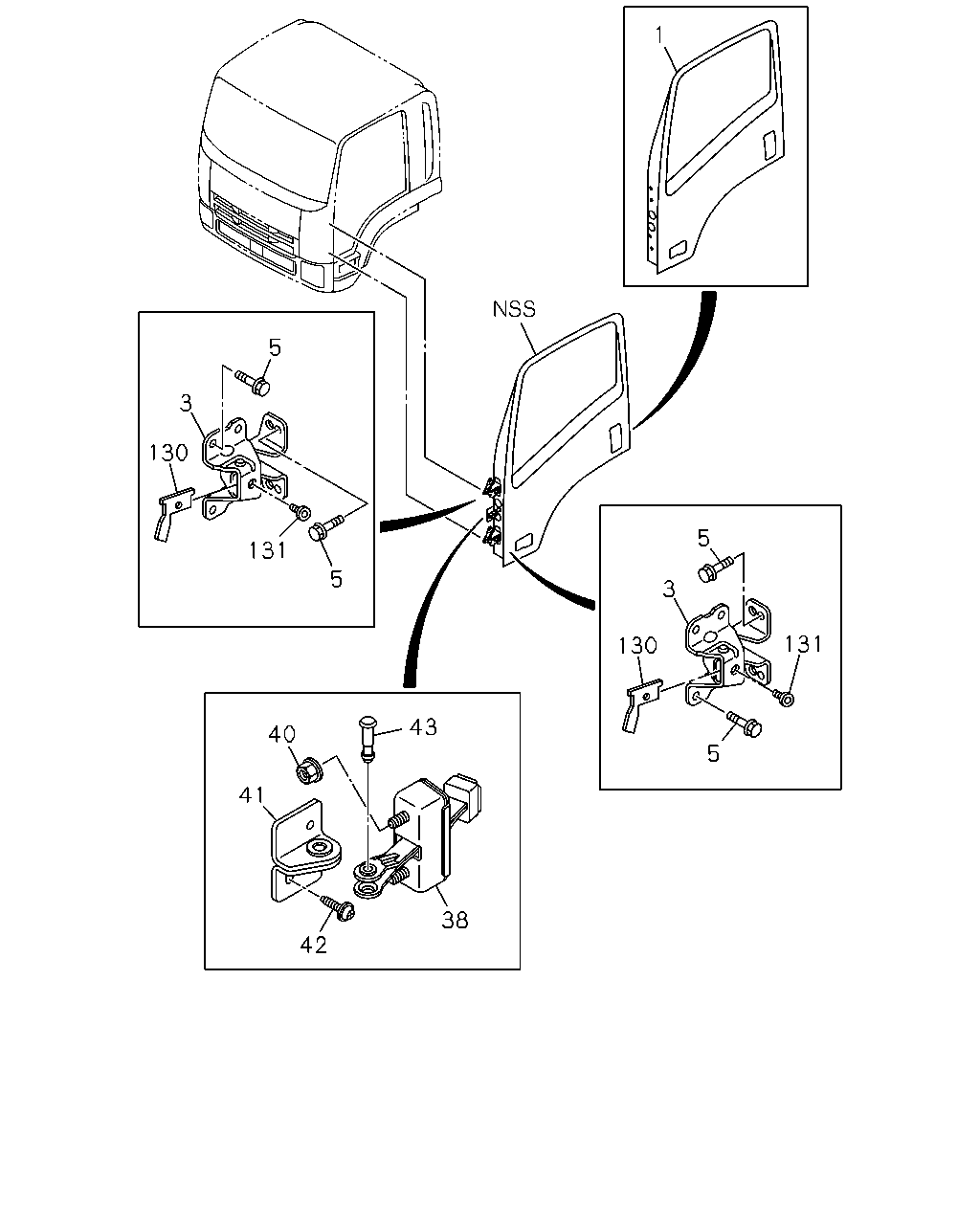

çizim 98175
1 5 3 130 5 131 5 3 131 130 43 40 5 41 38 42
BalonParca AdiParca NoAdetTipApplied Date
1 DOOR ASM; FRT,WO/TRIM
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98064-821-0 01 1 1004-1102
1 DOOR ASM; FRT,WO/TRIM 8-98064-821-0 01 1 1103-
1 DOOR ASM; FRT,WO/TRIM
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98064-822-0 01 1 1004-1102
1 DOOR ASM; FRT,WO/TRIM 8-98064-822-0 01 1 1103-
1 DOOR ASM; FRT,WO/TRIM 8-98060-797-1 01 1 0807-1003
1 DOOR ASM; FRT,WO/TRIM
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98060-797-1 01 1 1004-1102
1 DOOR ASM; FRT,WO/TRIM 8-98060-798-1 01 1 0807-1003
1 DOOR ASM; FRT,WO/TRIM
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98060-798-1 01 1 1004-1102
3 HINGE; DOOR FRT 8-98038-293-0 04 1 0807-1104
3 HINGE; DOOR FRT 8-98191-302-0 04 1 1105-
5 BOLT; HINGE
M8X20 FLANGE 		8-98049-756-0 20 1 0807-
38 CHECKER ASM; DOOR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98029-417-5 02 1 1004-1102
38 CHECKER ASM; DOOR 8-98029-417-5 02 1 1103-1203
38 CHECKER ASM; DOOR 8-98208-189-1 02 1 1204-1508
38 CHECKER ASM; DOOR 8-98296-601-0 02 1 1509-
38 CHECKER ASM; DOOR 8-98031-730-5 02 1 0807-1003
38 CHECKER ASM; DOOR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98031-730-5 02 1 1004-1102
40 NUT; CHECKER
M8 FLANGE 		8-98029-441-0 04 1 0807-1012
40 NUT; CHECKER
M8 W/DISHED WASHER 		8-97329-625-0 04 1 1101-1508
40 NUT; CHECKER
M8 W/DISHED WASHER 		8-98302-918-0 04 1 1509-
41 BRACKET; CHECKER 8-98029-290-3 02 1 0807-
42 BOLT; BRKT
M6X20 W/PL WASHER 		8-98032-159-2 04 1 0807-
43 PIN 8-98037-152-2 02 1 0807-
130 STOPPER; HINGE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98038-299-1 04 1 1004-1102
130 STOPPER; HINGE 8-98038-299-1 04 1 1103-
131 BOLT; DOOR STOPPER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10X11 		8-98039-593-1 04 1 1004-1102
131 BOLT; DOOR STOPPER
M10X11 		8-98039-593-1 04 1 1103-
