0-57 — EMISSION PIPING (#129499) — 27 parça

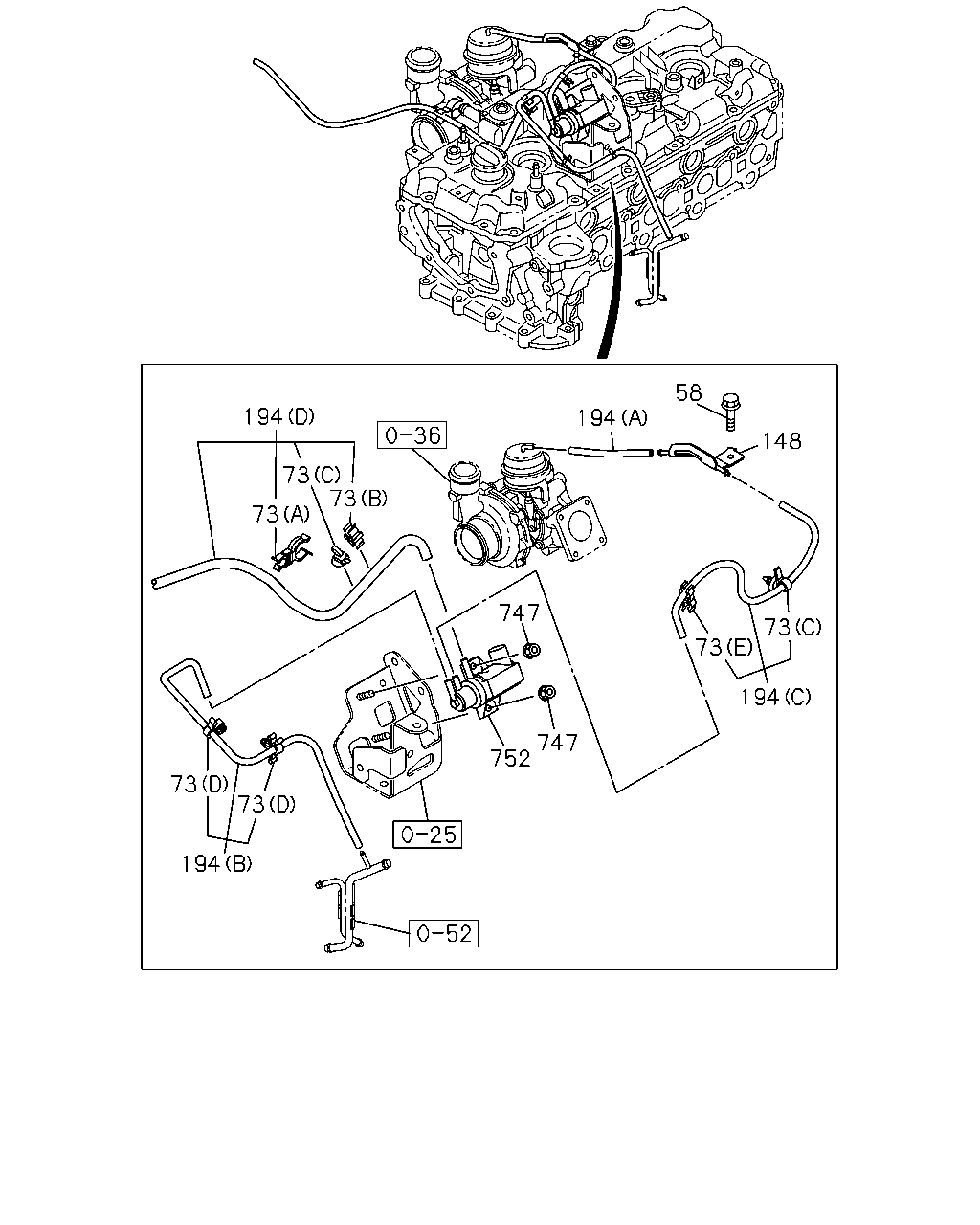

çizim 379270
194 73 73 73 73 194 73 752 747 747 194 58 73 73 194 148
BalonParca AdiParca NoAdetTipApplied Date A B
58 BOLT; PIPE
M8X16 FLANGE THA 		0-28050-816-0 01 1 1310- ● ●
73 CLIP; VAC HOSE
(B) ID=11.8 & 7.5 IMA 		1-09709-182-0 01 1 1506- ● ●
73 CLIP; VAC HOSE
(D) ID=6.5 THA 		8-94257-639-0 02 1 1506- ● ●
73 CLIP; VAC HOSE
(E) ID=7.5 & 7.5 THA 		8-97019-084-0 01 1 1506- ● ●
73 CLIP; VAC HOSE
(A) ID=21 & 9.8 IMA 		8-97309-945-0 01 1 1506- ● ●
73 CLIP; VAC HOSE
(C) THA 		8-98324-179-0 02 1 1506- ● ●
148 PIPE; VAC
THA 		8-98132-082-0 01 1 1310- ● ●
194 HOSE; VAC
(A) THA 		0-14040-110-0 01 1 1310- ● ●
194 HOSE; VAC
(B) THA 		8-98228-439-0 01 1 1310- ● ●
194 HOSE; VAC
(C) THA 		8-98239-037-0 01 1 1310- ● ●
194 HOSE; VAC
(D) THA 		8-98239-038-1 01 1 1310- ● ●
747 NUT; VAC REG VALVE
M6 FLANGE THA 		0-91180-106-0 02 1 1310- ● ●
752 VALVE; EVRV
IMA 		8-98239-935-0 01 1 1310- ● ●

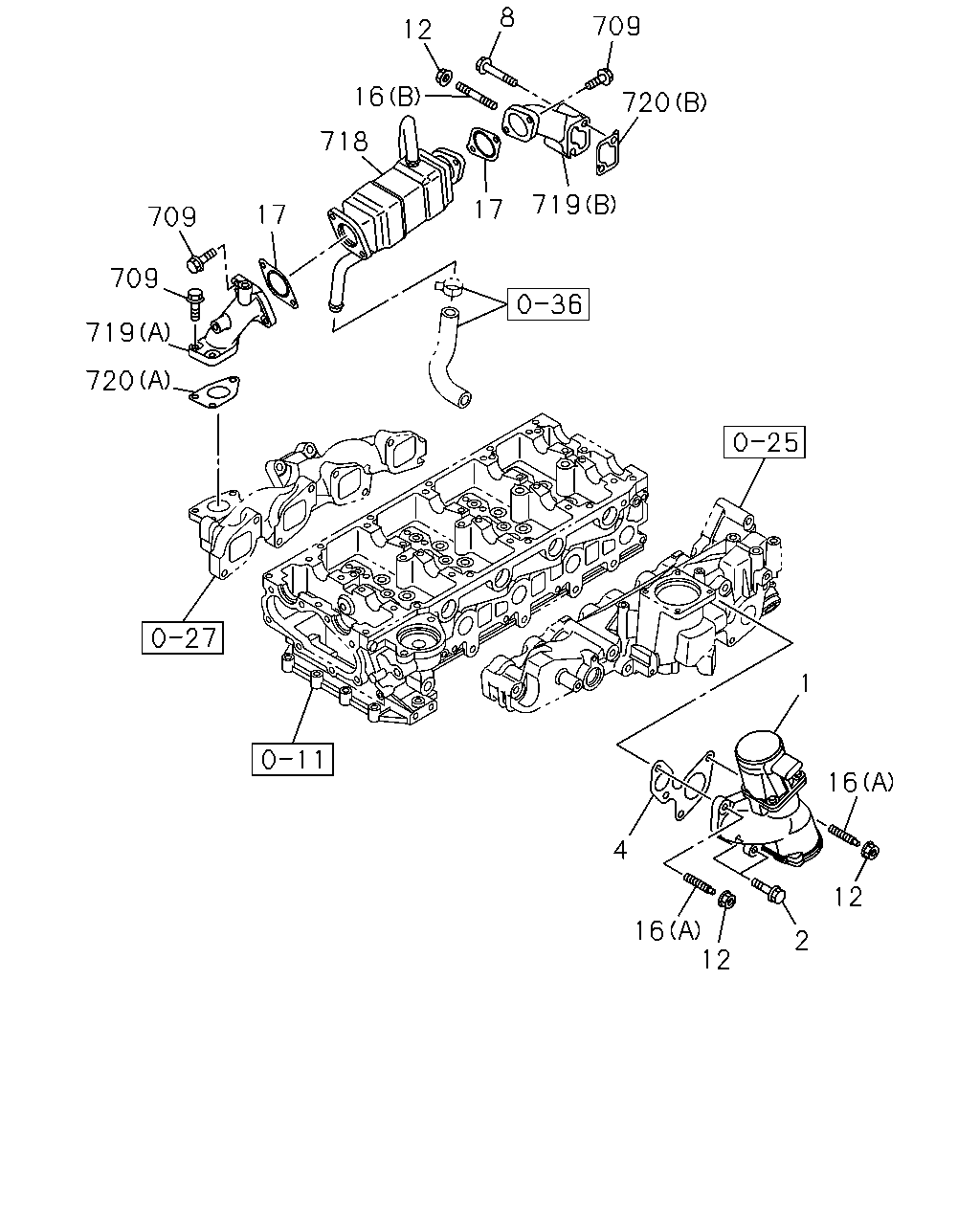

çizim 379313
4 1 16 12 12 16 720 719 709 709 17 17 719 718 16 12 8 709 720 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; EGR
THA 		8-98133-202-3 01 1 1310- ● ●
2 BOLT; EGR VLV
M8X25 FLANGE THA 		0-28650-825-0 02 1 1310- ● ●
4 GASKET; EGR VLV
THA 		8-97356-711-3 01 1 1310- ● ●
8 BOLT; EGR ADAPTER
M8X60 FLANGE THA 		0-28050-860-0 01 1 1310- ● ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 03 1 1310- ● ●
16 STUD; EGR VLV
(B) L=60 THA 		0-40210-860-0 01 1 1310- ● ●
16 STUD; EGR VLV
(A) M8X22 L=40 THA 		0-49140-822-0 02 1 1310- ● ●
17 GASKET; EGR PIPE
THA 		8-97357-684-3 02 1 1310- ● ●
709 BOLT; EGR COOLER
M8X23 FLANGE IMA 		8-97378-077-0 07 1 1310- ● ●
718 COOLER; EGR
THA 		8-98205-852-0 01 1 1310- ● ●
719 PIPE; EGR
(A) THA 		8-98228-255-0 01 1 1310- ● ●
719 PIPE; EGR
(B) THA 		8-98228-257-0 01 1 1310- ● ●
720 GASKET; COOLER
(A) THA 		8-98017-551-0 01 1 1310- ● ●
720 GASKET; COOLER
(B) THA 		8-98228-303-0 01 1 1310- ● ●
