51488 - UCR/UCS(THAILAND)
▶
0 - Engine, Emission, Engine Electrical
▶
0-52 - OIL AND VACUUM PIPING; ENGINE
▶
0-52 — OIL AND VACUUM PIPING; ENGINE
(#129498) — 41 parça
Tümü
A - 4JK1-TCX ENG
B - 4JJ1-TCX ENG
◀

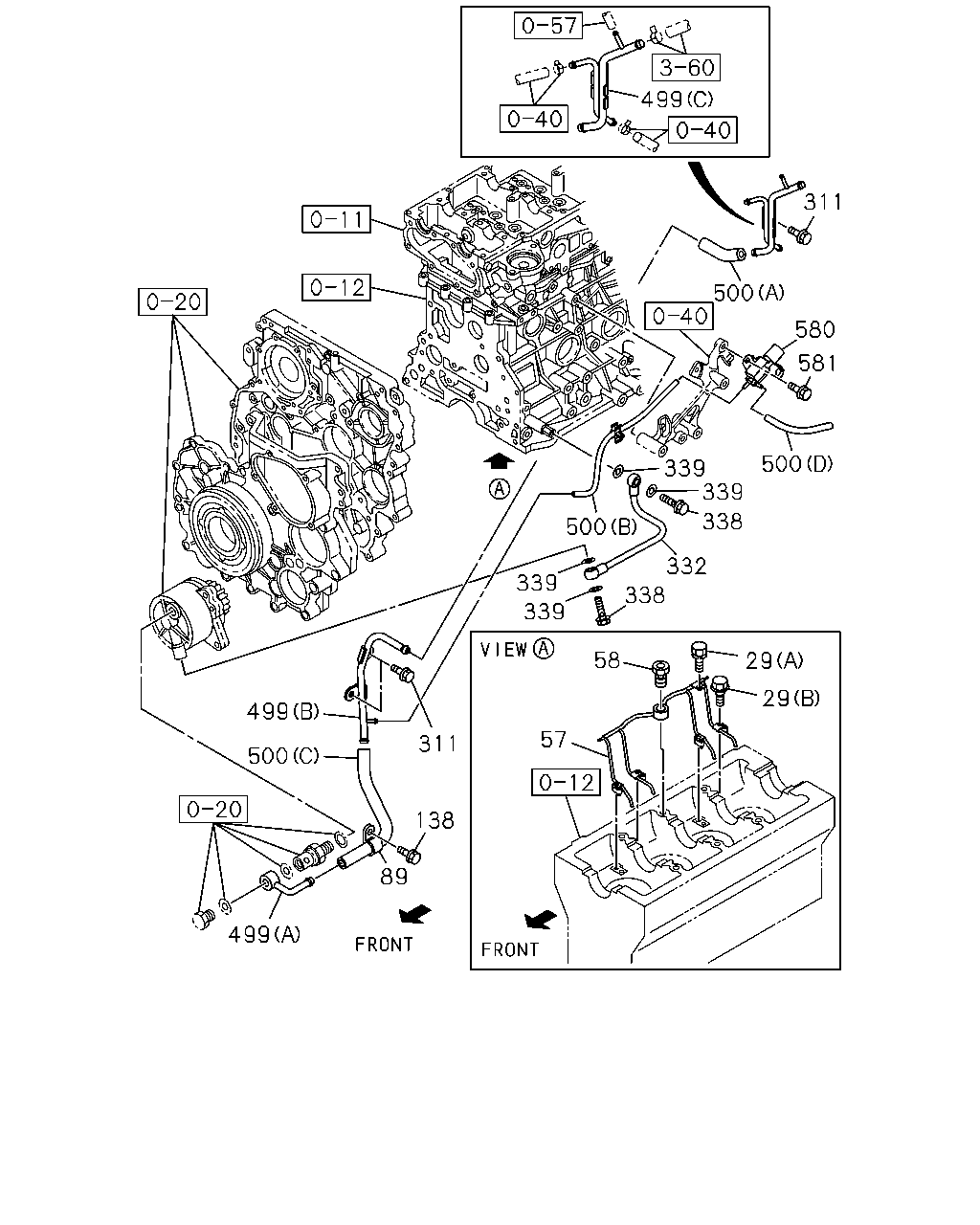

[052A] NO.1 (19 parça)
[052A] NO.2 (22 parça)
▶
499
311
500
580
581
500
339
339
338
500
332
338
339
339
29
29
58
57
311
499
500
138
89
499
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
29
BOLT; OIL PIPE,OIL JET
(A) M8X10 FLANGE THA
0-28050-810-0
01
1
1310-
●
●
29
BOLT; OIL PIPE,OIL JET
(B) M6X20 FLANGE THA
8-97380-673-1
04
1
1310-
●
●
57
PIPE; OIL,OIL JET
THA
8-97312-132-3
01
1
1310-
●
●
58
VALVE; RELIEF,OIL JET,PISTON COOLING
THA
8-97379-464-0
01
1
1310-
●
●
89
CLIP; VAC HOSE
ID=16 L=20 THA
0-95235-536-0
01
1
1310-
●
●
138
BOLT; CLIP FIX
M8X16 FLANGE THA
0-28050-816-0
01
1
1310-
●
●
311
BOLT; PIPE FIX
M8X16 FLANGE THA
0-28050-816-0
03
1
1310-
●
●
332
PIPE; OIL,C/BL TO VAC PUMP
THA
8-98233-768-0
01
1
1310-
●
●
338
BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT THA
8-97910-296-1
02
1
1310-
●
●
339
GASKET; OIL PIPE
ID=8.2 OD=14.0 T=1.0 THA
9-09571-408-0
04
1
1310-
●
●
499
PIPE; VACUUM
(A) THA
8-98011-527-1
01
1
1310-
●
●
499
PIPE; VACUUM
(C) THA
8-98132-058-2
01
1
1310-
●
●
499
PIPE; VACUUM
(B) THA
8-98228-436-0
01
1
1310-
●
●
500
HOSE; VACUUM
(A) THA
0-08508-090-0
01
1
1310-
●
●
500
HOSE; VACUUM
(D) THA
8-98228-430-0
01
1
1310-
●
●
500
HOSE; VACUUM
(C) THA
8-98228-437-0
01
1
1310-
●
●
500
HOSE; VACUUM
(B) THA
8-98228-438-0
01
1
1310-
●
●
580
VALVE; VAC SW
IMA
8-97352-145-0
01
1
1310-
●
●
581
BOLT; VSV
M8X16 FLANGE THA
0-28050-816-0
01
1
1310-
●
●

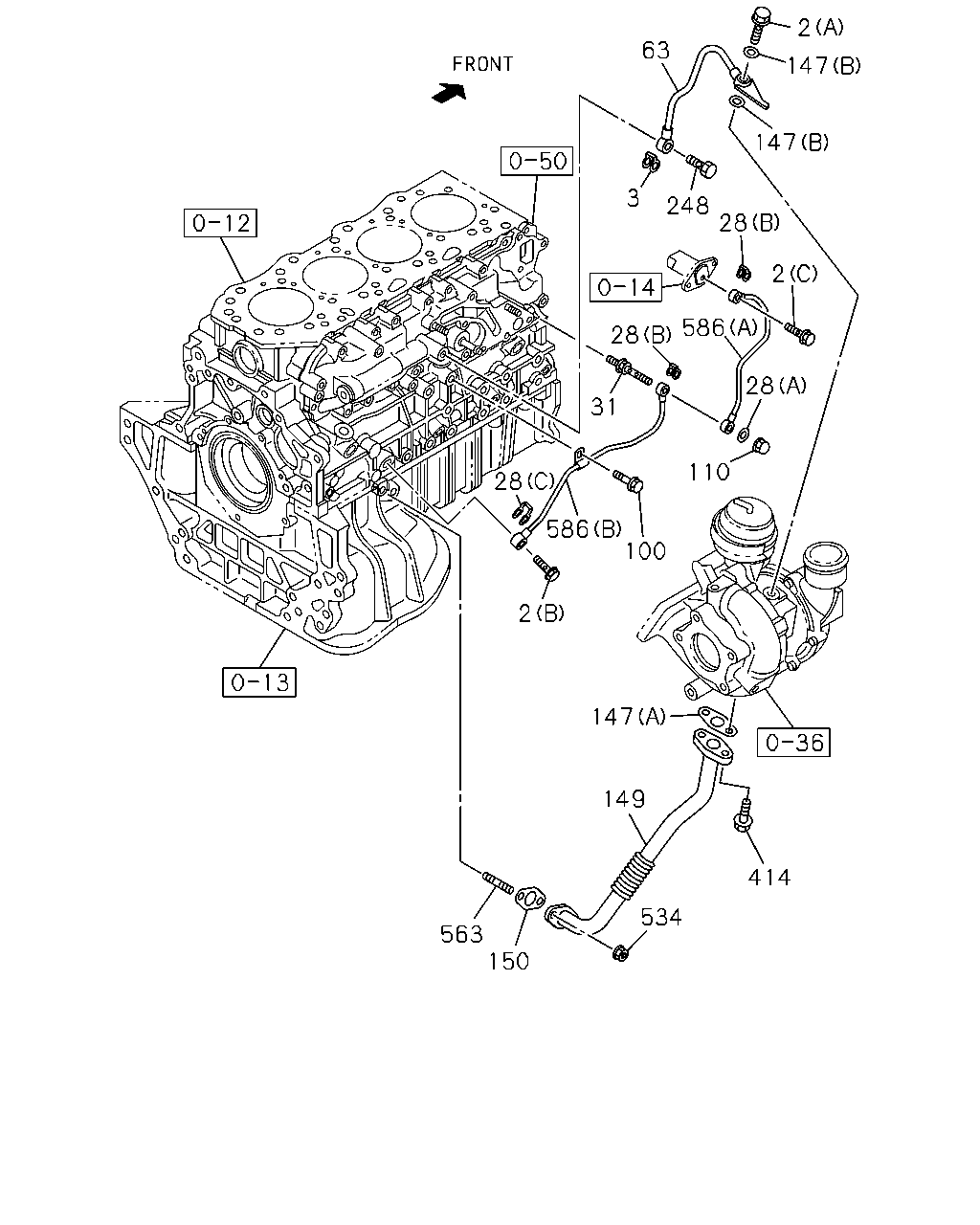

2
63
147
147
248
3
28
2
28
586
28
31
28
586
100
110
2
147
414
149
534
150
563
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
BOLT; EYE,OIL PIPE
(B) M14X27 FLANGE IMA
1-09675-086-0
01
1
1310-
●
●
2
BOLT; EYE,OIL PIPE
(C) M8X23 FLANGE IMA
8-98108-689-0
01
1
1310-
●
●
2
BOLT; EYE,OIL PIPE
(A) M10X25 FLANGE THA
8-98151-063-1
01
1
1310-
●
●
3
GASKET; EYE BOLT,OIL PIPE
ID=10.2 IMA
8-98136-142-0
01
1
1310-
●
●
28
GASKET; OIL PIPE
(B) ID=8.3 OD=15.0 IMA
8-98065-992-0
02
1
1310-
●
●
28
GASKET; OIL PIPE
(A) ID=8.2 OD=14.0 T=1.0 THA
9-09571-408-0
01
1
1310-
●
●
28
GASKET; OIL PIPE
(C) ID=14.2 OD=20.0 IMA
8-98113-762-0
01
1
1310-
●
●
31
NIPPLE; OIL PIPE
THA
8-98186-104-0
01
1
1310-
●
●
63
PIPE; OIL,TURBOCHARGER FEED
THA
8-98132-014-1
01
1
1310-
●
●
100
BOLT; CLIP
M8X12 FLANGE THA
0-28050-812-0
01
1
1310-
●
●
110
NUT; CAP OIL PIPE
M8 CAP NUT FLANGE IMA
8-97372-242-0
01
1
1310-1403
●
●
110
NUT; CAP OIL PIPE
M8 CAP NUT FLANGE IMA
8-98251-964-0
01
1
1404-
●
●
147
GASKET; OIL PIPE TO TURBOCHARGER
(A) THA
8-98132-017-0
01
1
1310-
●
●
147
GASKET; OIL PIPE TO TURBOCHARGER
(B) ID=10.2 OD=16.0 THA
9-09571-410-0
02
1
1310-
●
●
149
PIPE; OIL RETURN,TURBOCHARGER
THA
8-98156-381-0
01
1
1310-
●
●
150
GASKET; OIL PIPE TO C/BL
THA
8-98132-018-1
01
1
1310-
●
●
248
CONNECTOR; TURBOCHARGER OIL FEED PIPE
M10X24 THA
8-97944-505-1
01
1
1310-
●
●
414
BOLT; OIL PIPE
M6X16 FLANGE THA
0-28050-616-0
02
1
1310-
●
●
534
NUT; OIL PIPE
M8 FLANGE THA
0-91180-208-0
02
1
1310-
●
●
563
STUD; OIL PIPE
M8X20 L=32 THA
0-41010-820-0
02
1
1310-
●
●
586
PIPE; OIL,TENSIONER
(A) THA
8-98251-165-0
01
1
1310-
●
●
586
PIPE; OIL,TENSIONER
(B) THA
8-98228-274-0
01
1
1310-
●
●
