0-50 — OIL COOLER AND OIL FILTER (#129496) — 15 parça

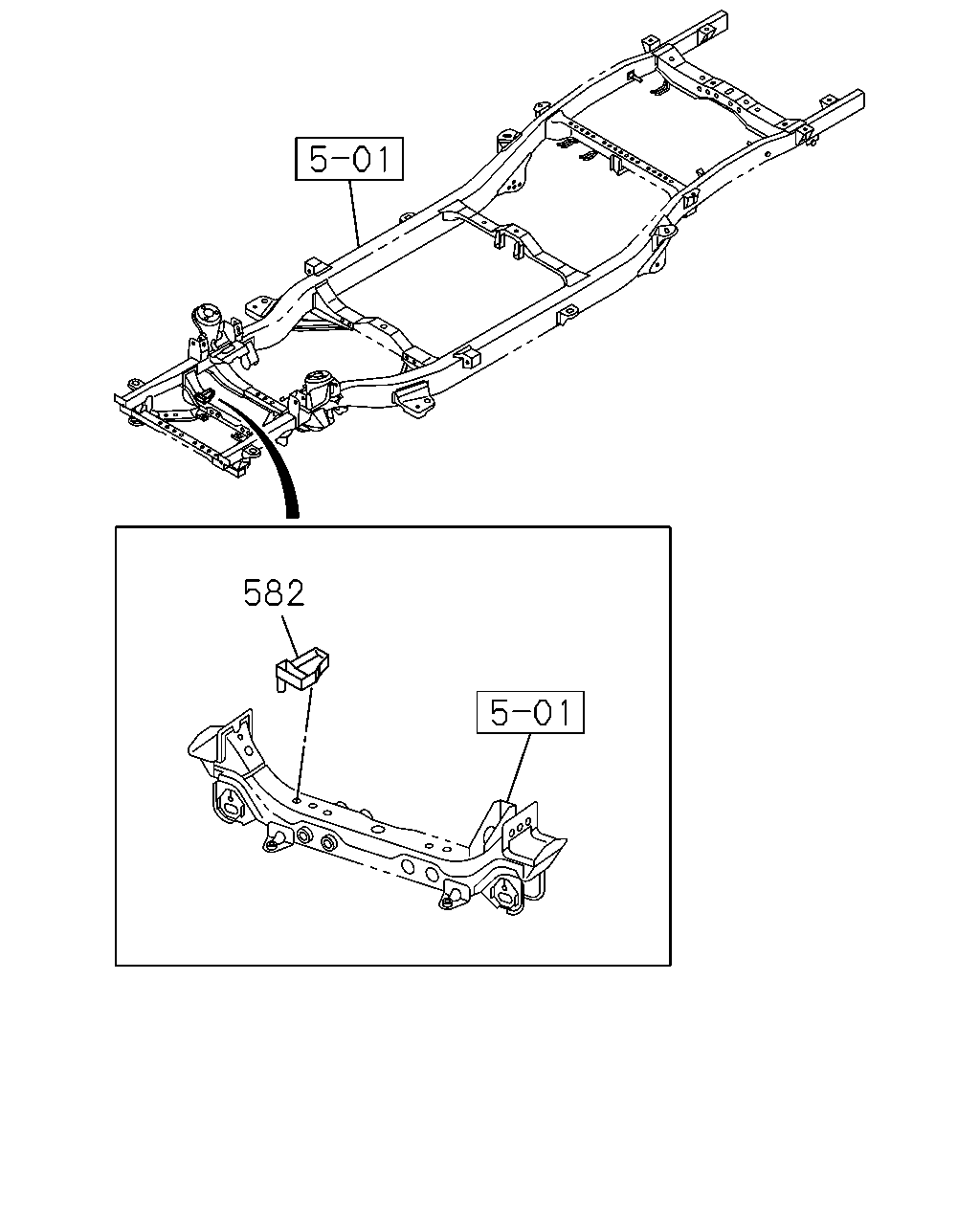

çizim 379265
582
BalonParca AdiParca NoAdetTipApplied Date A B
582 TRAY; OIL
THA 		8-98235-616-3 01 1 1310- ● ●

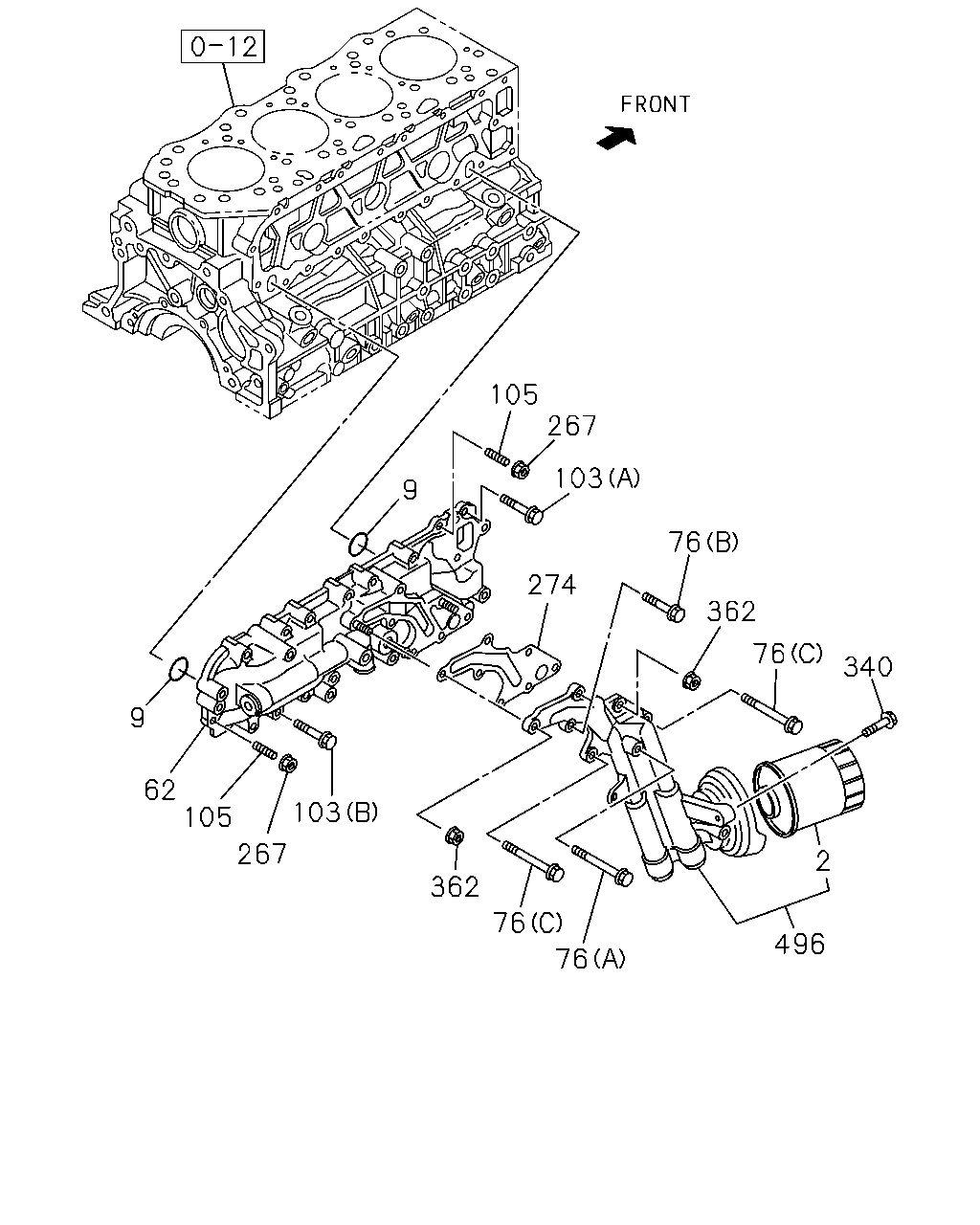

çizim 379275
9 9 62 105 267 103 105 267 103 362 76 76 496 2 340 76 362 76 274
BalonParca AdiParca NoAdetTipApplied Date A B
2 ELEMENT; OIL FILTER
THA 		8-98165-071-0 01 1 1310- ● ●
9 GASKET; CENTER BOLT
ID=26.2 THA 		9-09566-226-0 02 1 1310- ● ●
62 COOLER ASM; OIL
THA 		8-98251-175-0 01 1 1310- ● ●
76 BOLT; OIL FILTER
(A) M8X100 FLANGE THA 		0-28050-800-0 01 1 1310- ● ●
76 BOLT; OIL FILTER
(B) M8X25 FLANGE THA 		0-28050-825-0 02 1 1310- ● ●
76 BOLT; OIL FILTER
(C) M8X80 FLANGE THA 		0-28050-880-0 02 1 1310- ● ●
103 BOLT; OIL COOLER
(A) M8X20 FLANGE THA 		0-28050-820-0 01 1 1310- ● ●
103 BOLT; OIL COOLER
(B) M8X45 FLANGE THA 		0-28050-845-0 13 1 1310- ● ●
105 STUD; OIL COOLER
M8X20 L=32 THA 		0-41010-820-0 02 1 1310- ● ●
267 NUT; OIL COOLER
M8 FLANGE THA 		0-91180-208-0 02 1 1310- ● ●
274 GASKET; OIL FILTER
THA 		8-98226-841-0 01 1 1310- ● ●
340 BOLT; BRKT
M8X40 FLANGE THA 		0-28650-840-0 01 1 1310- ● ●
362 NUT; OIL FILTER
M8 FLANGE THA 		0-91180-208-0 02 1 1310- ● ●
496 FILTER ASM; OIL
THA 		8-98226-423-1 01 1 1310- ● ●
