6-20 — SIDE PANEL AND STEP (#12949) — 150 parça

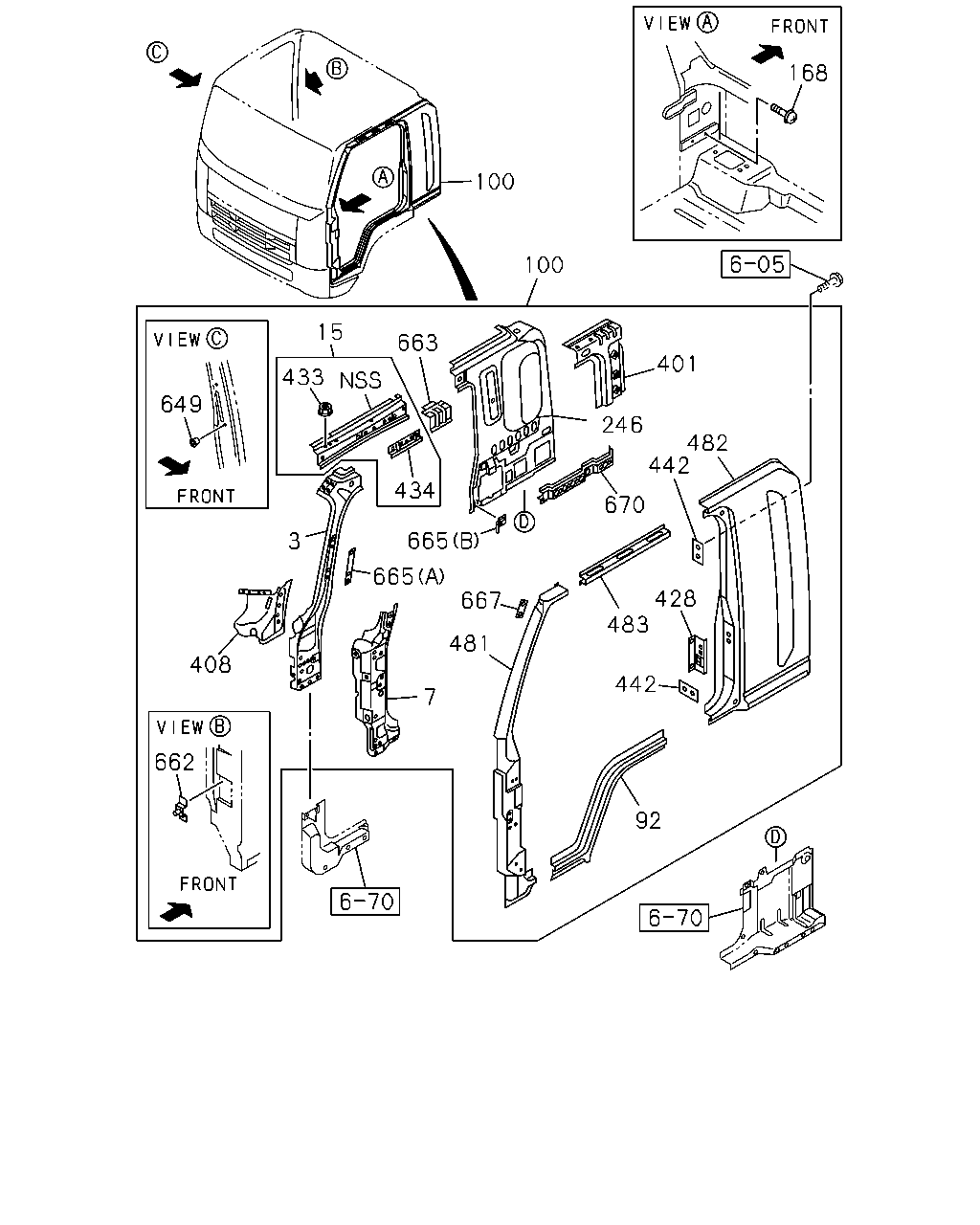

çizim 98174
168 100 100 15 663 401 433 649 246 482 442 434 670 665 3 665 428 483 667 481 408 442 7 662 92
BalonParca AdiParca NoAdetTipApplied Date
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1312-
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1401-
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 0807-1311
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 0807-1312
7 REINFORCEMENT; HINGE
THA 		8-97585-240-3 01 1 0807-1309
7 REINFORCEMENT; HINGE
THA 		8-97927-058-0 01 1 1310-
7 REINFORCEMENT; HINGE
THA 		8-97585-244-4 01 1 0807-1309
7 REINFORCEMENT; HINGE
THA 		8-97927-059-0 01 1 1310-
15 PANEL; CANT RAIL SIDE
THA 		8-97585-292-2 01 1 1312-
15 PANEL; CANT RAIL SIDE
THA 		8-97585-293-2 01 1 1401-
15 PANEL; CANT RAIL SIDE
THA 		8-97585-292-2 01 1 0807-1311
15 PANEL; CANT RAIL SIDE
THA 		8-97585-293-2 01 1 0807-1312
92 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 0807-
92 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 0807-
100 PANEL ASM; BODY SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-98163-856-0 01 1 1004-1102
100 PANEL ASM; BODY SIDE
THA 		8-98163-856-0 01 1 1103-1309
100 PANEL ASM; BODY SIDE
THA 		8-97948-562-2 01 1 1310-
100 PANEL ASM; BODY SIDE
THA 		8-98096-023-2 01 1 0807-1309
100 PANEL ASM; BODY SIDE
THA 		8-97948-576-2 01 1 1310-
100 PANEL ASM; BODY SIDE
THA 		8-98096-024-1 01 1 0807-1003
100 PANEL ASM; BODY SIDE
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-98096-024-1 01 1 1004-1102
168 BOLT; BODY SIDE PANEL
T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 08 1 0807-
246 PANEL; RR PILLAR,INNER
THA 		8-97586-156-5 01 1 0807-
246 PANEL; RR PILLAR,INNER
THA 		8-97586-158-5 01 1 0807-
401 PATCH; CLOSING,FRT PILLAR
THA 		8-98315-132-0 01 1 1509-
401 PATCH; CLOSING,FRT PILLAR
THA 		8-98316-104-0 01 1 1509-
401 PATCH; CLOSING,FRT PILLAR
THA 		8-97586-160-2 01 1 0807-1508
401 PATCH; CLOSING,FRT PILLAR
THA 		8-97586-161-2 01 1 0807-1508
408 GUSSET; PILLAR 8-97586-193-3 01 1 1312-
408 GUSSET; PILLAR 8-97586-194-2 01 1 1401-
408 GUSSET; PILLAR 8-97586-193-3 01 1 0807-1311
408 GUSSET; PILLAR 8-97586-194-2 01 1 0807-1312
428 REINFORCEMENT; DOOR STRIKER 8-97585-260-4 01 1 1312-
428 REINFORCEMENT; DOOR STRIKER 8-97585-261-4 01 1 1401-
428 REINFORCEMENT; DOOR STRIKER 8-97585-260-4 01 1 0807-1311
428 REINFORCEMENT; DOOR STRIKER 8-97585-261-4 01 1 0807-1312
433 NUT; HEADER SHELF
M6 THA 		9-09114-086-0 02 1 1312-1312
433 NUT; HEADER SHELF
M6 THA 		9-09114-086-0 04 1 1401-
433 NUT; HEADER SHELF
M6 THA 		9-09114-086-0 04 1 1107-1312
433 NUT; HEADER SHELF
M6 THA 		9-09114-086-0 04 1 0807-1106
434 PATCH; ASSIST GRIP
THA 		8-98039-019-0 01 1 0807-
434 PATCH; ASSIST GRIP
THA 		8-98039-020-0 01 1 0807-
442 PATCH
THA 		8-98096-158-0 02 1 1312-1312
442 PATCH
THA 		8-98096-158-0 04 1 1401-
442 PATCH
THA 		8-98096-158-0 04 1 0807-1309
481 PANEL; SIDE FRT PILLAR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98055-471-0 01 1 1004-1102
481 PANEL; SIDE FRT PILLAR 8-98055-471-0 01 1 1103-
481 PANEL; SIDE FRT PILLAR 8-98055-453-0 01 1 0807-
481 PANEL; SIDE FRT PILLAR 8-98055-470-0 01 1 0807-1003
481 PANEL; SIDE FRT PILLAR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98055-470-0 01 1 1004-1102
482 PANEL; SIDE RR PILLAR 8-98103-377-0 01 1 0807-
482 PANEL; SIDE RR PILLAR 8-98103-378-0 01 1 0807-
483 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 0807-
483 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 0807-
649 NUT; POP
M5 POP NUT THA 		8-97249-574-0 02 1 1312-
649 NUT; POP
M5 POP NUT THA 		8-97249-574-0 02 1 0807-1309
662 BRACKET; DUCT
THA 		8-97948-248-0 01 1 1312-
662 BRACKET; DUCT 8-97584-611-1 01 1 0807-1309
662 BRACKET; DUCT 8-97584-611-1 01 1 1309-1311
663 BRACKET; AIR
THA 		8-97948-277-0 01 1 1312-
663 BRACKET; AIR
THA 		8-97948-278-0 01 1 1401-
663 BRACKET; AIR 8-97585-208-2 01 1 0807-1312
663 BRACKET; AIR 8-97585-207-2 01 1 0807-1311
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 02 1 1310-
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 02 1 1310-
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 02 1 0807-1309
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 02 1 0807-1309
667 BRACKET; MIRROR 8-98109-948-0 02 1 1312-1312
667 BRACKET; MIRROR 8-98109-948-0 03 1 1401-
667 BRACKET; MIRROR 8-98109-948-0 01 1 0807-1106
667 BRACKET; MIRROR 8-98109-948-0 03 1 1107-1309
667 BRACKET; MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98109-948-0 02 1 1004-1102
667 BRACKET; MIRROR 8-98109-948-0 02 1 1103-1106
670 STIFFENER; PANEL,SIDE
THA 		8-98015-044-1 01 1 1312-1312
670 STIFFENER; PANEL,SIDE
THA 		8-98015-044-1 02 1 1401-
670 STIFFENER; PANEL,SIDE
THA 		8-98015-044-1 02 1 0807-1312

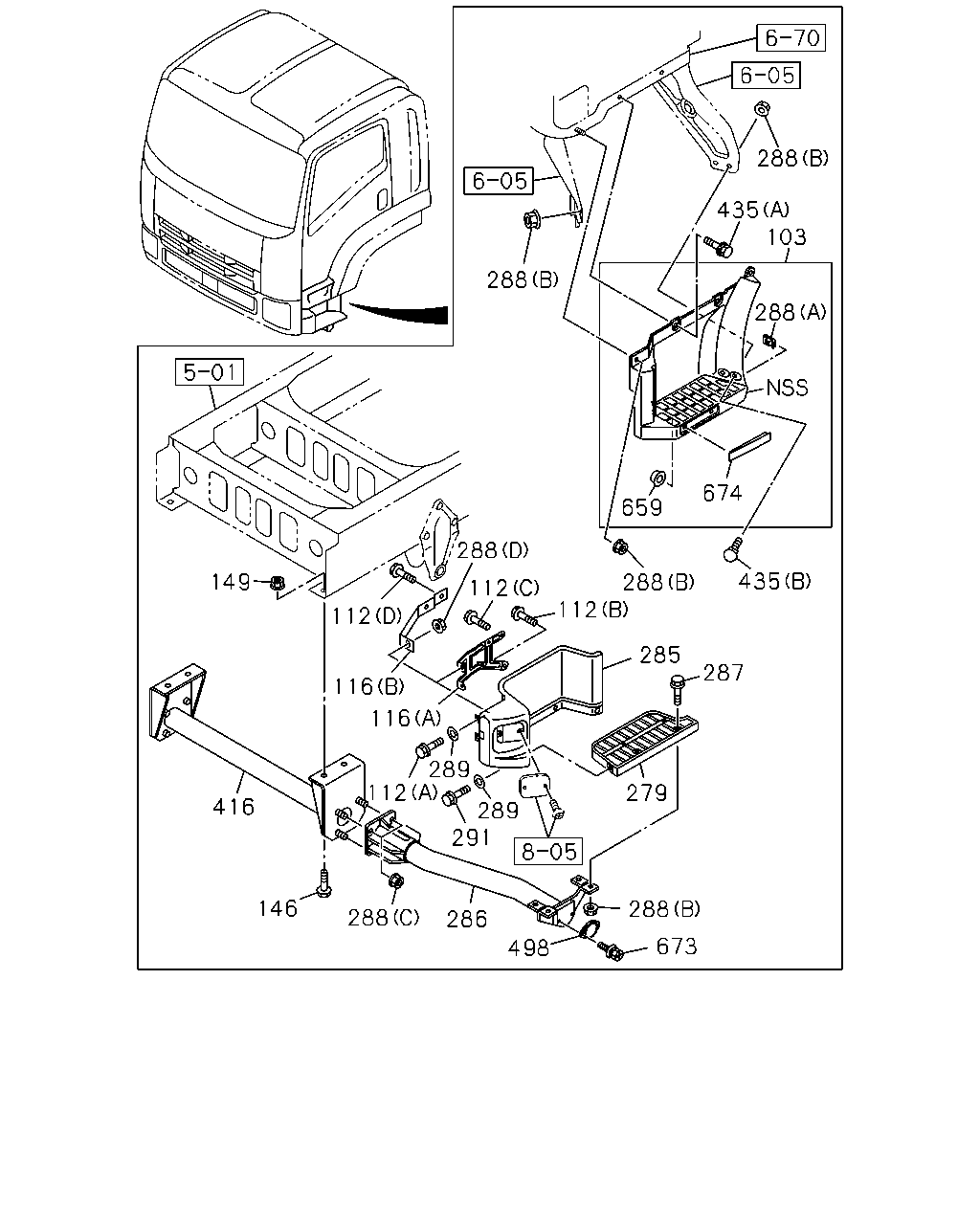

çizim 98401
288 435 103 288 288 674 659 288 435 149 288 112 112 112 285 287 116 116 289 112 279 416 289 291 146 288 288 286 673 498
BalonParca AdiParca NoAdetTipApplied Date
103 PLATE; STEP 8-98069-976-2 01 1 0807-
103 PLATE; STEP 8-98069-977-2 01 1 0807-
112 BOLT; 1ST STEP
(A) M6X16 FLANGE THA 		0-28050-616-0 04 1 0807-1108
112 BOLT; 1ST STEP
(A) M6X16 FLANGE THA 		0-28050-616-0 02 1 1109-
112 BOLT; 1ST STEP
(B) M6X25 FLANGE THA 		0-28050-625-0 02 1 0807-1108
112 BOLT; 1ST STEP
(D) M8X12 FLANGE THA 		0-28050-812-0 04 1 1109-
112 BOLT; 1ST STEP
(C) M8X16 FLANGE THA 		0-28050-816-0 04 1 0807-1108
112 BOLT; 1ST STEP
(B) M6X20 FLANGE THA 		0-28050-620-0 02 1 1109-
116 STAY; 1ST STEP,FRT
(A) 		8-98062-133-1 01 1 0807-1108
116 STAY; 1ST STEP,FRT
(B) THA 		8-98196-756-0 02 1 1109-
116 STAY; 1ST STEP,FRT
(A) 		8-98062-134-1 01 1 0807-1108
146 BOLT; STEP BRKT
M14X45 FLANGE THA 		0-28851-445-0 04 1 0807-
149 NUT; STEP BRKT
M14 FLANGE THA 		0-91180-214-0 04 1 0807-
279 BOARD; STEP 1ST
THA 		8-97924-109-0 01 1 0807-
279 BOARD; STEP 1ST
THA 		8-97924-110-0 01 1 0807-
285 PLATE; STEP,1ST STEP
THA 		8-97924-703-1 01 1 0807-
285 PLATE; STEP,1ST STEP
THA 		8-97924-704-1 01 1 0807-
286 STEP ASM; 1ST
THA 		8-98082-430-1 01 1 0807-1102
286 STEP ASM; 1ST
THA 		8-98082-431-1 01 1 0807-1102
287 BOLT; BOARD STEP
M8X40 FLANGE THA 		0-28650-840-0 08 1 0807-1102
287 BOLT; BOARD STEP
M8X35 FLANGE THA 		0-28650-835-0 08 1 1103-
288 NUT; STEP
(D) M6 FLANGE THA 		0-91180-106-0 02 1 1109-
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 0807-
288 NUT; STEP
(B) M8 FLANGE THA 		0-91180-108-0 08 1 0807-
288 NUT; STEP
(B) M8 FLANGE THA 		0-91180-108-0 10 1 0807-
288 NUT; STEP
(C) M12 FLANGE THA 		0-91180-212-0 06 1 0807-1102
289 WASHER; PL,STEP
ID=6.4 OD=18 THA 		0-91610-706-0 10 1 0807-
291 BOLT; STEP PLATE
M6X12 FLANGE THA 		0-28050-612-0 06 1 0807-
416 BRACKET; ASSIST STEP 8-98053-542-2 01 1 0807-1102
416 BRACKET; ASSIST STEP
THA 		8-98167-277-2 01 1 1103-
435 BOLT; RR STEP
(B) M8X16 		8-98049-538-1 08 1 0807-0907
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 0908-
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0807-
498 REFLECTOR 1-82290-011-1 02 1 0807-
659 CLIP; SPRING NUT 8-97811-510-0 04 1 0807-
673 BOLT; REFLECTOR
M5X16 W/LK&PL WASHER 		8-94198-538-0 04 1 0807-1102
674 COVER; REFLECTOR 8-98092-733-0 01 1 0807-
674 COVER; REFLECTOR 8-98092-734-0 01 1 0807-

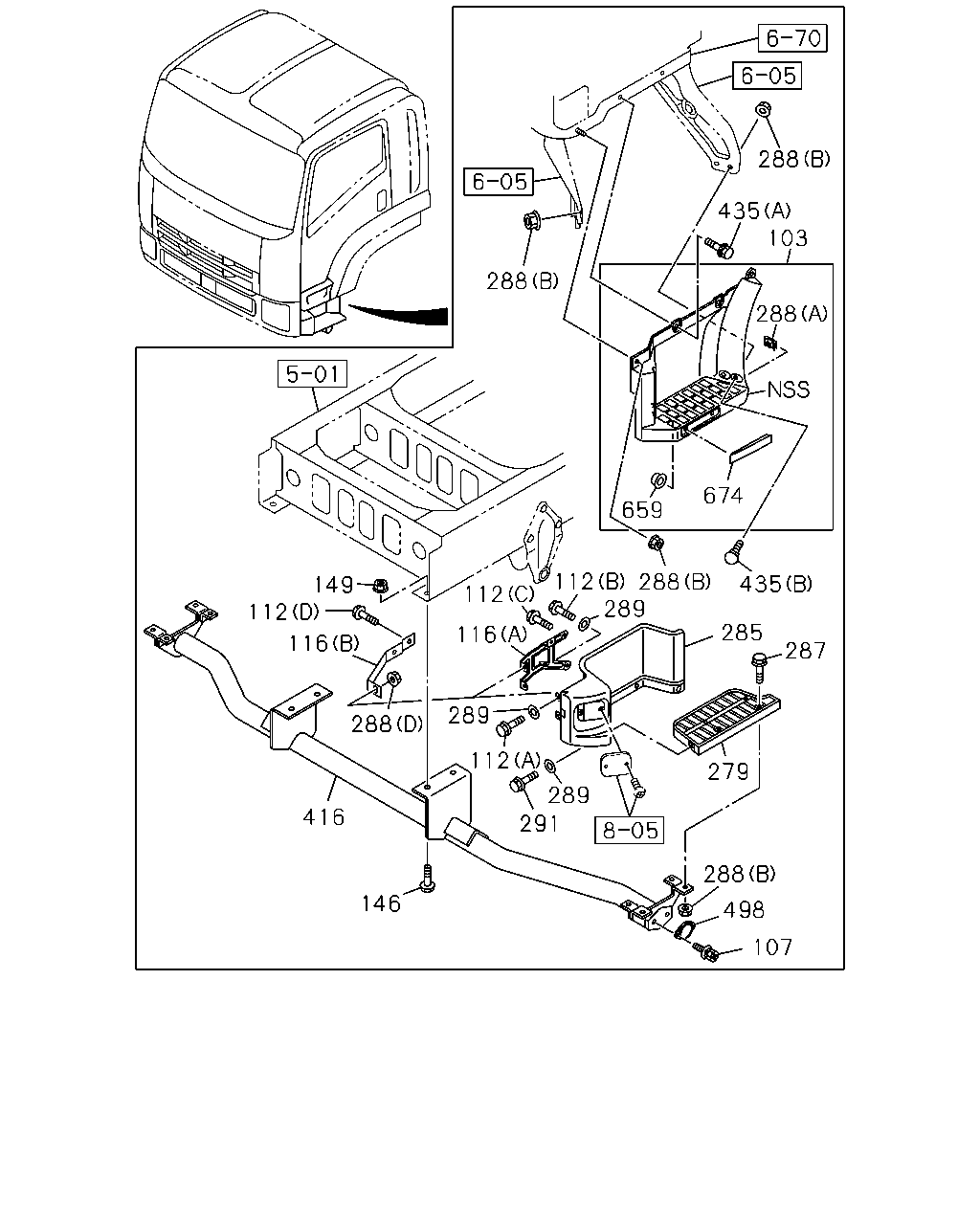

çizim 98480
288 435 103 288 288 674 659 112 289 435 149 112 285 116 116 287 289 288 112 279 289 416 291 288 146 498 107 112 288
BalonParca AdiParca NoAdetTipApplied Date
103 PLATE; STEP 8-98069-976-2 01 1 0807-
103 PLATE; STEP 8-98069-977-2 01 1 0807-
107 BOLT; SIDE STEP
M5X16 W/LK&PL WASHER 		8-94198-538-0 04 1 1103-
112 BOLT; 1ST STEP
(A) M6X16 FLANGE THA 		0-28050-616-0 04 1 0807-1108
112 BOLT; 1ST STEP
(A) M6X16 FLANGE THA 		0-28050-616-0 02 1 1109-
112 BOLT; 1ST STEP
(B) M6X25 FLANGE THA 		0-28050-625-0 02 1 0807-1108
112 BOLT; 1ST STEP
(D) M8X12 FLANGE THA 		0-28050-812-0 04 1 1109-
112 BOLT; 1ST STEP
(C) M8X16 FLANGE THA 		0-28050-816-0 04 1 0807-1108
112 BOLT; 1ST STEP
(B) M6X20 FLANGE THA 		0-28050-620-0 02 1 1109-
116 STAY; 1ST STEP,FRT
(A) 		8-98062-133-1 01 1 0807-1108
116 STAY; 1ST STEP,FRT
(B) THA 		8-98196-756-0 02 1 1109-
116 STAY; 1ST STEP,FRT
(A) 		8-98062-134-1 01 1 0807-1108
146 BOLT; STEP BRKT
M14X45 FLANGE THA 		0-28851-445-0 04 1 0807-
149 NUT; STEP BRKT
M14 FLANGE THA 		0-91180-214-0 04 1 0807-
279 BOARD; STEP 1ST
THA 		8-97924-109-0 01 1 0807-
279 BOARD; STEP 1ST
THA 		8-97924-110-0 01 1 0807-
285 PLATE; STEP,1ST STEP
THA 		8-97924-703-1 01 1 0807-
285 PLATE; STEP,1ST STEP
THA 		8-97924-704-1 01 1 0807-
287 BOLT; BOARD STEP
M8X40 FLANGE THA 		0-28650-840-0 08 1 0807-1102
287 BOLT; BOARD STEP
M8X35 FLANGE THA 		0-28650-835-0 08 1 1103-
288 NUT; STEP
(D) M6 FLANGE THA 		0-91180-106-0 02 1 1109-
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 0807-
288 NUT; STEP
(B) M8 FLANGE THA 		0-91180-108-0 08 1 0807-
288 NUT; STEP
(B) M8 FLANGE THA 		0-91180-108-0 10 1 0807-
288 NUT; STEP
(C) M12 FLANGE THA 		0-91180-212-0 06 1 0807-1102
289 WASHER; PL,STEP
ID=6.4 OD=18 THA 		0-91610-706-0 10 1 0807-
291 BOLT; STEP PLATE
M6X12 FLANGE THA 		0-28050-612-0 06 1 0807-
416 BRACKET; ASSIST STEP 8-98053-542-2 01 1 0807-1102
416 BRACKET; ASSIST STEP
THA 		8-98167-277-2 01 1 1103-
435 BOLT; RR STEP
(B) M8X16 		8-98049-538-1 08 1 0807-0907
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 0908-
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0807-
498 REFLECTOR 1-82290-011-1 02 1 0807-
659 CLIP; SPRING NUT 8-97811-510-0 04 1 0807-
674 COVER; REFLECTOR 8-98092-733-0 01 1 0807-
674 COVER; REFLECTOR 8-98092-734-0 01 1 0807-
