0-25 — INLET MANIFOLD (#129487) — 23 parça

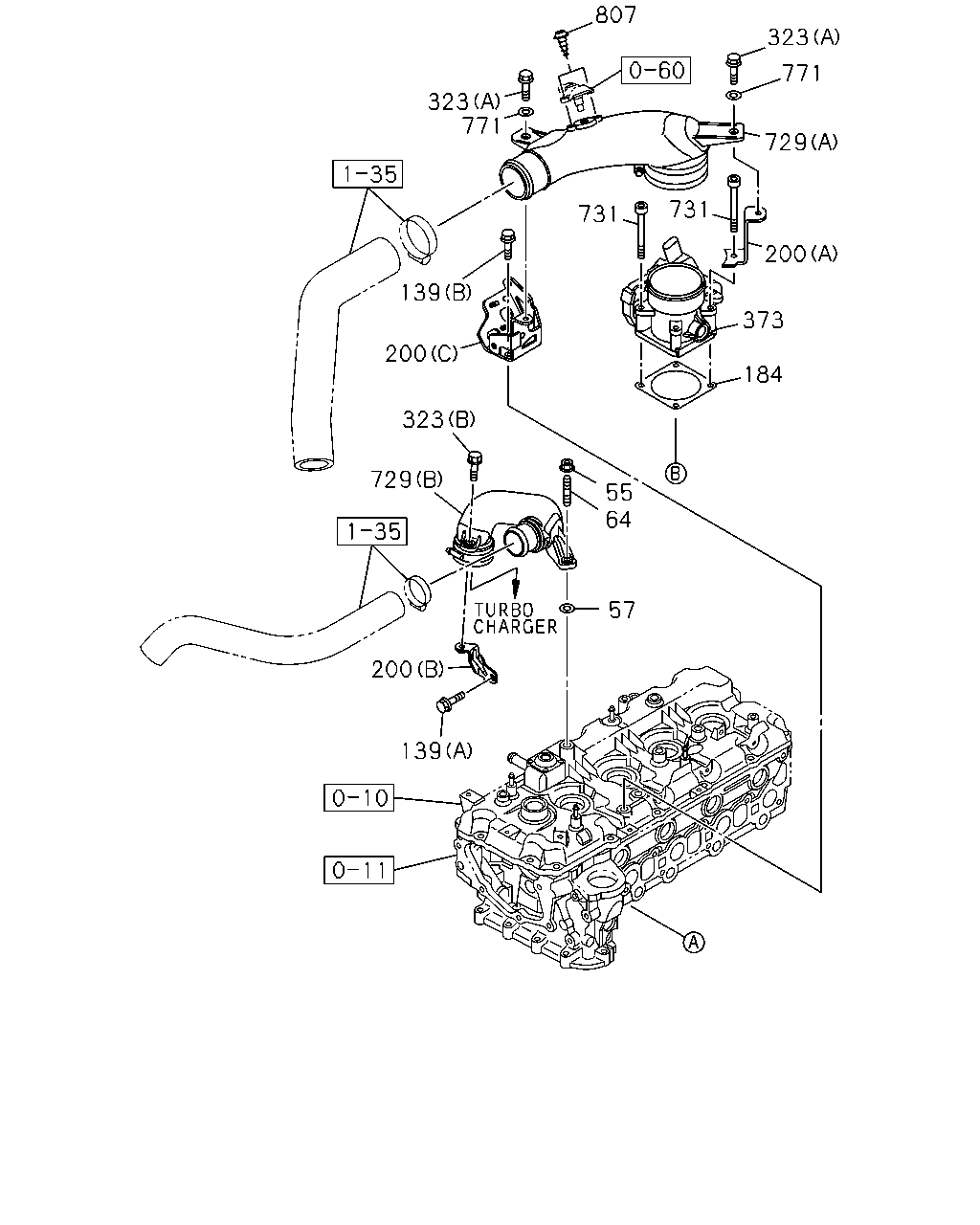

807 323 323 729 771 200 373 184 55 64 57 139 200 729 323 200 139 771 731 731

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
55	NUT; INL PIPE M8 FLANGE THA	0-91180-208-0	01	1	1310-	●	●
57	WASHER; PL ID=8.4 OD=22 THA	0-91614-708-0	01	1	1310-	●	●
64	STUD; INL PIPE M8X30 L=41 IMA	0-41010-830-0	01	1	1310-	●	●
139	BOLT; BRKT FIX (B) M8X20 FLANGE THA	0-28650-820-0	03	1	1310-	●	●
139	BOLT; BRKT FIX (A) M8X16 FLANGE THA	0-28050-816-0	01	1	1310-	●	●
184	GASKET; T/V THA	8-98096-968-0	01	1	1310-	●	●
200	BRACKET; AIR DUCT (A) THA	8-98154-158-2	01	1	1310-	●	●
200	BRACKET; AIR DUCT (B) THA	8-98228-262-0	01	1	1310-	●	●
200	BRACKET; AIR DUCT (C) THA	8-98228-445-2	01	1	1310-	●	●
323	BOLT; DUCT (A) M6X16 FLANGE THA	0-28050-616-0	02	1	1310-	●	●
323	BOLT; DUCT (B) M8X25 FLANGE THA	0-28050-825-0	01	1	1310-	●	●
373	THROTTLE ASM; INT THA	8-98131-738-3	01	1	1310-	●	●
729	DUCT; INLET (A) THA	8-98117-651-1	01	1	1310-	●	●
729	DUCT; INLET (B) THA	8-98228-260-1	01	1	1310-	●	●
731	BOLT; THROTTLE ASM M6X50 HEX SOCKET THA	0-58330-650-0	04	1	1310-	●	●
771	WASHER; DUCT ID=6.4 OD=18 IMA	0-91610-706-0	02	1	1310-	●	●
807	SCREW; SENSOR M4X12 W/LK&PL WASHER THA	0-36230-412-0	02	1	1310-	●	●

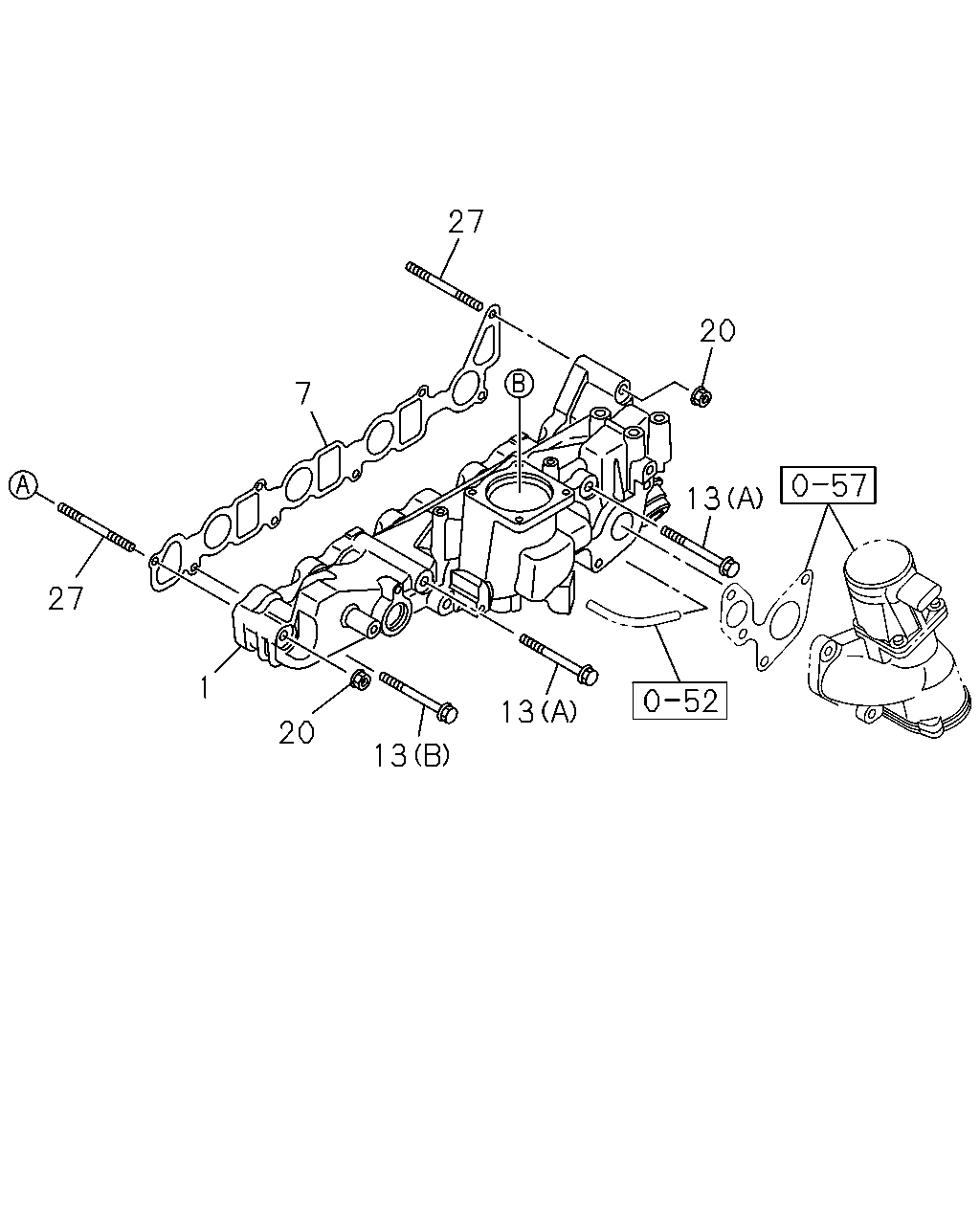

13 20 1 27 13 13 20 27 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	MANIFOLD; INL THA	8-98228-251-0	01	1	1310-	●	●
7	GASKET; INL MANIF TO HD IMA	8-98212-999-0	01	1	1310-	●	●
13	BOLT; INL MANIF (A) M8X110 FLANGE THA	0-28055-811-0	02	1	1310-	●	●
13	BOLT; INL MANIF (B) M8X70 12-POINT HEAD THA	8-97101-065-0	04	1	1310-	●	●
20	NUT; INL MANIF M8 FLANGE THA	0-91180-208-0	02	1	1310-	●	●
27	STUD; INL MANIF M8X71 L=83 THA	8-97367-083-0	02	1	1310-	●	●
