◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51488 - UCR/UCS(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-15 - CRANKSHAFT,PISTON AND FLYWHEEL ▶
0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#129484) — 58 parça

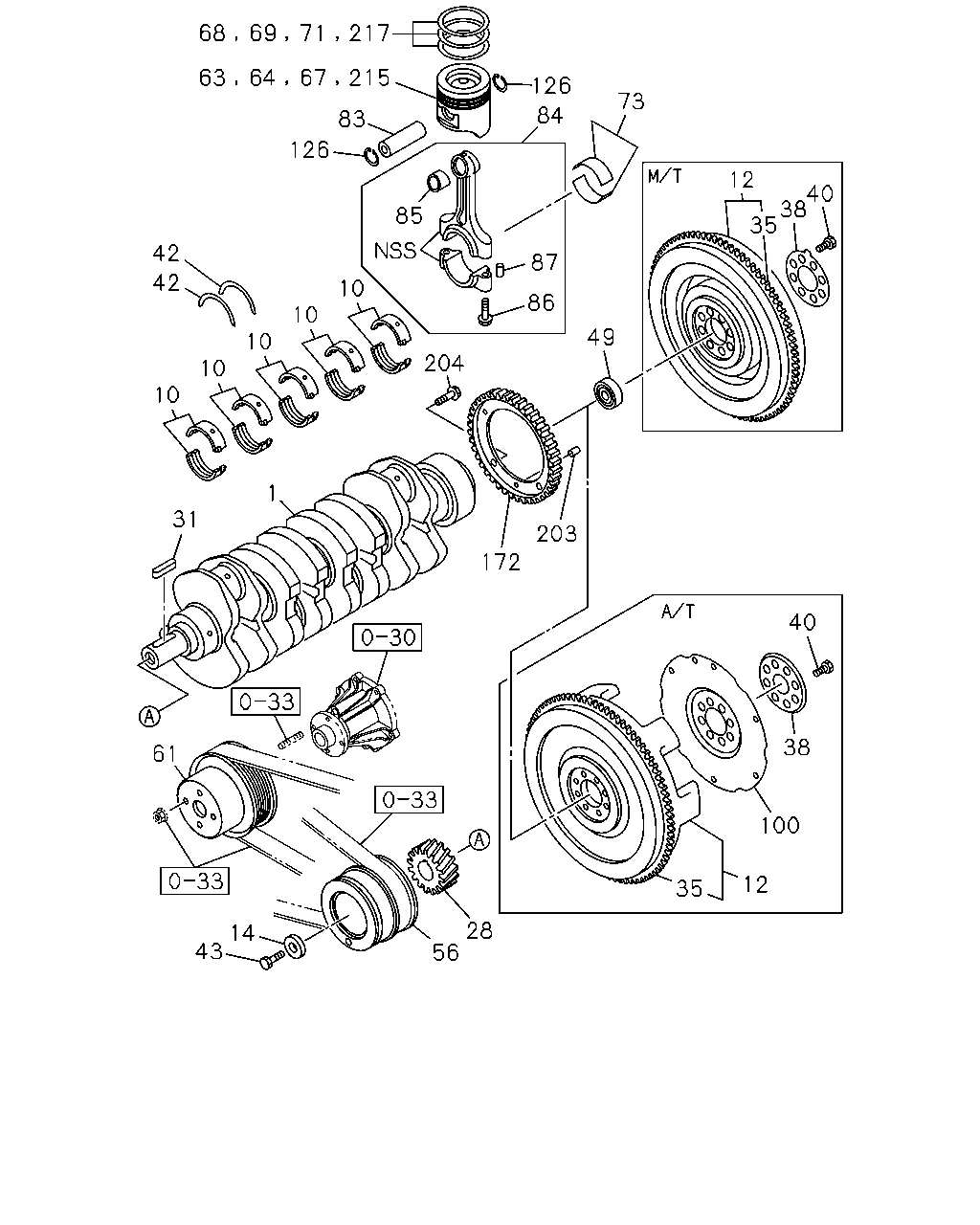

çizim 381276
43 14 56 61 28 35 100 12 38 40 172 31 1 10 203 49 204 12 35 38 40 73 84 126 42 42 10 10 10 10 68 63 69 64 85 86 87 83 67 71 217 215 126
BalonParca AdiParca NoAdetTipApplied Date A B
1 CRANKSHAFT
THA 		8-98131-999-1 01 1 1310- ●
1 CRANKSHAFT
THA 		8-97311-632-1 01 1 1310- ●
10 METAL SET; CRANKSHAFT,STANDARD
GREEN THA 		8-97388-502-0 05 1 1310- ● ●
10 METAL SET; CRANKSHAFT,STANDARD
BLACK THA 		8-97388-503-0 05 1 1310- ● ●
10 METAL SET; CRANKSHAFT,STANDARD
BLUE THA 		8-97388-504-0 05 1 1310- ● ●
10 METAL SET; CRANKSHAFT,STANDARD
YELLOW THA 		8-97388-505-0 05 1 1310- ● ●
10 METAL SET; CRANKSHAFT,STANDARD
RED THA 		8-97388-506-0 05 1 1310- ● ●
12 FLYWHEEL
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98077-180-0 01 1 1310- ●
12 FLYWHEEL
A/T 5 SPEED-AISIN<MA1> THA 		8-98132-505-0 01 1 1310- ● ●
12 FLYWHEEL
M/T MUX 5 SPEED 5S<MZJ> THA 		8-98186-653-1 01 1 1310-1409 ●
12 FLYWHEEL
M/T MUX 5 SPEED 5S<MZJ> THA 		8-98283-475-0 01 1 1410- ●
14 WASHER; PULLEY DAMPER
ID=16.5 OD=45 T=12 IMA 		5-09503-127-1 01 1 1310- ● ●
28 GEAR; CR/SHF
Z=44 THA 		8-97312-199-1 01 1 1310- ● ●
31 KEY; FEATHER,CR/SHF
IMA 		9-08030-743-0 01 1 1310- ● ●
35 GEAR; RING
M/T MUA 5 SPEED 5H<MWQ> Z=108 THA 		8-97912-516-1 01 1 1310- ●
35 GEAR; RING
A/T 5 SPEED-AISIN<MA1>,M/T MUX 5 SPEED 5S<MZJ> Z=122 IMA 		8-94364-395-1 01 1 1310- ● ●
35 GEAR; RING
M/T MUX 5 SPEED 5S<MZJ> Z=122 IMA 		8-94364-395-1 01 1 1310- ●
38 WASHER; FLYWHEEL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-94133-970-1 01 1 1310- ● ●
38 WASHER; FLYWHEEL
A/T 5 SPEED-AISIN<MA1> IMA 		8-98195-090-0 01 1 1310- ● ●
40 BOLT; FLYWHEEL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> M13X36 THA 		8-97941-069-0 08 1 1310- ● ●
40 BOLT; FLYWHEEL
A/T 5 SPEED-AISIN<MA1> M13X78 IMA 		8-97080-561-1 08 1 1310- ● ●
42 WASHER; THRUST,CR/SHF
THA 		8-97354-055-1 02 1 1310- ● ●
43 BOLT; CR/SHF PULLEY
M16X43 THA 		8-97373-852-1 01 1 1310- ● ●
49 BEARING; PILOT
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> NSK THA 		8-97920-344-2 01 1 1310- ● ●
49 BEARING; PILOT
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> NACHI THA 		8-97922-552-1 01 1 1310- ● ●
56 PULLEY; CR/SHF DAMPER
2-GROOVE THA 		8-98183-902-0 01 1 1310- ● ●
61 PULLEY; FAN DRIVE
1-GROOVE THA 		8-98131-628-0 01 1 1310- ● ●
63 PISTON
GRADE=A THA 		8-98228-070-0 04 1 1310- ●
63 PISTON
GRADE=B THA 		8-98228-071-0 04 1 1310- ●
63 PISTON
GRADE=C THA 		8-98228-072-0 04 1 1310- ●
63 PISTON
GRADE=A THA 		8-98228-067-0 04 1 1310- ●
63 PISTON
GRADE=B THA 		8-98228-068-0 04 1 1310- ●
63 PISTON
GRADE=C THA 		8-98228-069-0 04 1 1310- ●
64 PISTON; O/S=0.50
THA 		8-98230-240-0 04 1 1310- ●
64 PISTON; O/S=0.50
THA 		8-98230-237-0 04 1 1310- ●
67 PISTON; O/S=0.25
THA 		8-98230-239-0 04 1 1310- ●
67 PISTON; O/S=0.25
THA 		8-98230-236-0 04 1 1310- ●
68 RING SET; PISTON,STANDARD
THA 		8-98171-040-0 04 1 1310- ●
68 RING SET; PISTON,STANDARD
THA 		8-98171-044-0 04 1 1310- ●
69 RING SET; PISTON,O/S=0.50
THA 		8-98171-042-0 04 1 1310- ●
69 RING SET; PISTON,O/S=0.50
THA 		8-98171-046-0 04 1 1310- ●
71 RING SET; PISTON,O/S=0.25
THA 		8-98171-041-0 04 1 1310- ●
71 RING SET; PISTON,O/S=0.25
THA 		8-98171-045-0 04 1 1310- ●
73 METAL SET; CONN ROD,STANDARD
THA 		8-97388-735-0 04 1 1310- ● ●
83 PIN; PISTON
THA 		8-98150-333-0 04 1 1310- ● ●
84 ROD ASM; CONN
THA 		8-97357-716-3 04 1 1310- ● ●
85 BUSHING; CONNROD
AFTER PRESS FITTING,SHAPE THE BUSHING. IMA 		8-97383-066-0 04 1 1310- ● ●
86 BOLT; CONNROD
M11X44.5 IMA 		8-98048-538-0 08 1 1310- ● ●
87 PIN; CONNROD BIG END
OD=5 L=8 THA 		9-08160-508-0 08 1 1310- ● ●
100 PLATE; FLEX
A/T 5 SPEED-AISIN<MA1> IMA 		8-98192-379-0 01 1 1310- ● ●
126 RING; SNAP,PISTON PIN
OD=37.5 IMA 		8-94460-687-0 08 1 1310- ● ●
172 ROTOR; CRANK SENSOR
IMA 		8-98163-693-0 01 1 1310- ● ●
203 PIN; ROTOR
OD=5 L=8 THA 		9-08160-508-0 01 1 1310- ● ●
204 BOLT; ROTOR
THA 		8-97944-142-1 03 1 1310- ● ●
215 PISTON; O/S=0.75
THA 		8-98230-241-0 04 1 1310- ●
215 PISTON; O/S=0.75
THA 		8-98230-238-0 04 1 1310- ●
217 RING SET; PISTON,O/S=0.75
THA 		8-98171-043-0 04 1 1310- ●
217 RING SET; PISTON,O/S=0.75
THA 		8-98171-047-0 04 1 1310- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
