Isuzu WW
▶
SUV
▶
UCR
▶
51488 - UCR/UCS(THAILAND)
▶
0 - Engine, Emission, Engine Electrical
▶
0-10 - CYLINDER HEAD COVER
▶

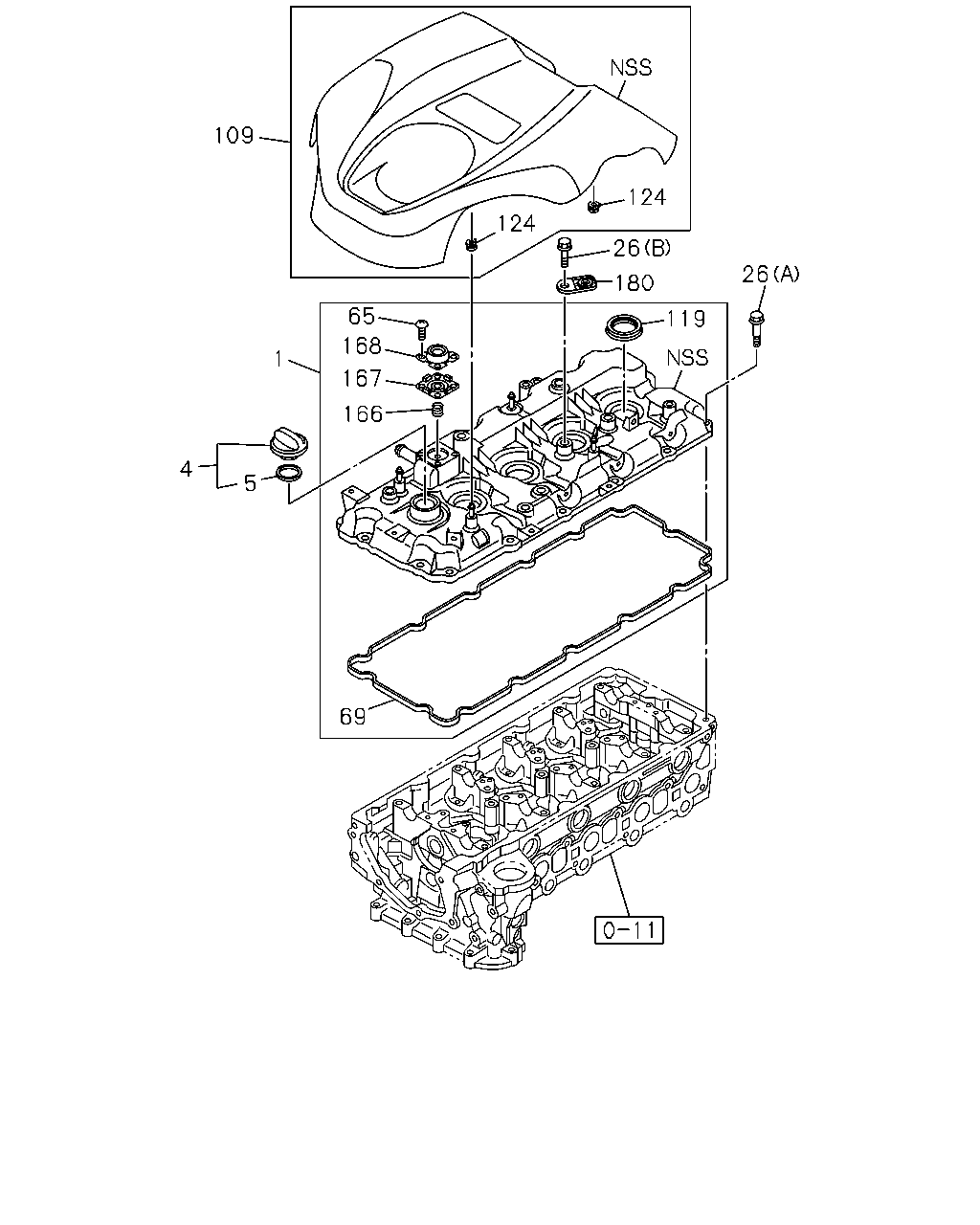

0-10 — CYLINDER HEAD COVER
(#129479) — 14 parça
Tümü
A - 4JK1-TCX ENG
B - 4JJ1-TCX ENG
124
26
124
180
119
26
65
166
167
168
1
109
4
5
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
COVER; CYL HD
THA
8-98228-367-4
01
1
1310-
●
●
4
CAP; OIL FILLER
THA
8-98026-084-0
01
1
1310-
●
●
5
GASKET; OIL FILLER
ID=32 OD=40 THA
8-97918-298-0
01
1
1310-
●
●
26
BOLT; CYL HD COVER
(B) M8X20 FLANGE THA
0-28050-820-0
01
1
1310-
●
●
26
BOLT; CYL HD COVER
(A) M6X25.7 FLANGE THA
8-98228-370-0
15
1
1310-
●
●
65
SCREW; ADAPTER
M4X10 THA
8-98209-387-0
04
1
1401-
●
●
69
GASKET; HD TO COVER
THA
8-98228-369-0
01
1
1401-
●
●
109
COVER; ENG
THA
8-98147-401-0
01
1
1310-
●
●
119
COVER; SEAL,NOZZLE
THA
8-98228-371-0
04
1
1401-
●
●
124
RUBBER; MTG,COVER
THA
8-98269-869-0
04
1
1310-
●
●
166
SPRING; VENTILATOR
IMA
8-97088-445-0
01
1
1401-
●
●
167
DIAPHRAGM; VENTILATOR
THA
8-98003-164-0
01
1
1401-
●
●
168
COVER; VENTILATOR
THA
8-98234-092-0
01
1
1401-
●
●
180
DAMPENER; CYL HEAD
THA
8-98244-154-0
01
1
1310-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
