5-01 — FRAME AND OTHER PARTS (#129476) — 47 parça

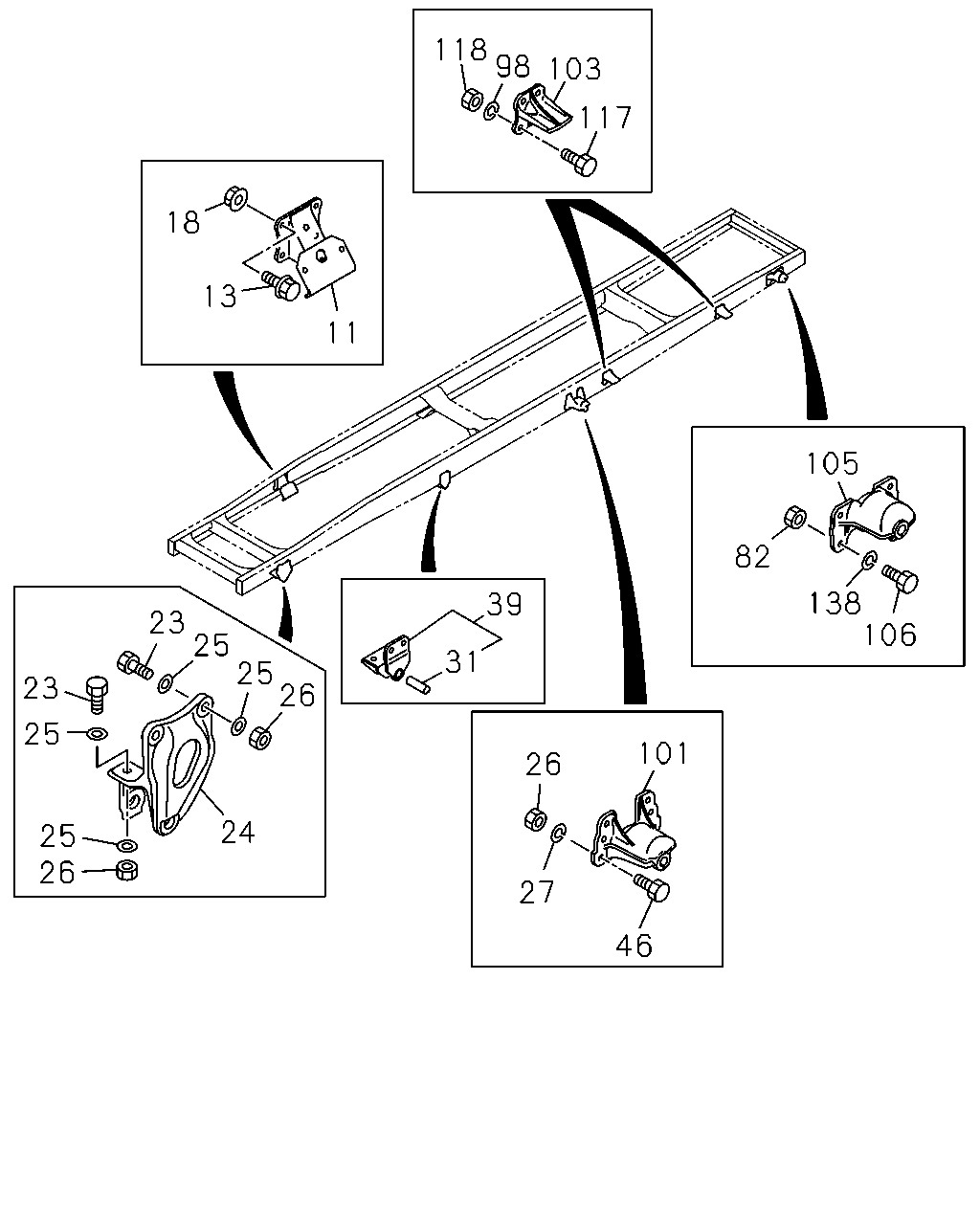

çizim 379850
103 118 98 117 11 13 18 23 25 25 26 23 25 25 26 24 39 31 26 101 27 46 82 105 138 106
BalonParca AdiParca NoAdetTipApplied Date A B C
11 BRACKET; ENG MTG 8-97639-363-0 02 1 1403- ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1403- ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1403- ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 1403- ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-201-0 01 1 1403- ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-203-0 01 1 1403- ● ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 1403- ● ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 1403- ● ● ●
27 WASHER; LK,BRKT,FRT SPR
ID=14.2 		0-91510-614-0 12 1 1403- ● ● ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 1403- ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-154-2 02 1 1403- ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 12 1 1403- ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 10 1 1403- ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 1403- ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 1403- ● ● ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 1403- ● ● ●
105 BRACKET; RR SPR,RR 1-53354-074-0 02 1 1403- ● ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 10 1 1403- ● ● ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 1403- ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 1403- ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 10 1 1403- ● ● ●

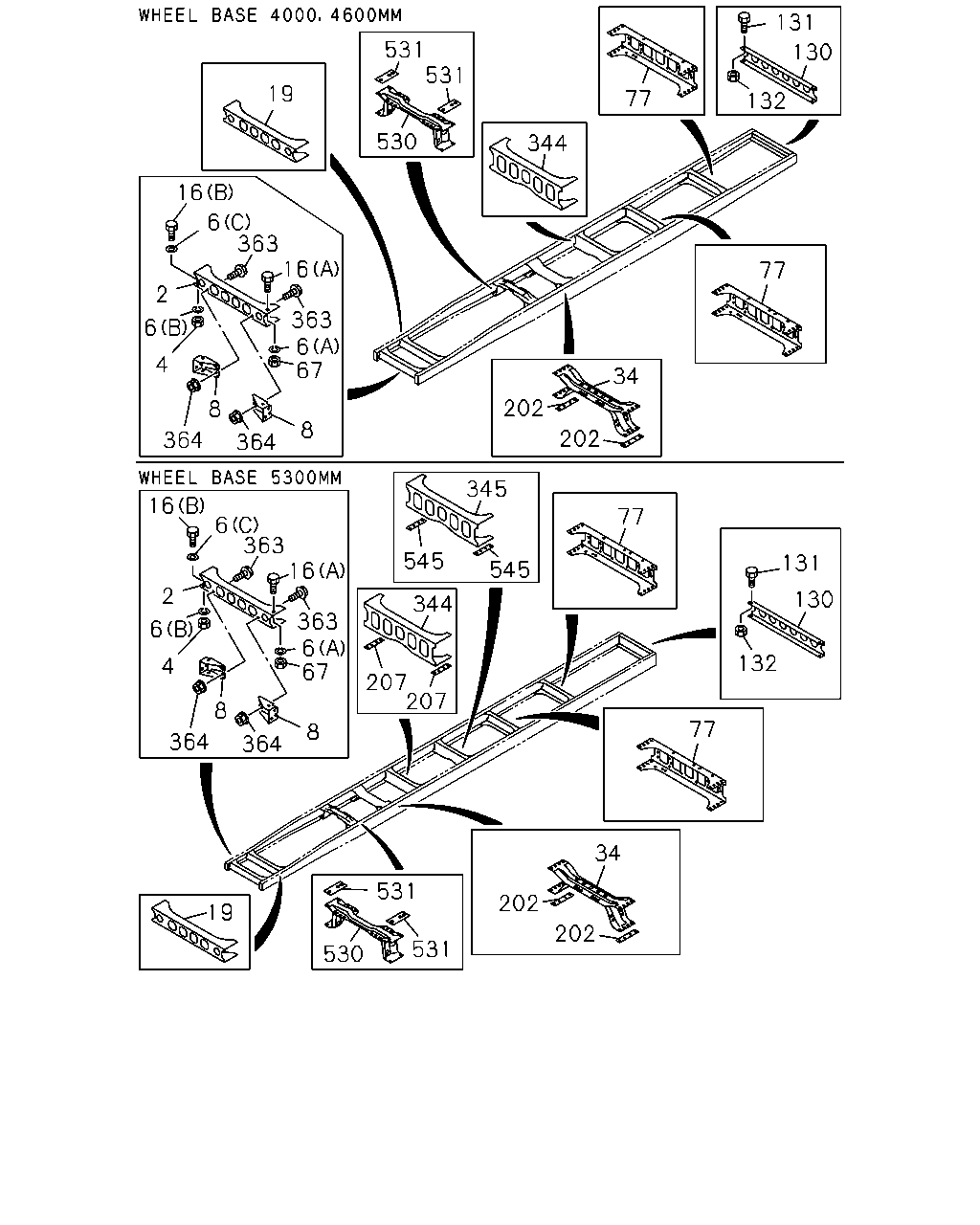

çizim 381660
344 77 131 130 132 77 131 130 132 77 34 202 202 531 531 530 19 16 6 363 16 363 6 67 2 6 4 8 364 364 8 6 16 363 16 363 6 67 8 364 8 364 4 6 2 345 545 545 77 34 202 202 531 531 530 19 207 207 344
BalonParca AdiParca NoAdetTipApplied Date A B C
2 MEMBER; CROSS,1ST 8-97615-669-3 01 1 1403- ● ● ●
4 NUT; 1ST C/MBR TO S/MBR
M14 		0-91110-514-0 02 1 1403- ● ● ●
6 WASHER; LK,1ST C/MBR
(A) ID=12.2 		0-91510-512-0 02 1 1403- ● ● ●
6 WASHER; LK,1ST C/MBR
(B) ID=14.2 		0-91510-814-0 02 1 1403- ● ● ●
6 WASHER; LK,1ST C/MBR
(C) ID=15 		8-98010-627-1 02 1 1403- ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-579-3 01 1 1403- ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-578-2 01 1 1403- ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 		0-20851-230-0 02 1 1403- ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(B) M14X40 		0-20851-440-0 02 1 1403- ● ● ●
19 MEMBER; CROSS,2ND 8-97615-670-4 01 1 1403- ● ● ●
34 MEMBER; CROSS,3RD 8-97609-501-2 01 1 1403- ● ● ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 1403- ● ● ●
77 MEMBER; CROSS,TRUNNION RR 8-97610-935-1 02 1 1403- ● ● ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 1403- ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 1403- ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 1403- ● ● ●
202 SPACER; 3RD C/MBR 8-97609-756-1 02 1 1403- ● ● ●
207 SPACER; 4TH C/MBR 8-97609-758-0 02 1 1403- ●
344 MEMBER; CROSS,4TH 8-97609-472-2 01 1 1403- ● ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 1403- ●
345 MEMBER; CROSS,5TH 8-97609-473-2 01 1 1403- ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 1403- ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 1403- ● ● ●
530 MEMBER; CROSS,T/M 8-97609-814-1 01 1 1403- ● ● ●
531 SPACER; C/MBR,T/M 8-97637-078-0 02 1 1403- ● ● ●
545 SPACER; 5TH C/MBR 8-97609-758-0 02 1 1403- ●
