◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11553 - FRR RHD EURO5 SPACECAB ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#129475) — 19 parça

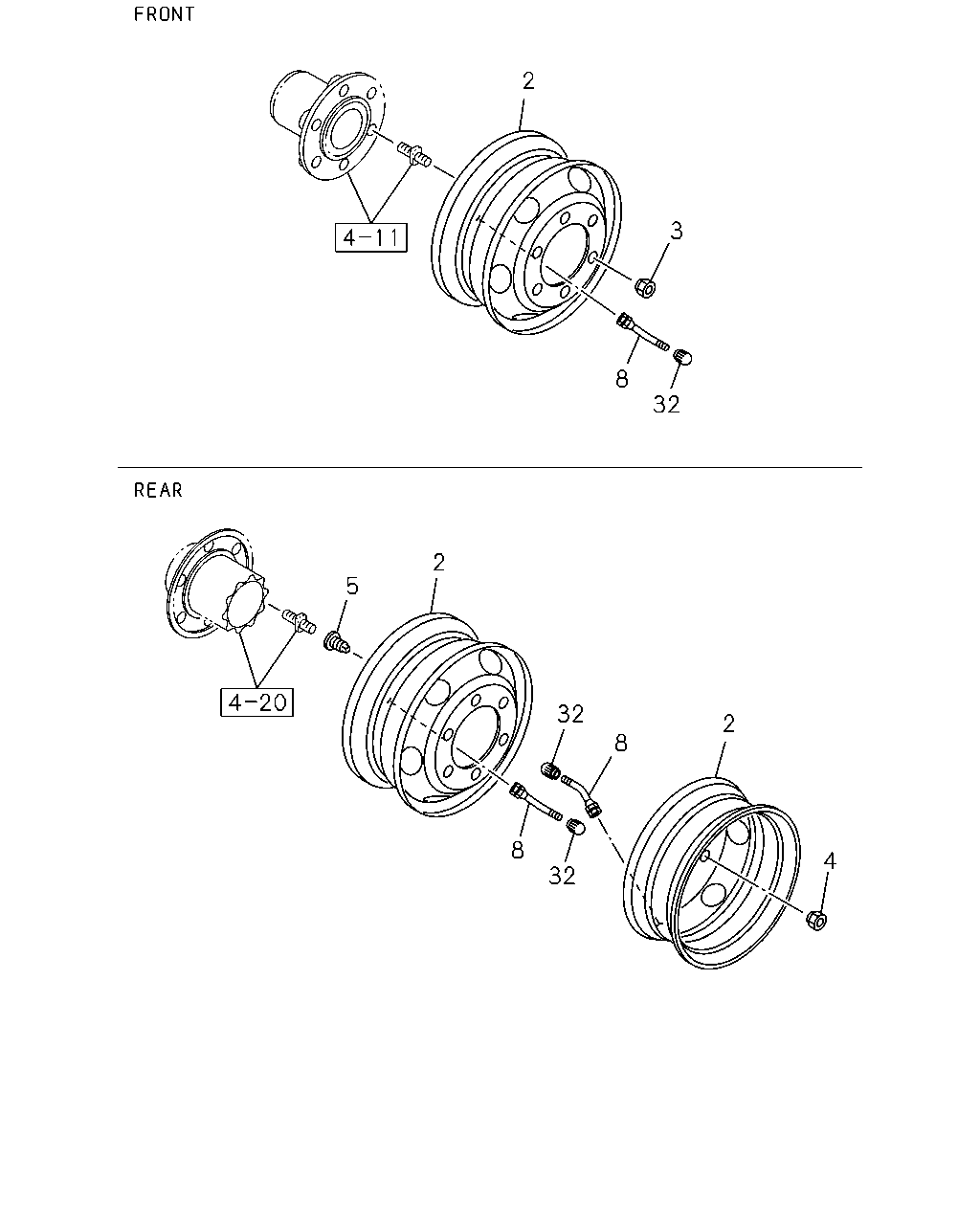

çizim 380149
3 2 32 8 5 2 32 8 2 4 32 8
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		1-42350-767-0 01 1 1403-
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) EXC. DISC WHEEL SPARE<N79> SPARE 		1-42350-767-0 01 1 1403-
2 WHEEL; DISC
DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) FRONT,REAR 		1-42350-767-0 06 1 1403-
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 6STUD 6.00X17.5 135-9(SBG) EXC. DISC WHEEL SPARE<N79> SPARE 17.5X6.00 OFFSET=135 SILVER 6-HOLE 		1-42350-770-0 01 1 1403-
2 WHEEL; DISC
WHEEL 6STUD 6.00X17.5 135-9(SBG) FRONT,REAR 17.5X6.00 OFFSET=135 SILVER 6-HOLE 		1-42350-770-0 06 1 1403-
3 NUT; WHEEL,FRT AXLE
M24 LH THREAD 		1-42334-022-3 06 1 1403-
3 NUT; WHEEL,FRT AXLE
M24 		1-42333-022-3 06 1 1403-
4 NUT; WHEEL,RR AXLE
M30 LH THREAD 		8-97359-810-0 06 1 1403-
4 NUT; WHEEL,RR AXLE
M30 RH THREAD 		8-97359-809-0 06 1 1403-
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD 		8-97359-806-0 06 1 1403-
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD 		8-97359-805-0 06 1 1403-
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		1-42370-007-1 01 1 1403-
8 VALVE; TIRE
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) EXC. DISC WHEEL SPARE<N79> SPARE 		1-42370-007-1 01 1 1403-
8 VALVE; TIRE
DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) FRONT,REAR 		1-42370-007-1 06 1 1403-
8 VALVE; TIRE
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 6STUD 6.00X17.5 135-9(SBG) EXC. DISC WHEEL SPARE<N79> SPARE 		1-42370-019-3 01 1 1403-
8 VALVE; TIRE
WHEEL 6STUD 6.00X17.5 135-9(SBG) FRONT,REAR 		1-42370-019-3 06 1 1403-
32 CAP; VALVE
DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIREONE<WH2> 		1-42374-001-0 06 1 1403-
32 CAP; VALVE
WHEEL 6STUD 6.00X17.5 135-9(SBG),DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> 		1-42374-001-0 07 1 1403-
32 CAP; VALVE
DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) DISC WHEEL SPARE<N79> EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 07 1 1403-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
