◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11553 - FRR RHD EURO5 SPACECAB ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#129460) — 99 parça

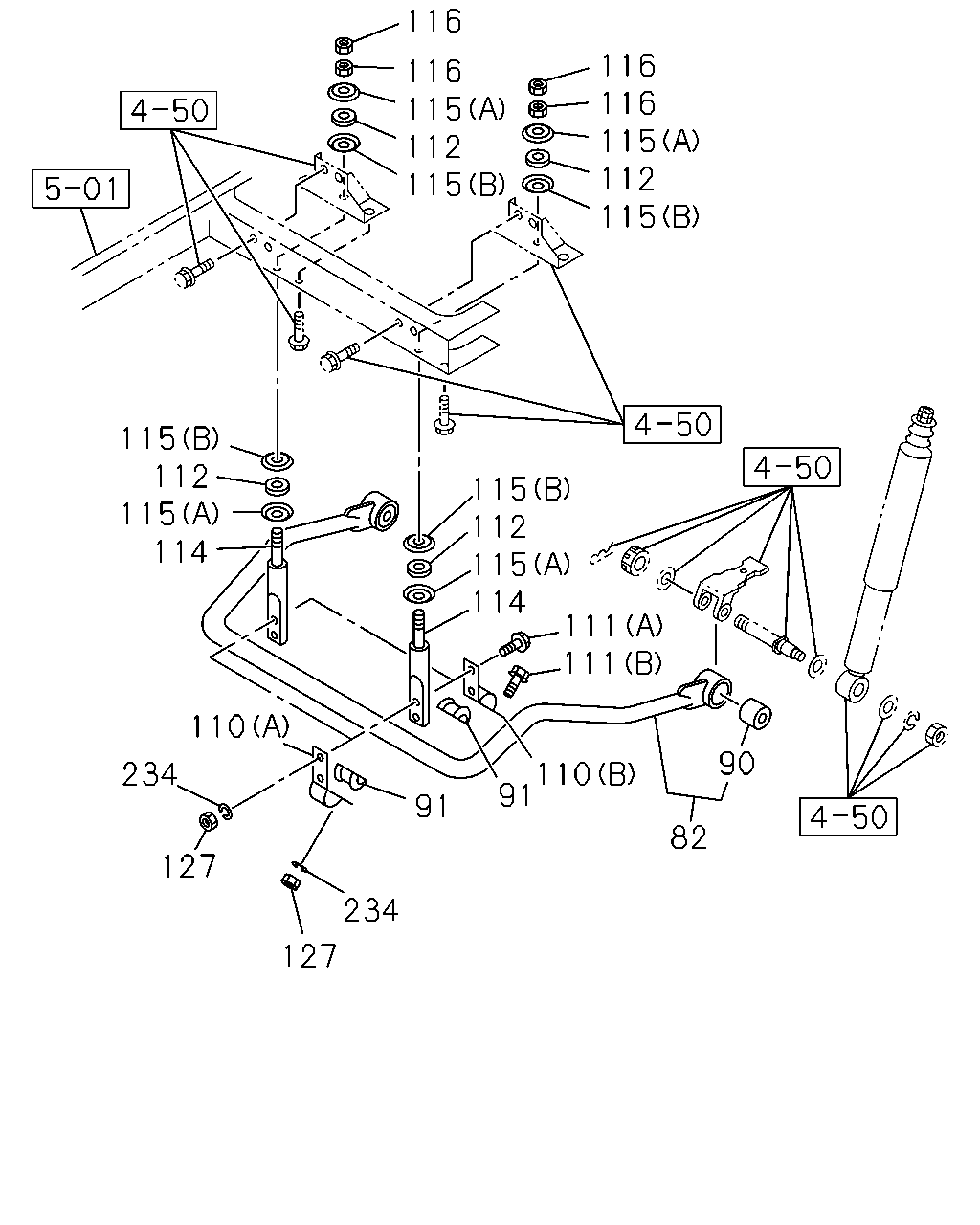

çizim 380303
110 91 82 111 114 115 112 115 111 90 91 234 127 127 234 114 115 115 110 112 115 116 115 115 112 116 116 115 116 112
BalonParca AdiParca NoAdetTipApplied Date
82 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> 		1-51770-114-0 01 1 1403-
90 BUSHING; RUBBER,STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51779-066-0 02 1 1403-
91 BUSHING; RUBBER,STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51779-079-1 04 1 1403-
110 CLAMP; STAB TO ROD
FRONT STABILIZER SHAFT<F59> (A) 		1-51789-027-2 02 1 1403-
110 CLAMP; STAB TO ROD
FRONT STABILIZER SHAFT<F59> (B) 		1-51789-028-1 02 1 1403-
111 BOLT; CLAMP TO ROD
FRONT STABILIZER SHAFT<F59> (B) M12X30 FLANGE 		0-28051-230-0 02 1 1403-
111 BOLT; CLAMP TO ROD
FRONT STABILIZER SHAFT<F59> (A) M12X50 FLANGE 		0-28051-250-0 04 1 1403-
112 BUSHING; ROD
FRONT STABILIZER SHAFT<F59> 		9-51631-050-0 04 1 1403-
114 ROD; STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51773-082-0 02 1 1403-
115 WASHER; CENTER,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> (B) ID=16.8 		1-51631-022-0 04 1 1403-
115 WASHER; CENTER,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> (A) ID=14.5 		9-51631-051-0 04 1 1403-
116 NUT; LK,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> M14 		0-91111-514-0 04 1 1403-
127 NUT; CLAMP
FRONT STABILIZER SHAFT<F59> M12 		0-91110-512-0 06 1 1403-
234 WASHER; STAB
FRONT STABILIZER SHAFT<F59> ID=12.2 		0-91510-812-0 06 1 1403-

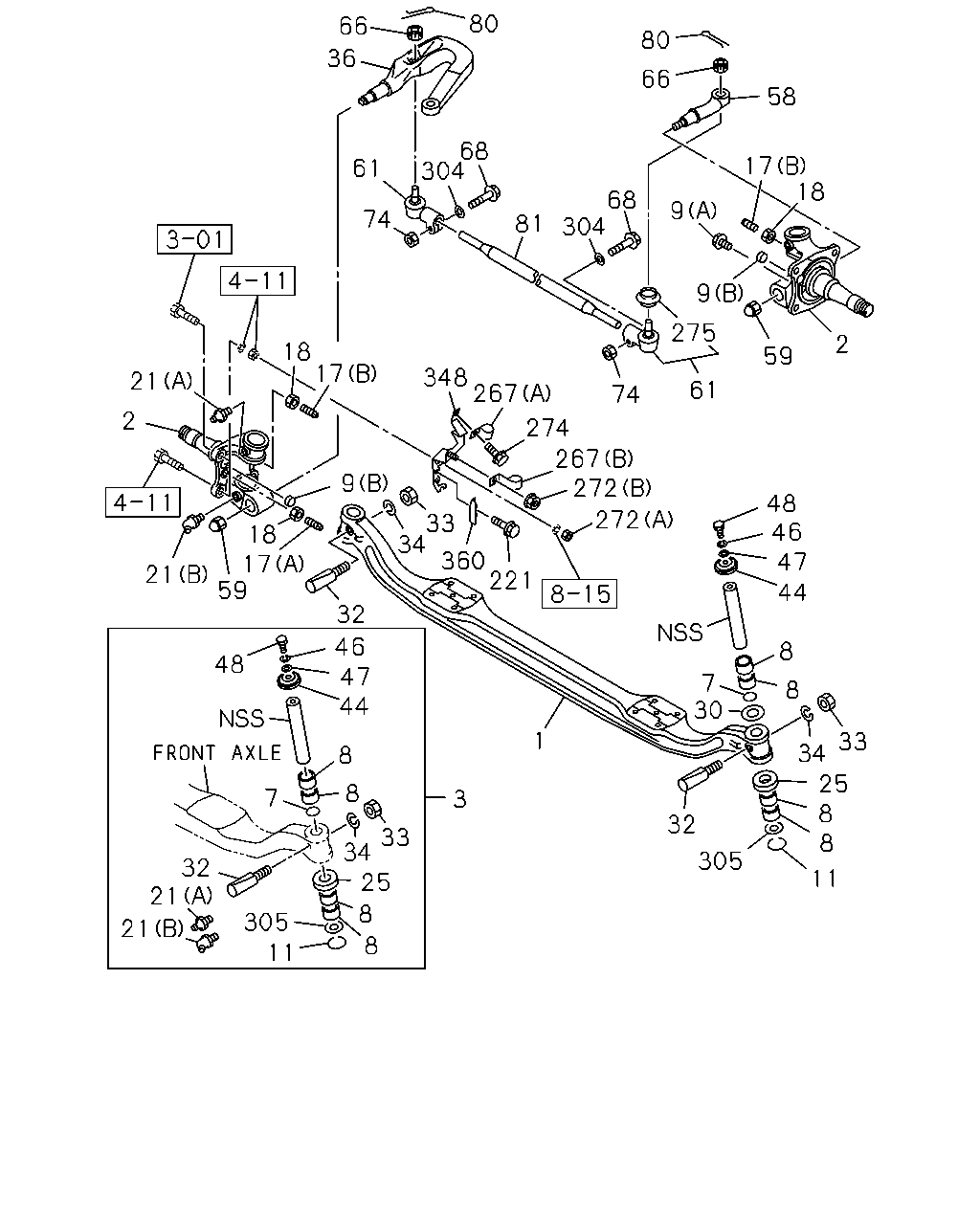

çizim 381332
80 66 58 17 9 9 2 59 61 74 275 304 68 81 68 304 61 74 36 66 80 267 272 272 267 348 17 18 21 2 21 59 18 17 32 34 9 33 360 221 274 48 46 47 44 8 8 33 34 25 8 8 11 305 32 30 1 7 3 44 46 48 8 47 7 8 33 34 25 32 21 21 305 11 8 8 18
BalonParca AdiParca NoAdetTipApplied Date
1 AXLE; FRT 8-98057-479-2 01 1 1403-
2 KNUCKLE; FRT AXLE 1-43132-127-1 01 1 1403-
2 KNUCKLE; FRT AXLE 1-43131-127-1 01 1 1403-
3 KING PIN SET 1-87831-295-3 01 1 1403-
3 KING PIN SET 1-87831-296-3 01 1 1403-
7 SEAL; OIL,KING PIN 1-09625-005-1 02 1 1403-
8 BEARING; NEEDLE,KING PIN
NSK 		1-09811-339-0 08 1 1403-
9 PLUG; KNUCKLE
(A) M14X14 		8-97329-621-0 01 1 1403-
9 PLUG; KNUCKLE
EXC. ANTI LOCK BRAKE(JE5) (B) OD=22 		1-09600-011-2 02 1 1403-
11 RING; SNAP,KNUCKLE PLUG 1-09589-017-1 02 1 1403-
17 BOLT; STOPPER KNUCKLE
(A) M14X47 		1-09009-191-0 01 1 1403-
17 BOLT; STOPPER KNUCKLE
(B) M14X53 		8-98065-261-0 02 1 1403-
18 NUT; STOPPER BOLT,KNUCKLE
M14 		0-91112-814-0 03 1 1403-
21 NIPPLE; GREASE,KING PIN
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1403-
21 NIPPLE; GREASE,KING PIN
(B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1403-
25 BEARING; THRUST,KING PIN
NSK 		1-09829-033-1 01 1 1403-
25 BEARING; THRUST,KING PIN
NSK 		1-09829-031-0 01 1 1403-
30 WASHER; THRUST,KING PIN
T=3.900 		1-43171-261-1 AR 1 1403-
30 WASHER; THRUST,KING PIN
T=3.912 		1-43171-262-1 AR 1 1403-
30 WASHER; THRUST,KING PIN
T=3.925 		1-43171-263-1 AR 1 1403-
30 WASHER; THRUST,KING PIN
T=3.937 		1-43171-264-1 AR 1 1403-
30 WASHER; THRUST,KING PIN
T=3.950 		1-43171-265-1 AR 1 1403-
30 WASHER; THRUST,KING PIN
T=3.962 		1-43171-266-1 AR 1 1403-
30 WASHER; THRUST,KING PIN
T=3.975 		1-43171-267-1 AR 1 1403-
30 WASHER; THRUST,KING PIN
T=3.987 		1-43171-268-1 AR 1 1403-
30 WASHER; THRUST,KING PIN
T=4.000 		1-43171-269-1 AR 1 1403-
30 WASHER; THRUST,KING PIN
T=4.012 		1-43171-270-1 AR 1 1403-
30 WASHER; THRUST,KING PIN
T=4.025 		1-43171-271-1 AR 1 1403-
30 WASHER; THRUST,KING PIN
T=4.037 		1-43171-272-1 AR 1 1403-
30 WASHER; THRUST,KING PIN
T=4.050 		1-43171-273-1 AR 1 1403-
30 WASHER; THRUST,KING PIN
T=4.062 		1-43171-274-1 AR 1 1403-
30 WASHER; THRUST,KING PIN
T=4.075 		1-43171-275-1 AR 1 1403-
30 WASHER; THRUST,KING PIN
T=4.087 		1-43171-276-1 AR 1 1403-
30 WASHER; THRUST,KING PIN
T=4.100 		1-43171-277-1 AR 1 1403-
30 WASHER; THRUST,KING PIN
T=4.112 		1-43171-278-1 AR 1 1403-
30 WASHER; THRUST,KING PIN
T=4.125 		1-43171-279-1 AR 1 1403-
30 WASHER; THRUST,KING PIN
T=4.137 		1-43171-280-1 AR 1 1403-
30 WASHER; THRUST,KING PIN
T=4.150 		1-43171-281-1 AR 1 1403-
30 WASHER; THRUST,KING PIN
T=4.162 		1-43171-311-0 AR 1 1403-
30 WASHER; THRUST,KING PIN
T=4.175 		1-43171-312-0 AR 1 1403-
30 WASHER; THRUST,KING PIN
T=4.187 		1-43171-313-0 AR 1 1403-
30 WASHER; THRUST,KING PIN
T=4.200 		1-43171-314-0 AR 1 1403-
30 WASHER; THRUST,KING PIN
T=4.212 		1-43171-315-0 AR 1 1403-
30 WASHER; THRUST,KING PIN
T=4.225 		1-43171-316-0 AR 1 1403-
30 WASHER; THRUST,KING PIN
T=4.237 		1-43171-317-0 AR 1 1403-
30 WASHER; THRUST,KING PIN
T=4.250 		1-43171-318-0 AR 1 1403-
30 WASHER; THRUST,KING PIN
T=4.262 		1-43171-319-0 AR 1 1403-
30 WASHER; THRUST,KING PIN
T=4.275 		1-43171-320-0 AR 1 1403-
30 WASHER; THRUST,KING PIN
T=4.287 		1-43171-321-0 AR 1 1403-
30 WASHER; THRUST,KING PIN
T=4.300 		1-43171-322-0 AR 1 1403-
30 WASHER; THRUST,KING PIN
T=4.312 		1-43171-323-0 AR 1 1403-
30 WASHER; THRUST,KING PIN
T=4.325 		1-43171-324-0 AR 1 1403-
30 WASHER; THRUST,KING PIN
T=4.337 		1-43171-325-0 AR 1 1403-
30 WASHER; THRUST,KING PIN
T=4.350 		1-43171-326-0 AR 1 1403-
32 BOLT; KEY,KING PIN 1-43116-013-1 02 1 1403-
33 NUT; KEY BOLT
M10 		0-91110-510-0 02 1 1403-
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 1403-
36 ARM; KNUCKLE 8-98037-304-1 01 1 1403-
44 COVER; KING PIN 1-43175-031-0 02 1 1403-
46 WASHER; LK,COVER
ID=12.2 		0-91510-812-0 02 1 1403-
47 WASHER; PL,COVER,KING PIN
ID=12.5 OD=32 		0-91614-712-0 02 1 1403-
48 BOLT; COVER
M12X25 		1-09009-081-0 02 1 1403-
58 ARM; TIE ROD 8-98037-296-2 01 1 1403-
59 NUT; TIE ROD ARM
M27 FLANGE 		1-09449-082-0 02 1 1403-
61 ROD END; TIE ROD 1-43150-749-1 01 1 1403-
61 ROD END; TIE ROD 1-43150-748-1 01 1 1403-
66 NUT; TIE ROD END
M16 SLOTTED 		1-09442-031-0 02 1 1403-
68 BOLT; TIE ROD END
M12X45 FLANGE 		0-28061-245-0 02 1 1403-
74 NUT; TIE ROD END
M12 		0-91110-512-0 02 1 1403-
80 PIN; SPLIT,ROD END
OD=3.7 L=22 		0-81124-022-0 02 1 1403-
81 ROD; TIE 8-98038-703-1 01 1 1403-
221 BOLT; BRKT,SENSOR
ANTI LOCK BRAKE(JE5) M8X16 FLANGE 		0-28050-816-0 04 1 1403-
267 CLIP; HARNESS
ANTI LOCK BRAKE(JE5) (A) ID=11 L=16 		0-95235-025-0 02 1 1403-
267 CLIP; HARNESS
ANTI LOCK BRAKE(JE5) (B) ID=11 H=20 L=20 		8-98033-780-0 02 1 1403-
272 NUT; CLIP
ANTI LOCK BRAKE(JE5) (A) M14 		0-91110-514-0 02 1 1403-
272 NUT; CLIP
ANTI LOCK BRAKE(JE5) (B) M8 FLANGE 		0-91180-108-0 02 1 1403-
274 BOLT; CLIP
ANTI LOCK BRAKE(JE5) M8X16 FLANGE 		0-28050-816-0 02 1 1403-
275 BOOT; ROD END,TIE 1-85574-046-0 02 1 1403-
304 WASHER; PL
ID=12.5 		0-91614-512-0 02 1 1403-
305 COVER; KNUCKLE 1-43175-030-0 02 1 1403-
348 BRACKET; CLIP
ANTI LOCK BRAKE(JE5) 		8-98055-138-1 01 1 1403-
348 BRACKET; CLIP
ANTI LOCK BRAKE(JE5) 		8-98055-137-1 01 1 1403-
360 COVER; SENSOR
ANTI LOCK BRAKE(JE5) 		8-98018-401-0 01 1 1403-
360 COVER; SENSOR
ANTI LOCK BRAKE(JE5) 		8-98018-400-0 01 1 1403-
çizim 381810
105
BalonParca AdiParca NoAdetTipApplied Date
105 BOLT; BRKT FIX
ANTI LOCK BRAKE(JE5) M8X12 FLANGE 		0-28050-812-0 04 1 1403-
