4-01 — PROPELLER SHAFT (#129459) — 173 parça

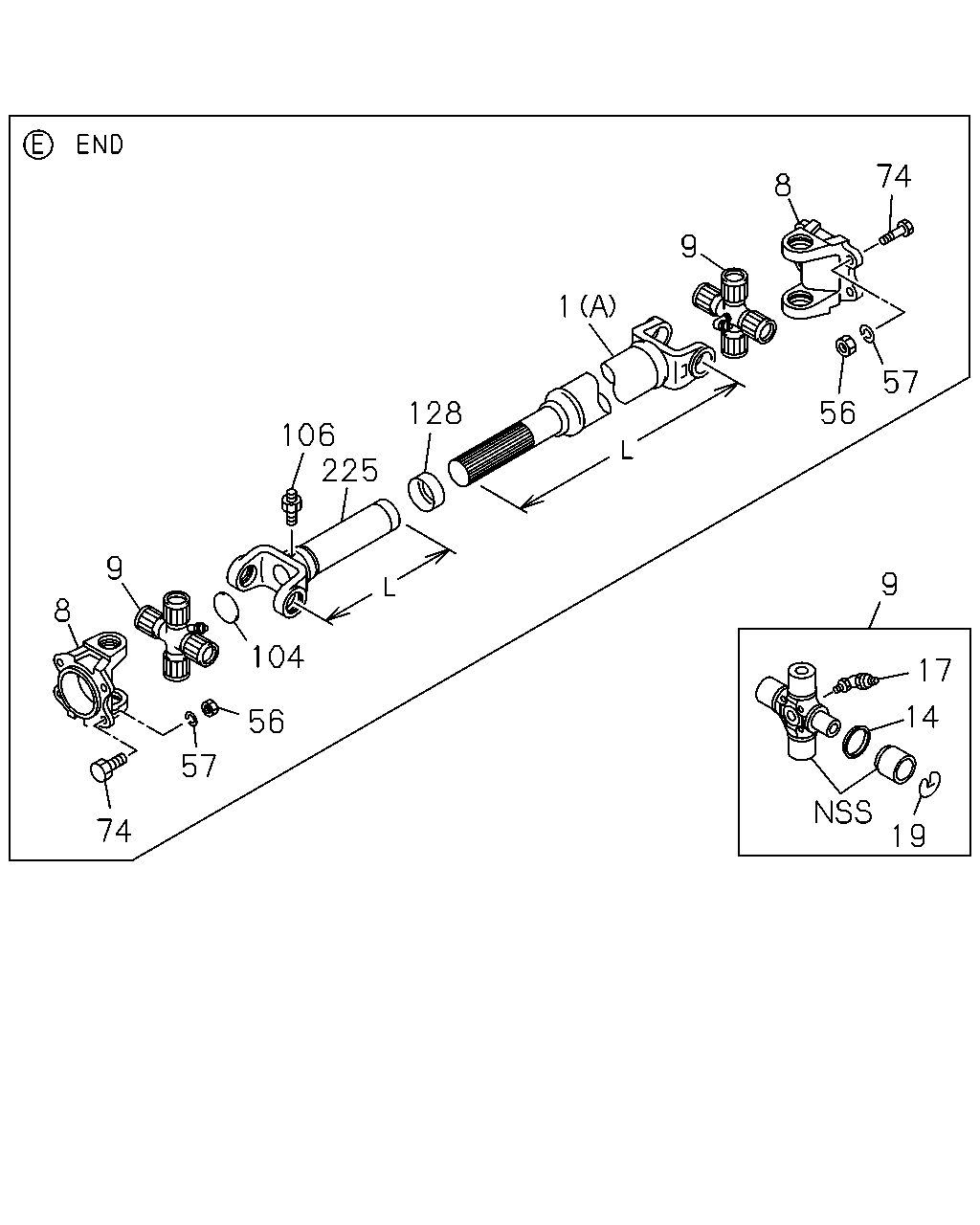

74 8 9 1 57 56 128 106 225 104 56 9 57 74 9 17 14 19 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; PROP (A) L=811	8-98069-669-0	01	1	1403-	●
1	SHAFT; PROP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1269	8-98069-575-0	01	1	1403-	●
1	SHAFT; PROP TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1214	8-98235-054-0	01	1	1403-	●
1	SHAFT; PROP (A) L=1114	8-98090-987-0	01	1	1403-		●
1	SHAFT; PROP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1484	8-98172-042-0	01	1	1403-		●
1	SHAFT; PROP TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1429	8-98242-158-0	01	1	1403-		●
1	SHAFT; PROP (C) L=629	8-98069-609-0	01	1	1403-			●
1	SHAFT; PROP (A) L=1271	8-98069-657-0	01	1	1403-			●
1	SHAFT; PROP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1264	8-98105-706-0	01	1	1403-			●
1	SHAFT; PROP TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1216	1-37151-633-1	01	1	1403-			●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	02	1	1403-	●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	01	1	1403-	●	●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	03	1	1403-			●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	02	1	1403-	●	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	01	1	1403-	●	●	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	03	1	1403-			●
14	COVER; DUST,SPIDER	8-98020-800-0	08	1	1403-	●	●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1403-	●	●	●
14	COVER; DUST,SPIDER	8-98020-800-0	12	1	1403-			●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	1403-	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1403-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	03	1	1403-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	1403-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	1403-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	1403-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1403-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1403-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1403-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	12	1	1403-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	12	1	1403-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	12	1	1403-			●
56	NUT; YOKE M14	0-91110-514-0	08	1	1403-	●	●	●
57	WASHER; LK,YOKE ID=14.2	0-91510-614-0	08	1	1403-	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	08	1	1403-	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	1403-			●
104	PLUG; SLEEVE YOKE	1-09600-064-0	01	1	1403-	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT M6 STRAIGHT	0-90301-406-0	01	1	1403-	●	●	●
128	SEAL; SLEEVE	1-37247-024-0	01	1	1403-	●	●	●
225	YOKE; SLEEVE,PROP SHAFT L=254	8-98020-885-0	01	1	1403-	●	●	●

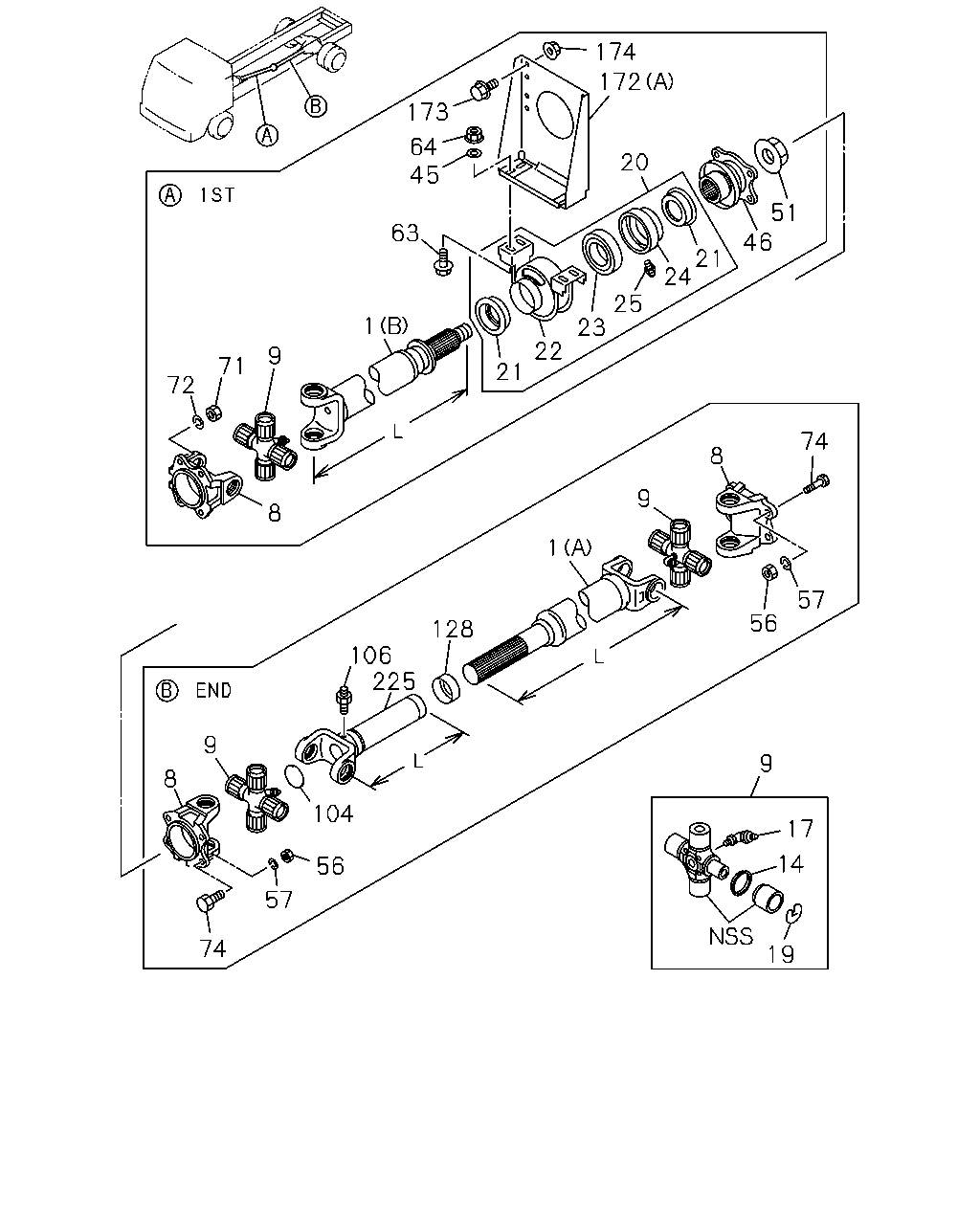

174 172 20 51 46 21 24 25 23 22 21 8 9 71 72 1 63 45 64 173 177 172 20 51 46 21 24 25 23 22 21 173 64 60 63 1 9 8 74 49 52 9 17 14 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; PROP (A) L=811	8-98069-669-0	01	1	1403-	●
1	SHAFT; PROP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1269	8-98069-575-0	01	1	1403-	●
1	SHAFT; PROP TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1214	8-98235-054-0	01	1	1403-	●
1	SHAFT; PROP (A) L=1114	8-98090-987-0	01	1	1403-		●
1	SHAFT; PROP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1484	8-98172-042-0	01	1	1403-		●
1	SHAFT; PROP TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1429	8-98242-158-0	01	1	1403-		●
1	SHAFT; PROP (C) L=629	8-98069-609-0	01	1	1403-			●
1	SHAFT; PROP (A) L=1271	8-98069-657-0	01	1	1403-			●
1	SHAFT; PROP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1264	8-98105-706-0	01	1	1403-			●
1	SHAFT; PROP TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1216	1-37151-633-1	01	1	1403-			●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	02	1	1403-	●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	01	1	1403-	●	●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	03	1	1403-			●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	02	1	1403-	●	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	01	1	1403-	●	●	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	03	1	1403-			●
14	COVER; DUST,SPIDER	8-98020-800-0	08	1	1403-	●	●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1403-	●	●	●
14	COVER; DUST,SPIDER	8-98020-800-0	12	1	1403-			●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	1403-	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1403-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	03	1	1403-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	1403-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	1403-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	1403-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1403-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1403-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1403-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	12	1	1403-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	12	1	1403-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	12	1	1403-			●
20	BEARING ASM; CTR,PROP SHAFT	8-98020-881-0	01	1	1403-	●	●	●
20	BEARING ASM; CTR,PROP SHAFT	8-98020-881-0	01	1	1403-			●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	1403-	●	●	●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	1403-			●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	1403-	●	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	1403-			●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	1403-	●	●	●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	1403-			●
24	RETAINER; CENTER BRG,1ST	8-98020-882-0	01	1	1403-	●	●	●
24	RETAINER; CENTER BRG,1ST	8-98020-882-0	01	1	1403-			●
25	NIPPLE; GREASE,CENTER BRG	8-98020-889-0	01	1	1403-	●	●	●
25	NIPPLE; GREASE,CENTER BRG	8-98020-889-0	01	1	1403-			●
45	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	1403-	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	8-98020-815-0	01	1	1403-	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	8-98020-815-0	01	1	1403-			●
49	NUT; YOKE M14	0-91110-514-0	04	1	1403-			●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	1403-	●	●	●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	1403-			●
52	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	1403-			●
60	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	1403-			●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	04	1	1403-	●	●	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	04	1	1403-			●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	04	1	1403-	●	●	●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	04	1	1403-			●
71	NUT; YOKE M14	0-91110-514-0	04	1	1403-	●	●	●
72	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	1403-	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	08	1	1403-	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	1403-			●
172	BRACKET; CENTER BRG (A)	8-98183-230-0	01	1	1403-	●
172	BRACKET; CENTER BRG (A)	1-37515-119-0	01	1	1403-		●	●
172	BRACKET; CENTER BRG (B)	1-37515-121-0	01	1	1403-			●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	1403-	●	●	●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	1403-			●
174	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	1403-	●	●	●
177	NUT M10 FLANGE	0-91180-210-0	04	1	1403-			●

174 172 173 64 45 63 20 51 46 21 24 25 23 22 21 1 9 71 72 8 74 8 9 1 128 106 225 9 8 74 57 56 104 56 57 9 17 14 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; PROP (A) L=811	8-98069-669-0	01	1	1403-	●
1	SHAFT; PROP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1269	8-98069-575-0	01	1	1403-	●
1	SHAFT; PROP TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1214	8-98235-054-0	01	1	1403-	●
1	SHAFT; PROP (A) L=1114	8-98090-987-0	01	1	1403-		●
1	SHAFT; PROP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1484	8-98172-042-0	01	1	1403-		●
1	SHAFT; PROP TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1429	8-98242-158-0	01	1	1403-		●
1	SHAFT; PROP (C) L=629	8-98069-609-0	01	1	1403-			●
1	SHAFT; PROP (A) L=1271	8-98069-657-0	01	1	1403-			●
1	SHAFT; PROP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1264	8-98105-706-0	01	1	1403-			●
1	SHAFT; PROP TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1216	1-37151-633-1	01	1	1403-			●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	02	1	1403-	●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	01	1	1403-	●	●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	03	1	1403-			●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	02	1	1403-	●	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	01	1	1403-	●	●	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	03	1	1403-			●
14	COVER; DUST,SPIDER	8-98020-800-0	08	1	1403-	●	●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1403-	●	●	●
14	COVER; DUST,SPIDER	8-98020-800-0	12	1	1403-			●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	1403-	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1403-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	03	1	1403-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	1403-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	1403-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	1403-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1403-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1403-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1403-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	12	1	1403-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	12	1	1403-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	12	1	1403-			●
20	BEARING ASM; CTR,PROP SHAFT	8-98020-881-0	01	1	1403-	●	●	●
20	BEARING ASM; CTR,PROP SHAFT	8-98020-881-0	01	1	1403-			●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	1403-	●	●	●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	1403-			●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	1403-	●	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	1403-			●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	1403-	●	●	●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	1403-			●
24	RETAINER; CENTER BRG,1ST	8-98020-882-0	01	1	1403-	●	●	●
24	RETAINER; CENTER BRG,1ST	8-98020-882-0	01	1	1403-			●
25	NIPPLE; GREASE,CENTER BRG	8-98020-889-0	01	1	1403-	●	●	●
25	NIPPLE; GREASE,CENTER BRG	8-98020-889-0	01	1	1403-			●
45	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	1403-	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	8-98020-815-0	01	1	1403-	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	8-98020-815-0	01	1	1403-			●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	1403-	●	●	●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	1403-			●
56	NUT; YOKE M14	0-91110-514-0	08	1	1403-	●	●	●
57	WASHER; LK,YOKE ID=14.2	0-91510-614-0	08	1	1403-	●	●	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	04	1	1403-	●	●	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	04	1	1403-			●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	04	1	1403-	●	●	●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	04	1	1403-			●
71	NUT; YOKE M14	0-91110-514-0	04	1	1403-	●	●	●
72	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	1403-	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	08	1	1403-	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	1403-			●
104	PLUG; SLEEVE YOKE	1-09600-064-0	01	1	1403-	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT M6 STRAIGHT	0-90301-406-0	01	1	1403-	●	●	●
128	SEAL; SLEEVE	1-37247-024-0	01	1	1403-	●	●	●
172	BRACKET; CENTER BRG (A)	8-98183-230-0	01	1	1403-	●
172	BRACKET; CENTER BRG (A)	1-37515-119-0	01	1	1403-		●	●
172	BRACKET; CENTER BRG (B)	1-37515-121-0	01	1	1403-			●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	1403-	●	●	●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	1403-			●
174	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	1403-	●	●	●
225	YOKE; SLEEVE,PROP SHAFT L=254	8-98020-885-0	01	1	1403-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
