3-78 — FIXING PARTS; AIR PIPING (#129458) — 91 parça

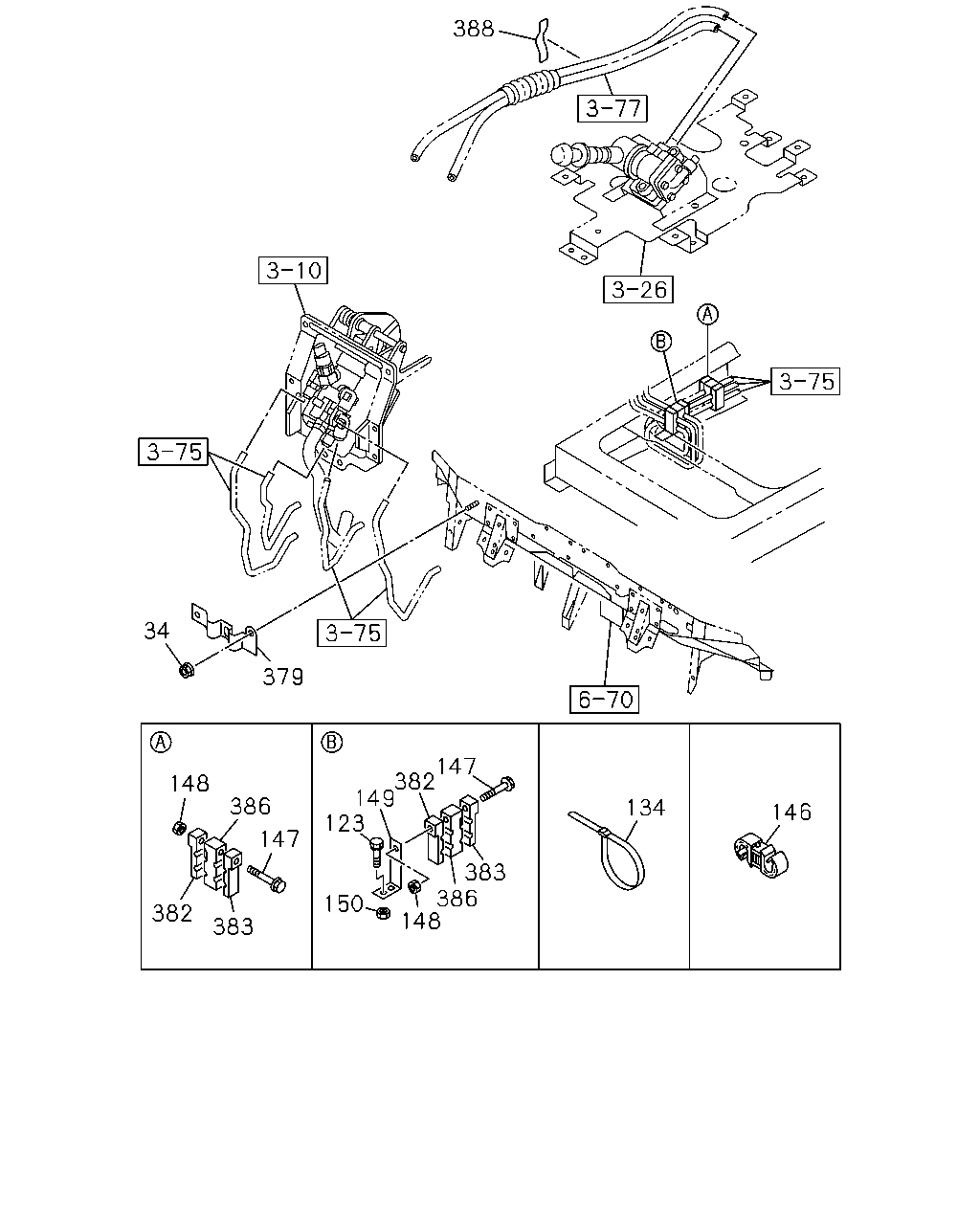

388 34 379 146 134 147 382 149 123 383 386 148 150 147 386 148 382 383

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	NUT; BRKT M6 FLANGE	0-91180-106-0	02	1	1403-
123	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	02	1	1403-
134	CLIP; AIR PIPE L=350	1-09707-183-0	01	1	1403-
146	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	02	1	1403-
147	BOLT; PIPE CLIP M8X70 FLANGE	0-28050-870-0	03	1	1403-
148	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	03	1	1403-
149	BRACKET; PIPE CLIP	1-47476-792-0	01	1	1403-1409
149	BRACKET; PIPE CLIP	8-98296-534-0	01	1	1410-
150	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	1403-
379	BRACKET; NYLON TUBE	8-98044-013-0	01	1	1403-
382	CLIP; UPR ID=10 & 10	1-09709-241-0	03	1	1403-
383	CLIP; LWR ID=10 & 10	1-09709-241-0	03	1	1403-
386	CLIP; CENTER ID=10	1-09709-242-0	03	1	1403-
388	SEAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X40	1-72498-022-1	03	1	1403-

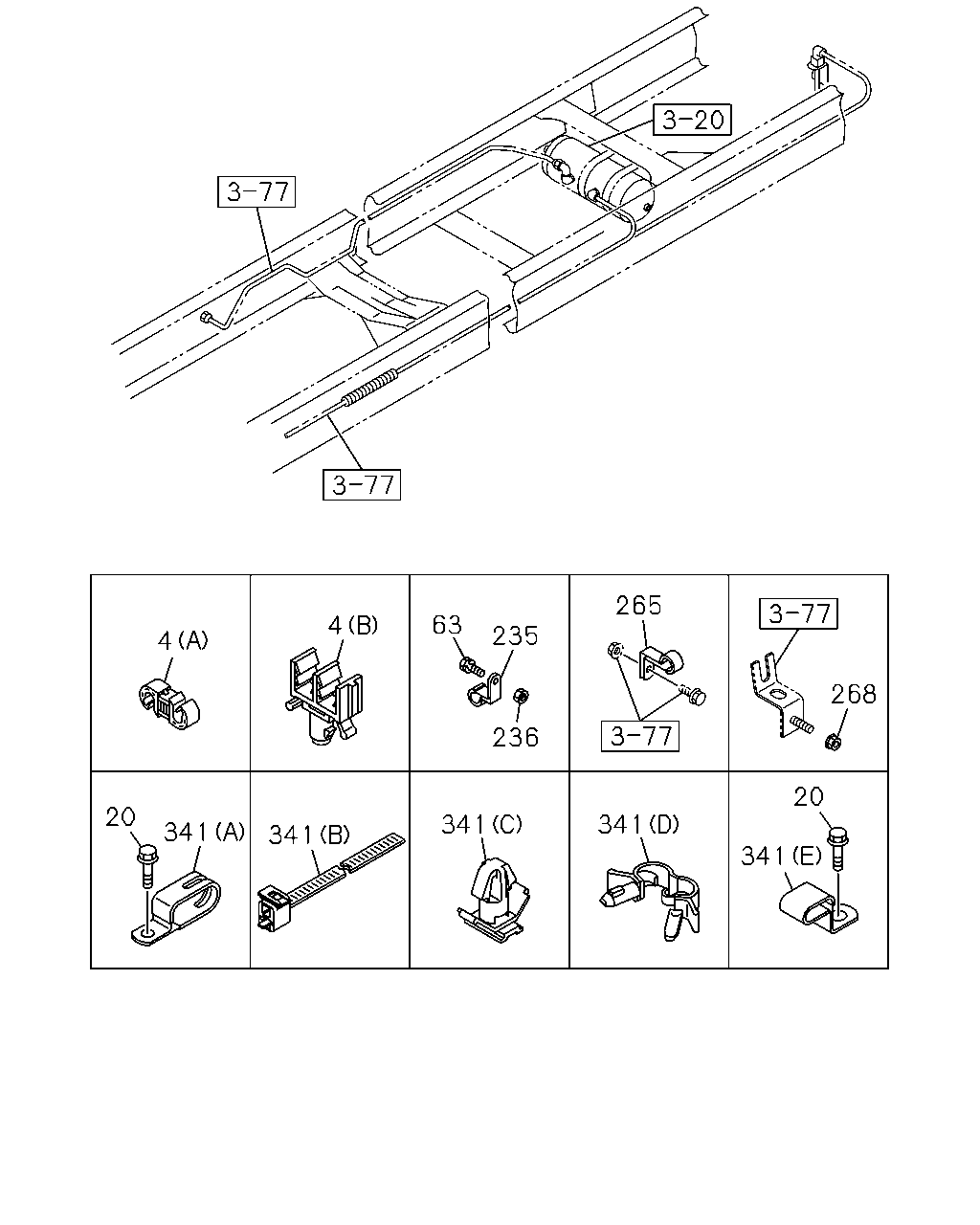

268 265 235 236 63 4 4 20 341 341 341 341 341 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	CLIP; AIR PIPE (C) ID=4.7X4	1-09701-304-0	03	1	1403-
4	CLIP; AIR PIPE (B) ID=4.8X2	8-94316-410-0	01	1	1403-
4	CLIP; AIR PIPE ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) (A) ID=6.35 & 10.0	1-09709-274-1	06	1	1403-
4	CLIP; AIR PIPE ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) (A) ID=10 & 10	1-09709-277-1	08	1	1403-
4	CLIP; AIR PIPE ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) (A) ID=4.76 & 10.0	1-09709-305-0	03	1	1403-
4	CLIP; AIR PIPE ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (A) ID=6.35 & 10.0	1-09709-274-1	03	1	1403-
4	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) ID=6.35 & 10.0	1-09709-274-1	03	1	1403-
4	CLIP; AIR PIPE ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (A) ID=10 & 10	1-09709-277-1	04	1	1403-
4	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) ID=10 & 10	1-09709-277-1	04	1	1403-
4	CLIP; AIR PIPE ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=6.35 & 10.0	1-09709-274-1	05	1	1403-
4	CLIP; AIR PIPE ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=10 & 10	1-09709-277-1	07	1	1403-
4	CLIP; AIR PIPE ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) ID=4.76 & 6.35	1-09709-304-0	02	1	1403-
4	CLIP; AIR PIPE ANTI LOCK BRAKE(JE5) EXC. THROTTLE CONTROL SYSTEM(6XH) (A) ID=4.76 & 6.35	1-09709-304-0	02	1	1403-
4	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) (A) ID=4.76 & 6.35	1-09709-304-0	02	1	1403-
4	CLIP; AIR PIPE ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=4.76 & 10.0	1-09709-305-0	02	1	1403-
4	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (A) ID=4.76 & 10.0	1-09709-305-0	02	1	1403-
4	CLIP; AIR PIPE ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) ID=6.35 & 10.0	1-09709-274-1	02	1	1403-
4	CLIP; AIR PIPE ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) ID=10 & 10	1-09709-277-1	03	1	1403-
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (A) ID=6.35 & 10.0	1-09709-274-1	04	1	1403-
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (A) ID=10 & 10	1-09709-277-1	05	1	1403-
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) (A) ID=6.35 & 10.0	1-09709-274-1	01	1	1403-
4	CLIP; AIR PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) (A) ID=4.76 & 6.35	1-09709-304-0	01	1	1403-
4	CLIP; AIR PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) (A) ID=4.76 & 12	1-09709-306-0	01	1	1403-
4	CLIP; AIR PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (A) ID=4.76 & 10.0	1-09709-305-0	01	1	1403-
20	BOLT; CLIP M10X30 FLANGE	0-28651-030-0	01	1	1403-
20	BOLT; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) M8X20 FLANGE	0-28650-820-0	01	1	1403-
63	BOLT; CLIP WHEEL BASE 4000MM(40W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	03	1	1403-
63	BOLT; CLIP WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	05	1	1403-
63	BOLT; CLIP WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	06	1	1403-
235	CLIP; AIR PIPE WHEEL BASE 4000MM(40W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 H=20 L=20	8-98033-780-0	03	1	1403-
235	CLIP; AIR PIPE WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 H=20 L=20	8-98033-780-0	05	1	1403-
235	CLIP; AIR PIPE WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 H=20 L=20	8-98033-780-0	06	1	1403-
236	NUT; CLIP WHEEL BASE 4000MM(40W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	03	1	1403-
236	NUT; CLIP WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	05	1	1403-
236	NUT; CLIP WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	06	1	1403-
265	CLIP; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=21 H=25.5 L=26	8-94176-806-0	01	1	1403-
268	NUT; CLIP BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	01	1	1403-
341	CLIP; HARNESS (B) L=180	1-09707-162-1	01	1	1403-
341	CLIP; HARNESS (C) OD=9 H=6	1-09709-178-0	02	1	1403-
341	CLIP; HARNESS (D) ID=5-12 L=14.5	1-09987-221-0	04	1	1403-
341	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (A) ID=17.5X2 L=25	5-09700-358-0	01	1	1403-
341	CLIP; HARNESS EXC. ANTI LOCK BRAKE(JE5) (E) ID=5.5X2 L=35	1-09700-974-0	01	1	1403-
341	CLIP; HARNESS EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) (F) ID=11 L=20	0-95235-035-0	01	1	1403-
341	CLIP; HARNESS EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) (G) L=250	5-09707-030-1	01	1	1403-

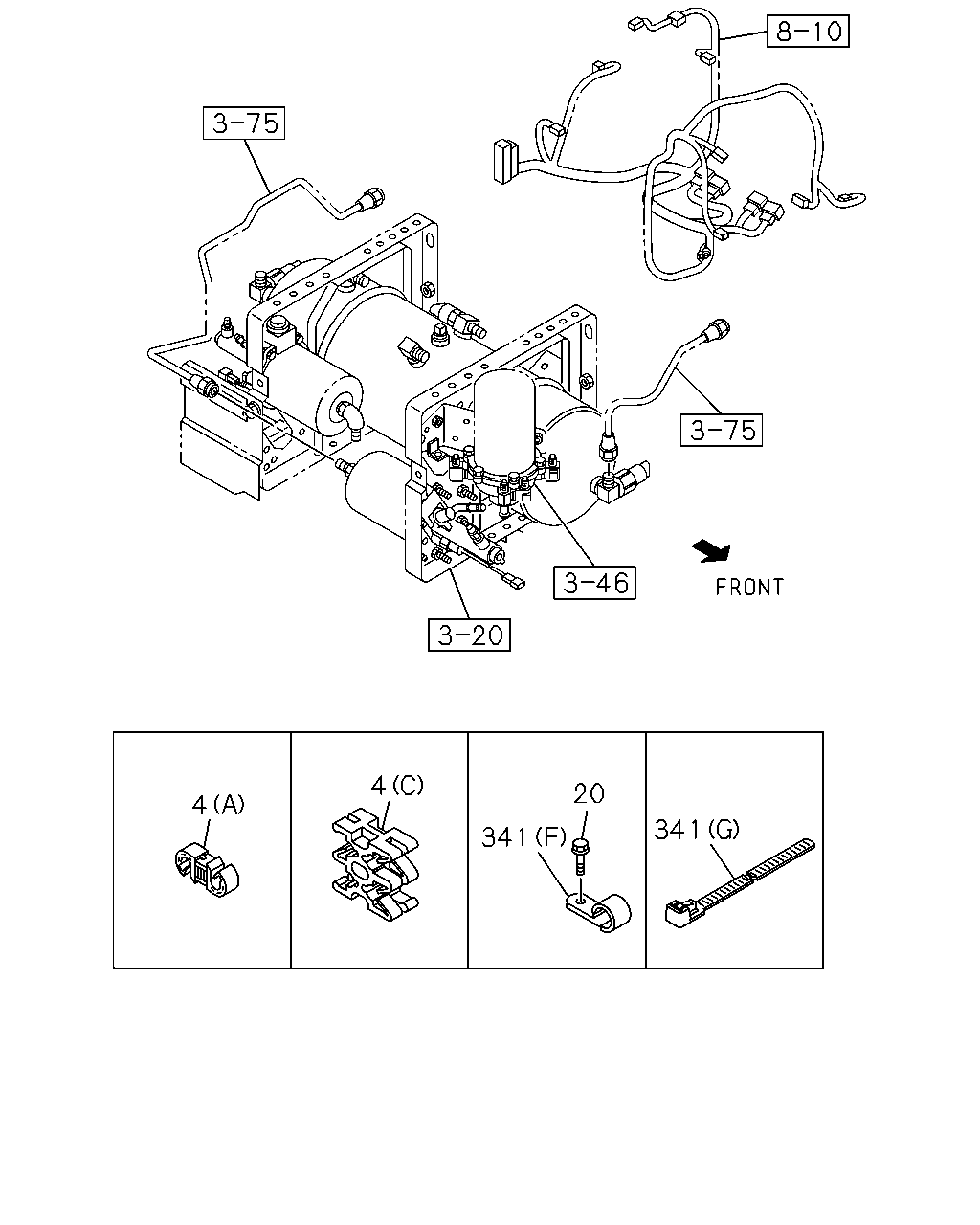

341 20 341 4 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	CLIP; AIR PIPE (C) ID=4.7X4	1-09701-304-0	03	1	1403-
4	CLIP; AIR PIPE (B) ID=4.8X2	8-94316-410-0	01	1	1403-
4	CLIP; AIR PIPE ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) (A) ID=6.35 & 10.0	1-09709-274-1	06	1	1403-
4	CLIP; AIR PIPE ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) (A) ID=10 & 10	1-09709-277-1	08	1	1403-
4	CLIP; AIR PIPE ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) (A) ID=4.76 & 10.0	1-09709-305-0	03	1	1403-
4	CLIP; AIR PIPE ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (A) ID=6.35 & 10.0	1-09709-274-1	03	1	1403-
4	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) ID=6.35 & 10.0	1-09709-274-1	03	1	1403-
4	CLIP; AIR PIPE ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (A) ID=10 & 10	1-09709-277-1	04	1	1403-
4	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) ID=10 & 10	1-09709-277-1	04	1	1403-
4	CLIP; AIR PIPE ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=6.35 & 10.0	1-09709-274-1	05	1	1403-
4	CLIP; AIR PIPE ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=10 & 10	1-09709-277-1	07	1	1403-
4	CLIP; AIR PIPE ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) ID=4.76 & 6.35	1-09709-304-0	02	1	1403-
4	CLIP; AIR PIPE ANTI LOCK BRAKE(JE5) EXC. THROTTLE CONTROL SYSTEM(6XH) (A) ID=4.76 & 6.35	1-09709-304-0	02	1	1403-
4	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) (A) ID=4.76 & 6.35	1-09709-304-0	02	1	1403-
4	CLIP; AIR PIPE ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=4.76 & 10.0	1-09709-305-0	02	1	1403-
4	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (A) ID=4.76 & 10.0	1-09709-305-0	02	1	1403-
4	CLIP; AIR PIPE ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) ID=6.35 & 10.0	1-09709-274-1	02	1	1403-
4	CLIP; AIR PIPE ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) ID=10 & 10	1-09709-277-1	03	1	1403-
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (A) ID=6.35 & 10.0	1-09709-274-1	04	1	1403-
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (A) ID=10 & 10	1-09709-277-1	05	1	1403-
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) (A) ID=6.35 & 10.0	1-09709-274-1	01	1	1403-
4	CLIP; AIR PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) (A) ID=4.76 & 6.35	1-09709-304-0	01	1	1403-
4	CLIP; AIR PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) (A) ID=4.76 & 12	1-09709-306-0	01	1	1403-
4	CLIP; AIR PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (A) ID=4.76 & 10.0	1-09709-305-0	01	1	1403-
20	BOLT; CLIP M10X30 FLANGE	0-28651-030-0	01	1	1403-
20	BOLT; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) M8X20 FLANGE	0-28650-820-0	01	1	1403-
341	CLIP; HARNESS (B) L=180	1-09707-162-1	01	1	1403-
341	CLIP; HARNESS (C) OD=9 H=6	1-09709-178-0	02	1	1403-
341	CLIP; HARNESS (D) ID=5-12 L=14.5	1-09987-221-0	04	1	1403-
341	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (A) ID=17.5X2 L=25	5-09700-358-0	01	1	1403-
341	CLIP; HARNESS EXC. ANTI LOCK BRAKE(JE5) (E) ID=5.5X2 L=35	1-09700-974-0	01	1	1403-
341	CLIP; HARNESS EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) (F) ID=11 L=20	0-95235-035-0	01	1	1403-
341	CLIP; HARNESS EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) (G) L=250	5-09707-030-1	01	1	1403-
