3-70 — BRAKE PIPING; AIR,AIR MASTER (#129455) — 85 parça

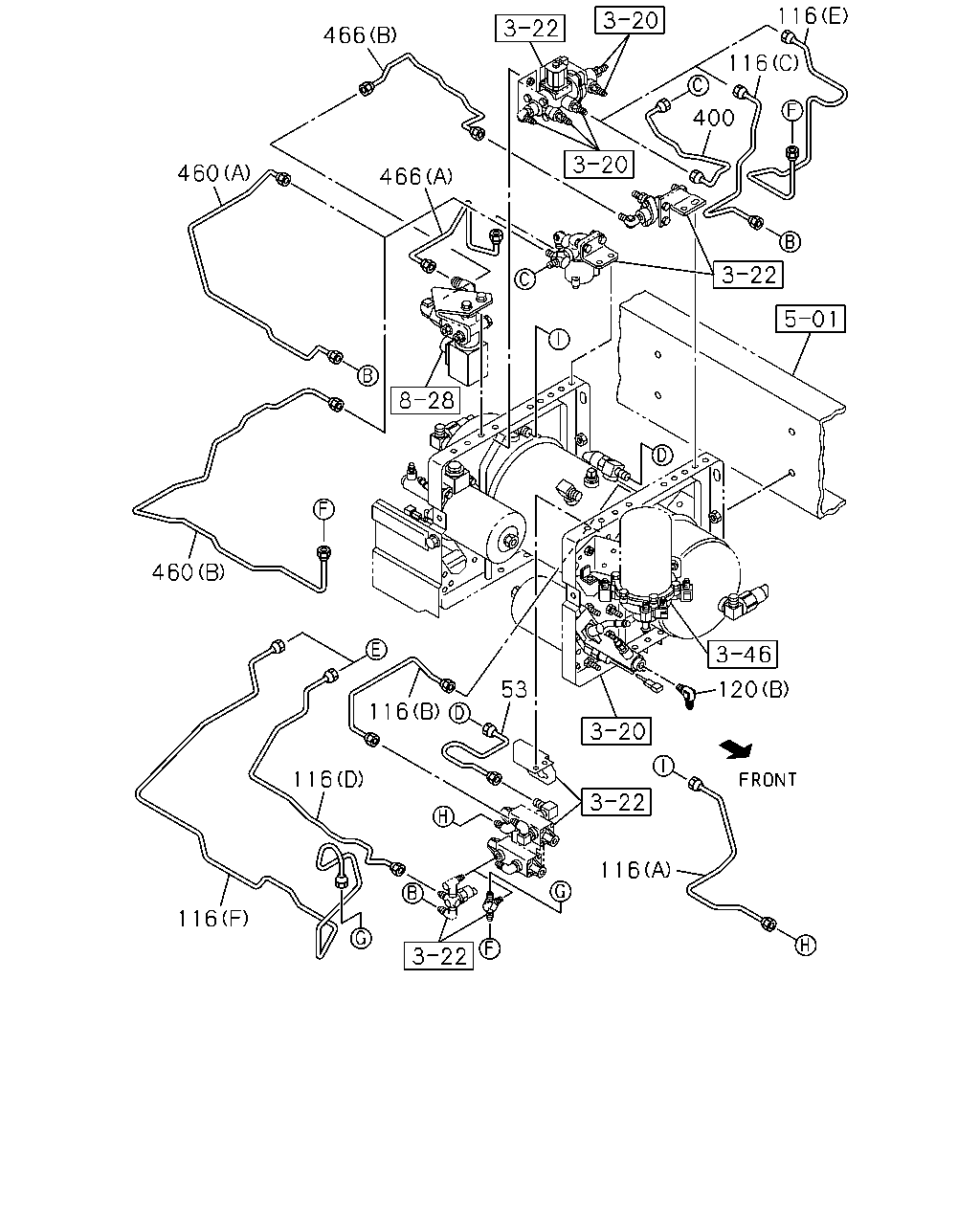

116 116 116 53 116 120 400 116 116 466 466 460 460

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	PIPE; AIR,AIR TANK TO VALVE ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH)	8-98213-331-0	01	1	1403-
53	PIPE; AIR,AIR TANK TO VALVE ANTI LOCK BRAKE(JE5) EXC. THROTTLE CONTROL SYSTEM(6XH)	8-98213-331-0	01	1	1403-
53	PIPE; AIR,AIR TANK TO VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH)	8-98213-331-0	01	1	1403-
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) (D) L=1072 SERVICED BY L=1100	1-47428-815-0	01	1	1403-
116	PIPE; AIR,PROTECTION VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (D) L=1072 SERVICED BY L=1100	1-47428-815-0	01	1	1403-
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (E) L=666 SERVICED BY L=700	1-47428-811-0	01	1	1403-
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) L=1423 SERVICED BY L=1500	1-47428-819-0	01	1	1403-
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (F) L=1423 SERVICED BY L=1500	1-47428-819-0	01	1	1403-
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (B) L=382	8-98077-880-0	01	1	1403-
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE(JE5) EXC. THROTTLE CONTROL SYSTEM(6XH) (B) L=382	8-98077-880-0	01	1	1403-
116	PIPE; AIR,PROTECTION VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) (B) L=382	8-98077-880-0	01	1	1403-
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) L=480	8-98213-332-0	01	1	1403-
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE(JE5) EXC. THROTTLE CONTROL SYSTEM(6XH) (A) L=480	8-98213-332-0	01	1	1403-
116	PIPE; AIR,PROTECTION VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) (A) L=480	8-98213-332-0	01	1	1403-
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=585 SERVICED BY L=600	1-47428-809-0	01	1	1403-
120	CONNECTOR; AIR PIPE (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	1403-
120	CONNECTOR; AIR PIPE (B) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1403-
400	PIPE; AIR,HSA VLV ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=467	8-98066-848-0	01	1	1403-
460	PIPE; AIR,PROTECTION VALVE ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) (A) L=1036	8-98225-793-0	01	1	1403-
460	PIPE; AIR,PROTECTION VALVE ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98225-792-0	01	1	1403-
466	PIPE; AIR,ASR ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (B) L=682 SERVICED BY L=700	1-47428-870-0	01	1	1403-
466	PIPE; AIR,ASR ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) L=492	8-98077-879-0	01	1	1403-

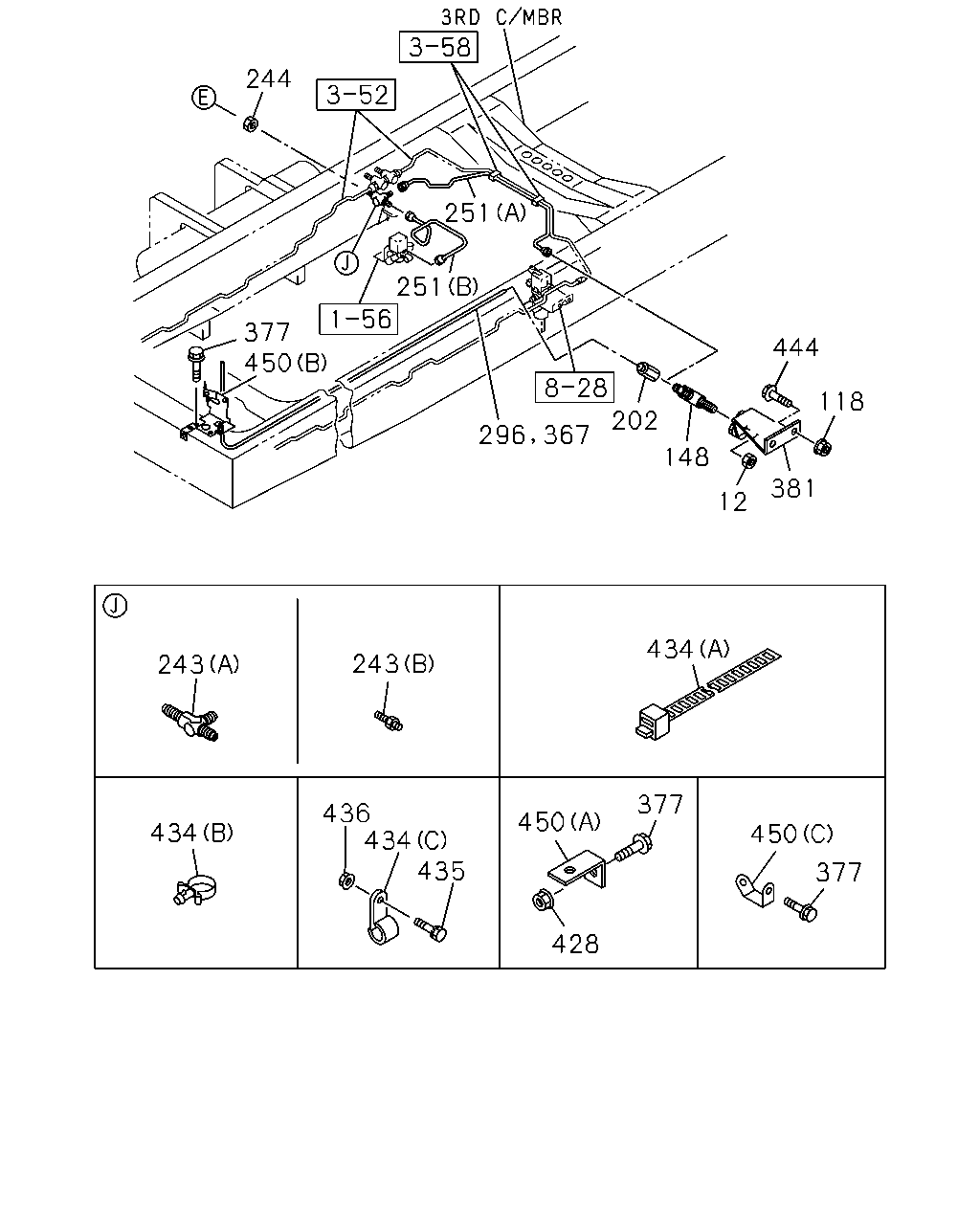

244 251 251 377 444 202 367 296 148 12 381 118 450 243 243 434 377 450 450 377 428 435 434 436 434

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	NUT; UNION AIR SUSP DRIVER SEAT<A56> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12	0-91111-512-0	01	1	1403-
118	NUT; UNION AIR SUSP DRIVER SEAT<A56> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	1403-
148	CONNECTOR; UNION AIR SUSP DRIVER SEAT<A56> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 2WAY	1-09654-059-2	01	1	1403-
202	ADAPTER AIR SUSP DRIVER SEAT<A56> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1403-
243	UNION; AIR PIPE AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12 3WAY	0-92138-906-0	01	1	1403-
243	UNION; AIR PIPE AIR SUSP DRIVER SEAT<A56> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12 3WAY	0-92138-906-0	01	1	1403-
243	UNION; AIR PIPE RIGID SEAT WO/ARM REST<TAZ> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12 L=66.5	0-92113-306-0	01	1	1403-
244	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	1403-
251	PIPE; AIR,UNION TO MAG VLV AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) L=941 SERVICED BY L=1000	1-47428-814-0	01	1	1403-
251	PIPE; AIR,UNION TO MAG VLV AIR SUSP DRIVER SEAT<A56> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) L=941 SERVICED BY L=1000	1-47428-814-0	01	1	1403-
251	PIPE; AIR,UNION TO MAG VLV AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) L=265	8-98067-433-0	01	1	1403-
251	PIPE; AIR,UNION TO MAG VLV AIR SUSP DRIVER SEAT<A56> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) L=265	8-98067-433-0	01	1	1403-
251	PIPE; AIR,UNION TO MAG VLV RIGID SEAT WO/ARM REST<TAZ> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) L=289	8-98120-102-0	01	1	1403-
296	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> SERVICED BY L=4000 OD=6	1-87411-002-0	01	1	1403-
367	TUBE; CORRUGATE AIR SUSP DRIVER SEAT<A56> SERVICED BY L=4000 ID=7	1-87411-017-0	01	1	1403-
377	BOLT; BRKT FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	03	1	1403-
377	BOLT; BRKT FIX AIR SUSP DRIVER SEAT<A56> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	03	1	1403-
377	BOLT; BRKT FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	02	1	1403-
377	BOLT; BRKT FIX AIR SUSP DRIVER SEAT<A56> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	02	1	1403-
381	BRACKET AIR SUSP DRIVER SEAT<A56> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98119-700-0	01	1	1403-
428	NUT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	01	1	1403-
428	NUT; BRKT AIR SUSP DRIVER SEAT<A56> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	01	1	1403-
434	CLIP (D) ID=35 L=33	1-09700-945-0	01	1	1403-
434	CLIP AIR SUSP DRIVER SEAT<A56> (C) ID=7 L=20	0-95234-635-0	01	1	1403-
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	08	1	1403-
434	CLIP AIR SUSP DRIVER SEAT<A56> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	08	1	1403-
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	1403-
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=18-24 L=14.5	1-09709-298-0	02	1	1403-
434	CLIP AIR SUSP DRIVER SEAT<A56> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=18-24 L=14.5	1-09709-298-0	02	1	1403-
435	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	1403-
435	BOLT; CLIP AIR SUSP DRIVER SEAT<A56> M8X20 FLANGE	0-28650-820-0	01	1	1403-
436	NUT; CLIP AIR SUSP DRIVER SEAT<A56> M8 FLANGE	0-91180-108-0	01	1	1403-
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1403-
444	BOLT; UNION AIR SUSP DRIVER SEAT<A56> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 FLANGE	0-28651-030-0	02	1	1403-
450	BRACKET; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47477-694-0	01	1	1403-
450	BRACKET; CLIP AIR SUSP DRIVER SEAT<A56> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47477-694-0	01	1	1403-
450	BRACKET; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98070-479-0	01	1	1403-
450	BRACKET; CLIP AIR SUSP DRIVER SEAT<A56> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98070-479-0	01	1	1403-
450	BRACKET; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98117-686-0	02	1	1403-
450	BRACKET; CLIP AIR SUSP DRIVER SEAT<A56> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98117-686-0	02	1	1403-

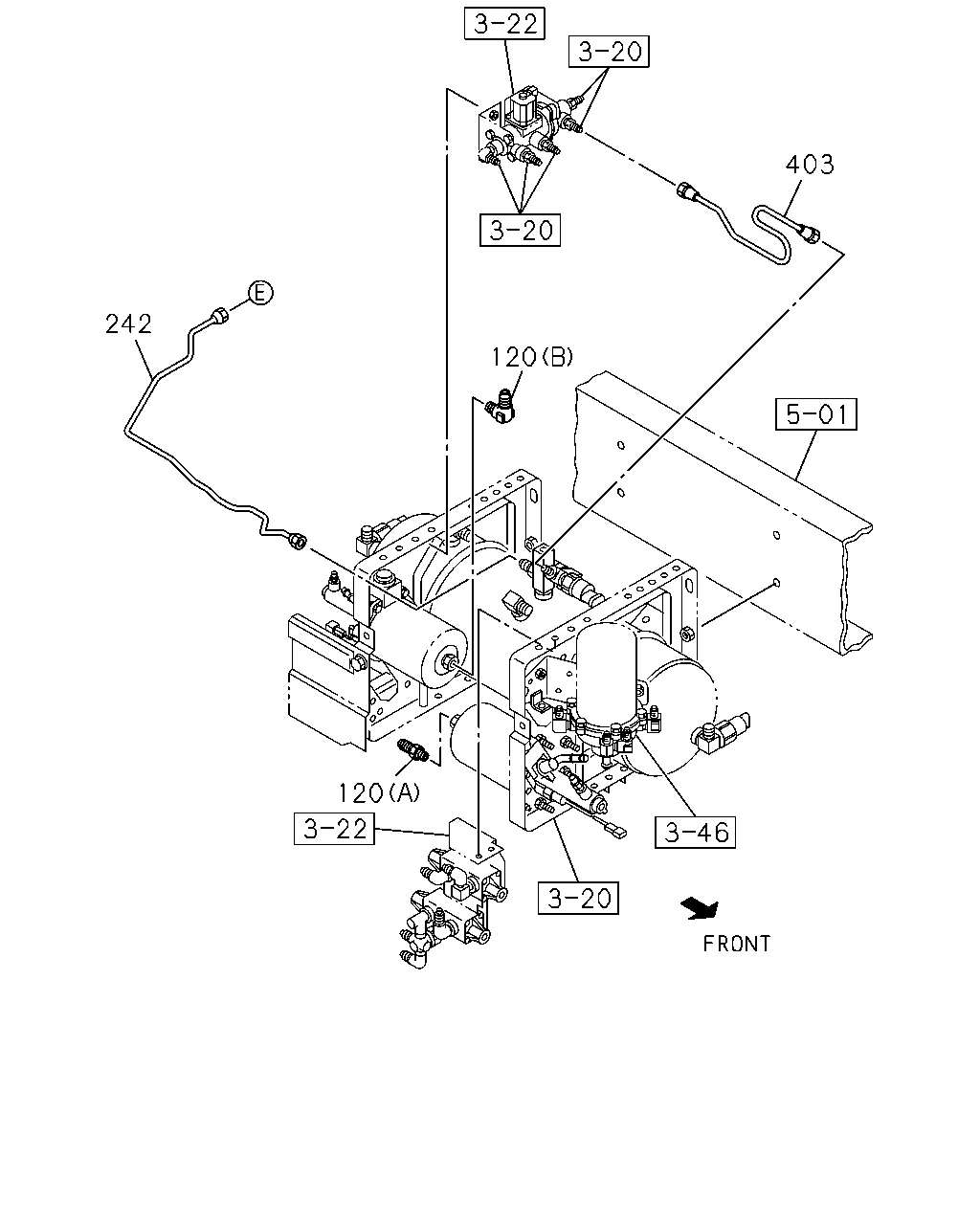

242 403 120 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
120	CONNECTOR; AIR PIPE (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	1403-
120	CONNECTOR; AIR PIPE (B) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1403-
242	PIPE; AIR,AIR TANK TO UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) L=564 SERVICED BY L=600	1-47428-809-0	01	1	1403-
403	PIPE; AIR,AIR TANK TO MAG VLV H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) L=437	8-98213-295-0	01	1	1403-

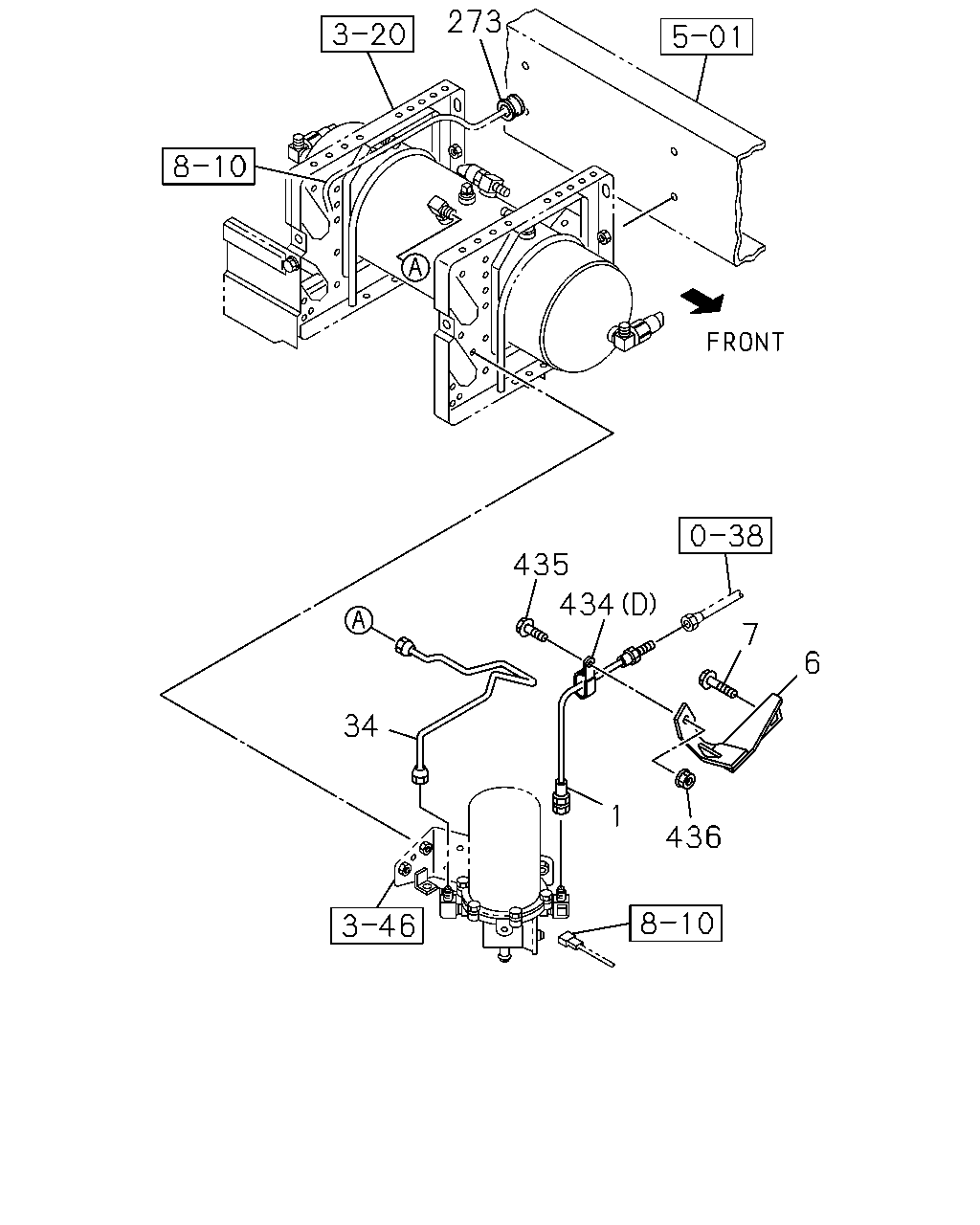

273 435 434 7 6 1 436 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK	8-98066-976-1	01	1	1403-
6	BRACKET; FLEX HOSE,AIR TANK	8-98214-081-1	01	1	1403-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 FLANGE	0-28650-825-0	02	1	1403-
34	PIPE; AIR ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) L=673 SERVICED BY L=700	1-49115-481-0	01	1	1403-
34	PIPE; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) L=673 SERVICED BY L=700	1-49115-481-0	01	1	1403-
34	PIPE; AIR ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=615 SERVICED BY L=660	1-49115-480-0	01	1	1403-
34	PIPE; AIR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) L=615 SERVICED BY L=660	1-49115-480-0	01	1	1403-
273	GROMMET ID=28 OD=35 T=17	9-09956-256-2	02	1	1403-
434	CLIP (D) ID=35 L=33	1-09700-945-0	01	1	1403-
434	CLIP AIR SUSP DRIVER SEAT<A56> (C) ID=7 L=20	0-95234-635-0	01	1	1403-
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	08	1	1403-
434	CLIP AIR SUSP DRIVER SEAT<A56> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	08	1	1403-
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	1403-
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=18-24 L=14.5	1-09709-298-0	02	1	1403-
434	CLIP AIR SUSP DRIVER SEAT<A56> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=18-24 L=14.5	1-09709-298-0	02	1	1403-
435	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	1403-
435	BOLT; CLIP AIR SUSP DRIVER SEAT<A56> M8X20 FLANGE	0-28650-820-0	01	1	1403-
436	NUT; CLIP AIR SUSP DRIVER SEAT<A56> M8 FLANGE	0-91180-108-0	01	1	1403-
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1403-
