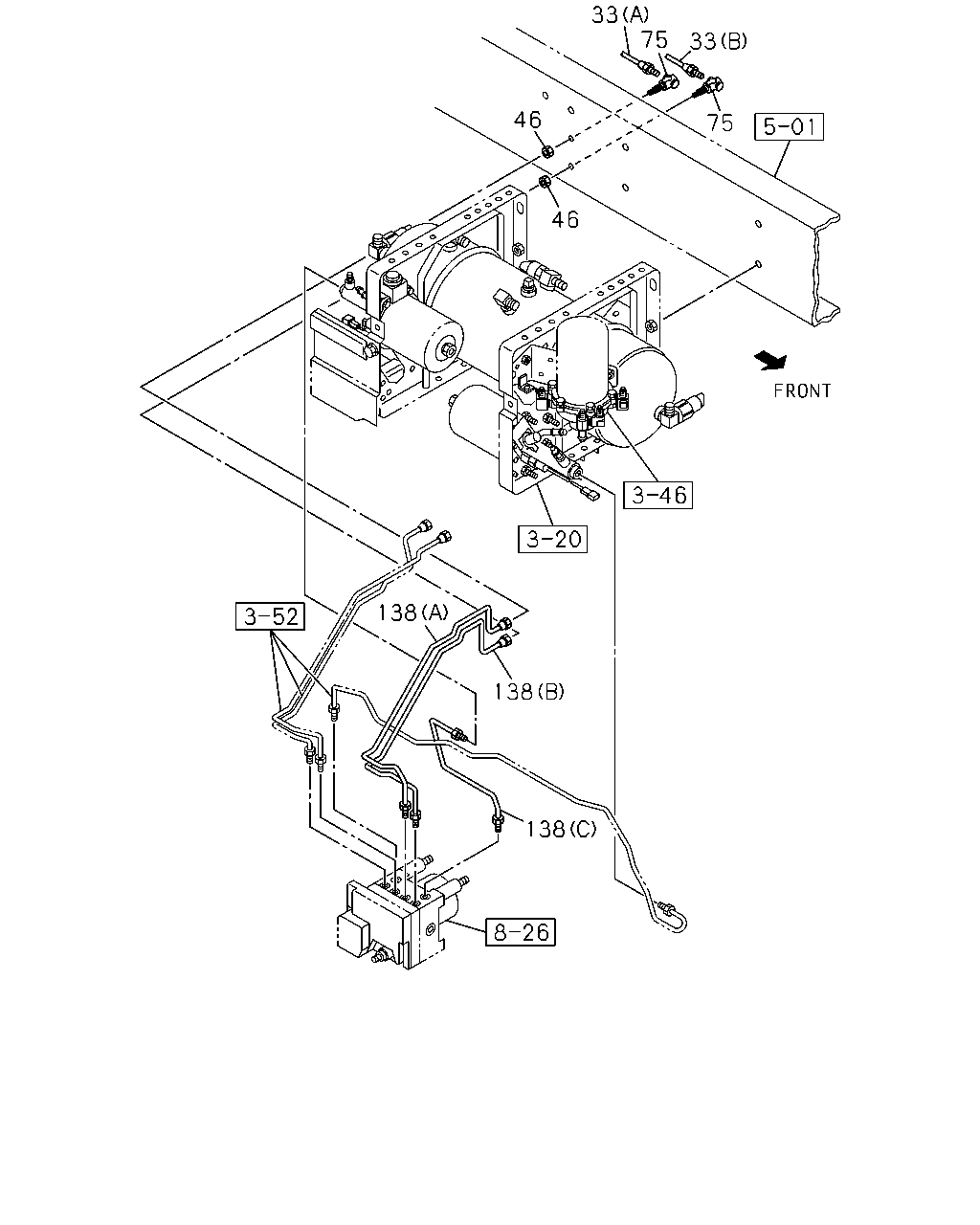

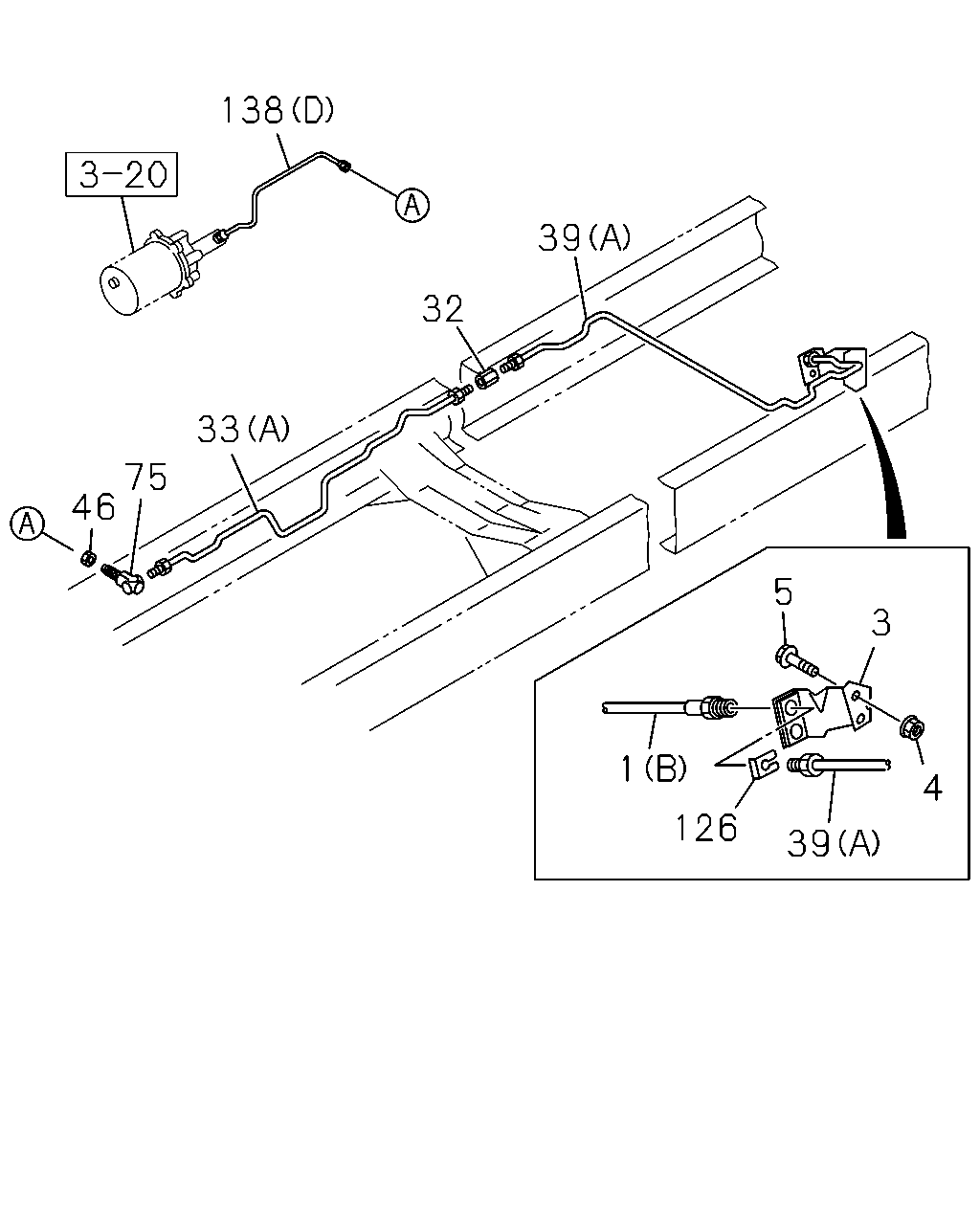

3-55 — BRAKE PIPING; OIL,REAR (#129453) — 106 parça

46 46 33 75 75 33 138 138 138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4000MM(40W) ANTI LOCK BRAKE(JE5) (A) LH LINE L=1665	8-98183-296-0	01	1	1403-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4000MM(40W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=1605	8-98183-297-0	01	1	1403-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4600MM(46W) ANTI LOCK BRAKE(JE5) (A) LH LINE L=2263	8-98183-300-0	01	1	1403-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4600MM(46W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2203	8-98183-301-0	01	1	1403-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5300MM(53W) (A) LH LINE L=2923	8-98183-304-0	01	1	1403-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2863	8-98183-305-0	01	1	1403-
46	NUT; UNION,OIL PIPE ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	02	1	1403-
46	NUT; UNION,OIL PIPE WHEEL BASE 5300MM(53W) EXC. ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	01	1	1403-
75	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) M10X2 ELBOW	8-98018-438-0	02	1	1403-
75	UNION; OIL PIPE WHEEL BASE 5300MM(53W) EXC. ANTI LOCK BRAKE(JE5) M10X2 ELBOW	8-98018-438-0	01	1	1403-
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) LH LINE L=657	8-98012-129-0	01	1	1403-
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE(JE5) EXC. THROTTLE CONTROL SYSTEM(6XH) (A) LH LINE L=657	8-98012-129-0	01	1	1403-
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (B) RH LINE L=703	8-98012-146-0	01	1	1403-
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE(JE5) EXC. THROTTLE CONTROL SYSTEM(6XH) (B) RH LINE L=703	8-98012-146-0	01	1	1403-
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (C) L=296	8-98066-107-0	01	1	1403-
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE(JE5) EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=296	8-98066-107-0	01	1	1403-
138	PIPE; HYDRAULIC UNIT EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) (D) L=697	8-98213-366-0	01	1	1403-

39 3 5 126 1 4 39 32 138 33 75 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK ANTI LOCK BRAKE(JE5) (A) L=350	8-97138-885-0	02	1	1403-
1	HOSE; FLEX,RR BRK EXC. ANTI LOCK BRAKE(JE5) (B) L=485	8-98057-386-1	01	1	1403-
3	BRACKET; FLEX HOSE,RR BRK	8-98065-999-2	01	1	1403-
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91180-108-0	02	1	1403-
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28650-830-0	02	1	1403-
32	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) M10 STRAIGHT	0-92107-005-0	02	1	1403-
32	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5) M10 STRAIGHT	0-92107-005-0	01	1	1403-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4000MM(40W) ANTI LOCK BRAKE(JE5) (A) LH LINE L=1665	8-98183-296-0	01	1	1403-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4000MM(40W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=1605	8-98183-297-0	01	1	1403-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4600MM(46W) ANTI LOCK BRAKE(JE5) (A) LH LINE L=2263	8-98183-300-0	01	1	1403-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4600MM(46W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2203	8-98183-301-0	01	1	1403-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5300MM(53W) (A) LH LINE L=2923	8-98183-304-0	01	1	1403-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2863	8-98183-305-0	01	1	1403-
39	PIPE; OIL,UNION TO RR FLEX HOSE (A) LH LINE L=1710	8-98106-485-0	01	1	1403-
39	PIPE; OIL,UNION TO RR FLEX HOSE ANTI LOCK BRAKE(JE5) (B) RH LINE L=1772	8-98106-486-0	01	1	1403-
46	NUT; UNION,OIL PIPE ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	02	1	1403-
46	NUT; UNION,OIL PIPE WHEEL BASE 5300MM(53W) EXC. ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	01	1	1403-
75	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) M10X2 ELBOW	8-98018-438-0	02	1	1403-
75	UNION; OIL PIPE WHEEL BASE 5300MM(53W) EXC. ANTI LOCK BRAKE(JE5) M10X2 ELBOW	8-98018-438-0	01	1	1403-
126	CLIP; FLEX HOSE ANTI LOCK BRAKE(JE5)	8-97360-054-0	04	1	1403-
126	CLIP; FLEX HOSE EXC. ANTI LOCK BRAKE(JE5)	8-97360-054-0	01	1	1403-
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) LH LINE L=657	8-98012-129-0	01	1	1403-
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE(JE5) EXC. THROTTLE CONTROL SYSTEM(6XH) (A) LH LINE L=657	8-98012-129-0	01	1	1403-
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (B) RH LINE L=703	8-98012-146-0	01	1	1403-
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE(JE5) EXC. THROTTLE CONTROL SYSTEM(6XH) (B) RH LINE L=703	8-98012-146-0	01	1	1403-
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (C) L=296	8-98066-107-0	01	1	1403-
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE(JE5) EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=296	8-98066-107-0	01	1	1403-
138	PIPE; HYDRAULIC UNIT EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) (D) L=697	8-98213-366-0	01	1	1403-

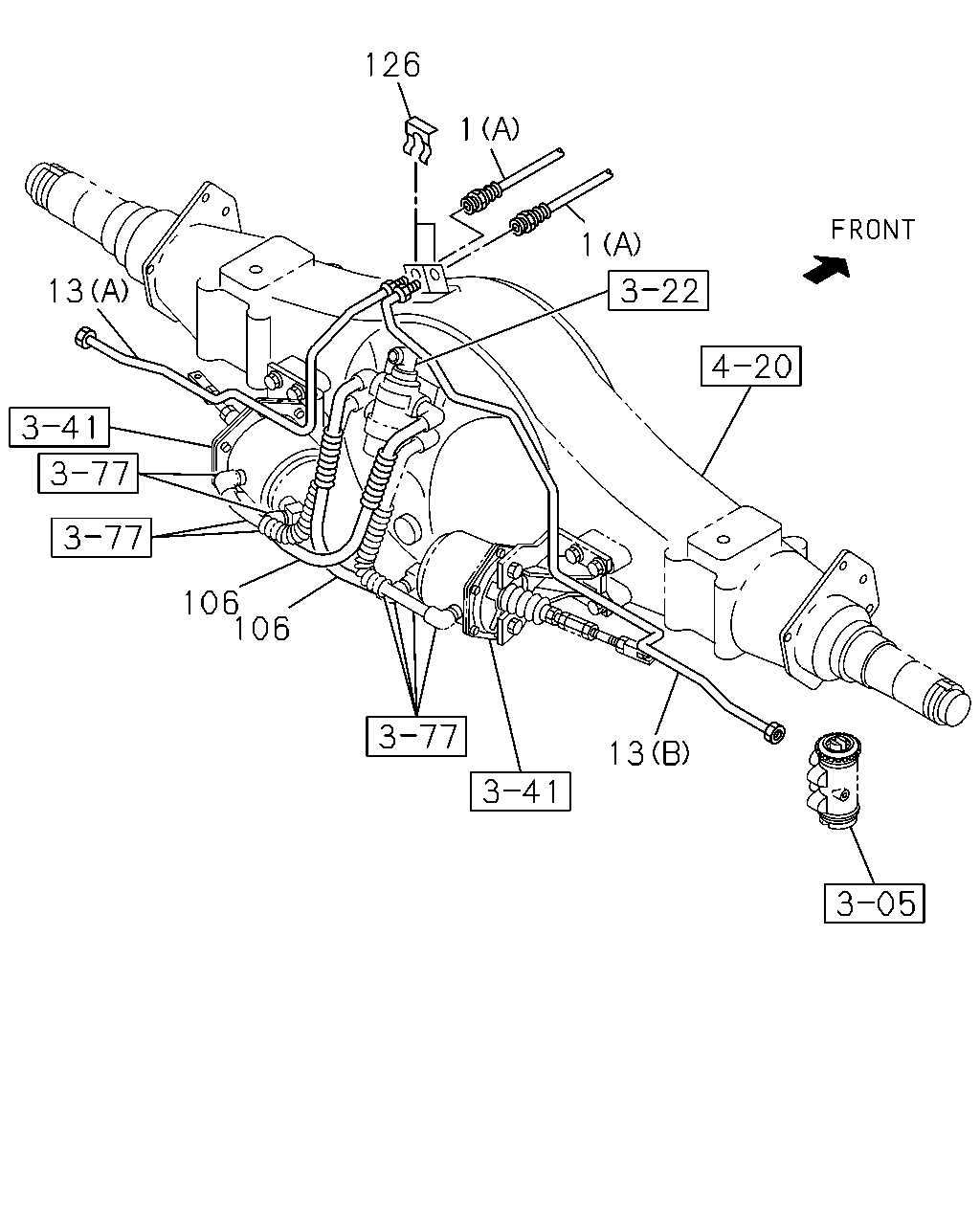

13 106 106 13 12 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK ANTI LOCK BRAKE(JE5) (A) L=350	8-97138-885-0	02	1	1403-
1	HOSE; FLEX,RR BRK EXC. ANTI LOCK BRAKE(JE5) (B) L=485	8-98057-386-1	01	1	1403-
12	BOLT; FLEX HOSE TO RR AXLE EXC. ANTI LOCK BRAKE(JE5) M8X35 FLANGE	0-28650-835-0	01	1	1403-
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) RH LINE	8-98073-530-0	01	1	1410-1410
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LH LINE	8-98073-531-0	01	1	1410-1410
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) (D) RH LINE	8-98029-679-0	01	1	1410-1410
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) (C) LH LINE	8-98029-680-0	01	1	1410-1410
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LH LINE	8-98107-929-0	01	1	1403-1409
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LH LINE	8-98281-558-0	01	1	1410-
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) RH LINE	8-98107-928-0	01	1	1403-1409
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) RH LINE	8-98281-557-0	01	1	1410-
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LH LINE	8-98059-742-0	01	1	1403-
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) RH LINE	8-98059-741-0	01	1	1403-
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (C) LH LINE	8-98107-931-0	01	1	1403-1409
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (C) LH LINE L=645	8-98281-560-0	01	1	1410-
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (D) RH LINE	8-98107-930-0	01	1	1403-1409
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (D) RH LINE L=1030	8-98281-559-0	01	1	1410-
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) (C) LH LINE L=738	8-98071-762-0	01	1	1403-
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) (D) RH LINE L=1115	8-98071-761-0	01	1	1403-
106	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98061-971-0	02	1	1403-

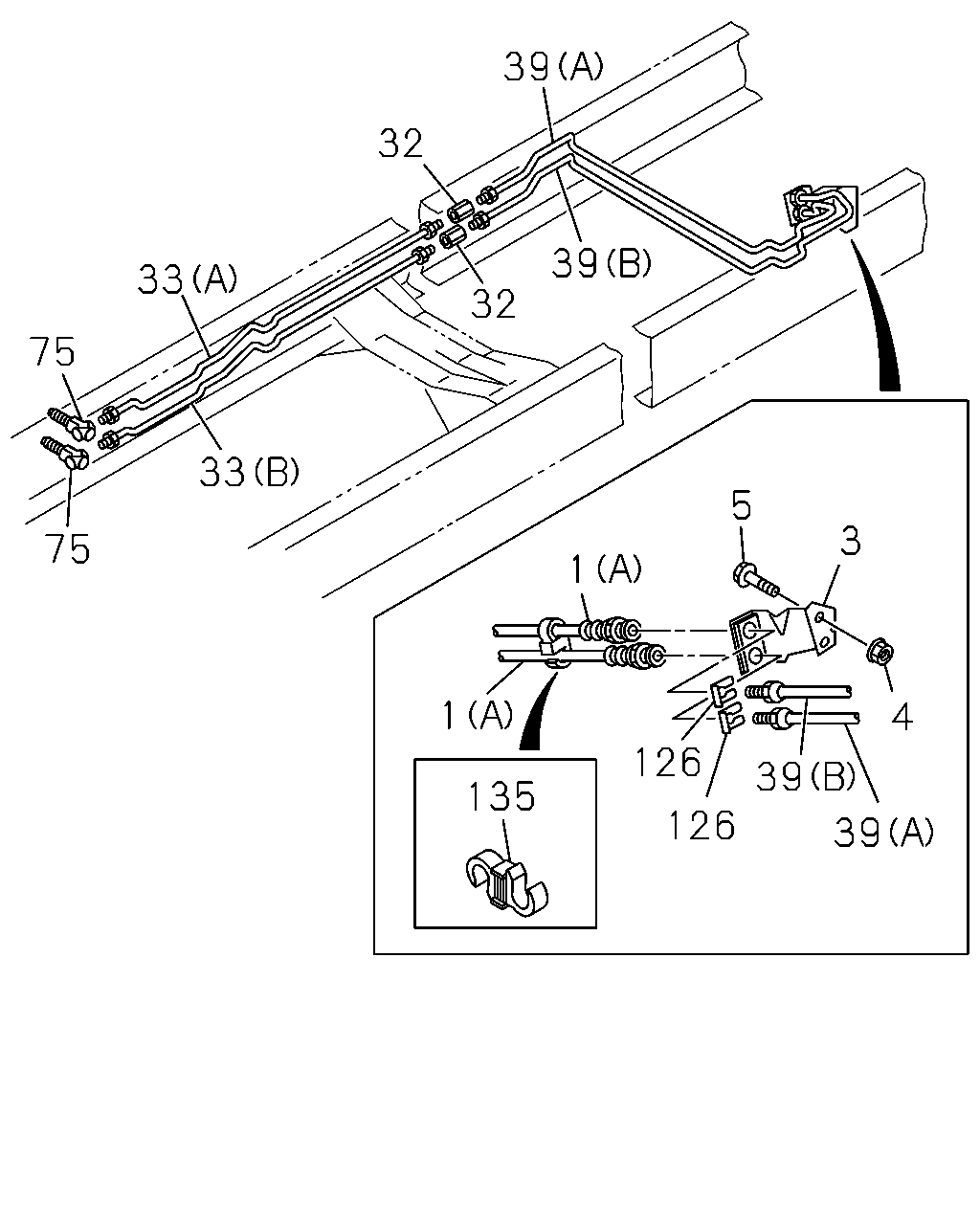

5 4 1 1 135 126 126 39 39 3 39 39 32 32 33 33 75 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK ANTI LOCK BRAKE(JE5) (A) L=350	8-97138-885-0	02	1	1403-
1	HOSE; FLEX,RR BRK EXC. ANTI LOCK BRAKE(JE5) (B) L=485	8-98057-386-1	01	1	1403-
3	BRACKET; FLEX HOSE,RR BRK	8-98065-999-2	01	1	1403-
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91180-108-0	02	1	1403-
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28650-830-0	02	1	1403-
32	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) M10 STRAIGHT	0-92107-005-0	02	1	1403-
32	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5) M10 STRAIGHT	0-92107-005-0	01	1	1403-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4000MM(40W) ANTI LOCK BRAKE(JE5) (A) LH LINE L=1665	8-98183-296-0	01	1	1403-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4000MM(40W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=1605	8-98183-297-0	01	1	1403-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4600MM(46W) ANTI LOCK BRAKE(JE5) (A) LH LINE L=2263	8-98183-300-0	01	1	1403-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4600MM(46W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2203	8-98183-301-0	01	1	1403-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5300MM(53W) (A) LH LINE L=2923	8-98183-304-0	01	1	1403-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2863	8-98183-305-0	01	1	1403-
39	PIPE; OIL,UNION TO RR FLEX HOSE (A) LH LINE L=1710	8-98106-485-0	01	1	1403-
39	PIPE; OIL,UNION TO RR FLEX HOSE ANTI LOCK BRAKE(JE5) (B) RH LINE L=1772	8-98106-486-0	01	1	1403-
75	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) M10X2 ELBOW	8-98018-438-0	02	1	1403-
75	UNION; OIL PIPE WHEEL BASE 5300MM(53W) EXC. ANTI LOCK BRAKE(JE5) M10X2 ELBOW	8-98018-438-0	01	1	1403-
126	CLIP; FLEX HOSE ANTI LOCK BRAKE(JE5)	8-97360-054-0	04	1	1403-
126	CLIP; FLEX HOSE EXC. ANTI LOCK BRAKE(JE5)	8-97360-054-0	01	1	1403-
135	CLIP; FLEX HOSE ANTI LOCK BRAKE(JE5) ID=10 & 10	1-09709-277-1	01	1	1403-

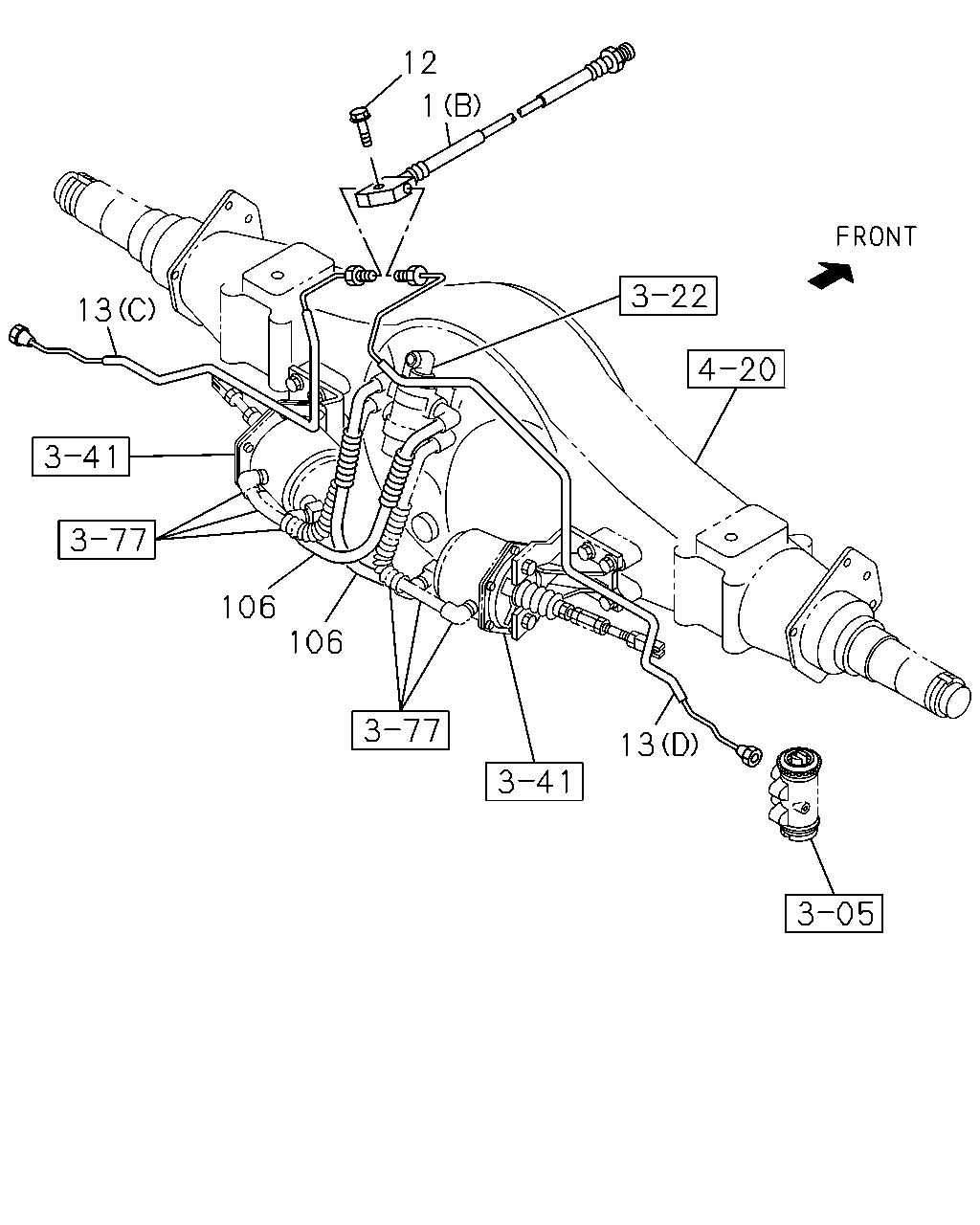

13 106 106 13 126 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK ANTI LOCK BRAKE(JE5) (A) L=350	8-97138-885-0	02	1	1403-
1	HOSE; FLEX,RR BRK EXC. ANTI LOCK BRAKE(JE5) (B) L=485	8-98057-386-1	01	1	1403-
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) RH LINE	8-98073-530-0	01	1	1410-1410
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LH LINE	8-98073-531-0	01	1	1410-1410
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) (D) RH LINE	8-98029-679-0	01	1	1410-1410
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) (C) LH LINE	8-98029-680-0	01	1	1410-1410
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LH LINE	8-98107-929-0	01	1	1403-1409
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LH LINE	8-98281-558-0	01	1	1410-
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) RH LINE	8-98107-928-0	01	1	1403-1409
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) RH LINE	8-98281-557-0	01	1	1410-
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LH LINE	8-98059-742-0	01	1	1403-
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) RH LINE	8-98059-741-0	01	1	1403-
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (C) LH LINE	8-98107-931-0	01	1	1403-1409
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (C) LH LINE L=645	8-98281-560-0	01	1	1410-
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (D) RH LINE	8-98107-930-0	01	1	1403-1409
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) (D) RH LINE L=1030	8-98281-559-0	01	1	1410-
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) (C) LH LINE L=738	8-98071-762-0	01	1	1403-
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) (D) RH LINE L=1115	8-98071-761-0	01	1	1403-
106	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98061-971-0	02	1	1403-
126	CLIP; FLEX HOSE ANTI LOCK BRAKE(JE5)	8-97360-054-0	04	1	1403-
126	CLIP; FLEX HOSE EXC. ANTI LOCK BRAKE(JE5)	8-97360-054-0	01	1	1403-
