◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11553 - FRR RHD EURO5 SPACECAB ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#129452) — 56 parça

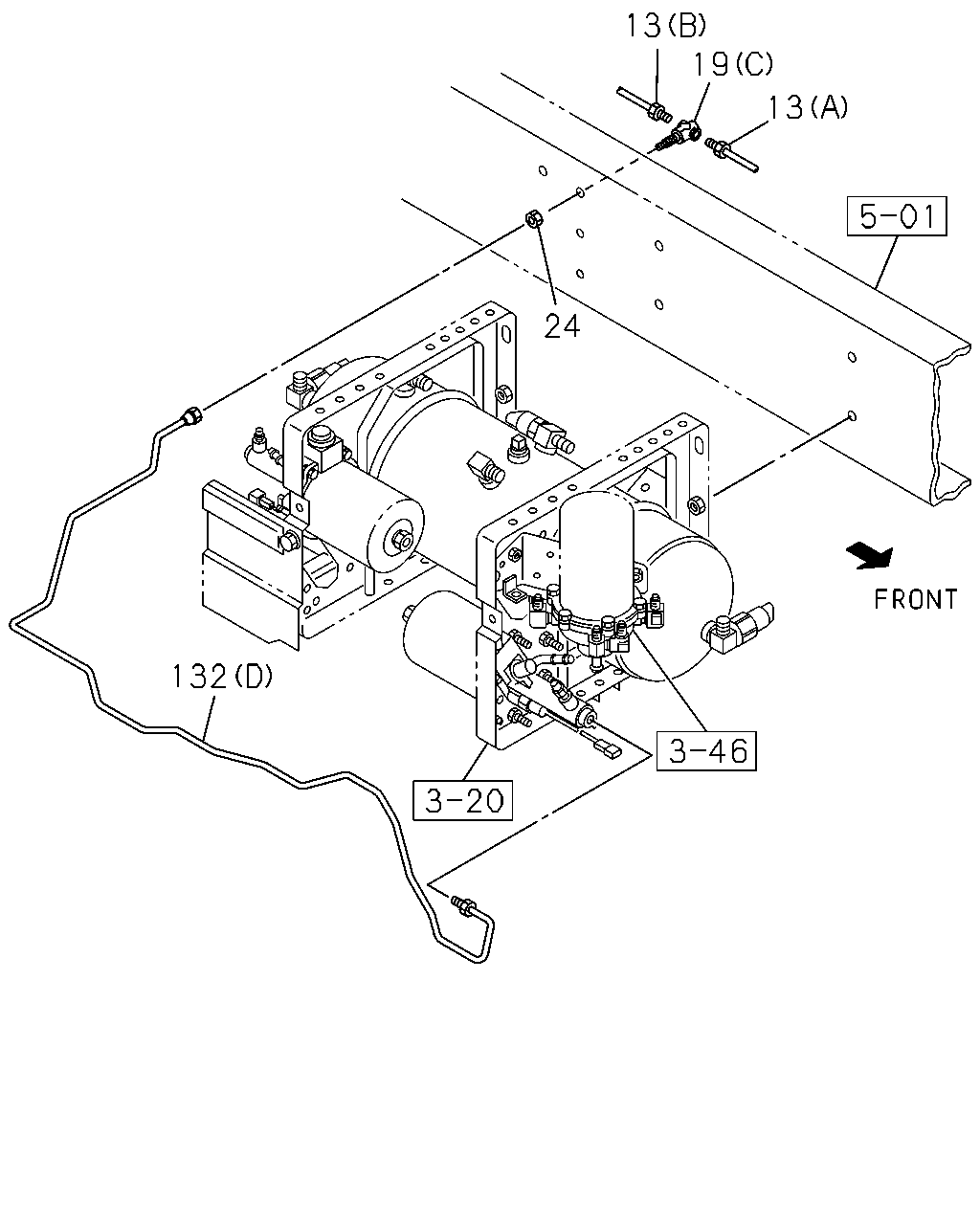

çizim 379959
24 13 13 19 132
BalonParca AdiParca NoAdetTipApplied Date
13 PIPE; OIL,UNION TO UNION
(A) RH LINE L=967 		8-98067-417-0 01 1 1403-
13 PIPE; OIL,UNION TO UNION
ANTI LOCK BRAKE(JE5) (B) LH LINE L=1833 		8-98158-297-0 01 1 1403-
13 PIPE; OIL,UNION TO UNION
EXC. ANTI LOCK BRAKE(JE5) (B) LH LINE L=1891 		8-98113-684-0 01 1 1403-
19 UNION; OIL PIPE
(B) M10 STRAIGHT 		0-92107-005-0 02 1 1403-
19 UNION; OIL PIPE
ANTI LOCK BRAKE(JE5) (A) M10X2 ELBOW 		8-98018-438-0 02 1 1403-
19 UNION; OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) (C) 		8-98113-738-0 01 1 1403-
24 NUT; UNION,OIL PIPE
ANTI LOCK BRAKE(JE5) M10 H=8 		1-09400-029-0 02 1 1403-
24 NUT; UNION,OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) M10 H=8 		1-09400-029-0 01 1 1403-
132 PIPE; OIL,BRK,HYD UNIT
ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) L=625 		8-98116-095-0 01 1 1403-
132 PIPE; OIL,BRK,HYD UNIT
ANTI LOCK BRAKE(JE5) EXC. THROTTLE CONTROL SYSTEM(6XH) (A) L=625 		8-98116-095-0 01 1 1403-
132 PIPE; OIL,BRK,HYD UNIT
ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (B) L=661 		8-98213-363-0 01 1 1403-
132 PIPE; OIL,BRK,HYD UNIT
ANTI LOCK BRAKE(JE5) EXC. THROTTLE CONTROL SYSTEM(6XH) (B) L=661 		8-98213-363-0 01 1 1403-
132 PIPE; OIL,BRK,HYD UNIT
ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (C) L=948 		8-98213-849-0 01 1 1403-
132 PIPE; OIL,BRK,HYD UNIT
ANTI LOCK BRAKE(JE5) EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=948 		8-98213-849-0 01 1 1403-
132 PIPE; OIL,BRK,HYD UNIT
EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) (D) L=1505 		8-98213-211-0 01 1 1403-

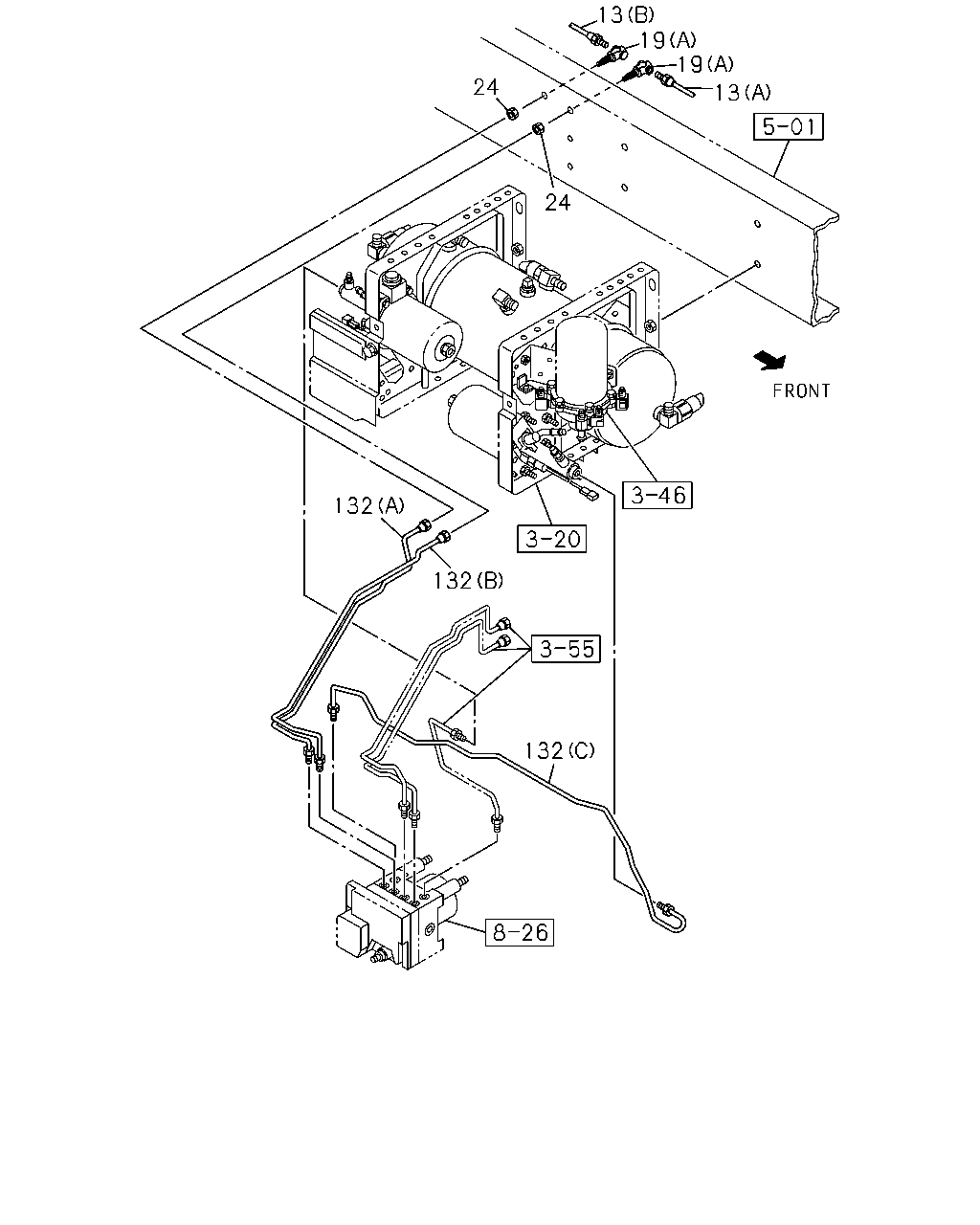

çizim 380014
24 24 13 13 19 19 132 132 132
BalonParca AdiParca NoAdetTipApplied Date
13 PIPE; OIL,UNION TO UNION
(A) RH LINE L=967 		8-98067-417-0 01 1 1403-
13 PIPE; OIL,UNION TO UNION
ANTI LOCK BRAKE(JE5) (B) LH LINE L=1833 		8-98158-297-0 01 1 1403-
13 PIPE; OIL,UNION TO UNION
EXC. ANTI LOCK BRAKE(JE5) (B) LH LINE L=1891 		8-98113-684-0 01 1 1403-
19 UNION; OIL PIPE
(B) M10 STRAIGHT 		0-92107-005-0 02 1 1403-
19 UNION; OIL PIPE
ANTI LOCK BRAKE(JE5) (A) M10X2 ELBOW 		8-98018-438-0 02 1 1403-
19 UNION; OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) (C) 		8-98113-738-0 01 1 1403-
24 NUT; UNION,OIL PIPE
ANTI LOCK BRAKE(JE5) M10 H=8 		1-09400-029-0 02 1 1403-
24 NUT; UNION,OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) M10 H=8 		1-09400-029-0 01 1 1403-
132 PIPE; OIL,BRK,HYD UNIT
ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) L=625 		8-98116-095-0 01 1 1403-
132 PIPE; OIL,BRK,HYD UNIT
ANTI LOCK BRAKE(JE5) EXC. THROTTLE CONTROL SYSTEM(6XH) (A) L=625 		8-98116-095-0 01 1 1403-
132 PIPE; OIL,BRK,HYD UNIT
ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (B) L=661 		8-98213-363-0 01 1 1403-
132 PIPE; OIL,BRK,HYD UNIT
ANTI LOCK BRAKE(JE5) EXC. THROTTLE CONTROL SYSTEM(6XH) (B) L=661 		8-98213-363-0 01 1 1403-
132 PIPE; OIL,BRK,HYD UNIT
ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (C) L=948 		8-98213-849-0 01 1 1403-
132 PIPE; OIL,BRK,HYD UNIT
ANTI LOCK BRAKE(JE5) EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=948 		8-98213-849-0 01 1 1403-
132 PIPE; OIL,BRK,HYD UNIT
EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) (D) L=1505 		8-98213-211-0 01 1 1403-

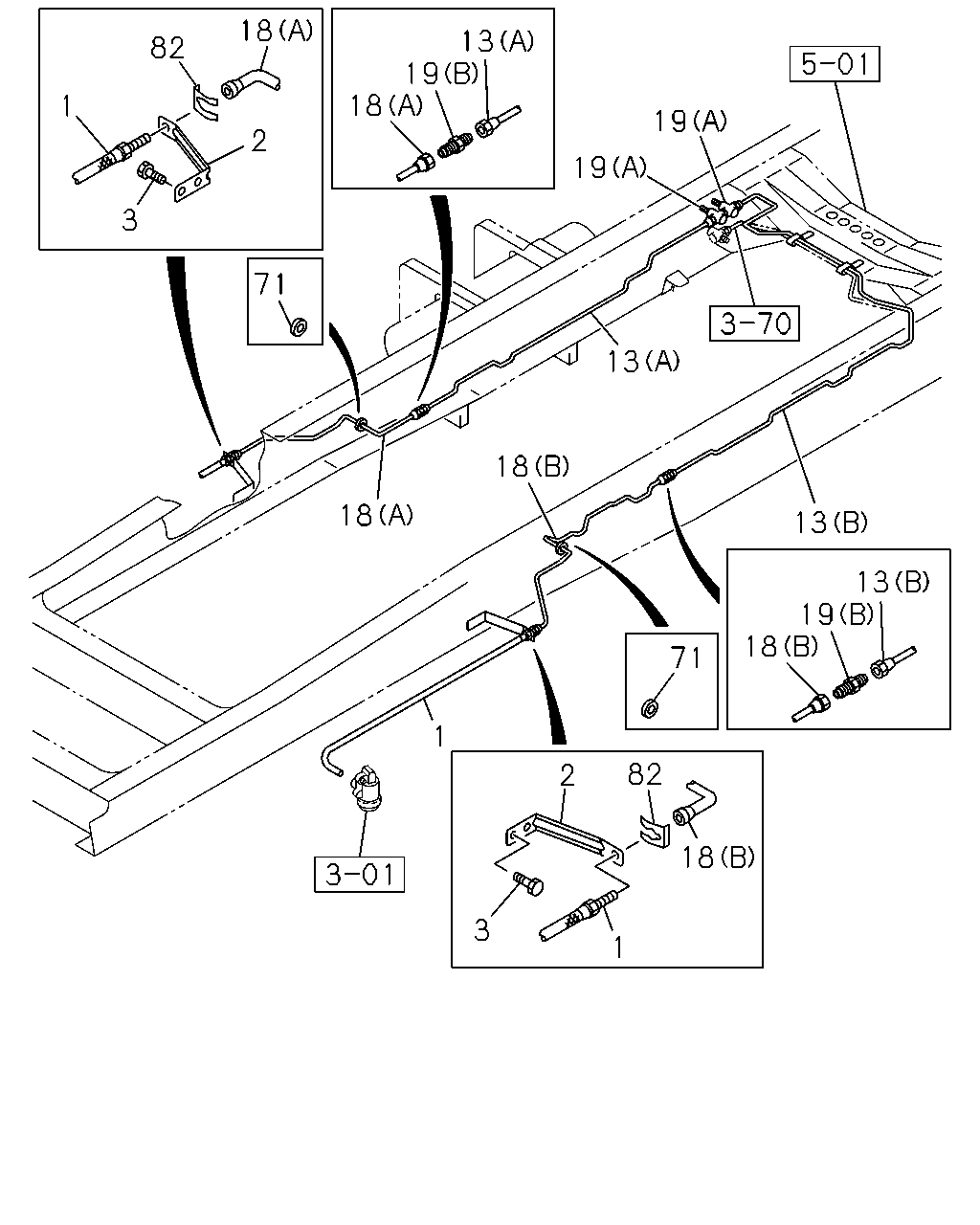

çizim 380261
1 82 18 19 13 18 71 3 2 18 18 13 19 19 13 18 19 13 71 2 1 3 82 18 1
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,FRT BRK
L=660 		8-98232-626-0 02 1 1403-
2 BRACKET; FLEX HOSE,FRT BRK 8-98011-946-1 02 1 1403-
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28650-825-0 04 1 1403-
13 PIPE; OIL,UNION TO UNION
(A) RH LINE L=967 		8-98067-417-0 01 1 1403-
13 PIPE; OIL,UNION TO UNION
ANTI LOCK BRAKE(JE5) (B) LH LINE L=1833 		8-98158-297-0 01 1 1403-
13 PIPE; OIL,UNION TO UNION
EXC. ANTI LOCK BRAKE(JE5) (B) LH LINE L=1891 		8-98113-684-0 01 1 1403-
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) LH LINE L=1016 		8-98065-376-0 01 1 1403-
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) RH LINE L=567 		8-98067-426-0 01 1 1403-
19 UNION; OIL PIPE
(B) M10 STRAIGHT 		0-92107-005-0 02 1 1403-
19 UNION; OIL PIPE
ANTI LOCK BRAKE(JE5) (A) M10X2 ELBOW 		8-98018-438-0 02 1 1403-
19 UNION; OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) (C) 		8-98113-738-0 01 1 1403-
71 GROMMET; OIL PIPE
ID=24 OD=30 T=17 		9-09956-092-1 02 1 1403-
82 PLATE; FLEX HOSE 8-97360-054-0 02 1 1403-
çizim 380420
82 18 1 2 3 19 18 13 13 19 18 18 2 1 3 18 82 18 19 13 71 13 71 1
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,FRT BRK
L=660 		8-98232-626-0 02 1 1403-
2 BRACKET; FLEX HOSE,FRT BRK 8-98011-946-1 02 1 1403-
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28650-825-0 04 1 1403-
13 PIPE; OIL,UNION TO UNION
(A) RH LINE L=967 		8-98067-417-0 01 1 1403-
13 PIPE; OIL,UNION TO UNION
ANTI LOCK BRAKE(JE5) (B) LH LINE L=1833 		8-98158-297-0 01 1 1403-
13 PIPE; OIL,UNION TO UNION
EXC. ANTI LOCK BRAKE(JE5) (B) LH LINE L=1891 		8-98113-684-0 01 1 1403-
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) LH LINE L=1016 		8-98065-376-0 01 1 1403-
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) RH LINE L=567 		8-98067-426-0 01 1 1403-
19 UNION; OIL PIPE
(B) M10 STRAIGHT 		0-92107-005-0 02 1 1403-
19 UNION; OIL PIPE
ANTI LOCK BRAKE(JE5) (A) M10X2 ELBOW 		8-98018-438-0 02 1 1403-
19 UNION; OIL PIPE
EXC. ANTI LOCK BRAKE(JE5) (C) 		8-98113-738-0 01 1 1403-
71 GROMMET; OIL PIPE
ID=24 OD=30 T=17 		9-09956-092-1 02 1 1403-
82 PLATE; FLEX HOSE 8-97360-054-0 02 1 1403-
