3-46 — AIR DRYER (#129451) — 93 parça

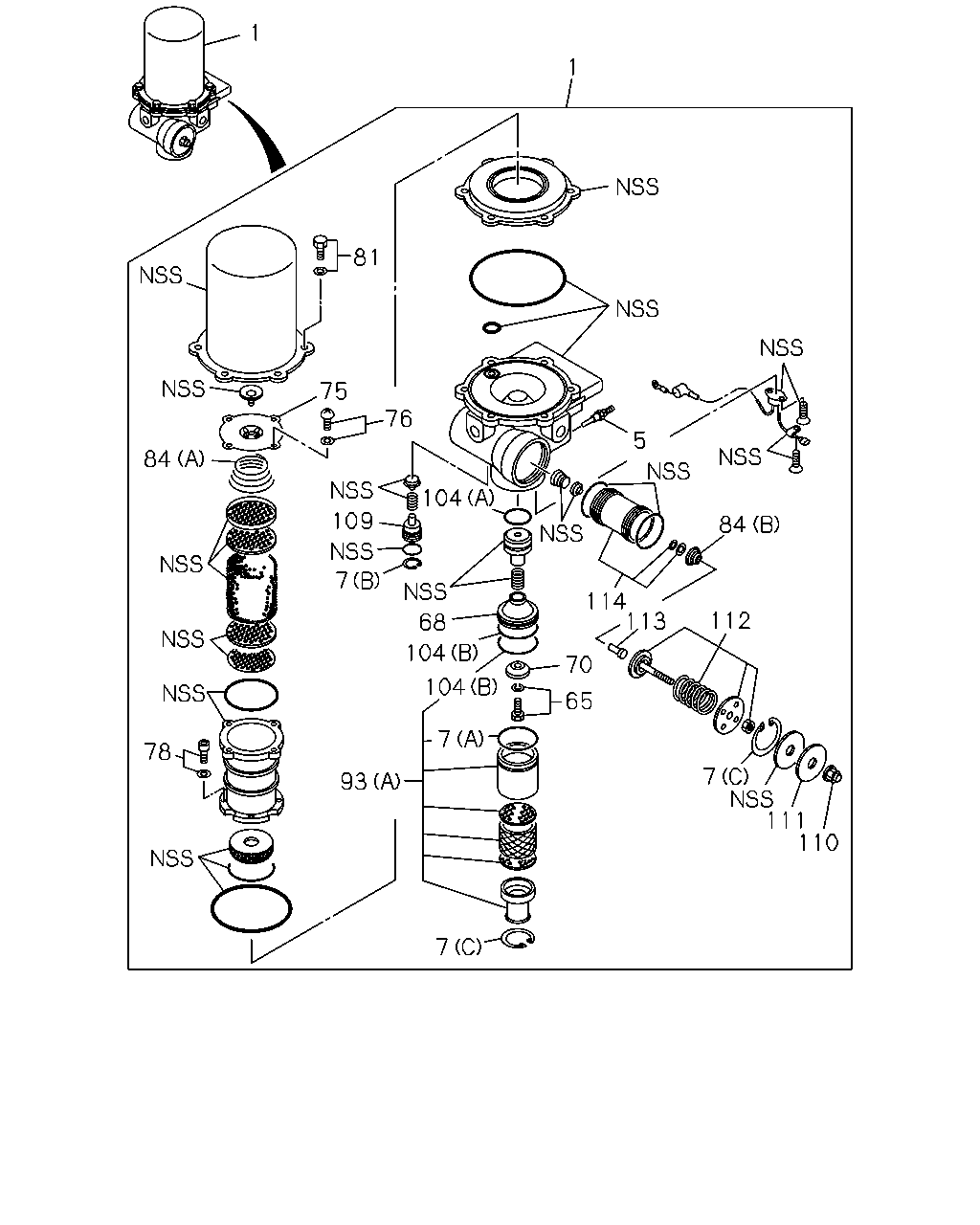

1 1 81 5 76 75 84 109 7 104 104 7 65 114 112 7 111 110 113 70 84 104 7 93 78 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRYER; AIR ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH)	8-98225-285-0	01	1	1403-
1	DRYER; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH)	8-98225-285-0	01	1	1403-
1	DRYER; AIR ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98225-289-0	01	1	1403-
1	DRYER; AIR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH)	8-98225-289-0	01	1	1403-
5	HEATER ASM; AIR DRYER	1-48199-530-0	01	1	1403-
7	RING; SNAP,AIR DRYER (C)	1-48199-520-0	02	1	1403-
7	RING; SNAP,AIR DRYER (B)	1-48199-529-0	01	1	1403-
7	RING; SNAP,AIR DRYER (A)	1-48199-579-0	01	1	1403-
7	RING; SNAP,AIR DRYER ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) (D)	1-47769-017-0	01	1	1403-
7	RING; SNAP,AIR DRYER ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (D)	1-47769-017-0	01	1	1403-
65	BOLT; PURGE VLV	1-48199-517-0	01	1	1403-
68	BODY; VALVE	1-48199-515-0	01	1	1403-
70	VALVE; AIR DRYER	1-48199-504-0	01	1	1403-
75	COVER; CASE,AIR DRYER ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH)	1-48199-427-0	01	1	1403-
75	COVER; CASE,AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH)	1-48199-427-0	01	1	1403-
75	COVER; CASE,AIR DRYER ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48199-395-0	01	1	1403-
75	COVER; CASE,AIR DRYER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH)	1-48199-395-0	01	1	1403-
76	BOLT; COVER,AIR DRYER	1-48199-412-0	04	1	1403-
78	BOLT; OIL FILTER,AIR DRYER	1-48199-417-0	04	1	1403-
81	BOLT; CASE,AIR DRYER	1-48199-436-0	06	1	1403-
84	SPRING; AIR DRYER (B)	1-48199-523-0	01	1	1403-
84	SPRING; AIR DRYER ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) (A)	1-48199-425-0	01	1	1403-
84	SPRING; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (A)	1-48199-425-0	01	1	1403-
84	SPRING; AIR DRYER ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48199-396-0	01	1	1403-
84	SPRING; AIR DRYER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (A)	1-48199-396-0	01	1	1403-
93	SILENCER; AIR DRYER (A)	1-48199-619-0	01	1	1403-
93	SILENCER; AIR DRYER ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) (B)	1-48199-581-0	01	1	1403-
93	SILENCER; AIR DRYER ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (B)	1-48199-581-0	01	1	1403-
104	GASKET (A)	8-98226-321-0	01	1	1403-
104	GASKET ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) (B)	1-48199-496-0	02	1	1403-
104	GASKET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (B)	1-48199-496-0	02	1	1403-
104	GASKET ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48199-496-0	01	1	1403-
104	GASKET EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (B)	1-48199-496-0	01	1	1403-
109	STOPPER; CHECK VALVE	1-48199-539-0	01	1	1403-
110	NUT; CAP	1-48199-527-0	01	1	1403-
111	PLATE; GOVERNOR	1-48199-526-0	01	1	1403-
112	SCREW & SPRING ASM; AIR DRYER	1-48199-524-0	01	1	1403-
113	STEM; EXHAUST	1-48199-522-0	01	1	1403-
114	PISTON ASM; GOVERNOR	1-48199-521-0	01	1	1403-

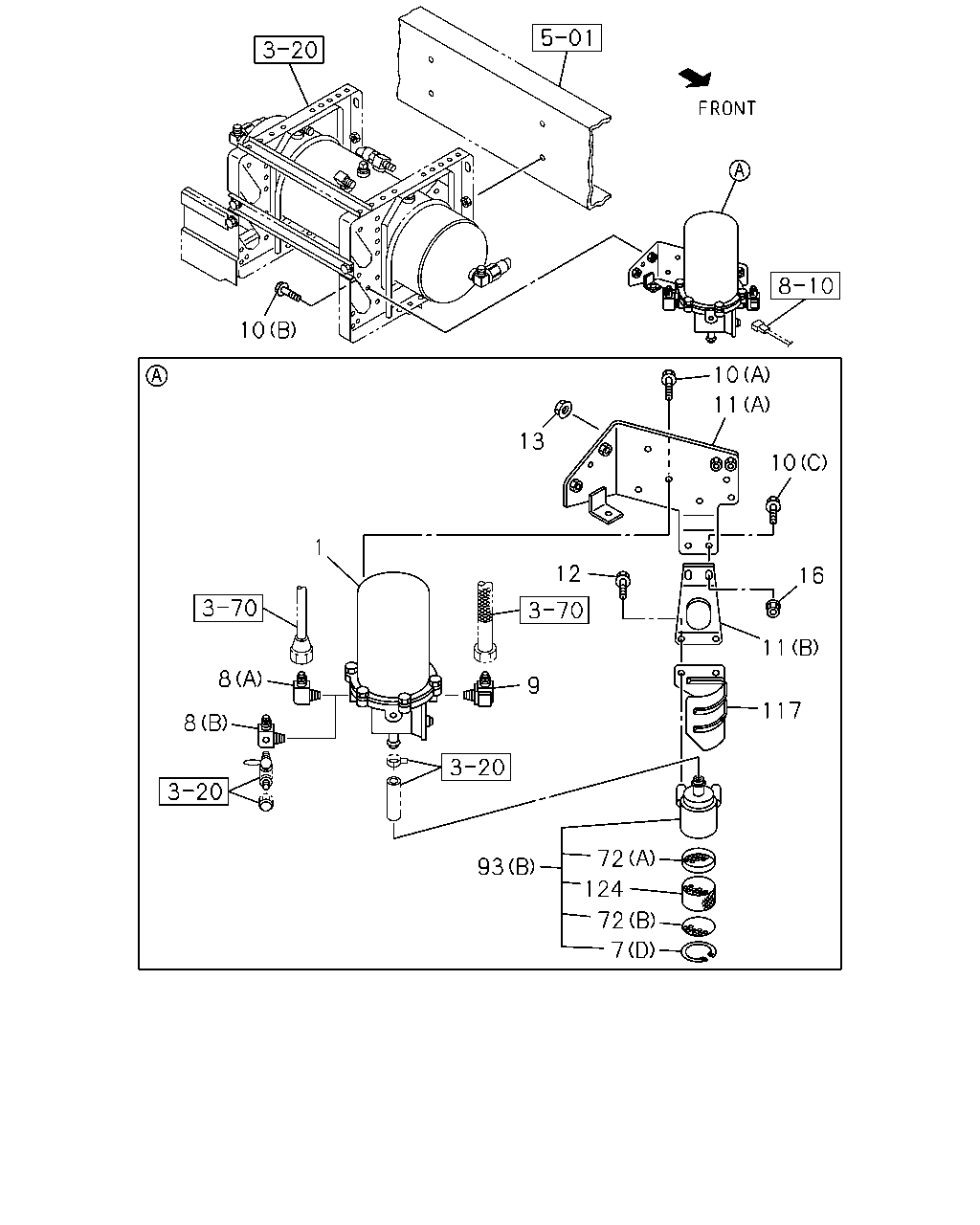

10 1 8 8 13 12 9 93 72 124 72 7 117 11 10 16 10 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRYER; AIR ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH)	8-98225-285-0	01	1	1403-
1	DRYER; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH)	8-98225-285-0	01	1	1403-
1	DRYER; AIR ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98225-289-0	01	1	1403-
1	DRYER; AIR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH)	8-98225-289-0	01	1	1403-
7	RING; SNAP,AIR DRYER (C)	1-48199-520-0	02	1	1403-
7	RING; SNAP,AIR DRYER (B)	1-48199-529-0	01	1	1403-
7	RING; SNAP,AIR DRYER (A)	1-48199-579-0	01	1	1403-
7	RING; SNAP,AIR DRYER ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) (D)	1-47769-017-0	01	1	1403-
7	RING; SNAP,AIR DRYER ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (D)	1-47769-017-0	01	1	1403-
8	CONNECTOR; OUT,AIR DRYER ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) EXC. TIRE INFLATOR DEVICE<SG4> (A) M20 & PT1/2 ELBOW	1-09650-443-0	01	1	1403-
8	CONNECTOR; OUT,AIR DRYER EXC. TIRE INFLATOR DEVICE<SG4>,THROTTLE CONTROL SYSTEM(6XH) (A) M20 & PT1/2 ELBOW	1-09650-443-0	01	1	1403-
8	CONNECTOR; OUT,AIR DRYER ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> TIRE INFLATOR DEVICE<SG4> THROTTLE CONTROL SYSTEM(6XH) (B)	1-09656-676-0	01	1	1403-
8	CONNECTOR; OUT,AIR DRYER TIRE INFLATOR DEVICE<SG4> EXC. THROTTLE CONTROL SYSTEM(6XH) (B)	1-09656-676-0	01	1	1403-
9	CONNECTOR; PIPE,AIR DRYER M22 & PT1/2 ELBOW	0-92134-315-0	01	1	1403-
10	BOLT; AIR DRYER (B) M8X20 FLANGE	0-28050-820-0	02	1	1403-
10	BOLT; AIR DRYER (A) M10X25 FLANGE	0-28051-025-0	03	1	1403-
10	BOLT; AIR DRYER ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) (C) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	1403-
10	BOLT; AIR DRYER ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (C) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	1403-
11	BRACKET; AIR DRYER (A)	8-98044-548-4	01	1	1403-
11	BRACKET; AIR DRYER ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) (B)	8-98039-092-0	01	1	1403-
11	BRACKET; AIR DRYER ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (B)	8-98039-092-0	01	1	1403-
12	BOLT; BRKT ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) M8X20 FLANGE	0-28650-820-0	02	1	1403-
12	BOLT; BRKT ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) M8X20 FLANGE	0-28650-820-0	02	1	1403-
13	NUT; AIR DRYER M8 FLANGE	0-91180-108-0	02	1	1403-
16	NUT; BRKT ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) M8 FLANGE	0-91180-108-0	02	1	1403-
16	NUT; BRKT ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) M8 FLANGE	0-91180-108-0	02	1	1403-
72	PLATE; FILTER,AIR DRYER ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) (A)	1-48199-585-0	01	1	1403-
72	PLATE; FILTER,AIR DRYER ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (A)	1-48199-585-0	01	1	1403-
72	PLATE; FILTER,AIR DRYER ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) (B)	1-48199-602-0	01	1	1403-
72	PLATE; FILTER,AIR DRYER ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (B)	1-48199-602-0	01	1	1403-
93	SILENCER; AIR DRYER (A)	1-48199-619-0	01	1	1403-
93	SILENCER; AIR DRYER ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) (B)	1-48199-581-0	01	1	1403-
93	SILENCER; AIR DRYER ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (B)	1-48199-581-0	01	1	1403-
117	COVER; SILENCER ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH)	8-98065-972-1	01	1	1403-
117	COVER; SILENCER ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH)	8-98065-972-1	01	1	1403-
124	FILTER; SILENCER ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH)	1-48199-465-0	01	1	1403-
124	FILTER; SILENCER ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH)	1-48199-465-0	01	1	1403-

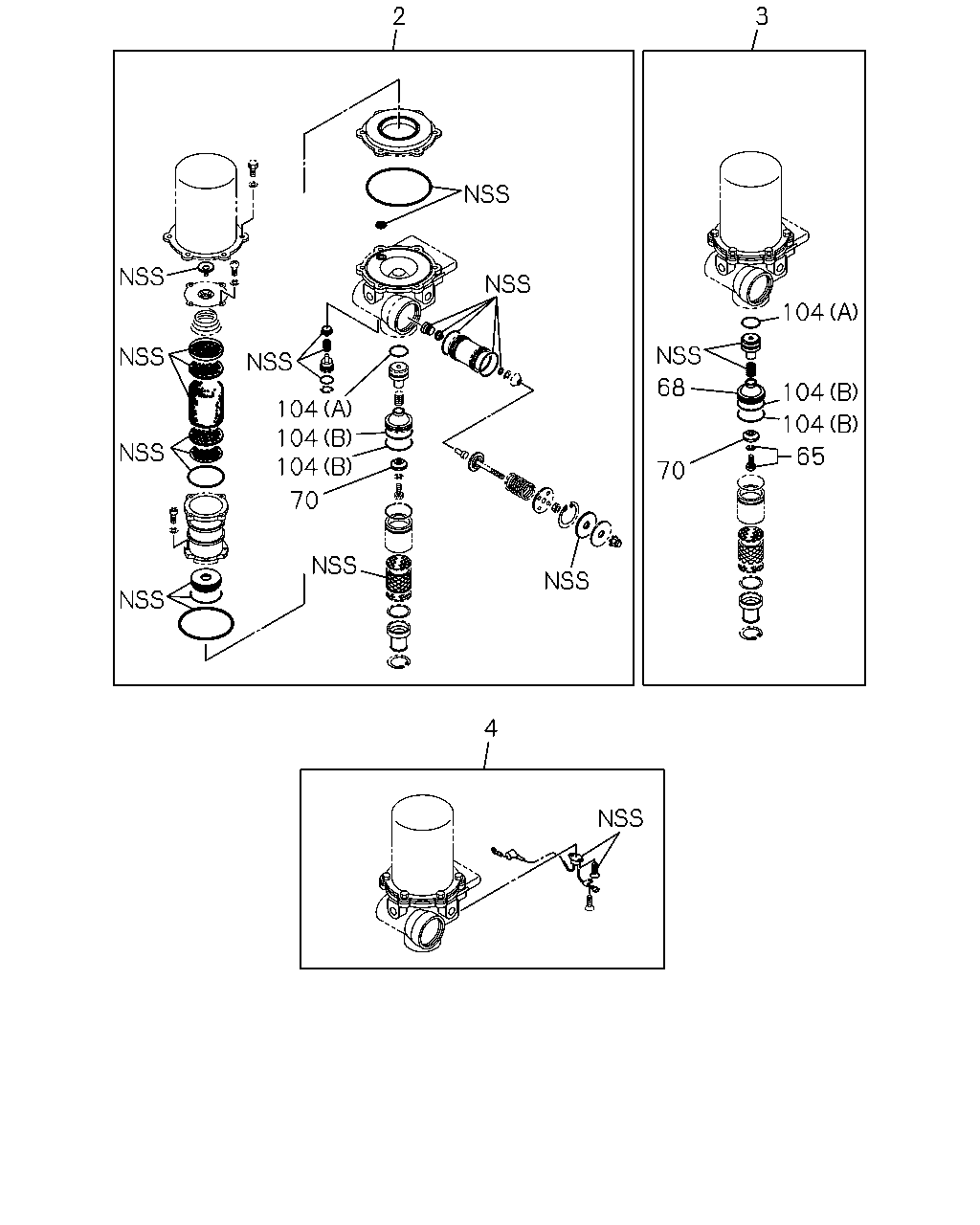

2 3 104 68 104 65 104 70 104 104 104 4 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	REPAIR KIT; AIR DRYER ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH)	8-98226-323-0	01	1	1403-
2	REPAIR KIT; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH)	8-98226-323-0	01	1	1403-
2	REPAIR KIT; AIR DRYER ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98226-326-0	01	1	1403-
2	REPAIR KIT; AIR DRYER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH)	8-98226-326-0	01	1	1403-
3	PISTON KIT; AIR DRYER	8-98226-322-0	01	1	1403-
4	THERMOSTAT KIT; AIR DRYER ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH)	1-85576-443-0	01	1	1403-
4	THERMOSTAT KIT; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH)	1-85576-443-0	01	1	1403-
4	THERMOSTAT KIT; AIR DRYER ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-85576-386-0	01	1	1403-
4	THERMOSTAT KIT; AIR DRYER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH)	1-85576-386-0	01	1	1403-
65	BOLT; PURGE VLV	1-48199-517-0	01	1	1403-
68	BODY; VALVE	1-48199-515-0	01	1	1403-
70	VALVE; AIR DRYER	1-48199-504-0	01	1	1403-
104	GASKET (A)	8-98226-321-0	01	1	1403-
104	GASKET ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) (B)	1-48199-496-0	02	1	1403-
104	GASKET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (B)	1-48199-496-0	02	1	1403-
104	GASKET ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48199-496-0	01	1	1403-
104	GASKET EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (B)	1-48199-496-0	01	1	1403-
