6-01 — FRONT BUMPER (#12945) — 58 parça

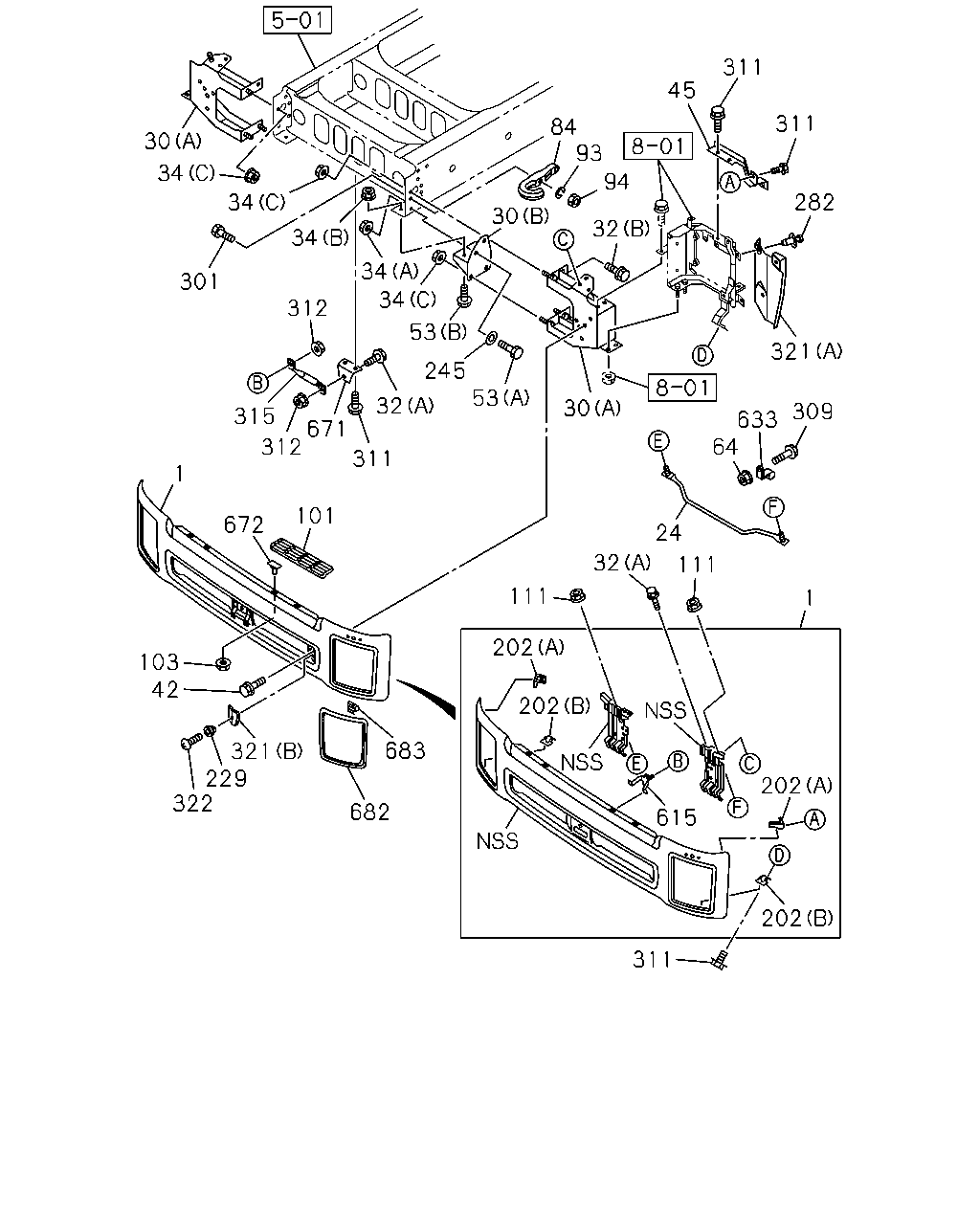

çizim 107147
311 45 311 84 93 30 34 94 282 34 30 32 34 34 301 34 312 53 321 245 53 32 30 309 315 633 64 671 312 311 1 101 672 24 32 111 111 1 202 103 42 202 683 321 229 322 202 682 615 202 311
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER ASM; FRT
WHITE THA 		8-97425-037-0 01 1 1211-
1 BUMPER ASM; FRT
WHITE 		8-97409-903-1 01 1 0807-
24 BAR; FRT BUMPER 8-97625-359-0 01 1 0807-
30 BRACKET; FRT BUMPER
(A) 		8-98034-434-2 01 1 0807-
30 BRACKET; FRT BUMPER
(A) 		8-98034-435-2 01 1 0807-
30 BRACKET; FRT BUMPER
(B) THA 		8-98053-546-1 01 1 0807-
30 BRACKET; FRT BUMPER
(B) THA 		8-98053-547-1 01 1 0807-
32 BOLT; BRKT,BUMPER
(A) M10X30 		8-94324-205-0 01 1 0807-
32 BOLT; BRKT,BUMPER
(B) M12X35 FLANGE THA 		0-28051-235-0 02 1 0807-
34 NUT; BRKT,BUMPER
(B) M14 FLANGE THA 		0-91180-214-0 04 1 0807-
34 NUT; BRKT,BUMPER
(A) M16 THA 		0-91110-516-0 02 1 0807-
34 NUT; BRKT,BUMPER
(C) M12 FLANGE THA 		0-91180-212-0 06 1 0807-
42 BOLT; BUMPER
M10X30 		8-94324-205-0 06 1 0807-
45 BRACKET; BRKT TO BUMPER 8-97613-647-2 01 1 0807-
45 BRACKET; BRKT TO BUMPER 8-97613-648-2 01 1 0807-
53 BOLT; BRKT TO FRAME
(A) M16X40 		0-20851-640-0 02 1 0807-
53 BOLT; BRKT TO FRAME
(B) M14X45 FLANGE THA 		0-28851-445-0 04 1 0807-
64 NUT; CLIP
M6 FLANGE THA 		0-91180-106-0 01 1 0807-
84 HOOK
THA 		1-57181-027-1 01 1 0807-
93 WASHER; LK,HOOK
ID=16.2 		0-91510-816-0 02 1 0807-
94 NUT; HOOK
M16 THA 		0-91110-516-0 02 1 0807-
101 STEP; BUMPER 8-97611-542-0 01 1 0807-
101 STEP; BUMPER 8-97611-543-0 01 1 0807-
103 NUT; BUMPER STEP
M6 FLANGE THA 		0-91180-106-0 04 1 0807-
111 NUT; STAY
M8 FLANGE THA 		0-91180-108-0 02 1 0807-
202 BRACKET; BUMPER SIDE
(A) THA 		8-98184-663-0 01 1 1211-
202 BRACKET; BUMPER SIDE
(A) THA 		8-98184-664-0 01 1 1211-
202 BRACKET; BUMPER SIDE
(B) THA 		8-98184-668-0 01 1 1211-
202 BRACKET; BUMPER SIDE
(B) THA 		8-98184-669-0 01 1 1211-
202 BRACKET; BUMPER SIDE
(A) 		8-97613-636-0 01 1 0807-
202 BRACKET; BUMPER SIDE
(A) 		8-97613-637-0 01 1 0807-
202 BRACKET; BUMPER SIDE
(B) 		8-97613-640-1 01 1 0807-
202 BRACKET; BUMPER SIDE
(B) 		8-97613-641-1 01 1 0807-
229 GROMMET
D=7X7 L=7.5 THA 		5-09983-007-0 02 1 0807-
245 WASHER; PL,BRKT TO FRAME
ID=17 OD=30 		0-91610-516-0 02 1 0807-
282 FASTENER; BUMPER FILLER
D8X13.5 		1-09987-248-1 08 1 0807-1003
282 FASTENER; BUMPER FILLER
EXC. VIN MODEL YEAR 2010<VZA> D8X13.5 		1-09987-248-1 08 1 1004-1102
301 BOLT; HOOK TO FRAME
M16X70 		0-10861-670-0 02 1 0807-
309 BOLT; CLIP
M6X16 FLANGE THA 		0-28650-616-0 01 1 0807-
311 BOLT; BRKT
M10X30 		8-94324-205-0 07 1 0807-
311 BOLT; BRKT
M10X25 FLANGE THA 		0-28651-025-0 06 1 0807-
312 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 05 1 0807-
315 STAY; BUMPER 8-97613-645-1 01 1 0807-
321 COVER; BUMPER FRT SIDE
(B) 		8-97616-296-1 01 1 0807-
321 COVER; BUMPER FRT SIDE
(B) 		8-97616-297-1 01 1 0807-
321 COVER; BUMPER FRT SIDE
(A) 		8-97619-119-0 01 1 0807-1003
321 COVER; BUMPER FRT SIDE
EXC. VIN MODEL YEAR 2010<VZA> (A) 		8-97619-119-0 01 1 1004-1102
321 COVER; BUMPER FRT SIDE
(A) 		8-97619-120-0 01 1 0807-1003
321 COVER; BUMPER FRT SIDE
EXC. VIN MODEL YEAR 2010<VZA> (A) 		8-97619-120-0 01 1 1004-1102
322 SCREW; COVER FIX
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0807-
615 BRACKET; BUMPER CENTER
THA 		8-98184-611-0 01 1 1211-
615 BRACKET; BUMPER CENTER 8-97613-643-1 01 1 0807-
633 CLIP; BUMPER
ID=16 H=24 L=20 		0-95207-315-0 01 1 0807-
671 BRACKET; STAY 8-97620-889-0 01 1 0807-
672 STUD; STEP
M6X20 		8-97611-666-0 04 1 0807-
682 BEZEL; BUMPER 8-97611-530-2 01 1 0807-
682 BEZEL; BUMPER 8-97611-531-2 01 1 0807-
683 CLIP; BEZEL,BUMPER 8-98084-293-0 08 1 0807-
