3-26 — TRAILER CONTROL (#129447) — 33 parça

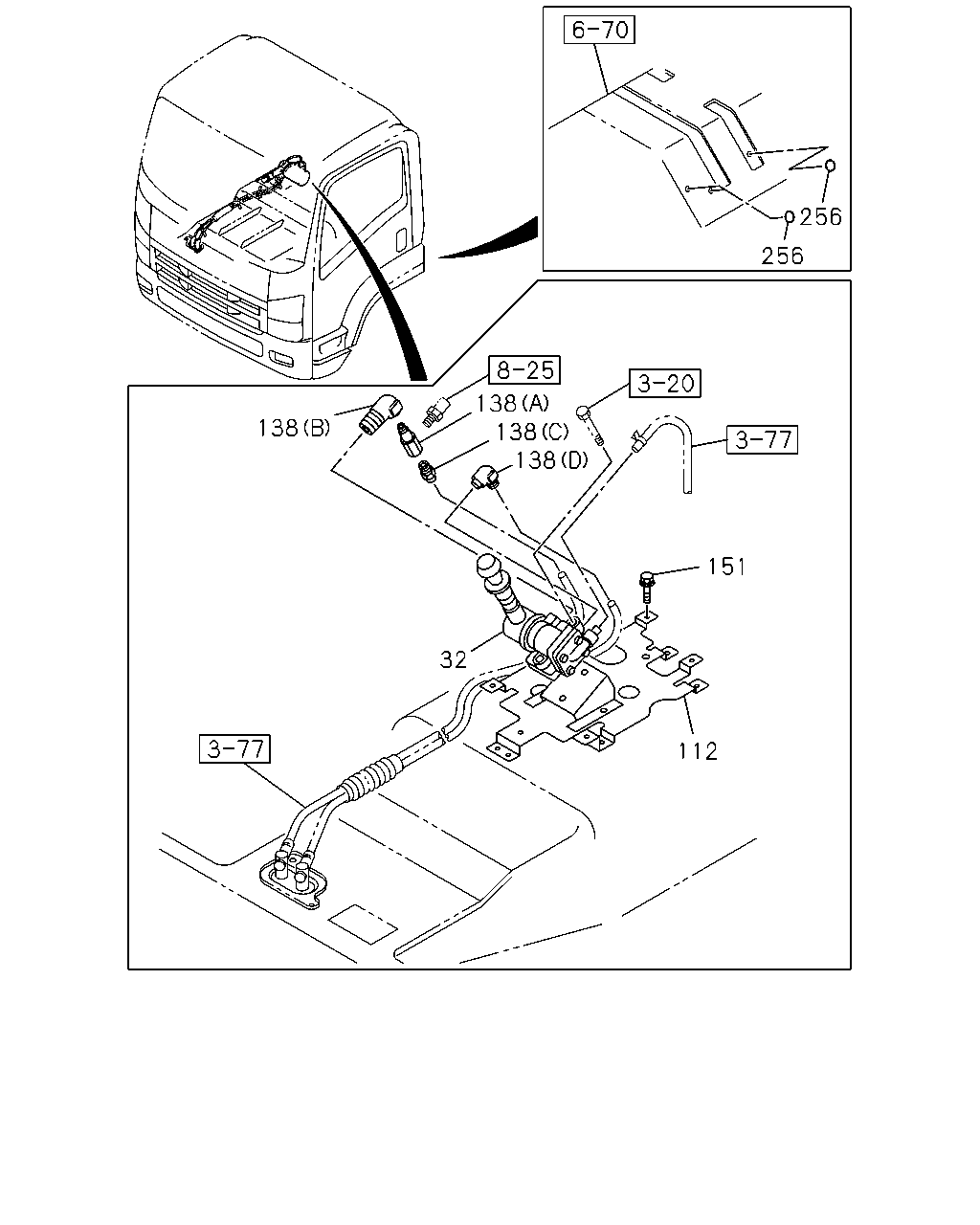

256 256 151 138 138 138 112 32 138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	VALVE; BRK,HAND CONT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48460-306-0	01	1	1403-
112	BRACKET; CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-73908-054-7	01	1	1403-
138	CONNECTOR; DELIVERY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT1/4X3 3WAY	1-09660-335-1	01	1	1403-
138	CONNECTOR; DELIVERY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1403-
138	CONNECTOR; DELIVERY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1403-
138	CONNECTOR; DELIVERY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1403-
151	BOLT; VLV BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X16	0-52000-616-0	04	1	1403-
256	SEAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK	1-76798-019-0	08	1	1403-

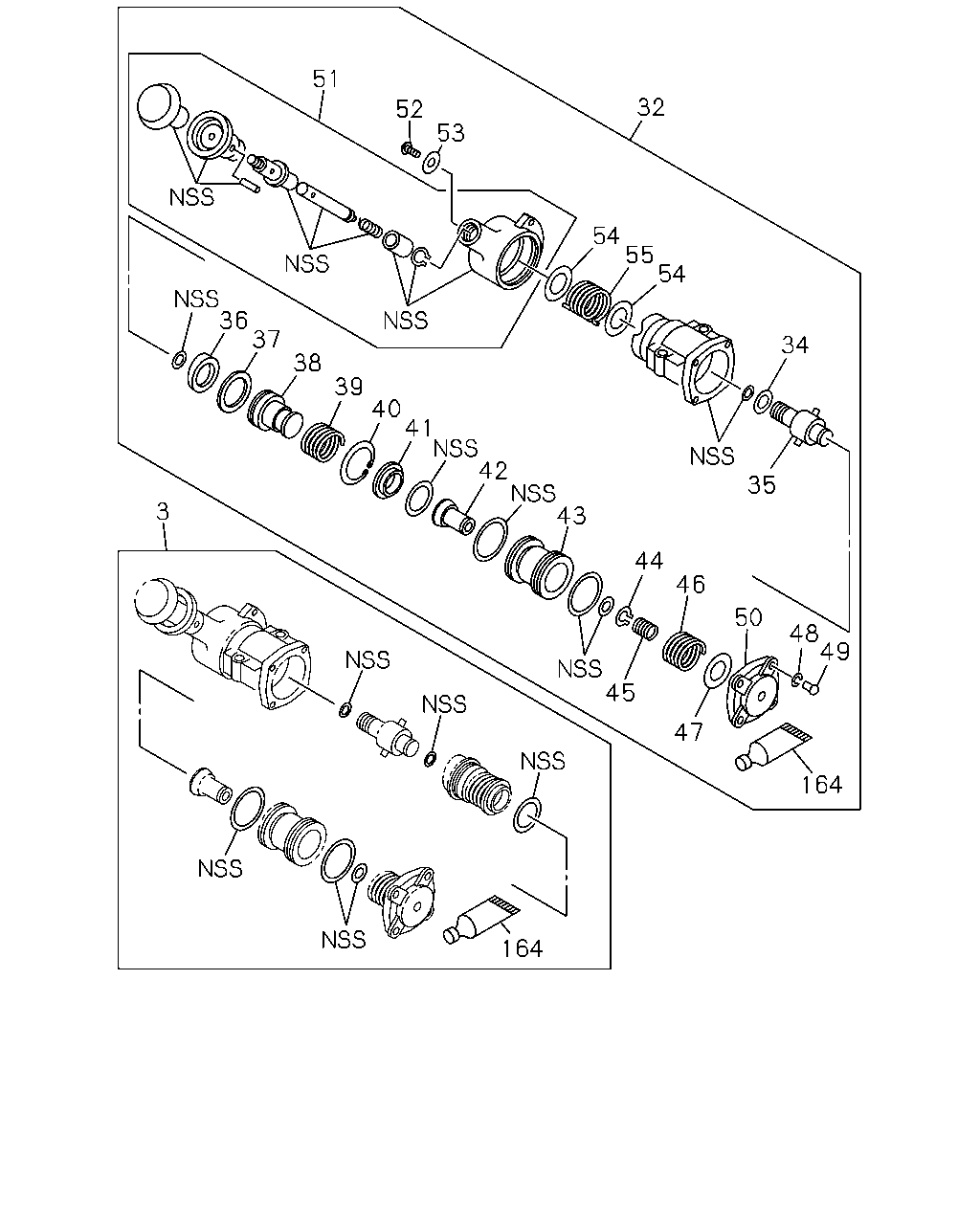

32 53 52 51 54 55 54 34 35 46 36 37 38 39 40 41 42 43 44 50 48 49 164 47 45 164 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	REPAIR KIT; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) W/GREASE	1-48469-096-0	01	1	1403-
32	VALVE; BRK,HAND CONT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48460-306-0	01	1	1403-
34	SHIM; CAM HOLDER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-055-0	AR	1	1403-
35	HOLDER; CAM REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-054-0	01	1	1403-
36	RING; CAM REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-056-0	01	1	1403-
37	GUIDE; CAM RING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-058-0	01	1	1403-
38	SEAT; EXH VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-057-0	01	1	1403-
39	SPRING; RETURN,CAM RING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-063-0	01	1	1403-
40	RING; SNAP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-067-0	01	1	1403-
41	SEAT; FEED VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-066-0	01	1	1403-
42	VALVE; FEED REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-065-0	01	1	1403-
43	PISTON; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-064-0	01	1	1403-
44	RING; SNAP,FEED VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-068-0	02	1	1403-
45	SPRING; FEED VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-070-0	01	1	1403-
46	SPRING; MAIN,PISTON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-089-0	01	1	1403-
47	SHIM; MAIN SPRING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-072-0	AR	1	1403-
48	WASHER; COVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-091-0	04	1	1403-
49	SCREW; COVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-092-0	04	1	1403-
50	COVER; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-090-0	01	1	1403-
51	HANDLE ASM; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-122-0	01	1	1403-
52	SCREW; HANDLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-062-0	01	1	1403-
53	WASHER; HANDLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-061-0	01	1	1403-
54	SEAT; SPRING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-082-0	02	1	1403-
55	SPRING; RETURN,HANDLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-059-0	01	1	1403-
164	GREASE; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-084-0	01	1	1403-
