Sayfa 3-22 - Isuzu EPC

3-22 — AIR CONTROL PARTS (#129446) — 133 parça

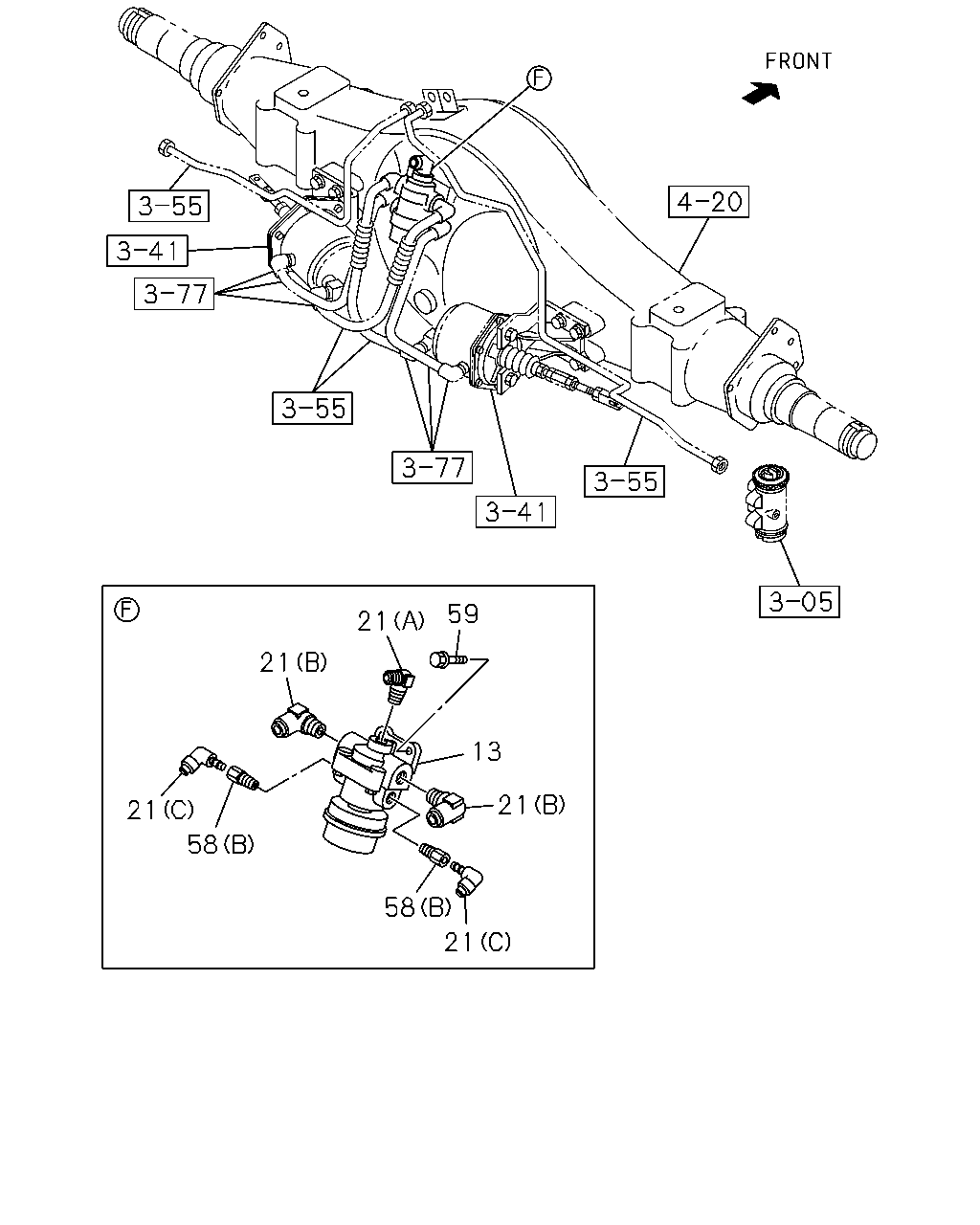

21 59 13 21 21 58 58 21 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	VALVE ASM; QUICK RELEASE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48410-783-0	01	1	1403-
21	CONNECTOR; QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1403-
21	CONNECTOR; QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1403-
21	CONNECTOR; QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN4 & DIN6 SWIVEL CONNECTOR	1-09661-816-0	02	1	1403-
58	ADAPTER ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (D)	1-09656-704-0	01	1	1403-
58	ADAPTER ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (E) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1403-
58	ADAPTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (E) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1403-
58	ADAPTER H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (C)	8-98035-011-0	01	1	1403-
58	ADAPTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN7 & DIN9 ADAPTOR	1-09661-815-0	02	1	1403-
58	ADAPTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1403-
58	ADAPTER ANTI LOCK BRAKE(JE5) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1403-
58	ADAPTER ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1403-
58	ADAPTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) (F) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1403-
58	ADAPTER ANTI LOCK BRAKE(JE5) EXC. THROTTLE CONTROL SYSTEM(6XH) (F) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1403-
59	BOLT; RELEASE VALVE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28050-820-0	02	1	1403-

189 192 202 203 190 205 201 197 200 198 196 199 200 197 199 196 201 203 205 198 204 201 195 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
106	VALVE; HSA H.S.A SYSTEM<6EP> EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH)	1-46362-123-1	01	1	1403-
106	VALVE; HSA ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP>	1-46362-123-1	01	1	1403-
189	VALVE ASM; SOLENOID,HSA VLV H.S.A SYSTEM<6EP> EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH)	1-46366-247-0	01	1	1403-
189	VALVE ASM; SOLENOID,HSA VLV ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP>	1-46366-247-0	01	1	1403-
190	BODY; SOLENOID VLV,HSA VLV H.S.A SYSTEM<6EP> EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH)	1-46366-234-0	01	1	1403-
190	BODY; SOLENOID VLV,HSA VLV ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP>	1-46366-234-0	01	1	1403-
192	SPRING; SOLENOID VLV,HSA VLV H.S.A SYSTEM<6EP> EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH)	1-46366-181-0	01	1	1403-
192	SPRING; SOLENOID VLV,HSA VLV ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP>	1-46366-181-0	01	1	1403-
195	SCREW; SOLENOID VLV,HSA VLV H.S.A SYSTEM<6EP> EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH)	1-46366-191-0	04	1	1403-
195	SCREW; SOLENOID VLV,HSA VLV ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP>	1-46366-191-0	04	1	1403-
196	PISTON; HSA VLV H.S.A SYSTEM<6EP> EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH)	1-46366-232-0	02	1	1403-
196	PISTON; HSA VLV ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP>	1-46366-232-0	02	1	1403-
197	SPRING; INNER,HSA VLV H.S.A SYSTEM<6EP> EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH)	1-46366-161-0	02	1	1403-
197	SPRING; INNER,HSA VLV ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP>	1-46366-161-0	02	1	1403-
198	PIN; STRAIGHT,HSA VLV H.S.A SYSTEM<6EP> EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH)	1-46366-122-0	02	1	1403-
198	PIN; STRAIGHT,HSA VLV ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP>	1-46366-122-0	02	1	1403-
199	RETAINER; HSA VLV H.S.A SYSTEM<6EP> EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH)	1-46366-121-0	02	1	1403-
199	RETAINER; HSA VLV ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP>	1-46366-121-0	02	1	1403-
200	SPRING; OUTER,HSA VLV H.S.A SYSTEM<6EP> EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH)	1-46366-120-0	02	1	1403-
200	SPRING; OUTER,HSA VLV ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP>	1-46366-120-0	02	1	1403-
201	COVER; HSA VLV H.S.A SYSTEM<6EP> EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) (A)	1-46366-118-1	02	1	1403-
201	COVER; HSA VLV ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> (A)	1-46366-118-1	02	1	1403-
201	COVER; HSA VLV H.S.A SYSTEM<6EP> EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) (B)	1-46366-241-0	01	1	1403-
201	COVER; HSA VLV ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> (B)	1-46366-241-0	01	1	1403-
202	FILTER; HSA VLV H.S.A SYSTEM<6EP> EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH)	1-46366-117-1	02	1	1403-
202	FILTER; HSA VLV ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP>	1-46366-117-1	02	1	1403-
203	SCREW; HSA VLV H.S.A SYSTEM<6EP> EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH)	1-46366-116-1	06	1	1403-
203	SCREW; HSA VLV ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP>	1-46366-116-1	06	1	1403-
204	PIPE ASM; HSA VLV H.S.A SYSTEM<6EP> EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH)	1-46366-194-0	01	1	1403-
204	PIPE ASM; HSA VLV ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP>	1-46366-194-0	01	1	1403-
205	BRACKET; HSA VLV H.S.A SYSTEM<6EP> EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) (A)	1-46366-149-0	01	1	1403-
205	BRACKET; HSA VLV ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> (A)	1-46366-149-0	01	1	1403-
205	BRACKET; HSA VLV H.S.A SYSTEM<6EP> EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) (B)	1-46366-150-0	01	1	1403-
205	BRACKET; HSA VLV ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> (B)	1-46366-150-0	01	1	1403-

259

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	259	REPAIR KIT; VALVE ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) W/GREASE	1-85576-381-0	01	1	1403-

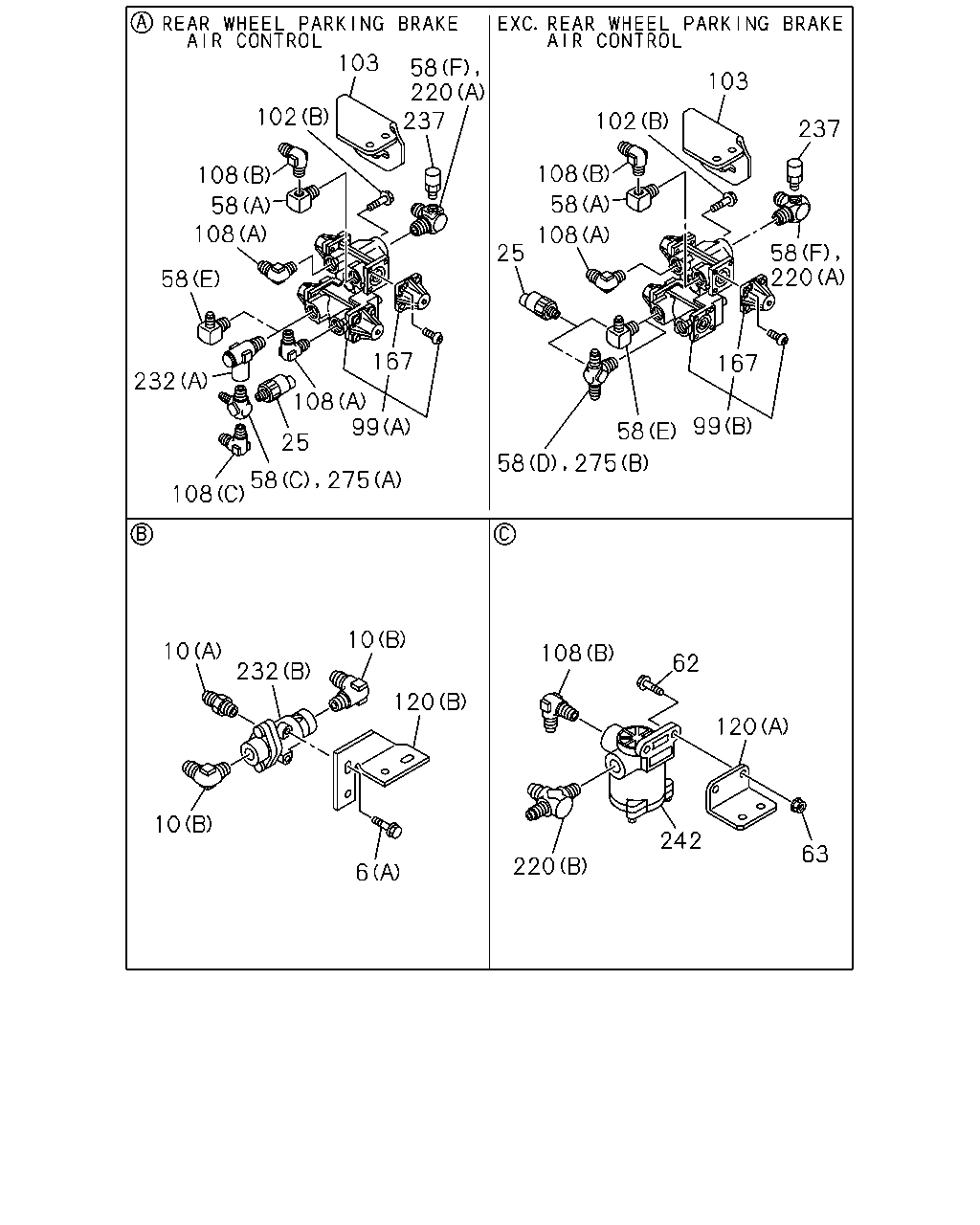

63 120 62 108 220 242 120 10 6 232 10 10 99 275 58 25 108 167 108 58 232 108 58 108 102 103 237 58 220 108 102 103 58 237 58 108 25 220 99 167 58 275 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	BOLT; VLV ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) M8X16 FLANGE	0-28050-816-0	02	1	1403-
6	BOLT; VLV ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (B) M8X25 FLANGE	0-28650-825-0	02	1	1403-
10	CONNECTOR ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	1403-
10	CONNECTOR ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1403-
25	SWITCH; PRESSURE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) STAMP 5.5	8-97609-249-0	01	1	1403-
25	SWITCH; PRESSURE ANTI LOCK BRAKE(JE5) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) STAMP 5.5	8-97609-249-0	01	1	1403-
25	SWITCH; PRESSURE ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> STAMP 5.5	8-97609-249-0	01	1	1403-
58	ADAPTER ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (D)	1-09656-704-0	01	1	1403-
58	ADAPTER ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (E) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1403-
58	ADAPTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (E) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1403-
58	ADAPTER H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (C)	8-98035-011-0	01	1	1403-
58	ADAPTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN7 & DIN9 ADAPTOR	1-09661-815-0	02	1	1403-
58	ADAPTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1403-
58	ADAPTER ANTI LOCK BRAKE(JE5) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1403-
58	ADAPTER ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1403-
58	ADAPTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) (F) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1403-
58	ADAPTER ANTI LOCK BRAKE(JE5) EXC. THROTTLE CONTROL SYSTEM(6XH) (F) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1403-
62	BOLT; BRKT FIX ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) M8X30 FLANGE	0-28650-830-0	02	1	1403-
63	NUT; BRKT FIX ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) M8 FLANGE	0-91180-108-0	02	1	1403-
99	VALVE; PROTECTION ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A)	1-48110-288-3	01	1	1403-
99	VALVE; PROTECTION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) (A)	1-48110-288-3	01	1	1403-
99	VALVE; PROTECTION ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48110-288-3	01	1	1403-
99	VALVE; PROTECTION ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (B)	1-48110-287-3	01	1	1403-
99	VALVE; PROTECTION ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48110-287-3	01	1	1403-
102	BOLT; PROTECTION VALVE ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) M8X20 FLANGE	0-28650-820-0	02	1	1403-
102	BOLT; PROTECTION VALVE ANTI LOCK BRAKE(JE5) EXC. THROTTLE CONTROL SYSTEM(6XH) (A) M8X20 FLANGE	0-28650-820-0	02	1	1403-
102	BOLT; PROTECTION VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) (A) M8X20 FLANGE	0-28650-820-0	02	1	1403-
102	BOLT; PROTECTION VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) (B) M8X16 FLANGE	0-28050-816-0	02	1	1403-
102	BOLT; PROTECTION VALVE ANTI LOCK BRAKE(JE5) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (B) M8X16 FLANGE	0-28050-816-0	02	1	1403-
102	BOLT; PROTECTION VALVE ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> (B) M8X16 FLANGE	0-28050-816-0	02	1	1403-
103	BRACKET; PROTECTION VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH)	8-98221-293-0	01	1	1403-
103	BRACKET; PROTECTION VALVE ANTI LOCK BRAKE(JE5) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH)	8-98221-293-0	01	1	1403-
103	BRACKET; PROTECTION VALVE ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP>	8-98221-293-0	01	1	1403-
108	CONNECTOR; ELBOW ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW	0-92134-310-0	02	1	1403-
108	CONNECTOR; ELBOW ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	1403-
108	CONNECTOR; ELBOW ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	1403-
108	CONNECTOR; ELBOW ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	1403-
108	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	1403-
108	CONNECTOR; ELBOW ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1403-
108	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1403-
108	CONNECTOR; ELBOW ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1403-
108	CONNECTOR; ELBOW ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1403-
108	CONNECTOR; ELBOW ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1403-
108	CONNECTOR; ELBOW H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1403-
120	BRACKET; VLV ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A)	1-48316-012-0	01	1	1403-
120	BRACKET; VLV ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (B)	8-98050-131-0	01	1	1403-
167	COVER; VALVE ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH)	1-48119-625-0	04	1	1403-
167	COVER; VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH)	1-48119-625-0	04	1	1403-
167	COVER; VALVE ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48119-625-0	04	1	1403-
167	COVER; VALVE ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH)	1-48119-625-0	03	1	1403-
167	COVER; VALVE ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48119-625-0	03	1	1403-
220	CONNECTOR; 3WAY ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (B) PT1/4 & M12 & M16 3WAY	1-09656-331-1	01	1	1403-
220	CONNECTOR; 3WAY ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1403-
232	VALVE; CHECK ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (B)	1-48410-531-1	01	1	1403-
232	VALVE; CHECK ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	1403-
232	VALVE; CHECK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) (A) DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	1403-
232	VALVE; CHECK ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	1403-
237	VALVE; SAFETY	1-48320-012-2	01	1	1403-
242	VALVE; REGULATION ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH)	1-48410-723-0	01	1	1403-
275	CONNECTOR; 4WAY ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) (A)	8-98035-011-0	01	1	1403-
275	CONNECTOR; 4WAY ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98050-414-0	01	1	1403-

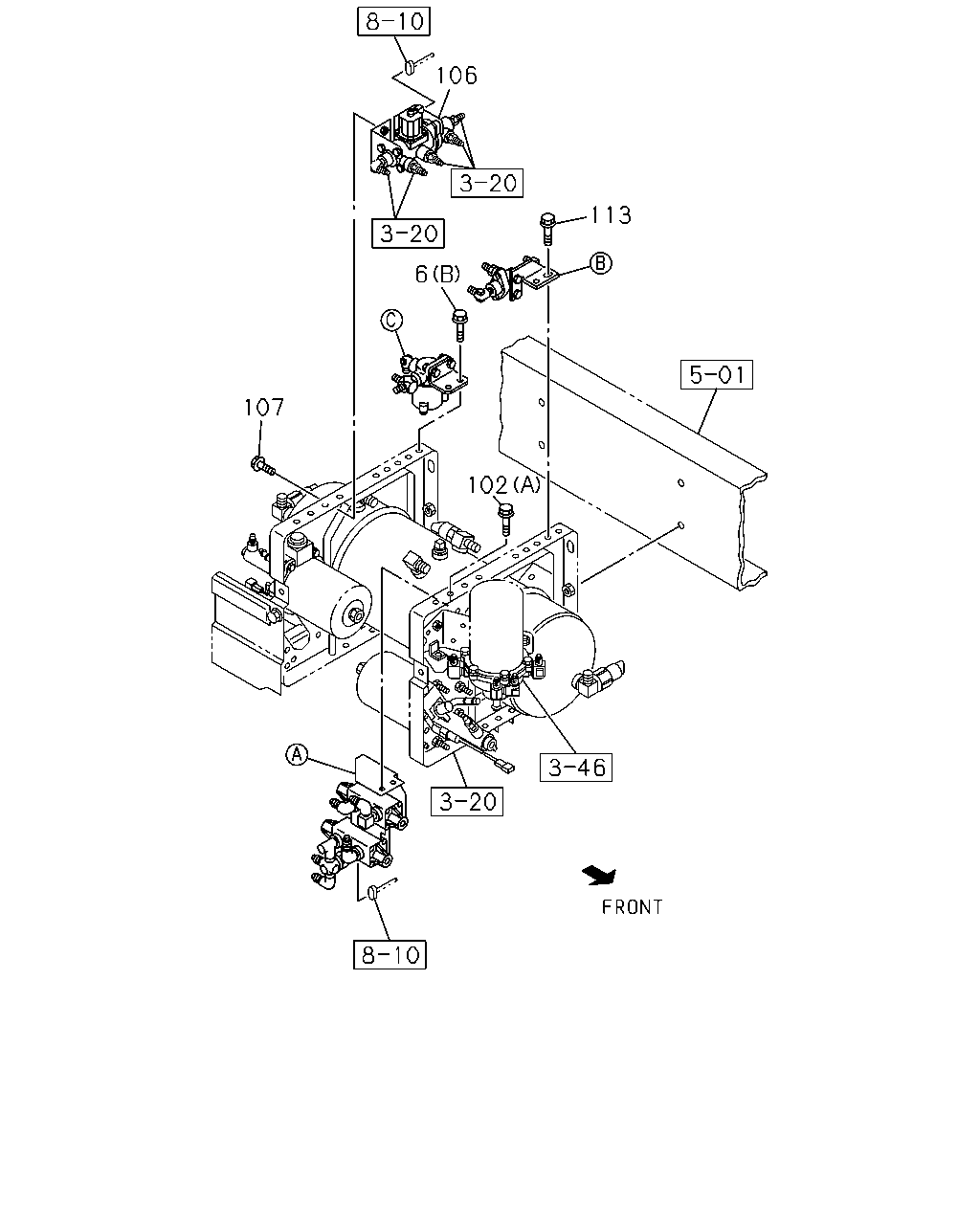

106 113 102 107 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	BOLT; VLV ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) M8X16 FLANGE	0-28050-816-0	02	1	1403-
6	BOLT; VLV ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (B) M8X25 FLANGE	0-28650-825-0	02	1	1403-
102	BOLT; PROTECTION VALVE ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) M8X20 FLANGE	0-28650-820-0	02	1	1403-
102	BOLT; PROTECTION VALVE ANTI LOCK BRAKE(JE5) EXC. THROTTLE CONTROL SYSTEM(6XH) (A) M8X20 FLANGE	0-28650-820-0	02	1	1403-
102	BOLT; PROTECTION VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) (A) M8X20 FLANGE	0-28650-820-0	02	1	1403-
102	BOLT; PROTECTION VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) (B) M8X16 FLANGE	0-28050-816-0	02	1	1403-
102	BOLT; PROTECTION VALVE ANTI LOCK BRAKE(JE5) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (B) M8X16 FLANGE	0-28050-816-0	02	1	1403-
102	BOLT; PROTECTION VALVE ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> (B) M8X16 FLANGE	0-28050-816-0	02	1	1403-
106	VALVE; HSA H.S.A SYSTEM<6EP> EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH)	1-46362-123-1	01	1	1403-
106	VALVE; HSA ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP>	1-46362-123-1	01	1	1403-
107	BOLT; VLV H.S.A SYSTEM<6EP> EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH) M8X20 FLANGE	0-28650-820-0	03	1	1403-
107	BOLT; VLV ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> M8X20 FLANGE	0-28650-820-0	03	1	1403-
113	BOLT; VLV ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) M8X25 FLANGE	0-28650-825-0	02	1	1403-

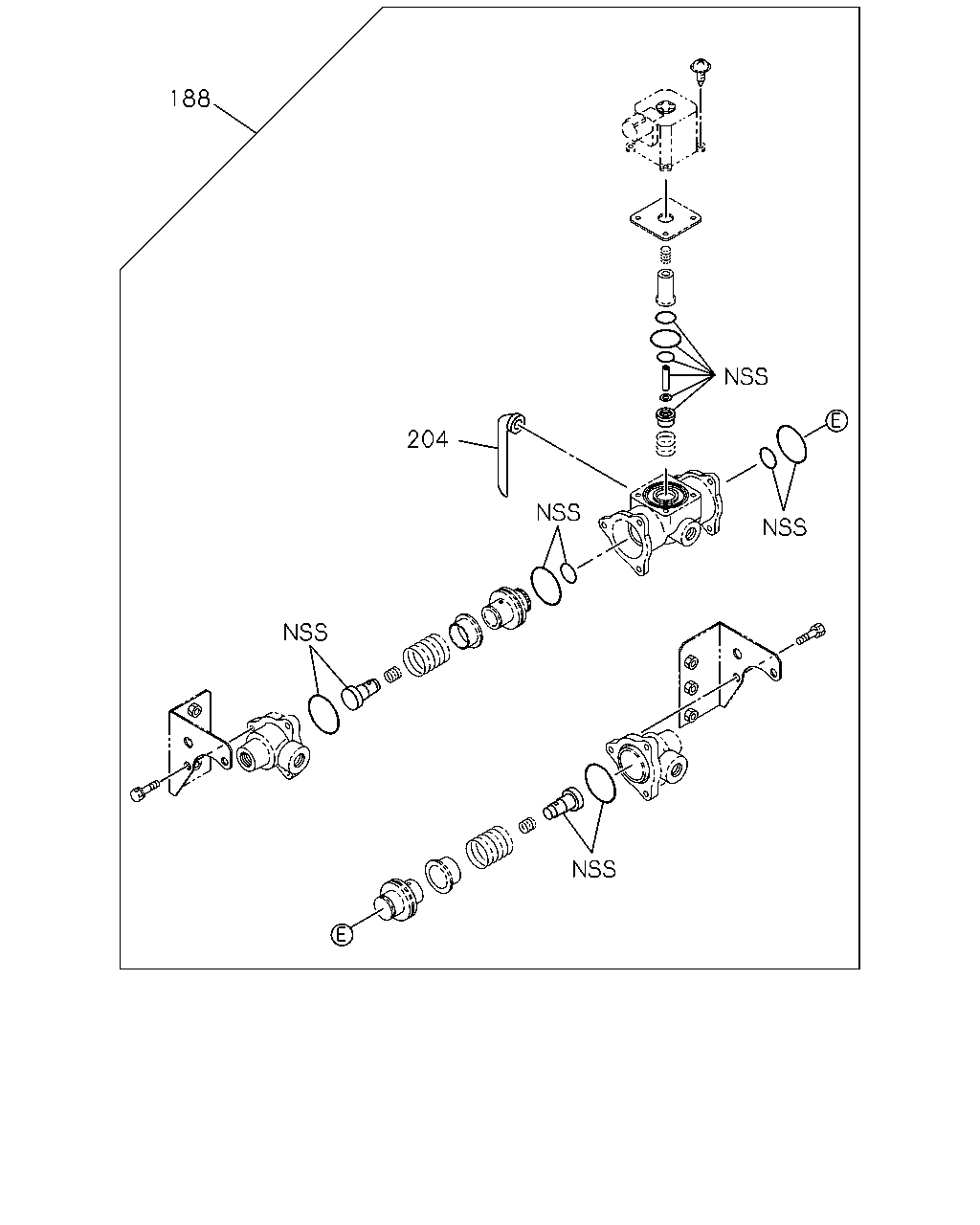

204 188

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
188	REPAIR KIT; HSA VLV H.S.A SYSTEM<6EP> EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH)	1-85576-304-1	01	1	1403-
188	REPAIR KIT; HSA VLV ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP>	1-85576-304-1	01	1	1403-
204	PIPE ASM; HSA VLV H.S.A SYSTEM<6EP> EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH)	1-46366-194-0	01	1	1403-
204	PIPE ASM; HSA VLV ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP>	1-46366-194-0	01	1	1403-

241

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
241	REPAIR KIT; PROTECTION VALVE ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH)	1-85576-451-2	01	1	1403-
241	REPAIR KIT; PROTECTION VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),THROTTLE CONTROL SYSTEM(6XH)	1-85576-451-2	01	1	1403-
241	REPAIR KIT; PROTECTION VALVE ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-85576-451-2	01	1	1403-
241	REPAIR KIT; PROTECTION VALVE ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH)	1-85576-452-2	01	1	1403-
241	REPAIR KIT; PROTECTION VALVE ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-85576-452-2	01	1	1403-
